E250

Semi-electric work positioner stacker 250 kg

E250

Semi-electric work positioner stacker 250 kg

This robust and user-friendly semi-electric work positioner stacker has many accessories available in option to cater all sorts of material handling applications.

more information

	Designation
	E250 Semi-electric work positioner stacker 250 kg Weight : 101 kg Bar code : 3700664827872 Catalogue P.162
	E250-AXE Reel shaft for E250 semi-electric work positioner stacker Weight : 3 kg
	E250-DOUBLEAXE Double reel shaft for E250 semi-electric work positioner stacker Weight : 7.4 kg
	E250-PB Ball transfer platform for E250 semi-electric work positioner stacker Weight : 18 kg
	E250-PINCE Bin holder for E250 semi-electric work positioner stacker Weight : 8.5 kg
	E250-POTENCE Jib with hook for E250 semi-electric work positioner stacker Weight : 3.7 kg
	E250-PR Roller platform for E250 semi-electric work positioner stacker Weight : 19.2 kg
	E250-PV V-shaped reel holder for E250 semi-electric work positioner stacker Weight : 10.3 kg
	E250-ROTATOR Rotator for E250 semi-electric work positioner stacker Weight : 10.4 kg

DESCRIPTION

TECHNICAL CHARACTERISTICS

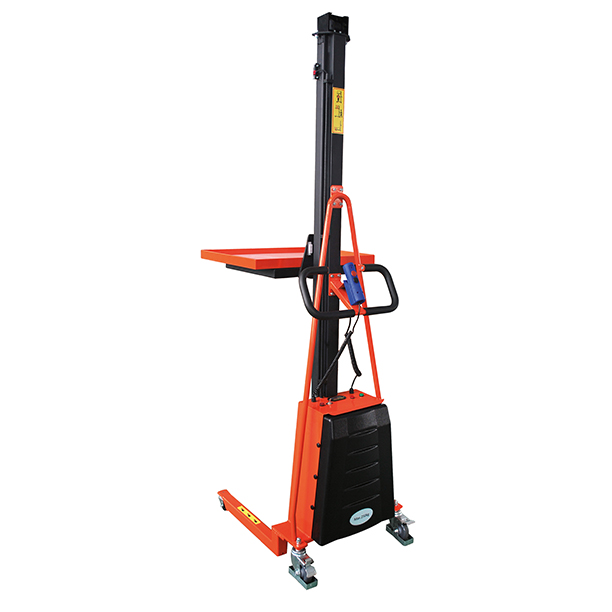

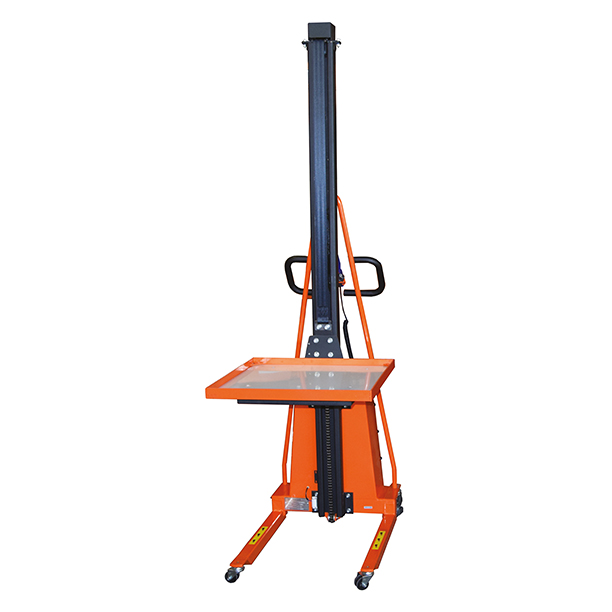

E250, semi-electric work positioner stacker 250 kg Stockman

The E250 is a semi-electric work positioner stacker designed to lift, move and present loads up to 250 kg. Its electric lifting system, with a lifting height up to 1800 mm, makes it easier to bring parts, bins, reels or containers to the right working height in workshops, storage areas, preparation zones, packing stations and light production environments.

Compact, easy to handle and simple to integrate into an existing workflow, it helps bring the load closer to the operator, workbench, machine or inspection area. Its removable platform and dedicated E250 accessories allow the stacker to be adapted to different types of non-palletised loads.

Bringing loads to the right height at the workstation

The E250 is suitable for professionals who need to handle compact loads, raise them to a practical working height and reduce manual handling between operations. It is designed for short handling cycles in workshops, storage areas or internal logistics zones.

It can be used to supply a packing station, present a load in front of an operator, position a bin at picking height or handle a reel with the right accessory. This work positioning function is particularly useful when loads need to be handled regularly without using a larger industrial stacker.

Electric lifting for repeated handling operations

The electric lift assists the upward and downward movements. The operator can position the load at the required working height with less effort than with a manual lift. The E250 keeps a compact footprint, with overall dimensions of 870 x 600 mm, making it easy to use in aisles, assembly areas and workstations where space is limited.

The stacker is also equipped with electronic overload protection, a safety contactor in the lower position, an integrated charger and a removable platform. These features make it practical for light handling, preparation, inspection and internal transfer operations.

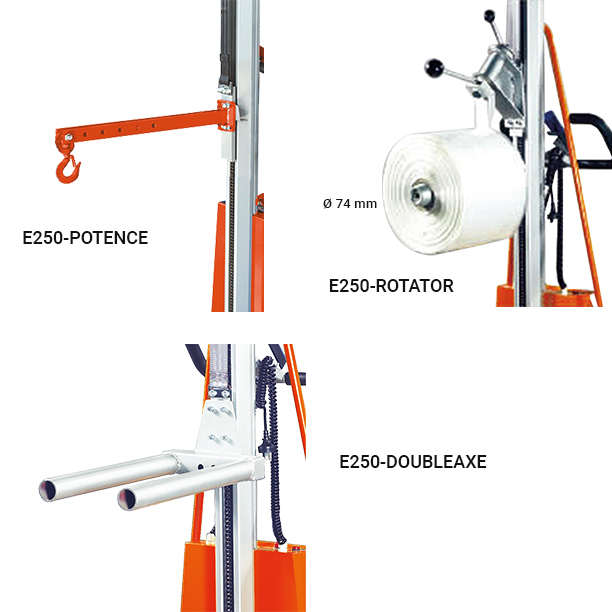

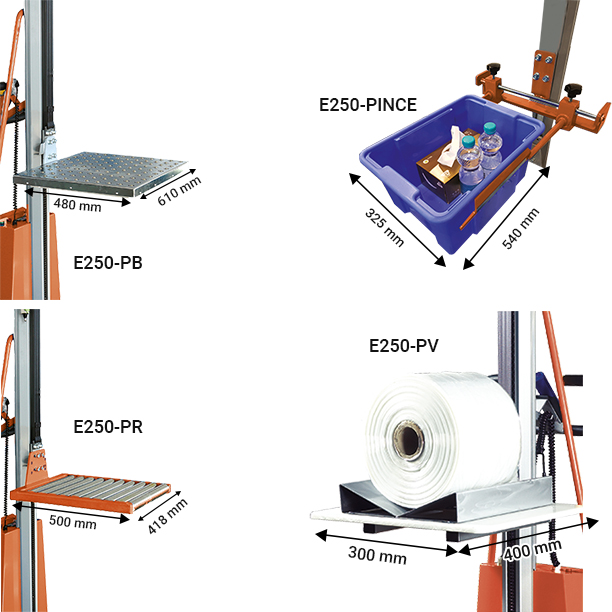

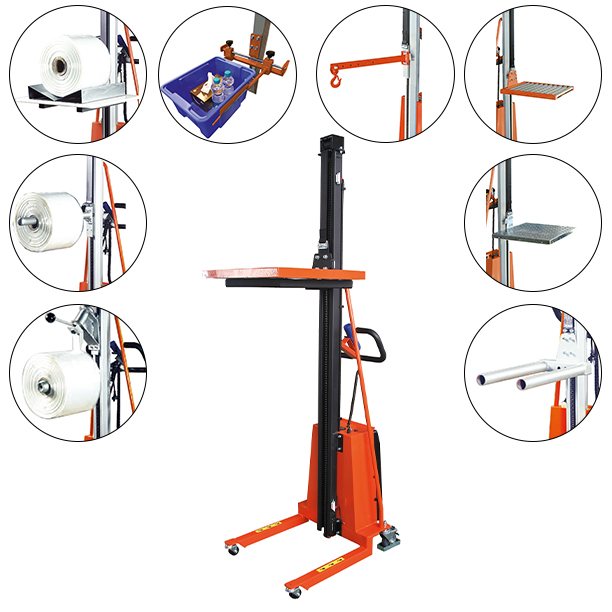

E250 accessories for specific load handling needs

The E250 can be fitted with dedicated accessories according to the type of load to be handled. These accessories allow the same work positioner to be used for different applications: bins, reels, cylindrical parts, loads to be transferred or items to be positioned.

Available accessories for the E250 stacker:
E250-PR: roller platform
E250-PB: ball transfer platform
E250-PINCE: bin holder
E250-AXE: reel shaft
E250-PV: V-shaped platform
E250-ROTATOR: rotator
E250-DOUBLEAXE: double reel shaft
E250-POTENCE: jib with hook
Weighing system available as an option

The choice of accessory depends on the shape of the load, its centre of gravity, the handling direction, the required working height and the workstation layout.

Typical uses for the E250 semi-electric stacker

In a workshop or warehouse, the E250 helps organise handling tasks that require precision and close access to the workstation.

It can be used to:
present bins at picking height
supply a packing or conditioning station
position a part in front of a table or machine
move a compact load between two nearby areas
handle reels with a suitable E250 accessory
hold a load at a regular working height during an operation
support short transfers in light production areas
adapt one workstation to several load formats

A compact unit for restricted working areas

With its mobile base and compact dimensions, the E250 fits easily into environments where circulation space is limited. It can be used in a storage room, workshop, maintenance area, preparation line or inspection station.

It is especially suitable for sites looking for a 250 kg semi-electric stacker, a compact work positioner, a stacker for non-palletised loads or handling equipment with interchangeable accessories.

Key points to check before choosing the E250

The E250 should be selected according to the actual load, the required working height, the accessory used and the circulation environment. A cylindrical load, a bin or a part to be placed on a workstation will not require the same support.

The stability of the load, the floor condition, the aisle layout, the frequency of use and the available space around the workstation should also be considered. The E250 is designed for positioning and short-distance handling operations with a controlled load suited to the equipment.

Technical data for the E250
Type: semi-electric
Capacity: 250 kg
Overall dimensions L x W: 870 x 600 mm
Load centre: 200 mm
Lifting height: 1800 mm
Minimum / maximum height: 230 / 2210 mm
Platform dimensions L x W: 500 x 600 mm
Straddle leg length: 475 mm
Outer straddle leg width: 565 mm
Straddle leg ground clearance: 130 mm
Battery: 2 x 12 V / 20 Ah
Charger: integrated
Load rollers: Ø 50 mm
Wheels: Ø 100 mm
Weight: 101 kg
Lifting speed without load: 110 mm/s
Electronic overload protection
Safety contactor in lower position
Removable platform

Frequently asked questions about the E250 stacker

What load can the E250 stacker lift?
The E250 can lift up to 250 kg, provided the load, stability and operating conditions are suitable for the equipment.

Is the E250 suitable for workstation positioning?
Yes. Its electric lift up to 1800 mm allows loads to be positioned at a practical working height for preparation, assembly, inspection or packing operations.

Is the E250 platform removable?
Yes. The E250 is equipped with a removable platform, allowing dedicated accessories to be used for specific load types.

Which accessories are compatible with the E250?
Dedicated accessories include E250-PR, E250-PB, E250-PINCE, E250-AXE, E250-PV, E250-ROTATOR, E250-DOUBLEAXE and E250-POTENCE. A weighing system is also available as an option.

Where can this semi-electric stacker be used?
It can be used in workshops, storage areas, preparation zones, light production areas, maintenance areas, packing stations or internal logistics zones, provided the floor and workflow are suitable.

How should the right E250 accessory be selected?
The accessory should be chosen according to the load shape, handling method, working height, frequency of use and available space around the workstation.

Check the E250 against your loads and working environment

Your local STOCKMAN sales representative can help you check whether the E250 stacker is suitable for your loads, working heights, aisles, floor conditions and useful accessories such as E250-PINCE, E250-PR, E250-PV or E250-POTENCE. Find their contact details on our contact page: https://www.stockman.fr/fr/contact.aspx
