E250-PINCE

Bin holder for E250 semi-electric work positioner stacker

E250-PINCE

Bin holder for E250 semi-electric work positioner stacker

Bin holder for E250 stacker. Handling accessory for a semi-electric work positioner stacker, designed for B2B workstations and specific loads.

more information

	Designation
	E250-PINCE Bin holder for E250 semi-electric work positioner stacker Weight : 8.5 kg

DESCRIPTION

TECHNICAL CHARACTERISTICS

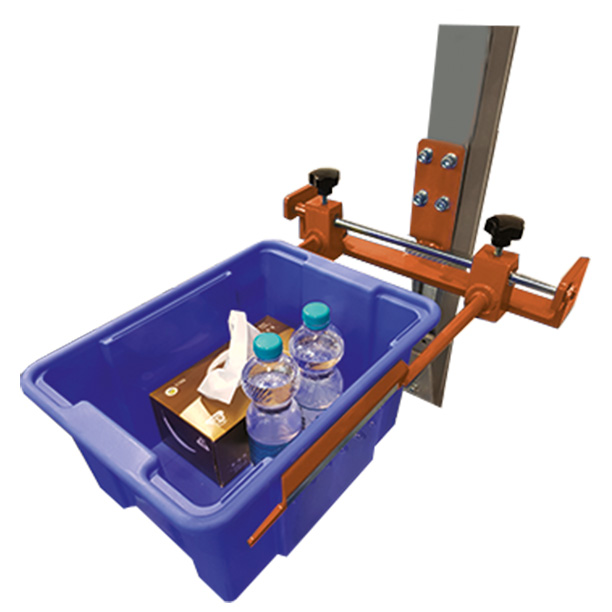

E250-PINCE, container holder for the E250 semi-electric work positioner

The E250-PINCE container holder equips the E250 semi-electric work positioner with a dedicated support for compatible bins and containers. It allows a container to be brought close to the preparation station, adjusted in height and kept in an accessible position during the task.

This configuration is intended for workshops, parts stores, picking areas and production lines that use containers to store, sort or distribute components. It adapts the positioner to a load that does not require a full platform.

Bring components to operator height

The holder presents the contents at a height suited to the task. It can be used to supply a line, prepare orders, sort parts or bring components close to a workbench.

Powered height adjustment is provided by the E250. The operator can therefore change the container position as the task progresses, within the operating limits of the equipment.

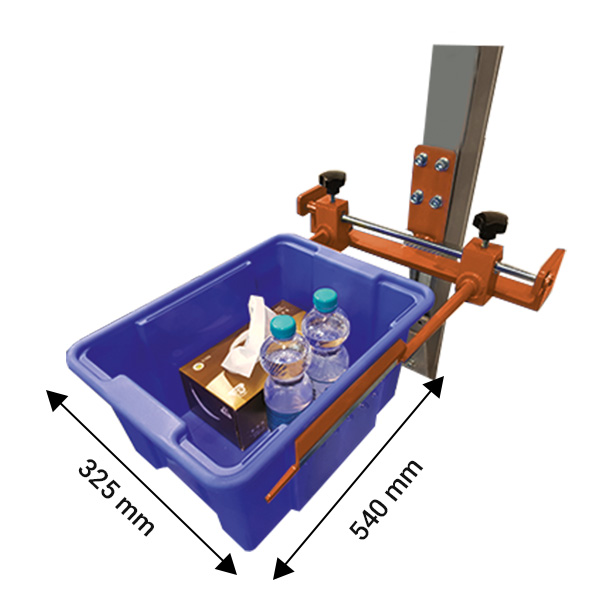

A 540 x 325 mm container support

The stated holder dimensions are 540 x 325 mm. The accessory weighs 8.5 kg. The container dimensions, rim shape and stability within the holder must be checked before use.

The E250-PINCE is designed for the E250 semi-electric work positioner. The maximum positioner capacity does not remove the need to check the container weight, its contents and the location of its centre of gravity.

Applications for small-parts flows
supplying an assembly station with components ;
presenting parts in a picking area ;
moving a container between the store and workshop ;
sorting products or consumables ;
holding a container at working height during inspection.

Check the container and its contents

The container must remain correctly seated in the holder. Its contents should be distributed evenly to avoid imbalance during lifting or movement.

Before use, check that the container is retained correctly, the holder is undamaged and the contents are stable. Items that could move or fall must be secured.

Common questions about the E250 container holder

Which container dimensions must be checked?
The reference holder size is 540 x 325 mm. The rim geometry and supporting method must also be checked.

Is a container supplied with the accessory?
The available information describes the container holder but does not state that a container is included.

Can the positioner be moved with a loaded container?
Movement is possible within the E250 operating rules, with a stable container, a controlled load and a clear travel path.

Is the E250-PINCE suitable for flexible containers?
Compatibility depends on the rigidity and shape of the container and must be confirmed before use.

Select a suitable container holder with STOCKMAN

To select a container compatible with the E250-PINCE and check travel conditions in your workshop or preparation area, contact your local STOCKMAN sales representative through our contact page.

Documentation

Data sheet

Bin holder for E250 semi-electric work positioner stacker

Bin holder for E250 semi-electric work positioner stacker

Documentation

See also...

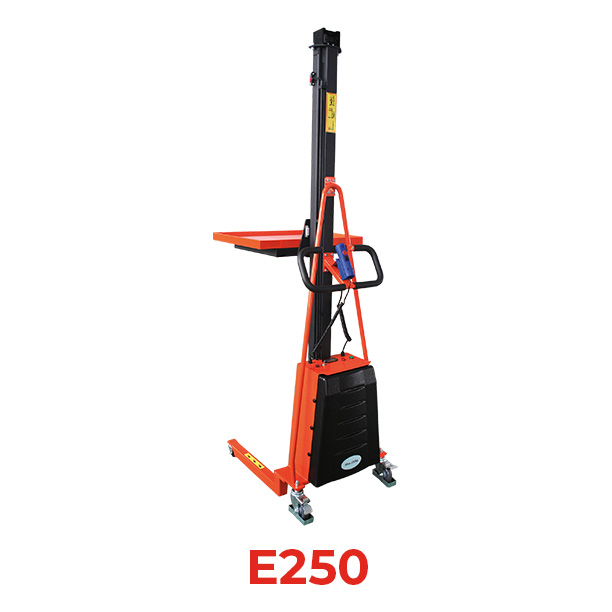

E250
