E250-PR

Roller platform for E250 semi-electric work positioner stacker

E250-PR

Roller platform for E250 semi-electric work positioner stacker

Roller platform for E250 stacker. Handling accessory for a semi-electric work positioner stacker, designed for B2B workstations and specific loads.

more information

	Designation
	E250-PR Roller platform for E250 semi-electric work positioner stacker Weight : 19.2 kg

DESCRIPTION

TECHNICAL CHARACTERISTICS

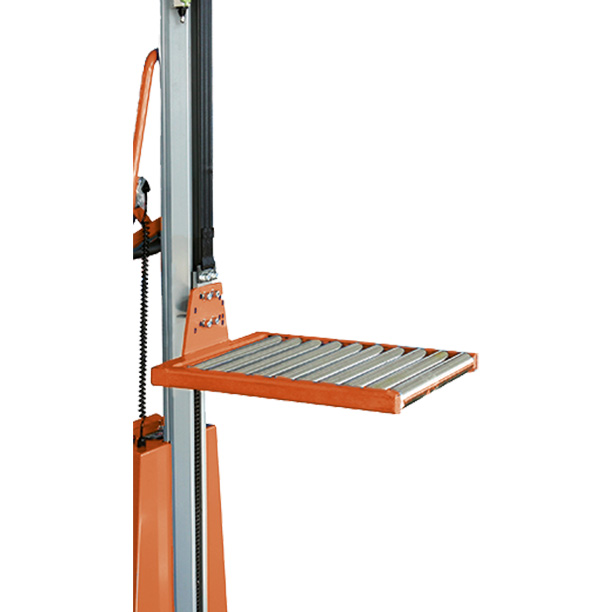

E250-PR, load roller platform for the E250 semi-electric work positioner

The E250-PR load roller platform converts the E250 semi-electric work positioner into a transfer support for loads with a flat, rigid base. The rollers make it easier to move a load between the positioner and equipment set at a similar height.

This accessory is suitable for stations connected to a conveyor, table, workbench or machine. It allows the load to be brought close, adjusted in height and then transferred in the roller direction without manually lifting it.

Create a mobile link between two items of equipment

The load roller platform can act as an interface between a storage area and a production station. Once the positioner is located and the height adjusted, the load can be pushed or pulled in the roller direction.

This setup is useful where the material flow does not justify a fixed conveyor over the full distance. The E250 remains available to serve several stations or different stages of the process.

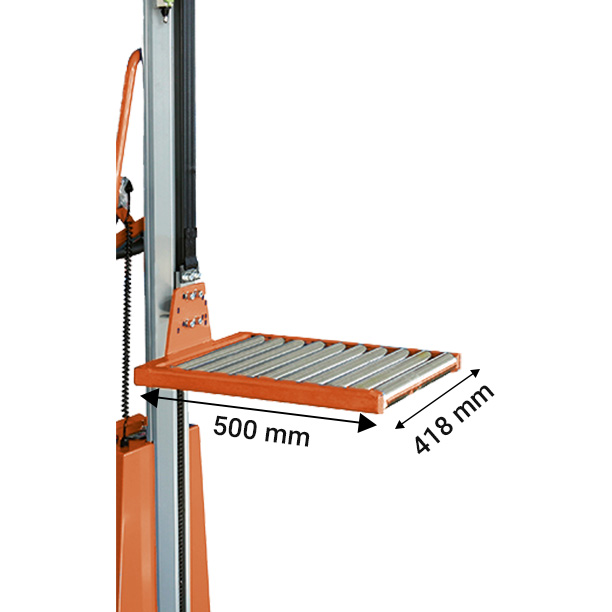

A 500 x 418 mm roller platform

The load roller platform measures 500 x 418 mm and weighs 19.2 kg. The underside of the load must provide regular support across several rollers.

The E250-PR is designed for the E250 semi-electric work positioner. Transfer height must be adjusted accurately to minimise the level difference between the platform and the receiving equipment.

Operations assisted by the rollers
supplying a conveyor or machine ;
receiving a carton or rigid container ;
transferring a load to a workbench ;
serving several packing stations ;
bringing a component close to an inspection area.

Keep the transfer under control

A load on rollers can move more easily than a load on a fixed platform. The positioner must be stationary and correctly aligned before transfer.

The rollers must remain clean and free to rotate. Also check their condition, load stability and the absence of an unsafe gap between the platform and receiving surface.

Common questions about the E250-PR

In which direction does the load move?
The load moves in the direction of the rollers.

What are the platform dimensions?
The load roller platform measures 500 x 418 mm.

Can a flexible bag be transferred on the rollers?
The accessory is mainly intended for loads with a flat and sufficiently rigid base.

Can the platform interface with a conveyor?
It can act as a mobile interface when the height, transfer direction and load stability are compatible.

Plan the load roller platform integration with STOCKMAN

To check alignment between the E250-PR and your conveyors, tables or machines, as well as the dimensions of the loads to be transferred, contact your local STOCKMAN sales representative through our contact page.

Documentation

Data sheet

Roller platform for E250 semi-electric work positioner stacker

Roller platform for E250 semi-electric work positioner stacker

Documentation

See also...

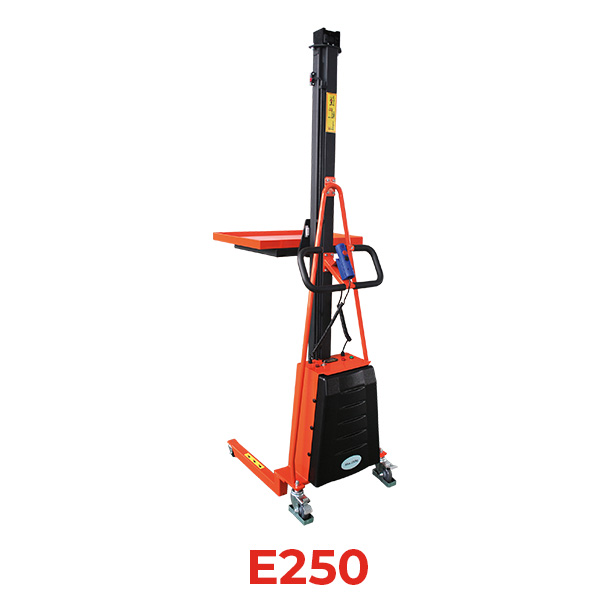

E250
