E250-PV

V-shaped reel holder for E250 semi-electric work positioner stacker

E250-PV

V-shaped reel holder for E250 semi-electric work positioner stacker

V-shaped reel holder for E250 stacker. Handling accessory for a semi-electric work positioner stacker, designed for B2B workstations and specific loads.

more information

	Designation
	E250-PV V-shaped reel holder for E250 semi-electric work positioner stacker Weight : 10.3 kg

DESCRIPTION

TECHNICAL CHARACTERISTICS

E250-PV, V-cradle reel support for the E250 semi-electric work positioner

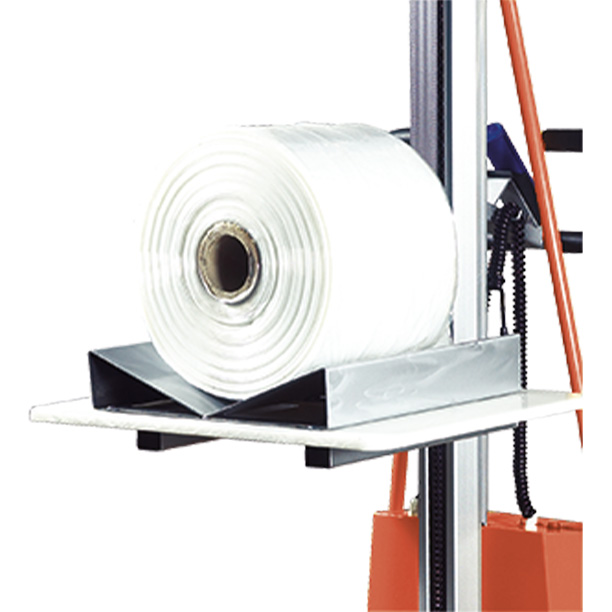

The E250-PV V-cradle platform is designed to support reels, rolls and cylindrical components on the E250 semi-electric work positioner. Its shape creates two supporting surfaces that help limit sideways movement when a round load is presented at the workstation.

This accessory is useful where handling through the central core is unsuitable or where the component must rest directly on its outer surface. It allows a cylindrical load to be brought close to a machine, workbench or inspection area.

Support a cylindrical load on two contact surfaces

A reel placed on a flat platform can roll when the positioner moves or the load is handled. The V-shaped profile provides a more suitable geometry and helps keep the component aligned with the support.

The height can then be adjusted electrically with the E250, presenting the load at a level suited to the operation.

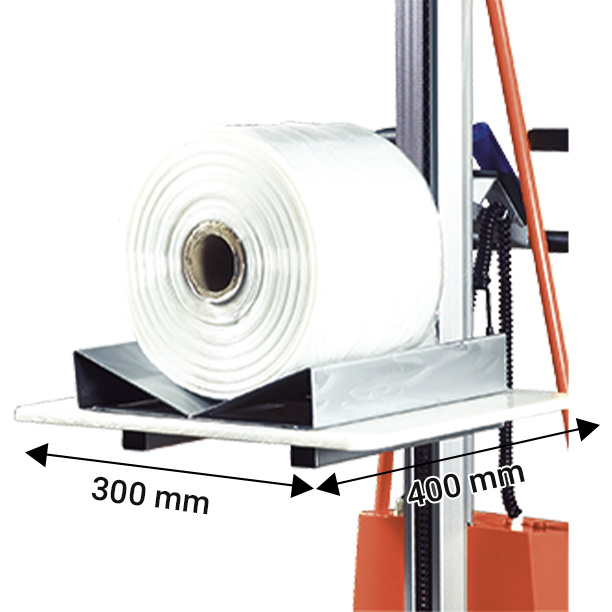

A 400 x 300 mm V-cradle

The V-cradle platform measures 400 x 300 mm and weighs 10.3 kg. The component diameter, length and weight must be checked against the support dimensions before use.

The accessory is designed for the E250 semi-electric work positioner. The available load capacity depends on the load mass, its position in the V and its centre of gravity.

Applications for reels and round components
approaching a reel without handling it through the core ;
presenting a roll in front of a machine ;
supporting a cylindrical component during inspection ;
moving a round component between nearby stations ;
raising a cylindrical load to workbench height.

Check contact with the support

The load must rest stably on both sides of the V. Its diameter must not result in insufficient contact or an excessively high position.

Before movement, check component alignment, absence of rolling and correct weight distribution. Travel slowly on a clean floor and keep the route clear.

Common questions about the V-cradle platform

Which loads can be placed on the E250-PV?
It is intended for reels, rolls and cylindrical components compatible with the support dimensions.

What are the V-cradle dimensions?
The support measures 400 x 300 mm.

Does the component need a central core?
No. The V-cradle supports the load on its outer surface.

Does the V profile secure every reel?
Stability depends on the load diameter, length, weight and position. These points must be checked before use.

Confirm load compatibility with STOCKMAN

Your local STOCKMAN sales representative can assess the E250-PV against the diameter and length of your reels or cylindrical components. Find the relevant details on our contact page.
