RT20G

Lithium-ion reach truck with 2000 kg capacity and up to 9500 mm lift height

RT20G

Lithium-ion reach truck with 2000 kg capacity and up to 9500 mm lift height

Lithium-ion 2000 kg reach truck for intensive narrow-aisle storage. The RT20G range offers lift heights from 4500 to 9500 mm for indoor warehouse pallet handling.

more information

	Designation
	RT20G4500 Lithium-ion reach truck with 2000 kg capacity and 4500 mm lift height Weight : 3716 kg
	RT20G5000 Lithium-ion reach truck with 2000 kg capacity and 5000 mm lift height Weight : 3761 kg
	RT20G5500 Lithium-ion reach truck with 2000 kg capacity and 5500 mm lift height Weight : 3806 kg
	RT20G6000 Lithium-ion reach truck with 2000 kg capacity and 6000 mm lift height Weight : 3851 kg
	RT20G6500 Lithium-ion reach truck with 2000 kg capacity and 6500 mm lift height Weight : 3896 kg
	RT20G7000 Lithium-ion reach truck with 2000 kg capacity and 7000 mm lift height Weight : 3941 kg Bar code : 3700664815985
	RT20G7500 Lithium-ion reach truck with 2000 kg capacity and 7500 mm lift height Weight : 3986 kg
	RT20G8000 Lithium-ion reach truck with 2000 kg capacity and 8000 mm lift height Weight : 4031 kg
	RT20G8500 Lithium-ion reach truck with 2000 kg capacity and 8500 mm lift height Weight : 4076 kg
	RT20G9000 Lithium-ion reach truck with 2000 kg capacity and 9000 mm lift height Weight : 4121 kg
	RT20G9500 Lithium-ion reach truck with 2000 kg capacity and 9500 mm lift height Weight : 4166 kg

DESCRIPTION

TECHNICAL CHARACTERISTICS

RT20G, Stockman reach truck

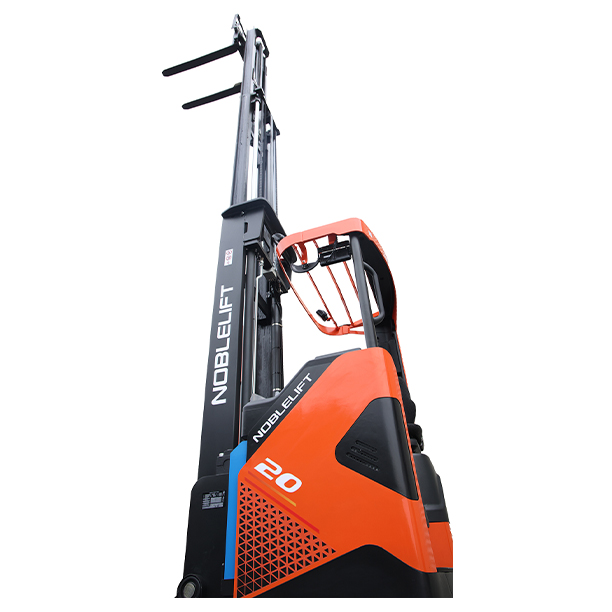

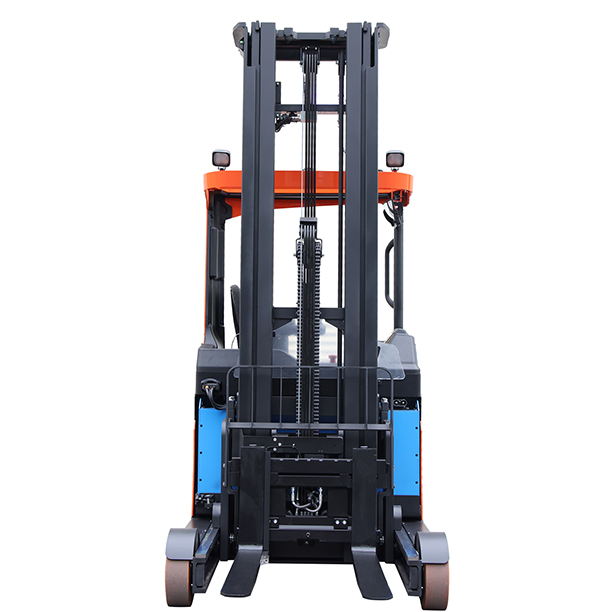

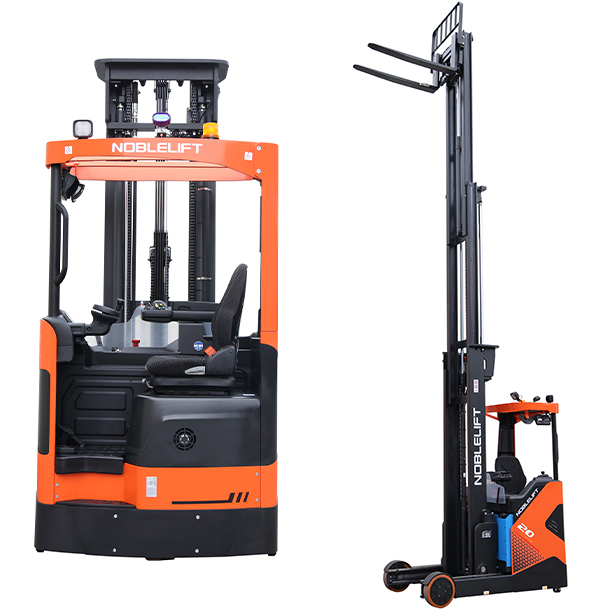

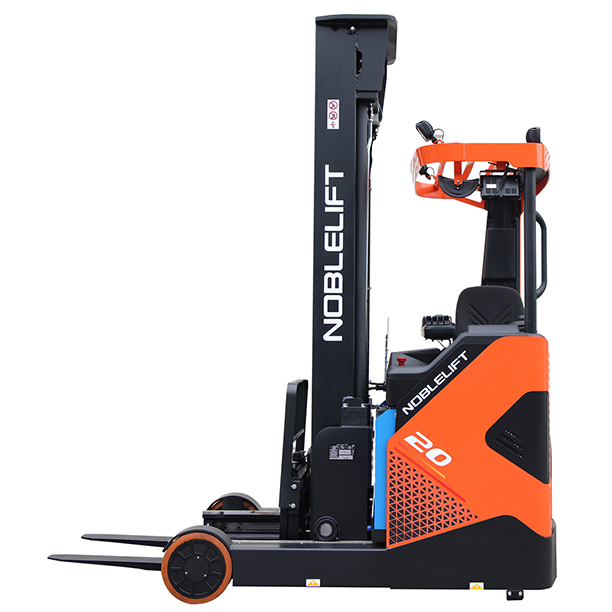

The RT20G is an electric reach truck designed for indoor storage, high-level handling and travel in narrow aisles. It combines three key strengths: safety, reliability and energy efficiency. With its standard lithium battery, its 2-ton rated capacity and its lift versions up to 9500 mm, it is designed to operate in warehouses, logistics storage areas and industrial sites where driving spaces are narrow and storage heights are significant.

Key features of the RT20G
rated capacity: 2000 kg
lift height: 4500 to 9500 mm
standard lithium battery 76 V / 300 Ah
truck designed for indoor warehousing
compact format for narrow aisles
automatic speed reduction at height and in turns
regenerative braking with energy recovery
HD camera with monitor
Fingertip controls on ergonomic joystick

Safety and reliability at the core of operation

The RT20G was designed to secure high-level storage and maintain regular operation in intensive use. Its structure contributes to the stability of the whole unit during warehousing operations. Travel speed is automatically reduced according to fork lift height. It also decreases in turns for better movement control.

The RT20G also includes several functions useful for machine control:
motor thermal monitoring
motor current regulation
combined electromagnetic and hydraulic braking
push-button parking brake
LED lighting
Blue Spot warning light

Energy efficiency designed for intensive use

The RT20G is equipped with a 76 V / 300 Ah lithium battery suited to indoor work and with regenerative braking that recovers energy during operation. This configuration helps extend operating time over repeated cycles.

Compared with similar models on the market, the RT20G provides up to 35 % lower energy consumption and up to 50 % longer maintenance intervals. This is a strong point for sites that work at a sustained pace and aim to limit downtime.

Working comfort and ergonomics for the operator

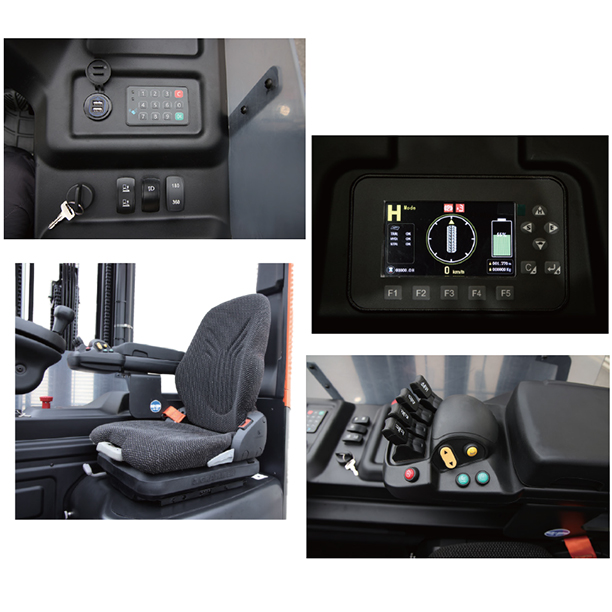

The RT20G is designed to improve the operator’s working conditions on a daily basis. The Grammer suspension seat absorbs vibrations and helps limit fatigue during repeated use. The cab offers a more open driving space and a wide field of vision, which makes manoeuvres and load positioning easier. The electric step simplifies access to the driving position, while the Fingertip controls grouped on the joystick make movements smoother and more precise. This more comfortable driving environment helps support productivity while reducing the physical strain linked to high-level storage operations.

Technical components that support truck operation

The RT20G relies on recognised components for traction, lifting, hydraulics and braking. Each one brings a concrete benefit to the overall operation of the machine.
Curtis controller: controls traction with greater smoothness, improves driving precision and helps manage energy more effectively.
ZF reducer: transmits power to the drive wheels with consistency and supports traction during travel.
Schabmüller AC traction motor: powers truck movement with steady response and good reactivity in travel.
Schabmüller power steering: makes manoeuvres easier and provides greater flexibility in narrow aisles.
KDS lift motor: supports fast and consistent lifting movements during put-away cycles.
Buchholz solenoid valve: improves the precision of hydraulic functions and movement control.
Shimadzu silent gear pump: supplies the hydraulic circuit while supporting quieter operation.
Intorq brakes: strengthen control during deceleration and improve safety during travel.

A simple solution for high-level indoor storage

The RT20G makes it possible to use more storage height without changing the footprint of circulation areas. Its compact format makes manoeuvring easier in narrow aisles. It is suitable for put-away, pallet retrieval, rack replenishment and picking flows in warehouses.

A design developed for stability and productivity

The RT20G is built with extra-wide steel masts to reinforce rigidity during lifting. Its 80 V AC traction, electric steering, high-performance transmission and Curtis controller support precise and consistent driving. The system that speeds up fork lowering also helps link handling cycles more quickly.

Operation features to adapt to site requirements

The RT20G includes several functions that make work easier according to site configuration:
automatic fork levelling
automatic fork centring
side shift
keypad
180° and 360° steering modes
HD camera with monitor
LED lighting
Blue Spot warning light

Daily-access maintenance approach

The RT20G is designed to maintain regular operation in intensive use. The centralised hose system preserves visibility around the mast. Motor cooling supports efficient heat dissipation. Temperature monitoring, current regulation and regenerative braking also contribute to component protection over time.

RT20G technical specifications

Capacity and lift
rated capacity: 2000 kg
standard lift heights: 4500 to 9500 mm
load capacity maintained at 2000 kg up to 6500 mm
load capacity up to 800 kg at 9500 mm

Dimensions and manoeuvrability
overall width: 1270 mm
overall length: 2525 mm
turning radius: 1767 mm
aisle width: 2826 to 2874 mm depending on pallet type

Performance
travel speed: 14 km/h
lift speed: 580 mm/s unloaded / 450 mm/s loaded
lowering speed: 500 mm/s
gradeability: 15 % unloaded / 10 % loaded

Powertrain and electrical supply
propulsion: electric
traction motor: 8.1 kW
lift motor: 20 kW
lithium battery: 76 V / 300 Ah
transmission: AC

Request a quote for the RT20G

For more information, go to your dealer access to view available stock and your STOCKMAN distributor pricing: Click Here

Typical applications for the RT20G

The RT20G is particularly suitable for the following uses:
pallet storage in high-bay racking
handling in indoor warehouses
travel in narrow aisles
replenishment of picking areas
put-away in logistics storage areas
use on racking up to 9.5 metres depending on version
intensive storage operations
handling with a seated electric truck

Who the RT20G is for

The RT20G is intended for logistics platforms, warehouses, industrial storage areas, order preparation zones and distribution sites that need to store goods high up in an indoor environment. It suits organisations looking for a compact, stable reach truck adapted to intensive use.

It meets the needs of professionals looking for:
a 2-ton reach truck for warehouses
a reach truck for narrow aisles
an electric reach truck for indoor storage
a lithium reach truck for logistics warehouses
a reach truck for high-bay racking
a reach truck up to 9500 mm
a reach truck with seated driving position
a compact high-level warehouse truck

FAQ

Is the RT20G suitable for indoor warehousing?
Yes. The RT20G is designed for indoor storage and its lithium battery is suitable for work in enclosed spaces.

Can the RT20G work in narrow aisles?
Yes. Its compact format and aisle widths make it suitable for dense storage environments.

What lift height can the RT20G reach?
Depending on the version selected, the RT20G can reach a standard lift height of 4500 to 9500 mm.

Does the capacity remain 2 tons at all heights?
No. Capacity remains at 2000 kg up to 6500 mm, then gradually decreases on the higher versions.

Which features improve driving comfort?
The RT20G combines a Grammer suspension seat, an electric step, a colour LCD display and Fingertip controls on a joystick.

Which features strengthen safety?
The RT20G notably includes automatic speed reduction according to height and in turns, combined braking, a parking brake, an HD camera with monitor, LED lighting and a Blue Spot."
