PSE12NSL

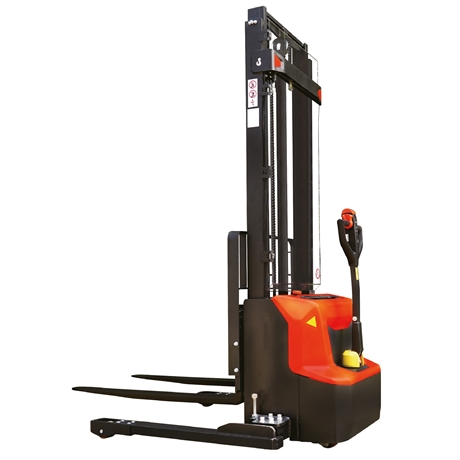

Electric walkie stacker with lithium battery and straddle legs and 1200 kg load capacity

PSE12NSL

Electric walkie stacker with lithium battery and straddle legs and 1200 kg load capacity

This new version of the PSE12N EDGE, STOCKMAN's best-selling product, now features framing beams. Compact and lightweight, this electric pallet truck provides more stability and robustness for operators from the handling, shelving, and logistics industries.

more information

	Designation
	PSE12N1600SL Electric walkie stacker with lithium battery and straddle legs 1514 mm standard lift and 1200 kg load capacity Weight : 720 kg Bar code : 3700664807454 Catalogue P.108
	PSE12N2900SL Electric walkie stacker with lithium battery and straddle legs 2814 mm standard lift and 1200 kg load capacity Weight : 795 kg Bar code : 3700664807447 Catalogue P.108
	PSE12N3200SL Electric walkie stacker with lithium battery and straddle legs 3114 mm standard lift and 1200 kg load capacity Weight : 805 kg Bar code : 3700664807430 Catalogue P.108
	PSE12N3600SL Electric walkie stacker with lithium battery and straddle legs 3514 mm standard lift and 1200 kg load capacity Weight : 825 kg Bar code : 3700664807423 Catalogue P.108

DESCRIPTION

TECHNICAL CHARACTERISTICS

This version of the electric pedestrian stacker PSE12N EDGE comes with straddle legs offers excellent maneuverability and is particularly adapted for light duty applications
Four standard lift heights are available: 1514 mm (single mast), 2814 mm (duple), 3114 mm (duplex) and 3514 mm (duplex)
The dimensions of the forks are 40 mm (thickness) / 100 mm (width) / 1150 mm (length)
The maximum gradient is 4% with load, and 10% without load
Its three points of contact offer greater safety and stability of the chassis (refer to the technical data sheet)
The driving wheel is located in the middle for better traction
The stabilizing casters, situated on each side, are mounted on shock absorbers to ensure better lateral stability
The straddle legs are equipped with single rollers
The maintenance is easy
The operator has perfect visibility of the forks, which increases the safety of the operation considerably
As for the straddle legs adjustment, they are attached by four screws located on each side of the stacker's frame to adjust the width easily. The stacker can have a total width of 1181 / 1281 / 1381 / 1481 mm
The straddle legs are made of forged steel for increased strength and durability
The spacing between the forks can be adjusted from 252 to 800 mm
The stacker is equipped with a load backrest as standard
The PSE12N SL electric stacker is equipped with a 25 Ah charger. The standard charging time is 2.5 hours
This equipment is also fitted with a 24 V / 60 Ah maintenance-free LiFePO4 Li- ion battery with BMS. This fast-charge battery has a large number of charge / discharge cycles
Download the product specifications for further technical information and our complete commercial brochure
