PS12CB-ION

Lithium self-propelled counterbalance stacker 1200 kg, lift 1600 to 4000 mm

PS12CB-ION

Lithium self-propelled counterbalance stacker 1200 kg, lift 1600 to 4000 mm

The PS CB electric counterbalanced stacker series is ideal for applications where stacked loads on low and medium-height racks are limited to a few hours per day. This version of 1200 kg load capacity has 6 standard lift heights ranging from 1600 to 4000 mm with 150 or 200 Ah battery

more information

	Designation

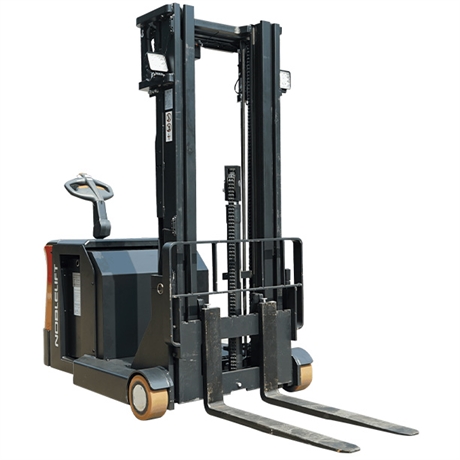

	PS12CB1600-ION150AH Self-propelled counterbalance stacker 1200 kg lithium, lift 1600 mm, battery 150 Ah Weight : 2210 kg Bar code : 3700664816753
	PS12CB1600-ION200AH Self-propelled counterbalance stacker 1200 kg lithium, lift 1600 mm, battery 200 Ah Weight : 2220 kg Bar code : 3700664816746
	PS12CB2500-ION150AH Self-propelled counterbalance stacker 1200 kg lithium, lift 2500 mm, battery 150 Ah Weight : 2210 kg Bar code : 3700664816739
	PS12CB2500-ION200AH Self-propelled counterbalance stacker 1200 kg lithium, lift 2500 mm, battery 200 Ah Weight : 2220 kg Bar code : 3700664813011
	PS12CB3000-ION150AH Self-propelled counterbalance stacker 1200 kg lithium, lift 3000 mm, battery 150 Ah Weight : 2210 kg Bar code : 3700664816722
	PS12CB3000-ION200AH Self-propelled counterbalance stacker 1200 kg lithium, lift 3000 mm, battery 200 Ah Weight : 2220 kg Bar code : 3700664816715
	PS12CB3200-ION150AH Self-propelled counterbalance stacker 1200 kg lithium, lift 3200 mm, battery 150 Ah Weight : 2210 kg Bar code : 3700664816708
	PS12CB3200-ION200AH Self-propelled counterbalance stacker 1200 kg lithium, lift 3200 mm, battery 200 Ah Weight : 2220 kg Bar code : 3700664816692
	PS12CB3600-ION150AH Self-propelled counterbalance stacker 1200 kg lithium, lift 3600 mm, battery 150 Ah Weight : 2210 kg Bar code : 3700664816685
	PS12CB3600-ION200AH Self-propelled counterbalance stacker 1200 kg lithium, lift 3600 mm, battery 200 Ah Weight : 2220 kg Bar code : 3700664816678
	PS12CB4000-ION150AH Self-propelled counterbalance stacker 1200 kg lithium, lift 4000 mm, battery 150 Ah Weight : 2210 kg Bar code : 3700664816661
	PS12CB4000-ION200AH Self-propelled counterbalance stacker 1200 kg lithium, lift 4000 mm, battery 200 Ah Weight : 2220 kg Bar code : 3700664816654

DESCRIPTION

TECHNICAL CHARACTERISTICS

PS12CB-ION, STOCKMAN 1200 kg lithium counterbalanced stand-up rider electric stacker

The PS12CB-ION is a counterbalanced stand-up rider electric stacker designed to lift, move and stack loads up to 1200 kg. Its design without front straddle legs allows certain closed pallets or loads with a bottom to be picked up directly from the floor, where a conventional stacker may be limited by its chassis.

With standard lift heights from 1600 to 4000 mm depending on the version, it meets storage needs on low and medium-height racking. It is suitable for warehouses, storage rooms, workshops, order preparation areas and industrial sites looking for a compact, manoeuvrable stacker for regular handling operations.

Handling closed pallets without front straddle legs

The PS12CB-ION is designed for applications where access to the load is essential. Its counterbalanced architecture allows the operator to approach the pallet without being obstructed by front straddle legs.

It is suitable for stacking goods on low or medium-height racking, for cycles limited to a few hours per day. It can be used for lifting, transfer and stock placement operations in areas where the load must be picked up as closely as possible.

This configuration is useful to:
lift closed pallets directly from the floor.
feed an intermediate storage rack.
retrieve a load in a storage area.
move goods between receiving and preparation areas.
position a load on a racking level.
work in areas where a straddle stacker is not suitable.

A compact format for storage aisles

The PS12CB-ION combines a short wheelbase, an overall width of 1090 mm and a turning radius of 1605 mm. These dimensions make manoeuvring easier in narrow aisles, crowded storage areas and work zones where direction changes are frequent.

The folding platform and protective arms allow the operator to adapt use according to each travel phase. This helps circulation in working areas while keeping operation suited to site constraints.

The electric power steering helps control the machine direction with precision. It improves comfort when aligning in front of racks, picking up pallets and carrying out repeated manoeuvres.

Progressive lifting for accurate load placement

The PS12CB-ION is equipped with proportional lift control. It allows the operator to adjust fork lifting and lowering more precisely when positioning the load.

This precision is important for stacking operations where the operator must place a pallet on a defined level, retrieve a load with limited clearance or handle goods that are sensitive to shocks.

The HPI hydraulic power unit contributes to controlled fork movement. The standard mast tilt provides an additional adjustment to support load pick-up, movement and deposit.

Equipment designed for professional warehouse handling

The PS12CB-ION integrates components suited to professional warehouse operations: Schabmüller AC traction motor, Kordel gearbox, Zapi controller, Rema tiller, Rader Vogel wheels, HPI hydraulic power unit and SPE or ATIB chargers depending on configuration.

The multifunction display shows useful information during operation: service status, operating time, battery charge, travel speed and steering angle. A USB port is also included to power other devices.

The 8 mm cover and steel battery cover help protect the machine. Side battery extraction makes replacement or routine operations easier, especially on sites that need to limit downtime.

Typical PS12CB-ION applications

The PS12CB-ION can be integrated into several professional environments:
logistics warehouse with low or medium-height racking.
retail storeroom or rear storage area.
industrial workshop with pallet movements.
goods receiving area.
order preparation area with internal transfers.
storage of loads on closed supports.
handling of fragile loads requiring progressive lifting.

It is suitable for teams looking for a 1200 kg counterbalanced electric stacker to handle pallets or loads that cannot be easily picked up with a straddle stacker.

Technical data for the PS12CB-ION
Rated capacity: 1200 kg.
Load centre: 500 mm.
Driving type: pedestrian and stand-up rider.
Standard lift heights: 1600, 2500, 3000, 3200, 3600 or 4000 mm depending on version.
Mast type: simplex for 1600 mm, duplex for the other lift heights.
Lowered mast height: from 1850 to 2600 mm depending on version.
Extended mast height: from 2450 to 4850 mm depending on version.
Weight with battery: from 1870 to 2090 kg depending on version.
Overall length: 2690 mm.
Length without forks: 1740 mm.
Overall width: 1090 mm.
Fork dimensions: 35 x 100 x 950 mm.
Outside fork width: 220 and 760 mm.
Minimum fork height: 60 mm.
Ground clearance: 52 mm.
Turning radius: 1605 mm.
Aisle width with 1000 x 1200 mm pallet crossways: 3110 mm.
Aisle width with 800 x 1200 mm pallet lengthways: 3220 mm.
Travel speed: 8 km/h without load and 7 km/h with load.
Lifting speed: 200 mm/s without load and 140 mm/s with load.
Lowering speed: 200 mm/s without load and 250 mm/s with load.
Gradeability: 15% without load and 6% with load.
Service brake: electromagnetic.
Traction motor: 2.6 kW.
Lifting motor: 3 kW or 3.2 kW depending on version.
Battery: 24 V, 150 Ah or 24 V, 200 Ah depending on version.
Battery weight: 280 kg for 150 Ah, 290 kg for 200 Ah.
Noise level: 68 dB(A).

Selecting the right lift configuration

The choice of version mainly depends on the required lift height, available ceiling height, racking layout and frequency of use.

The 1600 mm version is suitable for low lifting operations or transfer work with limited deposit height. The 2500 to 4000 mm versions meet storage needs over several racking levels. The choice between 150 Ah and 200 Ah battery capacity should be validated according to the expected operating rhythm and the charging organisation on site.

Common questions about the PS12CB-ION

Can the PS12CB-ION lift closed pallets?
Yes. Its counterbalanced design allows it to handle closed pallets or loads with a bottom when the straddle legs of a conventional stacker are not suitable.

What is the load capacity of the PS12CB-ION?
The rated capacity is 1200 kg, with a 500 mm load centre.

Is the PS12CB-ION suitable for narrow aisles?
Yes. Its compact structure, 1090 mm width and 1605 mm turning radius make manoeuvring easier in restricted circulation areas.

Which lift heights are available?
PS12CB-ION versions cover standard lift heights from 1600 to 4000 mm depending on the model selected.

Is access control available?
Yes. An access control panel with PIN code or RFID card reader is available as an option. It is useful when several operators use the same machine.

Confirming your PS12CB-ION requirement with Stockman

To choose the most suitable PS12CB-ION version, the STOCKMAN sales representative for your area can help you check the key points: lift height, aisle width, pallet type, floor quality, frequency of use and charging organisation. Their details are available on our contact page.
