PS12LLI-ION

Lithium electric stacker with initial lift 1200 kg, lift 2900 to 4600 mm

PS12LLI-ION

Lithium electric stacker with initial lift 1200 kg, lift 2900 to 4600 mm

1200 kg lithium electric stacker with initial lift and full free lift mast. Lift 2900 to 4600 mm for professional handling.

more information

	Designation
	PS12L29LI-ION100 Lithium electric stacker 1.2t, duplex full free lift mast, initial lift, 2830 mm, 100 Ah Weight : 918 kg
	PS12L29LI-ION150 Lithium electric stacker 1.2t, duplex full free lift mast, initial lift, 2830 mm, 150 Ah Weight : 923 kg
	PS12L32LI-ION100 Lithium electric stacker 1.2t, duplex full free lift mast, initial lift, 3130 mm, 100 Ah Weight : 923 kg
	PS12L32LI-ION150 Lithium electric stacker 1.2t, duplex full free lift mast, initial lift, 3130 mm, 150 Ah Weight : 928 kg
	PS12L36LI-ION100 Lithium electric stacker 1.2t, duplex full free lift mast, initial lift, 3530 mm, 100 Ah Weight : 927 kg
	PS12L36LI-ION150 Lithium electric stacker 1.2t, duplex full free lift mast, initial lift, 3530 mm, 150 Ah Weight : 932 kg
	PS12L40LI-ION100 Lithium electric stacker 1.2t, triplex full free lift mast, initial lift, 3930 mm, 100 Ah Weight : 1030 kg
	PS12L40LI-ION150 Lithium electric stacker 1.2t, triplex full free lift mast, initial lift, 3930 mm, 150 Ah Weight : 1035 kg
	PS12L43LI-ION100 Lithium electric stacker 1.2t, triplex full free lift mast, initial lift, 4230 mm, 100 Ah Weight : 1050 kg Bar code : 3700664813547
	PS12L43LI-ION150 Lithium electric stacker 1.2t, triplex full free lift mast, initial lift, 4230 mm, 150 Ah Weight : 1055 kg
	PS12L46LI-ION100 Lithium electric stacker 1.2t, triplex full free lift mast, initial lift, 4530 mm, 100 Ah Weight : 1070 kg
	PS12L46LI-ION150 Lithium electric stacker 1.2t, triplex full free lift mast, initial lift, 4530 mm, 150 Ah Weight : 1075 kg

DESCRIPTION

TECHNICAL CHARACTERISTICS

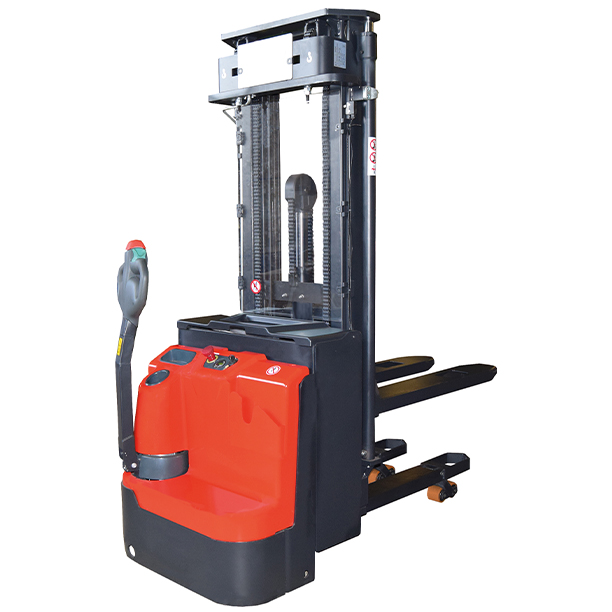

PS12LLI-ION, STOCKMAN 1200 kg lithium electric stacker with initial lift

The PS12LLI-ION is an industrial lithium electric pedestrian stacker equipped with initial lift as standard. Its rated capacity of 1200 kg allows pallets to be moved, lifted and stacked indoors, while making certain passages easier thanks to the lifting of the straddle legs.

This stacker is suitable for warehouse handling, storage and supply operations in warehouses, storerooms, workshops, receiving areas and order preparation zones. Its lithium battery, long tiller, proportional lifting and four-point support structure make it suitable for repeated professional use.

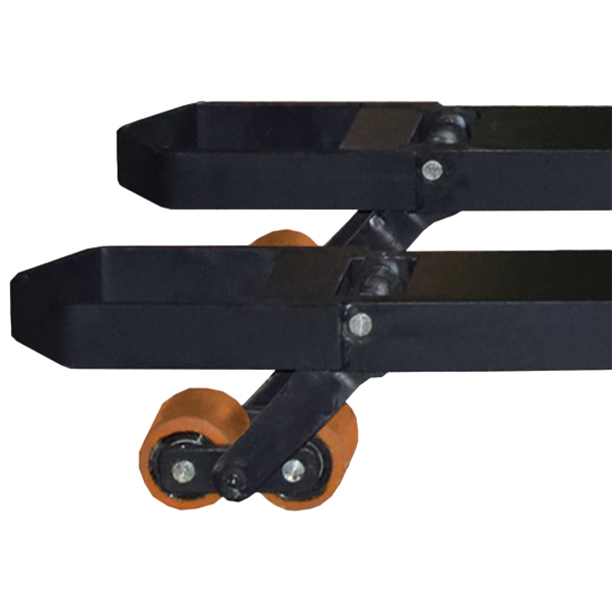

Crossing certain work areas thanks to initial lift

The PS12LLI-ION differs from a standard pedestrian stacker thanks to its 120 mm initial lift. This function raises the straddle legs to improve travel over certain work areas: ramps, footbridges, slightly uneven floors or transitions between logistics zones.

This configuration makes internal movements easier when pallets need to circulate between several areas of the building. It also provides more ground clearance during travel phases, which can be useful when moving between receiving, storage, preparation and shipping areas.

The PS12LLI-ION remains designed for pedestrian stacking operations. It can lift a pallet, approach a racking bay and place the load at the required height according to the mast version selected.

1200 kg capacity for regular pallet flows

With its 1200 kg rated capacity, the PS12LLI-ION is suitable for common palletised loads. It can be used for indoor handling operations in storerooms, workshops, warehouses or order preparation areas.

Its pedestrian format makes manoeuvring easier in spaces where movements take place close to racking, docks, picking areas or workstations. It fits into organisations where pallets must be moved, stacked and repositioned several times during the day.

This lithium stacker can be used to:
move pallets between receiving and storage.
stack loads on racking.
supply an order preparation area.
feed a workstation in a workshop.
travel over ramps or passages with slight level changes.
organise pallets in a storeroom.
support internal flows in logistics or distribution.

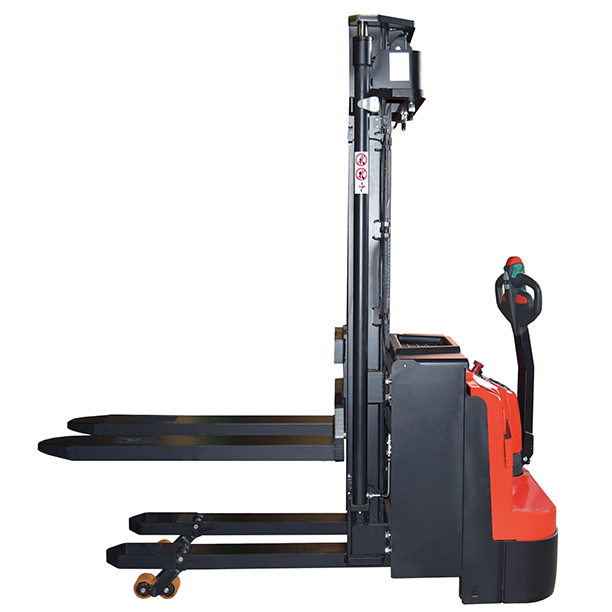

Selecting a Duplex FFL or Triplex FFL mast according to storage height

The PS12LLI-ION is available with several mast configurations. The listed versions cover Duplex FFL and Triplex FFL masts, with technical standard lift heights from 2830 to 4530 mm depending on the model.

Duplex FFL versions are suitable for standard stacking operations. Triplex FFL versions allow higher lift heights while taking into account clearance constraints, ceiling height and aisle organisation.

The mast choice should be linked to the useful storage height, the available height inside the building, the type of racking used and the frequency of stacking operations.

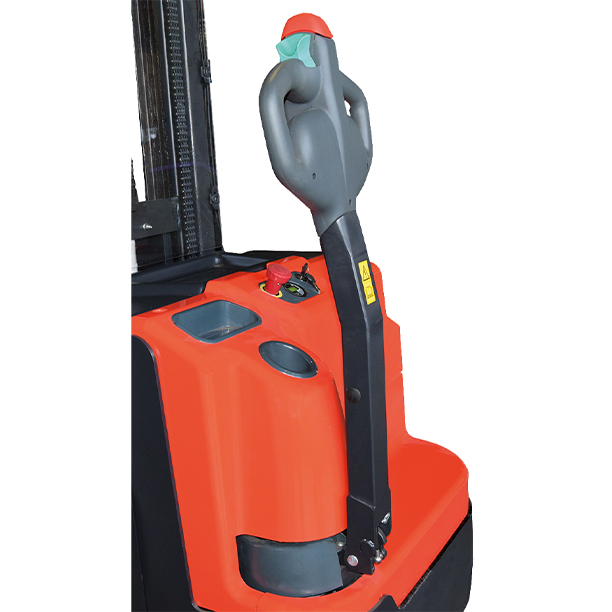

Pedestrian operation with a long side tiller

The long tiller on the PS12LLI-ION helps maintain a working distance between the operator and the stacker. This configuration improves handling during travel, pallet approach and manoeuvres in front of racking.

The four-point support structure contributes to machine stability during travel and lifting phases. The side tiller also improves visibility over the work area, especially when inserting the forks into the pallet or positioning the load in front of a storage level.

This design is suitable for teams carrying out repeated indoor handling operations, with loads to be moved and stacked in organised working aisles.

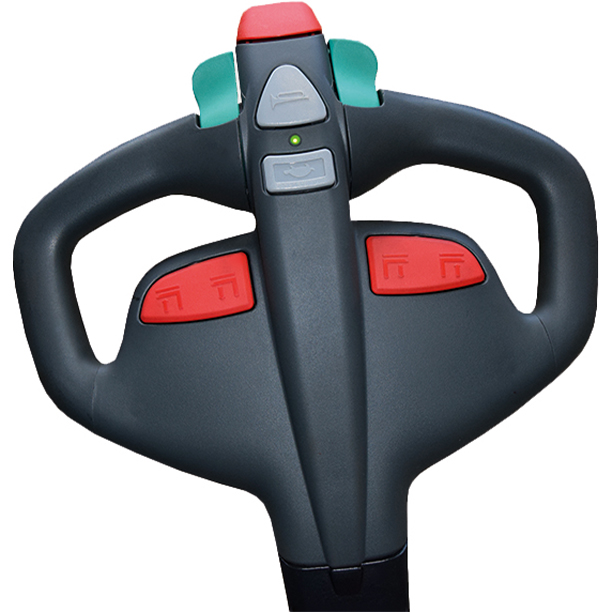

Proportional lifting and lowering to adjust fork height

The PS12LLI-ION is equipped with an electric proportional lifting and lowering system. This control allows the fork height to be adjusted progressively.

Movement precision is useful when storing pallets on racking, retrieving a load at height or approaching a storage level. It helps the operator position the forks without sudden movements.

This operation is particularly relevant for repeated stacking, loads that need careful handling and areas where the working height must be adjusted accurately.

A lithium battery suited to the operating rhythm

The PS12LLI-ION operates with a 24 V, 100 Ah or 24 V, 150 Ah lithium battery depending on the model. This power supply is suited to professional indoor use, with regular travel and lifting cycles.

The 100 Ah version can be selected for more moderate warehouse handling. The 150 Ah version provides higher battery capacity for environments where movements, lifts and work cycles are more frequent.

Battery choice depends on the frequency of use, the number of pallets handled, the distances travelled and the charging organisation on site.

Industrial components and simplified maintenance access

The PS12LLI-ION integrates components from recognised material handling brands: Rema tiller, Schabmüller AC traction motor, Kordel gearbox, Intorq brake, Wicke steering wheels, Curtis controller, HPI hydraulic power unit and SPE or ATIB chargers.

The maintenance-free AC motor supports repeated use. CAN-BUS technology reduces wiring and facilitates analysis during maintenance operations. The controller has IP54 protection against dust and water splashes.

Access to components is designed to simplify routine checks. The cover can be removed with two screws, and the wheels and rollers can be replaced without having to tilt the stacker.

Technical points for the PS12LLI-ION
Type: industrial lithium electric stacker with initial lift.
Operation: pedestrian.
Rated capacity: 1200 kg.
Load centre: 600 mm.
Initial lift: 120 mm.
Lithium battery: 24 V, 100 Ah or 24 V, 150 Ah depending on model.
Available masts: Duplex FFL and Triplex FFL depending on version.
Standard lift height depending on model: from 2830 to 4530 mm.
Free lift depending on model: from 1310 to 1760 mm.
Lowered mast height depending on model: from 1908 to 2308 mm.
Extended mast height depending on model: from 3380 to 5200 mm.
Weight depending on model: from 918 to 1075 kg.
Wheelbase: 1248 mm.
Distance from fork carriage to roller axle: 647 mm.
Wheels: polyurethane.
Drive wheel dimensions: Ø 230 x 70 mm.
Front roller dimensions: Ø 85 x 75 mm.
Stabilising wheel dimensions: Ø 150 x 54 mm.
Tiller height in driving position: 850 and 1385 mm.
Minimum fork height: 90 mm.
Overall length: 1919 mm.
Length without forks: 769 mm.
Overall width: 820 mm.
Fork dimensions: 60 x 180 x 1150 mm.
Outside fork width: 570 and 685 mm.
Ground clearance: 28 mm.
Aisle width with 1000 x 1200 mm pallet crossways: 2336 mm.
Aisle width with 800 x 1200 mm pallet lengthways: 2322 mm.
Turning radius: 1440 mm.
Travel speed: 6 km/h without load and 6 km/h with load.
Lifting speed: 170 mm/s without load and 100 mm/s with load.
Lowering speed: 110 mm/s without load and 110 mm/s with load.
Gradeability: 12% without load and 6% with load.
Service brake: electromagnetic.
Traction motor: 1.3 kW.
Lifting motor: 2.2 kW.
Noise level at the operator’s ear: below 70 dB(A).

Professional environments suited to the PS12LLI-ION

The PS12LLI-ION is intended for logistics, warehouse handling, distribution, industrial and order preparation professionals. It fits into storage areas where pallets need to be moved, lifted and stacked with compact equipment.

The initial lift is particularly useful in buildings where movements involve ramps, footbridges, uneven floors or transitions between several work zones.

This stacker can be selected for the following needs:
1200 kg lithium electric stacker with initial lift.
pedestrian stacker for racking in a storeroom.
lithium stacker for slightly uneven floors.
1200 kg stacker for warehouse and workshop use.
stacker with proportional lifting for high-level storage.
compact industrial stacker with Duplex or Triplex mast.
stacker for workstation supply.
warehouse handling equipment for internal pallet flows.

Common questions before choosing the PS12LLI-ION

What is the load capacity of the PS12LLI-ION?
The PS12LLI-ION has a rated capacity of 1200 kg.

What is the initial lift used for on this stacker?
The initial lift raises the straddle legs by 120 mm. It makes travelling over ramps, footbridges or slightly uneven floors easier.

Can the PS12LLI-ION stack loads on racking?
Yes. The PS12LLI-ION is designed for pedestrian stacking operations. The available versions cover several lift heights depending on the mast selected.

Which battery is fitted to the PS12LLI-ION?
The PS12LLI-ION is available with a 24 V, 100 Ah or 24 V, 150 Ah lithium battery depending on the model.

What is the difference compared with a PS12L-ION without initial lift?
The PS12LLI-ION adds initial lift of the straddle legs. This function improves ground clearance and makes certain internal movements easier, especially on ramps or uneven floors.

Is this stacker suitable for order preparation areas?
Yes. Its 1200 kg capacity, pedestrian operation, proportional lifting and compact format are suitable for storerooms, workshops, warehouses and order preparation areas.

Discussing your project with the STOCKMAN sales representative for your area

The choice of the PS12LLI-ION depends on the lift height, battery capacity, aisle configuration, floor condition, possible ramps and frequency of use. The STOCKMAN sales representative for your area can advise you on the version suited to your customer’s stacking, handling and storage operations. Their details are available on our contact page.
