PS12TSL

Electric walkie stacker w / straddle legs and central handle 1200 kg

PS12TSL

Electric walkie stacker w / straddle legs and central handle 1200 kg

PS12TSL electric walkie stacker are equipped with a central handle for more efficiency durong warehouse and stacking operations.

more information

	Designation
	PS12TSL29 Electric walkie stacker w / straddle legs and central handle 2900 mm free lift 1200 kg Weight : 1225 kg Bar code : 3700664804507 Catalogue P.116
	PS12TSL32 Electric walkie stacker w / straddle legs and central handle 3200mm free lift 1200 kg Weight : 1239 kg Bar code : 3700664804491 Catalogue P.116
	PS12TSL36 Electric walkie stacker w / straddle legs and central handle 3600 mm free lift 1200 kg Weight : 1190 kg Bar code : 3700664804484 Catalogue P.116

DESCRIPTION

TECHNICAL CHARACTERISTICS

PS12TSL heavy-duty electric walkie stacker is tailored to suit most stacker operations with maximum load capacity of 1.2 metric tons.
Also available with a rated capacity of 1.6 or 1.8 metric tons (PS16TSL and PS18TSL – compare all three models through the technical documentation available for download).
PS12TSL is equipped with a DUPLEX mast.
The central ergonomic steering handle guarantees a safe and efficient functioning.
Stacker operations are more reliable and faster thanks to the proportional lift system.
Equipped with a standard FEM2 fork carriage.
You can find among its numerous advantages: an ergonomic central handle, a compact and safe unit, a proportional lift and lower to ensure maximum precision, a powerful maintenance-free AC Schabmüller motor, core components from top leading brands and four points of contact for best stability.
Standard USB connector
Adjustable straddle legs make it possible to maneuver any type of pallet and ensure greater stability. Easy maintenance and replacement of the steering wheel when they wear out after a long use.
CAN-BUS technology eliminates the need for excessive wiring for high reliability. This technology eases diagnosis and settings on maintenance operations reducing maintenance downtime.
This electric stacker is equipped with a Zapi controller and a battery indicator with hour meter and error code display for an easy maintenance.
A robust chassis and 7,6mm thick mainframe protect the stacker and its components against impact collisions.
The stainless steel battery cover provides enhanced protection and limits possible damages.
AC motor can withstand dirty floors in working areas as components and brakes are protected from impacts.
The controller is protected against dust and splash (IP54).
The stacker and its components have been specially designed to perform maintenance with ease. With only 2 screws, the cowl can be easily removed for easy access to all components. The steering wheels and stabilizer casters can be easily removed and replaced without a lifting device.
The electronically controlled proportional lift and lower system ensures accurate fork positioning and stacking operations at each height. Proportional lift increases productivity specially when stacking heights are high.
A matching battery capacity for each application: PS12T SL= 24 volt 180 Ah, PS16T SL / PS18T SL= 24 volt 270 Ah
Electric propulsion
Operator type: pedestrian
Rated capacity: 1.2 metric tons
Load center distance: 600 mm
Load distance, center of drive axle to fork (x): 647 mm
Wheelbase: 1331 mm
Polyurethane wheels (PU)
Steering wheels dimensions: 230 x 70 mm
Front rollers dimensions: 84 x 70 mm
Stabilizing rollers dimensions: 100 x 54 mm
Number of front / rear wheels (x= steering wheel): 1 x + 2/4
Straddle legs center distance: 500 mm
Tiller height in drive position min. / max.: 890 / 1420 mm
Fork height lowered: 50 mm
Overall length: 1990 mm
Length without forks: 840 mm
Overall width: 816 mm
Fork dimensions: 35/100/1150 mm
Width across forks: 235 / 710 mm
Ground clearance: 40 mm
Aisle width for pallets 1000 x 1200 crossways: 2396 mm
Aisle width for pallets 800 x 1200 lengthways: 2382 mm
Turning radius: 1500 mm
Travel speed laden / unladen: 5,5 / 6 km/h
Lift speed, laden / unladen: 0,09 / 0,14 m/s
Lowering speed, laden / unladen: 0,25 / 0,2 m/s
Gradeability performance of 6% laden and 12% unladen
Electromagnetic service brake
Battery weight: See product specifications available for download
Type of drive control: AC - speed control
Sound level at driver's ear acc. to EN 12053:<70 dB

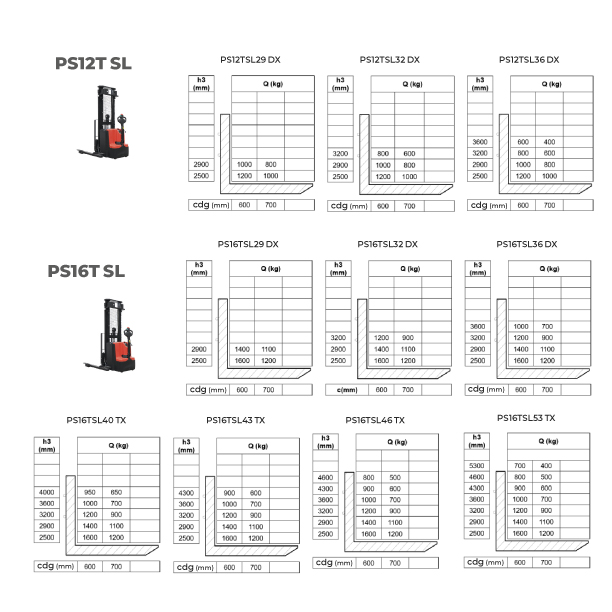

For information on all lift heights and residual capacities, refer to the chart on images or download the product specifications for further technical information

Options

Sideshift function, available in option, allows operators to easily reposition loads specially on tight spaces without having to move the stacker
