PS16CB-ION

Counterbalanced stand-up rider lithium stacker with 1600 kg load capacity

PS16CB-ION

Counterbalanced stand-up rider lithium stacker with 1600 kg load capacity

The PS CB lithium counterbalanced stacker series is ideal for applications where stacked loads on low and medium-height racks are limited to a few hours per day. This version of 1600 kg load capacity has 6 standard lift heights ranging from 1600 to 4000 mm, with 150 or 200 Ah battery.

more information

	Designation
	PS16CB1600-ION150AH Self-propelled counterbalance stacker 1600 kg lithium, lift 1600 mm, battery 150 Ah Weight : 2310 kg Bar code : 3700664816647
	PS16CB1600-ION200AH Self-propelled counterbalance stacker 1600 kg lithium, lift 1600 mm, battery 200 Ah Weight : 2320 kg Bar code : 3700664816630
	PS16CB2500-ION150AH Self-propelled counterbalance stacker 1600 kg lithium, lift 2500 mm, battery 150 Ah Weight : 2310 kg Bar code : 3700664816357
	PS16CB2500-ION200AH Self-propelled counterbalance stacker 1600 kg lithium, lift 2500 mm, battery 200 Ah Weight : 2320 kg Bar code : 3700664816623
	PS16CB3000-ION150AH Self-propelled counterbalance stacker 1600 kg lithium, lift 3000 mm, battery 150 Ah Weight : 2310 kg Bar code : 3700664816616
	PS16CB3000-ION200AH Self-propelled counterbalance stacker 1600 kg lithium, lift 3000 mm, battery 200 Ah Weight : 2320 kg Bar code : 3700664816609
	PS16CB3200-ION150AH Self-propelled counterbalance stacker 1600 kg lithium, lift 3200 mm, battery 150 Ah Weight : 2310 kg Bar code : 3700664816593
	PS16CB3200-ION200AH Self-propelled counterbalance stacker 1600 kg lithium, lift 3200 mm, battery 200 Ah Weight : 2320 kg Bar code : 3700664816586
	PS16CB3600-ION150AH Self-propelled counterbalance stacker 1600 kg lithium, lift 3600 mm, battery 150 Ah Weight : 2310 kg Bar code : 3700664816579
	PS16CB3600-ION200AH Self-propelled counterbalance stacker 1600 kg lithium, lift 3600 mm, battery 200 Ah Weight : 2320 kg Bar code : 3700664816562
	PS16CB4000-ION150AH Self-propelled counterbalance stacker 1600 kg lithium, lift 4000 mm, battery 150 Ah Weight : 2310 kg Bar code : 3700664816555
	PS16CB4000-ION200AH Self-propelled counterbalance stacker 1600 kg lithium, lift 4000 mm, battery 200 Ah Weight : 2320 kg Bar code : 3700664816548

DESCRIPTION

TECHNICAL CHARACTERISTICS

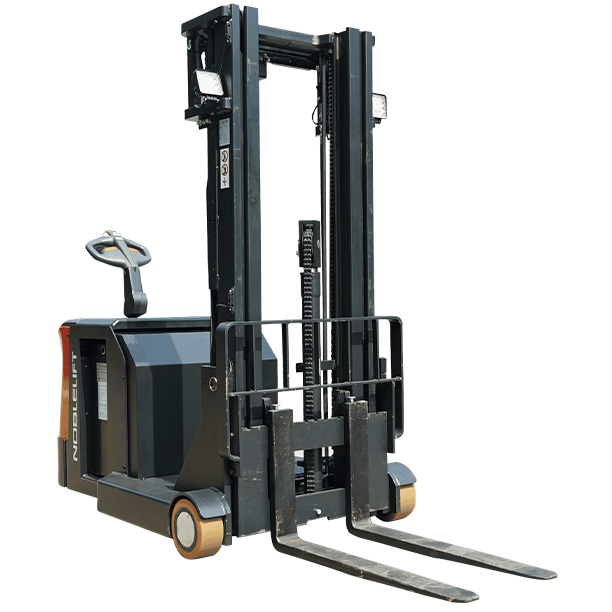

PS16CB-ION, STOCKMAN 1600 kg lithium counterbalanced stand-up rider electric stacker

The PS16CB-ION is a counterbalanced stand-up rider electric stacker designed to lift, move and stack loads up to 1600 kg. Its counterbalanced design meets applications where a straddle stacker cannot always pick up the load correctly, especially certain closed pallets or loads with a bottom placed directly on the floor.

With lift heights from 1600 to 4000 mm depending on the version, this industrial electric stacker is suitable for storage operations on low and medium-height racking. It is intended for warehouses, workshops, storerooms, order preparation areas and logistics sites looking for a compact, accurate machine suited to travel in working aisles.

Handling 1600 kg loads without front straddle legs

The PS16CB-ION is suitable for situations where the load must be approached directly from the front. Its counterbalanced architecture makes it easier to pick up closed pallets, supports with a bottom or loads where the straddle legs of a conventional stacker may block access.

This configuration helps teams that need to move, lift and position loads in the same storage area. The stacker works on low and medium-height racking, with a rated capacity of 1600 kg and a 500 mm load centre.

It can be used to:
pick up closed pallets directly from the floor.
store loads on low or intermediate racks.
supply a preparation or production area.
move goods between receiving, storage and shipping areas.
position loads on several storage levels.
work in areas where a straddle stacker is not suitable.

A compact stacker for storage aisles

The PS16CB-ION keeps a compact design despite its 1600 kg capacity. Its overall width of 1090 mm, 1450 mm wheelbase and 1705 mm turning radius make direction changes easier in circulation aisles.

The stand-on platform supports internal transfers when distances increase between receiving, storage, workshop and shipping areas. The folding protective arms and platform allow use to be adapted to site constraints, travel distances and flow organisation.

Electric power steering helps guide the stacker accurately. It provides better control when aligning in front of racking, picking up pallets and carrying out repeated manoeuvres in storerooms or warehouses.

Progressive lifting for accurate load placement

The PS16CB-ION integrates proportional lift control. The operator can adjust fork lifting and lowering during stacking, load retrieval or height adjustment operations.

The HPI hydraulic power unit contributes to accurate fork positioning during lifting and lowering phases. Progressive movements reduce jolts when depositing a load on a rack, adjusting to working height or handling fragile loads.

Mast tilt is fitted as standard. This additional adjustment supports load pick-up, travel and deposit according to the storage configuration.

Equipment suited to professional work cycles

The PS16CB-ION is fitted with components suited to industrial use: Schabmüller AC traction motor, Kordel gearbox, Zapi controller, Rema tiller, Rader Vogel wheels, HPI hydraulic power unit and SPE or ATIB chargers depending on configuration.

The multifunction display shows useful information during operation: service status, operating time, battery charge status, travel speed and steering angle. The USB port can power other devices.

Side battery extraction makes replacement and routine energy-related operations easier. The 8 mm cover and steel battery cover strengthen overall protection in areas where the stacker travels near racking, pallets, docks or production stations.

Professional applications for the PS16CB-ION

The PS16CB-ION is suitable for sites that need to handle intermediate loads with a compact, accurate machine adapted to front pick-up constraints. It fits into warehouse handling flows where pallets or supports must move from one area to another before storage or availability at the workstation.
stacking pallets up to 1600 kg.
storage on low and medium-height racking.
picking up closed pallets or supports with a bottom.
supplying production lines.
travelling between receiving, storage and shipping areas.
order preparation with height adjustment.
handling fragile loads with progressive lifting.
warehouse handling operations in narrow aisles.

Technical information for the PS16CB-ION
Rated capacity: 1600 kg.
Load centre: 500 mm.
Driving type: pedestrian and stand-up rider.
Standard lift heights: 1600, 2500, 3000, 3200, 3600 or 4000 mm depending on version.
Mast type: simplex for 1600 mm, duplex for the other lift heights.
Lowered mast height: from 1850 to 2600 mm depending on version.
Extended mast height: from 2450 to 4850 mm depending on version.
Weight with battery: from 1970 to 2190 kg depending on version.
Overall length: 2790 mm.
Length without forks: 1840 mm.
Overall width: 1090 mm.
Fork dimensions: 35 x 100 x 950 mm.
Outside fork width: 220 or 760 mm.
Minimum fork height: 60 mm.
Ground clearance: 52 mm.
Wheelbase: 1450 mm.
Turning radius: 1705 mm.
Travel speed: 8 km/h without load and 7 km/h with load.
Service brake: electromagnetic.
Traction motor: 2.6 kW.
Lifting motor: 3 kW or 3.2 kW depending on version.
Battery: 24 V, 150 Ah or 24 V, 200 Ah depending on version.
Noise level: 68 dB(A).

Selecting the right lift configuration

The choice of PS16CB-ION version depends on storage height, available ceiling height, the type of pallet or support handled and the circulation space available.

The 1600 mm version is suitable for low lifting operations or transfers with a low deposit height. Versions from 2500 to 4000 mm allow several racking levels to be used. The 150 Ah or 200 Ah battery capacity should be selected according to the expected operating time and charging organisation on site.

Common questions about the PS16CB-ION

Can the PS16CB-ION pick up closed pallets?
Yes. Its counterbalanced design allows it to pick up certain closed pallets or loads with a bottom directly from the floor.

What is the load capacity of the PS16CB-ION?
The rated capacity is 1600 kg, with a 500 mm load centre.

Which lift heights are available?
The available versions cover standard lift heights from 1600 to 4000 mm depending on the model selected.

Is the PS16CB-ION suitable for restricted circulation areas?
Yes. Its 1090 mm width and 1705 mm turning radius make manoeuvring easier in storage areas and working aisles.

Is access control available?
Yes. A control panel with PIN code or RFID card reader is available as an option to manage authorisations when several operators use the same machine.

Where can this counterbalanced stacker be used?
It is suitable for warehouses, storerooms, workshops, receiving areas, order preparation zones and logistics sites with low or medium-height racking.

Confirming your PS16CB-ION requirement with STOCKMAN

To choose the right PS16CB-ION version, the STOCKMAN sales representative for your area can help you check the key points: lift height, aisle width, load type, pallets used, floor quality, frequency of use and charging organisation. Their details are available on our contact page.
