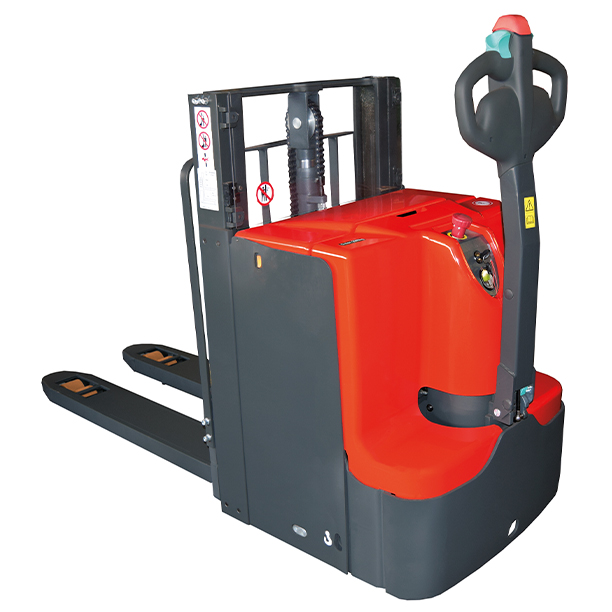

PT20D-ION

Lithium electric trans-stacker with additional lift 2000 kg

PT20D-ION

Lithium electric trans-stacker with additional lift 2000 kg

The PT20D-ION enables horizontal goods transport, the loading and unloading of trucks, and pallet stacking up to a maximum height of 2500 mm. Thanks to its initial lift, it can transport two Euro pallets at the same time.

more information

	Designation
	PT20D1600-ION Electric double pallet stacker 2000 kg lithium, lift 1480 mm, battery 150 Ah Weight : 691 kg
	PT20D1600-ION-CI Electric double pallet stacker 2000 kg lithium, lift 1480 mm, battery 150 Ah, chargeur intégré Weight : 691 kg
	PT20D2000-ION Electric double pallet stacker 2000 kg lithium, lift 1880 mm, battery 150 Ah Weight : 707 kg
	PT20D2000-ION-CI Electric double pallet stacker 2000 kg lithium, lift 1880 mm, battery 150 Ah, chargeur intégré Weight : 707 kg
	PT20D2500-ION Electric double pallet stacker 2000 kg lithium, lift 2380 mm, battery 150 Ah Weight : 875 kg Bar code : 3700664813981
	PT20D2500-ION-CI Electric double pallet stacker 2000 kg lithium, lift 2380 mm, battery 150 Ah, chargeur intégré Weight : 875 kg

DESCRIPTION

TECHNICAL CHARACTERISTICS

PT20D-ION, STOCKMAN 2000 kg lithium ergonomic pallet stacker

The PT20D-ION is a lithium electric pedestrian pallet stacker designed to combine horizontal transport, initial lift, order preparation and pallet stacking. It can move loads in pallet truck mode, load or unload trucks and stack pallets according to the selected mast height.

Its design meets the needs of warehouses, loading docks, storerooms, workshops and logistics platforms that require more versatility with a single machine. The PT20D-ION can carry two pallets at the same time thanks to its initial lift, with a double-pallet capacity of 1000 kg + 1000 kg. It can also take 2000 kg on the straddle legs and 1000 kg on the forks.

Transporting, lifting and preparing orders with one machine

The PT20D-ION is suitable for sites alternating between pallet transport, height adjustment and stacking operations. It reduces the need to switch equipment between handling phases, which helps organise internal flows in active work areas.

It can be used to:
transport pallets in a logistics area.
load and unload trucks.
move two Euro pallets at the same time.
stack pallets according to the available height.
raise a pallet to a suitable height for order preparation.
supply a picking area or workstation.
travel over walkways, ramps or slightly uneven floors.

The 120 mm initial lift increases ground clearance under the straddle legs. It makes travel easier in areas where level variations may restrict a conventional pallet truck.

Double-pallet handling to speed up internal flows

The PT20D-ION can carry two pallets at the same time. This function is useful on repeated routes between receiving, storage, preparation and shipping areas.

Double-pallet capacity is 1000 kg + 1000 kg. Capacity on the straddle legs is 2000 kg. Capacity on the forks is 1000 kg. This load distribution allows use to be adapted according to the load, lift height and operation to be performed.

In daily use, this configuration reduces some empty trips, improves internal transfers and helps teams organise pallet flows more effectively in receiving, storage and shipping areas.

Height adjustment for order preparation

The PT20D-ION supports picking and preparation operations with its lifting function. The operator can position the pallet at a more comfortable height for placing or picking goods.

Lift and lowering switches are placed on both sides of the machine. The operator can adjust pallet height without walking around the pallet stacker. This configuration is relevant when handling actions are frequent or when the preparation station requires regular height adjustments.

Electric proportional lifting provides precise control of fork position. It supports stacking operations at different heights and fine adjustments close to racking.

Long tiller and pedestrian operation in active work areas

The PT20D-ION is equipped with a long Rema tiller. It allows the operator to keep a safe distance from the machine during travel.

This design improves handling during manoeuvres, pallet approaches and aisle travel. It is suited to environments where the operator needs good visibility over the load, straddle legs, obstacles and circulation area.

The 729 mm overall width and 1682 mm turning radius make the PT20D-ION easier to integrate into work areas where space is limited.

Robust construction for intensive use

The PT20D-ION has a robust steel structure with an 8 mm reinforced apron. This design protects the truck and components against impacts linked to intensive use.

The steel battery cover contributes to overall protection. The static hydraulic system design avoids movement of the hydraulic system during lifting and lowering, contributing to machine stability during lifting operations.

The Schabmüller AC traction motor provides acceleration and smooth operation. The PT20D-ION also integrates components recognised in material handling: Kordel gearbox, Intorq brakes, Wicke steering wheels, Curtis controller, Rema tiller and SPE or ATIB chargers depending on configuration.

24 V, 150 Ah lithium battery with side extraction

The PT20D-ION is equipped with a 24 V, 150 Ah lithium battery. Side extraction makes battery replacement and routine maintenance operations easier.

This configuration is useful for sites organising their flows over several work periods. It also simplifies interventions when the machine is used regularly in logistics, warehouse handling or order preparation.

Access to components is made easier by removing the cover fixed with a single screw. Steering and drive wheels can be changed without having to lift the machine.

Available PT20D-ION configurations

The PT20D-ION is available with several lift heights. Versions can be selected according to the required stacking height, available ceiling height, type of use and site organisation.

With Duplex mast, PT20D1600-ION and PT20D1600-ION-CI configurations have a lowered mast height of 1178 mm, 120 mm initial lift, 1480 mm standard lift, 2528 mm extended mast height and a weight of 691 kg.

PT20D2000-ION and PT20D2000-ION-CI configurations have a lowered mast height of 1378 mm, 120 mm initial lift, 1880 mm standard lift, 2928 mm extended mast height and a weight of 707 kg.

With Triplex mast, PT20D2500-ION and PT20D2500-ION-CI configurations have a lowered mast height of 1233 mm, 120 mm initial lift, 2380 mm standard lift, 3475 mm extended mast height and a weight of 875 kg.

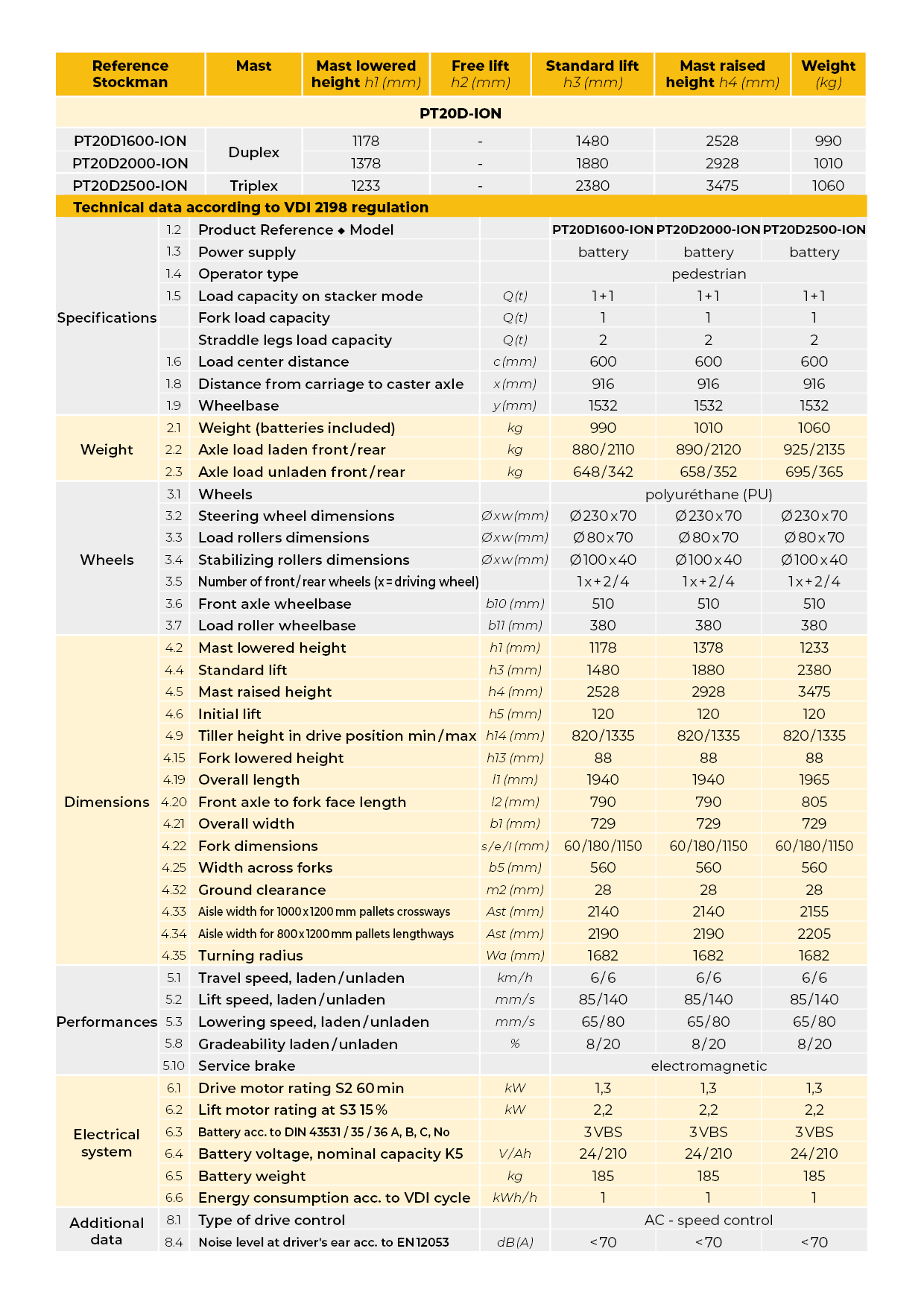

Technical reference points for the PT20D-ION
Propulsion mode: electric.
Driving type: pedestrian.
Double-pallet capacity: 1000 kg + 1000 kg.
Fork capacity: 1000 kg.
Straddle-leg capacity: 2000 kg.
Load centre: 600 mm.
Wheelbase: 1532 mm.
Wheels: polyurethane.
Initial lift: 120 mm.
Minimum fork height: 88 mm.
Overall width: 729 mm.
Fork dimensions: 60 x 180 x 1150 mm.
Outside fork width: 560 mm.
Ground clearance: 28 mm.
Turning radius: 1682 mm.
Travel speed: 6 km/h without load and 6 km/h with load.
Service brake: electromagnetic.
Traction motor: 1.3 kW.
Lifting motor: 2.2 kW.
Battery: 24 V, 150 Ah.
Energy consumption according to VDI cycle: 1 kWh/h.
Transmission type: AC - speed control.
Noise level: below 70 dB(A).

Environments suited to the PT20D-ION

The PT20D-ION is suitable for sites that need to combine transport, height adjustment and stacking in the same work area. It can meet the needs of a warehouse, loading dock, storeroom, logistics platform or workshop with repeated internal flows.

This pallet stacker can be selected for the following needs:
lithium electric pallet stacker for warehouses.
pallet truck stacker for order preparation.
material handling equipment for double-pallet transport.
electric pallet stacker for loading docks.
stacker with initial lift for ramps and walkways.
warehouse handling machine for Euro pallets.
compact pallet stacker for storerooms or logistics platforms.
handling solution for repeated internal flows.

Common questions before choosing the PT20D-ION

What is the PT20D-ION double-pallet capacity?
The PT20D-ION can carry two pallets with a capacity of 1000 kg + 1000 kg.

What load can it carry on the straddle legs?
Capacity on the straddle legs is 2000 kg.

What load can it lift on the forks?
Capacity on the forks is 1000 kg.

What is the 120 mm initial lift used for?
It increases ground clearance under the straddle legs and makes certain movements over ramps, walkways or slightly uneven floors easier.

Can the PT20D-ION be used for order preparation?
Yes. It can raise the pallet to a more comfortable working height and has side lifting and lowering switches to adjust height without walking around the machine.

Which lift heights are available?
The available versions correspond to standard lift heights of 1480, 1880 or 2380 mm depending on the selected model.

Discussing the right PT20D-ION configuration

To choose the most suitable PT20D-ION, the STOCKMAN sales representative for your area can help you validate the key points: stacking height, pallet type, double-pallet use, aisle width, docks, ramps, floor quality, frequency of use and charging organisation. Their details are available on our contact page.
