Height-adjustable tow arm for electric tow tractor

568598510006

Height-adjustable tow arm for electric tow tractor

Height-adjustable tow arm with a centring spring and 60 x 60 mm mounting flange. Designed to accept standard or custom couplings.

more information

	Designation
	568598510006 Height-adjustable tow-tractor arm, centring spring, 60 x 60 mm mounting flange Weight : 3 kg
	565438010007 Manual tow-tractor hitch, 25 to 60 mm adjustment, spring-pin locking Weight : 2 kg
	565438010014 LKE pin hook for TE10LI and TE20LI electric tow tractors Weight : 2 kg
	565438010010 Hitch hook for TE10LI and TE20LI electric tow tractors Weight : 1.9 kg Bar code : 3700664810973

DESCRIPTION

TECHNICAL CHARACTERISTICS

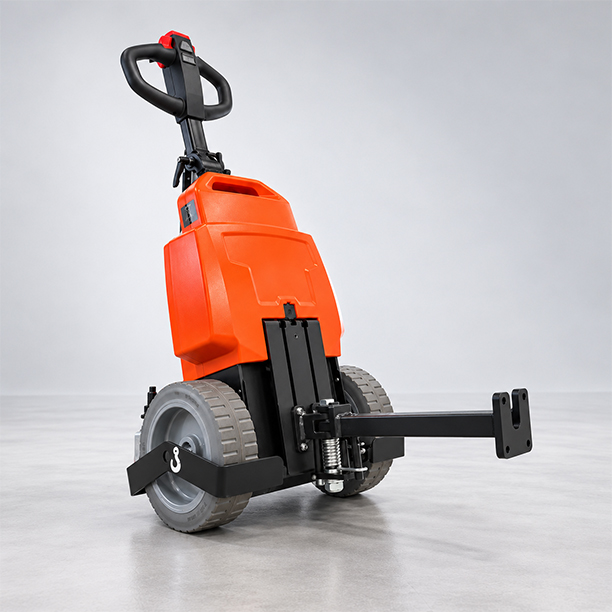

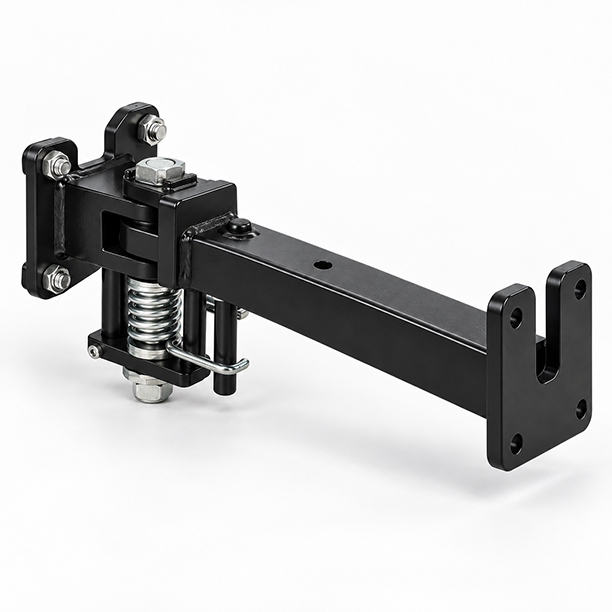

The STOCKMAN 568598510006 height-adjustable tow arm is an accessory for TE10LI, TE20LI and TE30LI electric tow tractors. It creates a mechanical connection between the tractor and a compatible wheeled load while allowing the coupling height to be adjusted. Fitted with a centring spring and a 60 x 60 mm mounting flange, it can accommodate a standard or custom-made coupling system, subject to compatibility.

Adjust the coupling height to suit wheeled loads

Wheeled equipment used in professional environments does not necessarily have the same hitch configuration. The position of the coupling point may vary depending on the cart, trailer or other equipment to be towed.

The 568598510006 tow arm is height-adjustable so that its position can be adapted to the intended connection interface.

This feature is useful when equipping an electric tow tractor to move different wheeled items, particularly in workshops, warehouses and technical departments.

The exact adjustment range of the arm must be verified when assessing the installation.

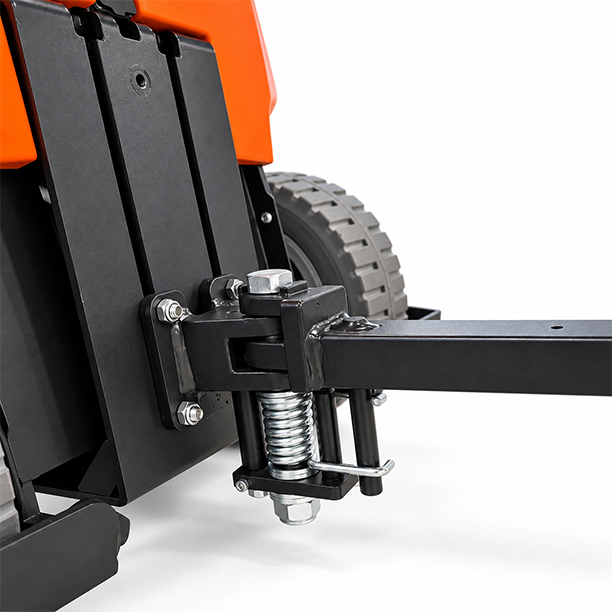

A centring spring integrated into the mechanical connection

The arm incorporates a centring spring that helps maintain its alignment.

This feature assists with positioning the arm during coupling operations and distinguishes it from a fixed hitch system.

The connection remains subject to the specifications of the device fitted to the wheeled load. The centring spring does not replace checking that the coupling is securely locked and fastened before use.

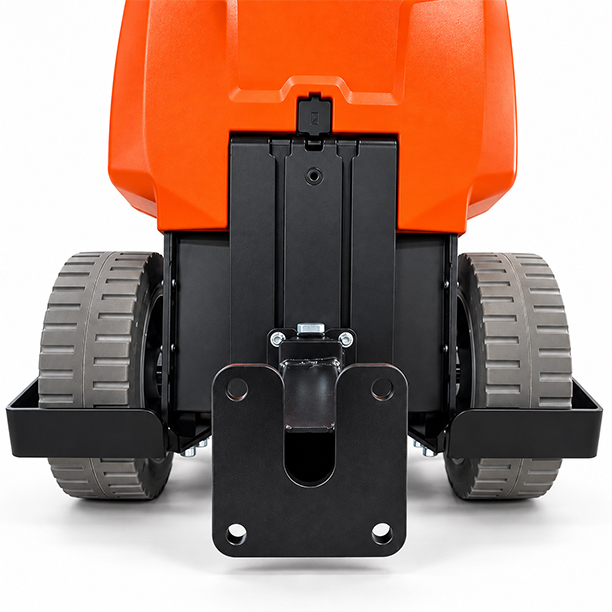

A 60 x 60 mm flange for standard or custom coupling systems

The arm has a 60 x 60 mm mounting flange with 8.5 mm diameter holes.

This interface is designed to accommodate standard or custom-made couplings. It makes it possible to assess the installation of a connection system according to the characteristics of the cart or trailer being towed.

Coupling selection must take account of the mounting dimensions, connection geometry and permissible forces for the equipment concerned.

An accessory for STOCKMAN electric tow tractors

The tow arm is listed for the following models:
TE10LI: electric tow tractor with a rated towing capacity of 1 000 kg.
TE20LI: electric tow tractor with a rated towing capacity of 2 000 kg.
TE30LI: electric tow tractor with a rated towing capacity of 3 000 kg.

This is an additional towing accessory, separate from the tractor. Compatibility with the mounting arrangement and the towed load must be checked before installation.

Applications of the tow arm in towing operations
Connecting a trailer to an electric tow tractor.
Adapting a hitch point for a handling cart.
Creating a mechanical connection for a specific wheeled item.
In-house towing of carts in an industrial workshop.
Moving wheeled equipment in a logistics area.
Integrating a custom coupling into an existing fleet of carts.
Adapting a TE tractor to the hitch interfaces of different compatible items.

Installation and checks before commissioning

Installation requires checking the flange dimensions, the position of the fixing points and the suitability of the coupling for the wheeled load.

Before use, the fastenings, centring spring and selected coupling device must be checked for proper operation.

The available towing capacity continues to depend on the tractor, the complete coupling system and the operating conditions. The tow arm must not be regarded as increasing the rated capacity of the towing vehicle.

Specifications of the 568598510006 tow arm
Description: height-adjustable tow arm for an electric tractor.
STOCKMAN reference: 568598510006.
Equipment type: towing accessory.
Adjustment: adjustable height.
Centring spring: integrated.
Flange dimensions: 60 x 60 mm.
Mounting hole diameter: 8.5 mm.
Interface: compatible standard or custom-made coupling.
Listed tractors: TE10LI, TE20LI and TE30LI.
Stated weight: 3 kg.

Frequently asked questions about the adjustable tow arm

Why use an adjustable tow arm rather than a fixed hitch?
Height adjustment lets the coupling position be adapted to the characteristics of the wheeled equipment being towed.

What is the role of the centring spring?
It helps keep the arm aligned during use and positioning.

Can a custom-made hitch be fitted?
Yes. The mounting flange is designed to accommodate standard or custom-made couplings, provided its dimensions and the mechanical requirements of the connection are respected.

Which tractors can be fitted with this arm?
It is listed for the STOCKMAN TE10LI, TE20LI and TE30LI electric tow tractors.

Is the tow arm supplied as standard with the tractor?
It is described as an optional accessory. Its inclusion in a commercial configuration must be checked when ordering.

Choose the hitch interface that suits your equipment

To select the tow arm, check the mounting dimensions or assess the connection of a particular cart, contact your local STOCKMAN sales representative. You can find their details on our contact page.
