HL540M

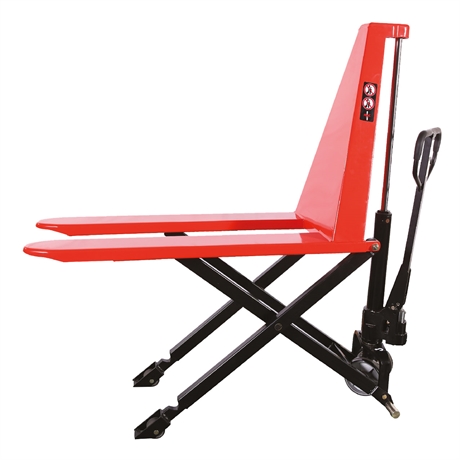

Manual scissor lift pallet truck 1000 kg

HL540M

This premium manual scissor lift pallet truck has a 1 ton capacity and can lift loads up to 800 mm.

more information

	Designation
	HL540M Manual scissor lift pallet truck 1000 kg 540 mm wide - handle not mounted when ordering more than 2 units Weight : 110 kg Bar code : 3700664838465 Catalogue P.124
	HL540M1500 Manual scissor lift pallet truck 1000 kg Forks 1500 x 540 mm Weight : 141 kg Bar code : 3700664811444
	HL540M1800 Manual scissor lift pallet truck 1000 kg Forks 1800 x 540 mm Weight : 166 kg Bar code : 3700664812427
	HL540M2000 Manual scissor lift pallet truck 1000 kg forks 2000 x 540 mm Weight : 174 kg Bar code : 3700664812434

DESCRIPTION

TECHNICAL CHARACTERISTICS

This manual scissor lift has a load capacity of up to 1 ton
It is equipped with two rear stabilizing bars prevent the unit from moving when lift height reaches 400 mm ensuring excellent stability
Forks length: 1165 mm
Width across forks: 540 mm
Lift height: 800 mm
Handy, robust and effective
Monocylinder hydraulic pump for great operating flexibility, easy lift and long durability
High frame for better user protection
Minimum pumping effort
German pump seals
Lowering pedal
Two operating speeds
Weight: 110 kg
