JE5215NC

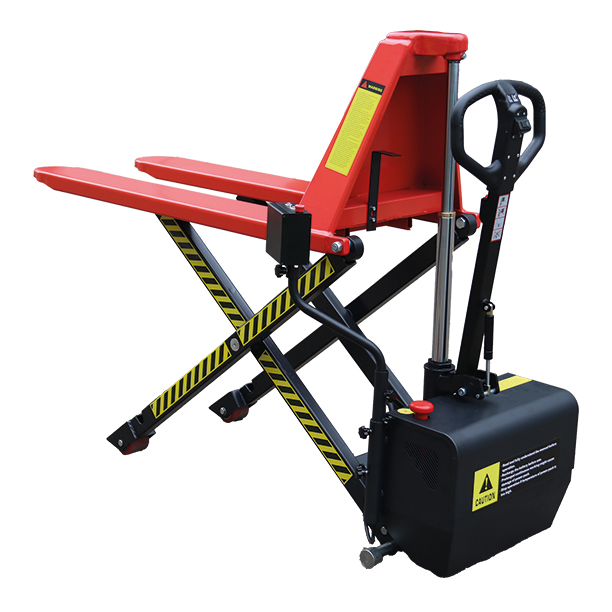

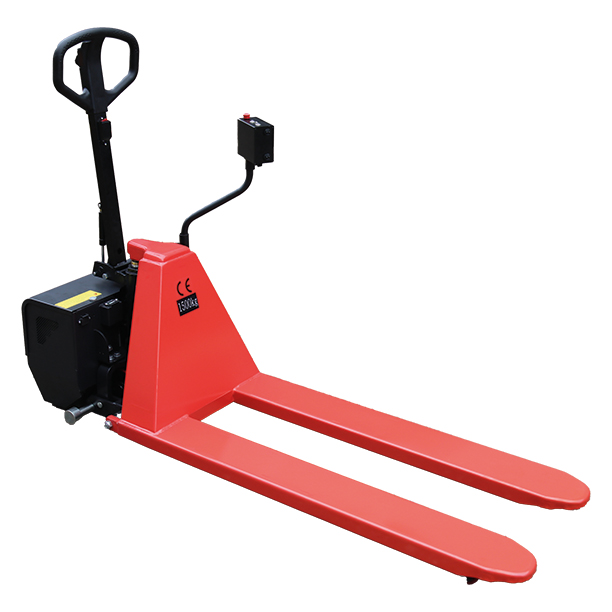

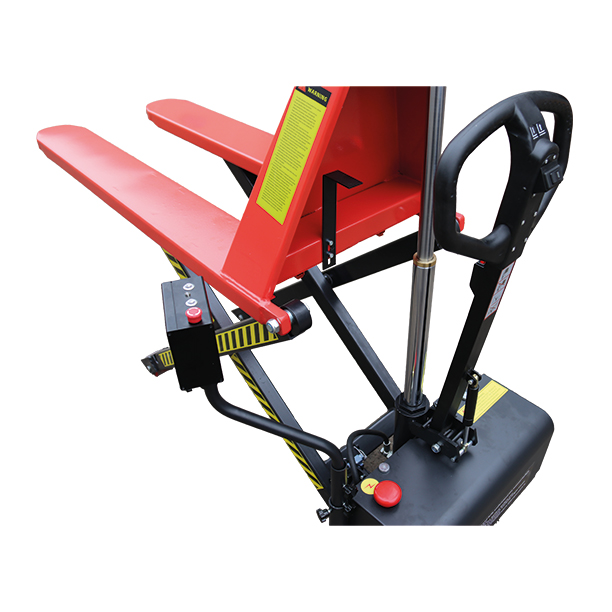

JE5215NC electric high lift pallet truck with automatic levelling 1500 kg

JE5215NC

JE5215NC electric high lift pallet truck with automatic levelling 1500 kg

The JE5215NC high lift pallet truck lifts loads up to 1500 kg to a height of 800 mm and reduces operator strain thanks to electric lifting and lowering. An electric high lift pallet truck solution for workshop material handling.

more information

	Designation
	JE5215NC Electric high-lift pallet truck with automatic levelling 1500 kg Weight : 152 kg Bar code : 3700664814278

DESCRIPTION

TECHNICAL CHARACTERISTICS

Electric high lift pallet truck designed for pallet transport and positioning at working height The JE5215NC is an electric high lift pallet truck designed for transporting pallets and positioning them at an ergonomic working height.

Its load capacity reaches 1500 kg with a 600 mm load centre, which corresponds to the most common internal handling requirements in workshops, storage areas and order preparation zones.

The lift height reaches 800 mm, placing the load at a practical height for packing, sorting or order preparation operations. Lifting and lowering are powered by an electric system, limiting manual effort and providing smooth, controlled elevation. The model features standard automatic levelling, ensuring a more stable load position during handling operations at height.

Within the STOCKMAN range, this equipment is positioned as an intermediate handling solution between a standard pallet truck for transport and a fixed lift table dedicated to a single workstation.

A high lift pallet truck with automatic levelling for workshops, dispatch areas and preparation zones

The JE5215NC is used in logistics environments where internal flows require both pallet movement and working phases at height. Typical applications include assembly workshops, dispatch areas, store backrooms, docks with floor-level preparation, as well as industrial or public-sector packing areas.

In these environments, pallets often arrive at floor level, while picking, wrapping, labelling or quality control operations are carried out more efficiently when the load is positioned at an ergonomic working height.

The high lift pallet truck therefore plays a dual role: it transports the pallet and positions it for work, without immobilising a fixed lift table. It contributes to smoother internal organisation, reducing additional handling and load rehandling.

Benefits of the JE5215NC automatic levelling high lift pallet truck

The JE5215NC focuses on operational robustness and consistency during height-based operations.
1500 kg capacity: suitable margin for heavy pallets in workshops, storage areas and preparation zones
Lift height up to 800 mm: practical working height for packing, sorting and preparation
Electric lifting and lowering: more controlled handling with reduced effort and consistent pace
Dual lifting cylinders: design focused on lifting power and stability during elevation
Low chassis: easier pallet entry and reduced risks linked to structural height
Integrated charger: simplified on-site charging without additional external equipment
Ergonomic tiller: improved comfort and control during manoeuvring and travel

Technical characteristics of the JE5215NC high lift pallet truck with automatic levelling
Structure / platform / chassis / load
The chassis and scissor-type lifting mechanism raise the pallet to 800 mm. This height improves load accessibility for repetitive workstation tasks. The nominal capacity of 1500 kg meets standard internal handling needs for Euro pallets. The dual cylinder system provides lifting power suitable for dense loads and repeated cycles. The equipment weight (152 kg) reflects a design focused on stability during lifting phases, while remaining suitable for indoor use.
Lifting speed and operation
Lifting and lowering times position the equipment for preparation and positioning tasks rather than high-speed transport. Indicatively, lifting takes 13 seconds without load and 18 seconds with 800 kg, promoting smooth, controlled elevation. Lowering takes 34 seconds without load and 12 seconds with 800 kg, reflecting different behaviour depending on load and electric assistance. These values align with workstation logic where consistency is as important as speed.
Manoeuvrability and dimensions
With an overall length of 1590 mm and a width of 520 mm, the JE5215NC fits into workshop and warehouse aisles designed for Euro pallet circulation. The 1100 mm forks match standard pallet formats, and the 520 mm external width corresponds to a common pallet handling format. The lowered fork height of 85 mm facilitates pallet entry in most internal use cases.
Wheels and travel
The rolling configuration is designed for handling on hard, even floors typical of warehouses and workshops. Load stability during lifting also depends on floor contact quality and proper workstation setup. In constrained environments, controlled travel and organised routes remain essential to limit shocks and protect the load.
Power supply, drive system and autonomy
Power is provided by a 12 V / 70 Ah battery combined with a 12 V / 10 A integrated charger. This configuration simplifies on-site charging and supports regular daily availability, provided charging is managed in line with operating cycles. The integrated charger reduces maintenance constraints and eliminates the need for external charging equipment.

Ergonomics, MSD prevention and safety

Handling at height aims to reduce physical strain during preparation, sorting and packing tasks. Electric lifting and lowering limit pumping, pulling and holding effort compared with manual lifting.

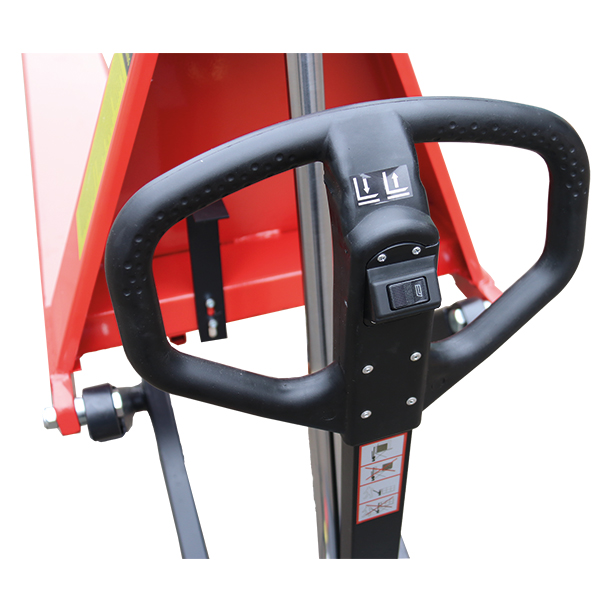

The ergonomic tiller improves grip and manoeuvre control. The low chassis simplifies pallet access and limits constraints linked to floor-level obstruction.

Automatic levelling improves load stability at height, reinforcing workstation control and reducing imbalance risks during repetitive operations.

Productivity and operational efficiency

The JE5215NC supports smoother internal flow organisation by combining transport and lifting functions. Teams reduce load rehandling and avoid interruptions linked to searching for a fixed workstation. Over a working day, battery availability and integrated charging promote operational continuity, subject to appropriate energy management.

Lifting to 800 mm enables faster and more consistent preparation sequences, as the workstation remains at an ergonomic height and handling movements are streamlined.

Gains also result from reduced time losses linked to adjustments and manual handling from floor-level pallets.

The JE5215NC is a 1500 kg electric high lift pallet truck designed to transport pallets and position them at 800 mm. Electric lifting and lowering, combined with dual cylinders, ensure robust and consistent operation in workshops and logistics environments. Its dimensions and 1100 mm forks match standard pallet formats, facilitating integration into internal flows. The 12 V / 70 Ah battery and integrated charger simplify daily operation. Overall, it provides a balanced solution combining ergonomics, safety and productivity for repetitive workstation tasks.

Typical applications of the JE5215NC
Raising pallets for order picking in picking zones
Packing, wrapping and labelling stations with loads at working height
Pallet-based sorting and quality control with improved accessibility
Supplying assembly lines or workbenches with stabilised load positioning
Internal pallet transfer between storage, workshop and dispatch areas with occasional height positioning

Who the JE5215NC high lift pallet truck is for

The JE5215NC is intended for organisations seeking an electric high lift pallet truck for regular internal flows and height-based operations: logistics, industry, manufacturing workshops, maintenance services, public-sector organisations, retail stores with backrooms, as well as distributors of industrial supplies and material handling equipment. It matches search intent related to reducing physical strain and optimising preparation workstations, with a requirement for 1500 kg capacity and 800 mm lift height.

Typical users are searching for:
A 1500 kg electric high lift pallet truck for workshop handling
An electric scissor lift pallet truck with lift up to 800 mm
A high lift pallet truck for positioning pallets at working height
An electric pallet truck with powered lowering to reduce shocks
A high lift pallet truck with integrated charger for daily use
A pallet truck with 1100 mm forks for standard pallets
An electric pallet truck to reduce effort during preparation
A low chassis high lift pallet truck for easier pallet access
A dual-cylinder electric pallet truck for stable lifting
A high lift pallet truck with automatic levelling for packing stations
