EXC-103TB

Top-and-bottom semi-automatic case sealer for cartons

EXC-103TB

Top-and-bottom semi-automatic case sealer for cartons

Top-and-bottom case sealer with side-belt drive for cartons 140 to 500 mm wide. Conveyor speed of 23 m/min.

more information

	Designation
	EXC-103TB Adhesive tape applicator machine Weight : 153 kg Bar code : 3700664813233

DESCRIPTION

TECHNICAL CHARACTERISTICS

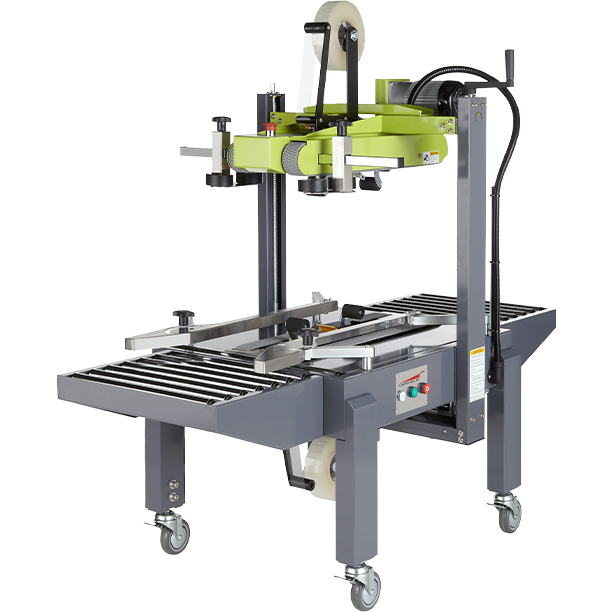

The EXC-103TB carton sealing machine closes cardboard boxes by applying adhesive tape to their top and bottom surfaces. Designed for packing stations and shipping operations, this professional case sealer uses a belt-driven conveying system and accepts tape widths of 36 or 50 mm. It features a roller table to support cartons as they pass through the sealing process.

Apply adhesive tape to the top and bottom of cartons

The EXC-103TB applies adhesive tape to both the upper and lower sections of cardboard boxes. This allows both sides of a carton to be sealed during a single pass through the machine rather than carrying out each tape application separately.

It is used at the packing station once the parcel contents have been prepared and before the box moves on to labelling, consolidation or shipping operations.

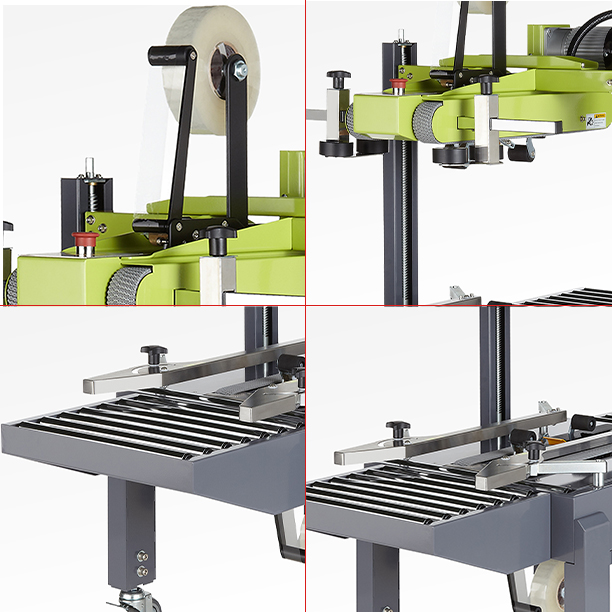

The machine is supplied with a 3-inch tape application head and accepts adhesive tapes 36 or 50 mm wide.

Mechanised conveying at 23 m/min

The belt drive moves cartons through the sealing area. The conveying speed reaches 23 m/min.

This powered movement carries the carton through the tape application stage and reduces the manual handling required to feed it through the case sealer.

Actual station throughput depends in particular on packaging dimensions, the way cartons are fed into the machine and the operations carried out before and after sealing.

Which carton sizes can be processed?

The EXC-103TB accepts cartons measuring between 140 and 500 mm in width and between 120 and 500 mm in height. The minimum permissible length is 120 mm.

These dimensions allow various carton formats to be handled during packing, order preparation and goods dispatch operations.

Machine settings and the selection of packaging must comply with the permitted dimensions to ensure cartons pass through correctly and adhesive tape is applied as intended.

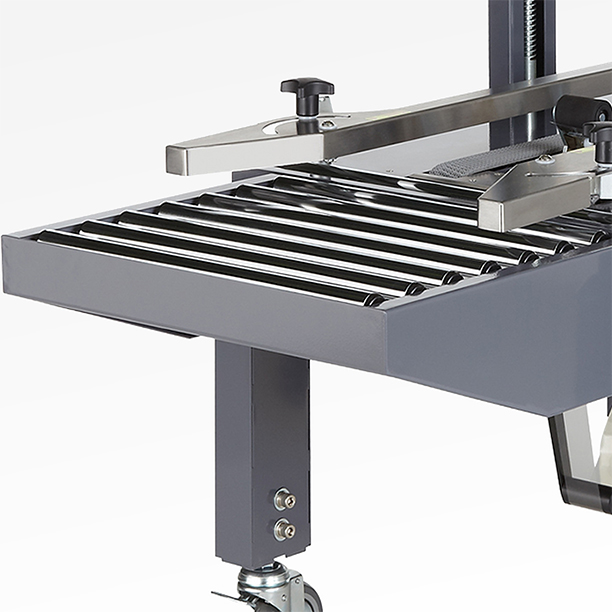

A roller table to support cartons

The machine is fitted with a roller table as standard, helping cartons move through the sealing station.

Four castors also allow the equipment to be moved when setting up or reorganising a packing area.

With an overall length of 1 637 mm and width of 754 mm, the EXC-103TB can be incorporated into the layout of a workshop or shipping department after checking the space available for the machine, operators and movement of cartons.

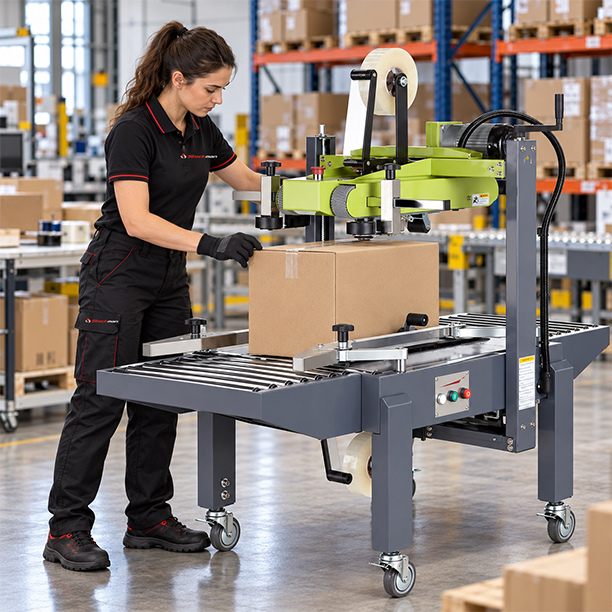

Professional uses of the EXC-103TB
Sealing the top and bottom of cardboard boxes.
Packing goods before dispatch.
Preparing parcels in a logistics warehouse.
Sealing packaging in a production workshop.
Processing cartons at an order preparation station.
Incorporating a case sealer into a packing area.

Motor and case sealer specifications

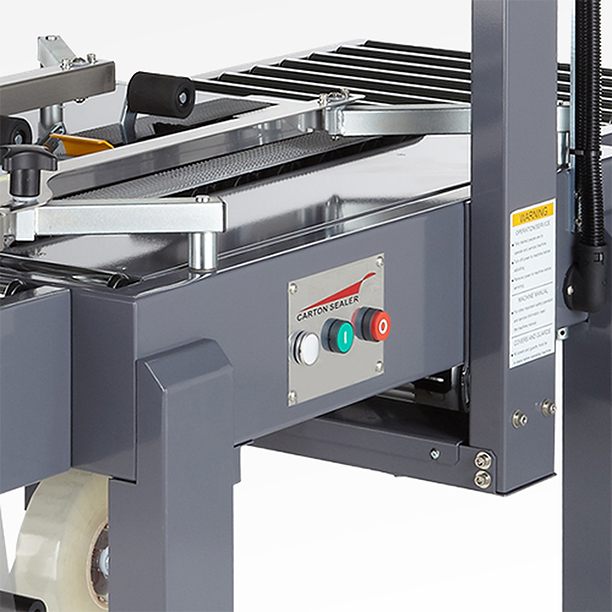

The EXC-103TB is fitted with a 450 W motor and operates from a 110/220 V power supply at 50/60 Hz. The machine is equipped with an emergency stop device.

Its main technical specifications are as follows:
Function: applying adhesive tape to the top and bottom of cartons.
Adhesive tape width: 36 or 50 mm.
3-inch application head supplied.
Minimum carton length: 120 mm.
Carton width: 140 to 500 mm.
Carton height: 120 to 500 mm.
Conveying speed: 23 m/min.
Motor power: 450 W.
Power supply: 110/220 V - 50/60 Hz.
Stated noise level: 60 dB.
Dimensions (L x W x H): 1 637 x 754 x 1 375 mm.
Weight: 153 kg.
Four castors and roller table as standard.
Emergency stop device.

Frequently asked questions about the EXC-103TB machine

Does the EXC-103TB apply tape to both sides of a carton?
Yes. The machine is designed to seal both the top and bottom of cardboard boxes with adhesive tape.

What are the maximum carton dimensions?
The maximum permitted width is 500 mm and the maximum height is 500 mm. No upper limit for carton length is specified in the documentation provided.

Which adhesive tape width can be used with the EXC-103TB?
The machine accepts tape 36 or 50 mm wide and is supplied with a 3-inch tape application head.

Can the machine be moved within a packing area?
Yes. Four castors are supplied as standard so it can be repositioned when organising the workstation.

Assess how to incorporate the EXC-103TB into your facility

To check carton formats, select adhesive tapes and plan the installation of this case sealer in a workshop or shipping department, contact your regional STOCKMAN sales representative. Their details are available on our contact page.
