EXC-103SDBL

Semi-automatic side-belt case sealer for cartons

EXC-103SDBL

Semi-automatic side-belt case sealer for cartons

Semi-automatic side-belt case sealer for cartons 110 to 500 mm wide and 80 to 500 mm high. 23 m/min drive and free-roller conveyors at both ends.

more information

	Designation
	EXC-103SDBL Adhesive tape applicator machine Weight : 165 kg Bar code : 3700664813226

DESCRIPTION

TECHNICAL CHARACTERISTICS

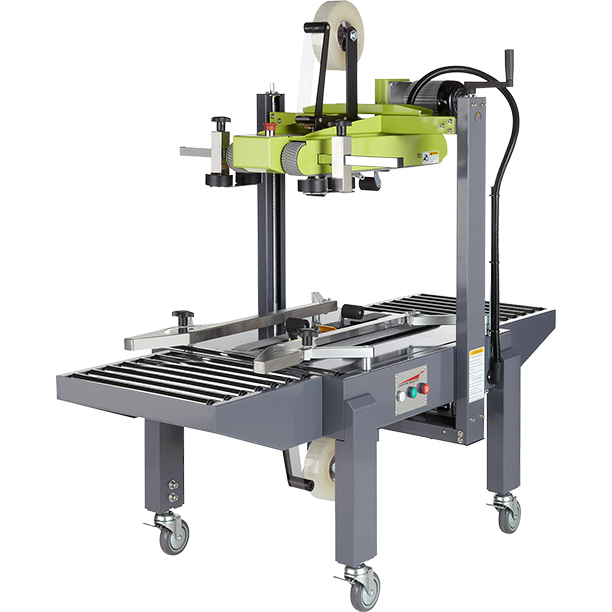

The EXC-103SDBL carton sealing machine is a semi-automatic case sealer designed to close cardboard boxes during packing and shipping operations. It can handle low-height cartons from 80 mm while accommodating a range of box sizes. Its side-belt drive and roller conveyors help move cartons through the machine as the adhesive tape is applied.

Seal low-height cartons without changing machines

The EXC-103SDBL handles cartons measuring between 80 and 500 mm in height and between 110 and 500 mm in width. The minimum permissible carton length is 120 mm.

This dimensional range enables it to process different shipping boxes, including certain flat packages used to pack parts, accessories or products with a low vertical profile.

It can therefore be incorporated into parcel preparation operations in packing workshops, logistics warehouses and shipping departments handling several carton formats.

Side-belt drive to move cartons through the machine

Cartons are conveyed by drive belts positioned on either side. These move each carton through the tape application area.

The stated conveying speed is 23 m/min. This figure helps assess how the case sealer can be incorporated into a packing process, taking account of carton feeding and the preparation work required beforehand.

Mechanised tape application standardises this sealing operation, provided that carton dimensions remain within the machine's specified limits and the settings are adjusted for each format.

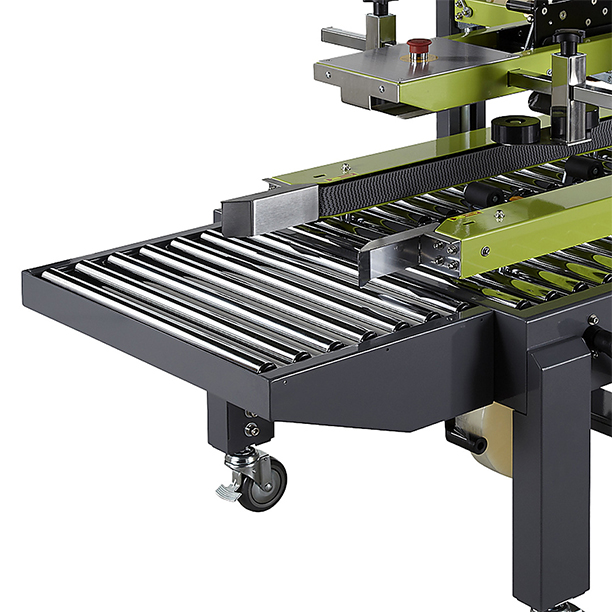

Roller conveyors for carton infeed and outfeed

The EXC-103SDBL has free-rolling conveyors upstream and downstream of the sealing area. These support the introduction of cartons into the machine and their collection at the exit.

Four braked swivel castors are also supplied as standard. They allow the case sealer to be moved when arranging the packing station and then secured in position during operation.

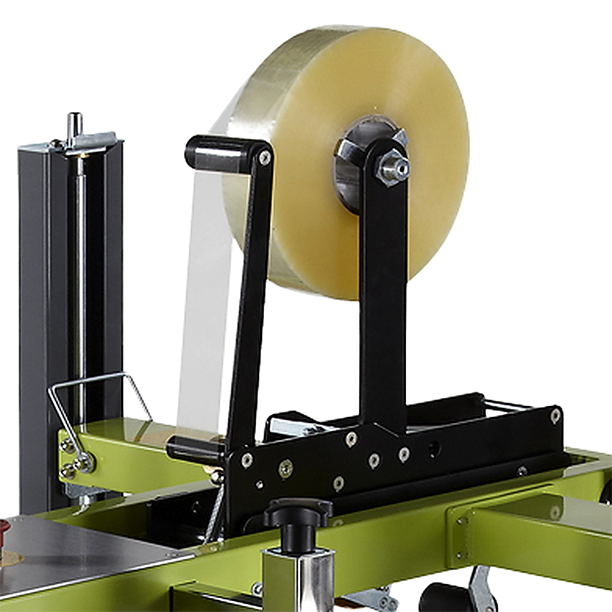

Compatible adhesive tapes and consumables

The machine accepts adhesive tapes 36 or 50 mm wide. This choice allows the consumable to be matched to the packaging format and sealing requirements, subject to the tape specifications and the manufacturer's recommendations.

Before each packing run, the settings must be adjusted to suit the carton dimensions and the tape path checked.

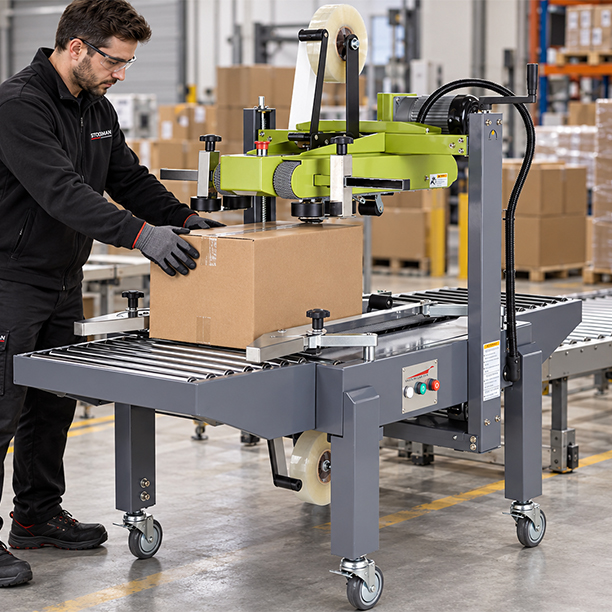

Professional packing applications for the EXC-103SDBL
Sealing low-height cartons for shipping spare parts.
Preparing cardboard boxes in a packing workshop.
Sealing parcels of varying sizes in a shipping department.
Packing flat products or products with a low vertical profile.
Integrating a case sealer into an order-picking station.
Processing cardboard boxes in a logistics or industrial area.

EXC-103SDBL technical specifications
Type: semi-automatic case sealer.
Drive: side belts.
Adhesive tape width: 36 or 50 mm.
Minimum carton length: 120 mm.
Carton width: 110 to 500 mm.
Carton height: 80 to 500 mm.
Conveying speed: 23 m/min.
Power supply: 220 V / 50 Hz.
Motor power: 450 W.
Stated noise level: 60 dB.
Machine dimensions (L x W x H): 1 713 x 854 x 1 350 mm.
Weight: 165 kg.
Free-rolling infeed and outfeed conveyors.
Four braked swivel castors as standard.

Frequently asked questions about the EXC-103SDBL

Can the EXC-103SDBL case sealer close flat cartons?
Yes, provided their dimensions fall within the permitted range. It can handle boxes from 80 mm high and 110 mm wide.

Which adhesive tape width should be used?
The machine accepts tape widths of 36 or 50 mm.

Are the roller conveyors supplied?
Yes. The machine has free-rolling conveyors on both the infeed and outfeed sides.

Can the machine be moved around the workshop?
Yes. It has four braked swivel castors so it can be moved and secured at the packing station.

Configure your carton sealing station

To check carton dimensions, choose suitable consumables and assess the integration of the EXC-103SDBL into a packing area, contact your regional STOCKMAN sales representative. Contact details are available on our contact page.
