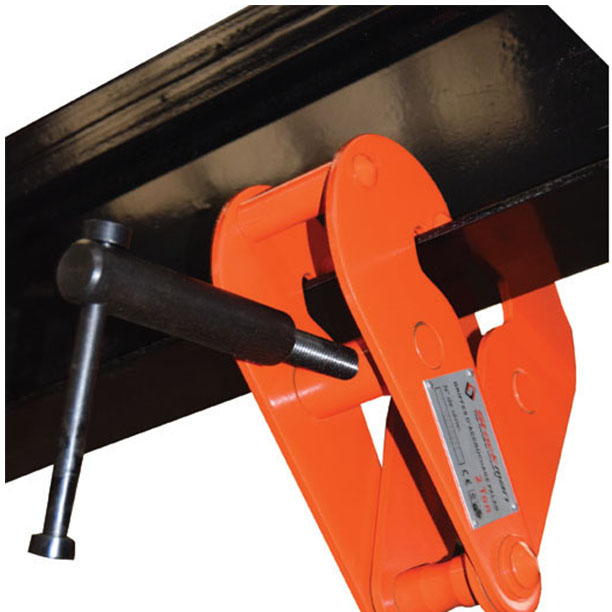

Quick installation girder beam clamp 1000 to 10 000 kg

BC

Quick installation girder beam clamp 1000 to 10 000 kg

This girder beam clamp is easy to install. It can lift loads ranging between 1 and 10 tons depending on the model.

more information
Designation
BC10 - Quick installation girder beam clamp 1000 kg BC10
Quick installation girder beam clamp 1000 kg

Weight : 3.8 kg
Bar code : 3700664882062
Catalogue P.245
BC20 - Quick installation girder beam clamp 2000 kg BC20
Quick installation girder beam clamp 2000 kg

Weight : 4.6 kg
Bar code : 3700664882048
Catalogue P.245
BC30 - Quick installation girder beam clamp 3000 kg BC30
Quick installation girder beam clamp 3000 kg

Weight : 9 kg
Bar code : 3700664882031
Catalogue P.245
BC50 - Quick installation girder beam clamp 5000 kg BC50
Quick installation girder beam clamp 5000 kg

Weight : 11 kg
Bar code : 3700664882024
Catalogue P.245
BC100 - Quick installation girder beam clamp 10000 kg BC100
Quick installation girder beam clamp 10000 kg

Weight : 16 kg
Bar code : 3700664882055
Catalogue P.245

  • Quick installation girder beam clamp with a load capacity of 1 to 10 metric tons (5 models available)
  • Equipped with a threaded bar to adjust the clamp width
  • Precise and easy adjustment for different sizes of IPN / IPE iron beams

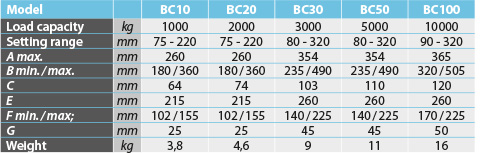

  • Download the product specifications for further technical information

Documentation

Data sheet New products
