Single-Phase Electric Chain Hoists 250 à 1000 kg

VSM

Single-Phase Electric Chain Hoists 250 à 1000 kg

STOCKMAN’s VSM electric chain hoists provide efficient lifting in single-phase 230V environments. Designed for non-industrial settings, these models offer safety, easy installation, and reliable performance for loads up to 1000 kg.

more information

	Designation

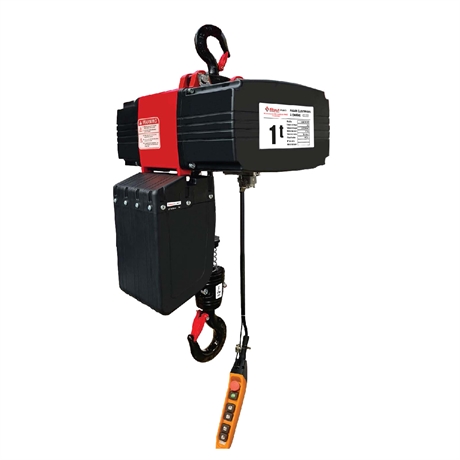

	VSM1000-3M Electric chain hoist 1 ton with 3-meter chain 220V Weight : 39 kg Bar code : 3700664814414

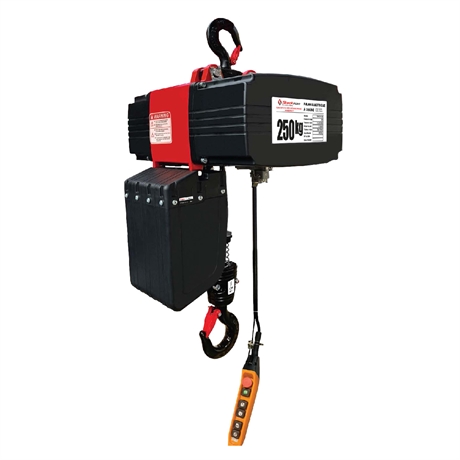

	VSM250-3M Electric chain hoist 250 kg with 3-meter chain 220V Weight : 25 kg Bar code : 3700664814438

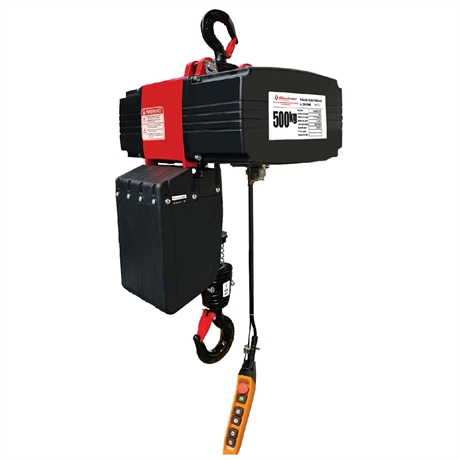

	VSM500-3M Electric chain hoist 500 kg with 3-meter chain 220V Weight : 37 kg Bar code : 3700664814421

DESCRIPTION

TECHNICAL CHARACTERISTICS

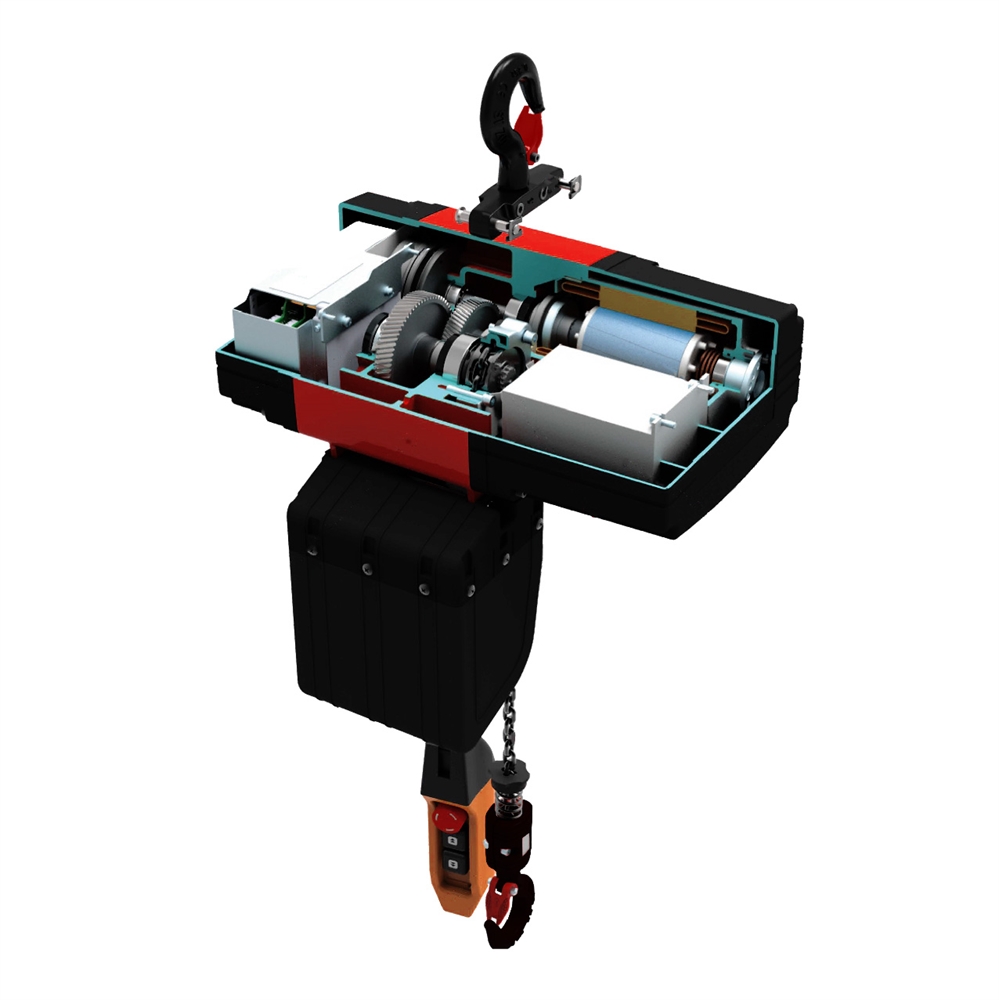

VSM electric hoists offer a reliable technical solution for sites without three-phase power. Running on 230V single-phase, they allow professional lifting of loads up to 1000 kg. Their robust design incorporates top-tier safety features such as electromagnetic brakes, limit switches, and calibrated friction clutches. The ventilated motor with thermal sensors offers optimal protection against overheating. Helical gears in an oil bath ensure smooth and quiet operation. With ergonomic controls and a “Plug & Play” setup, even non-specialized operators can quickly get started. Product Benefits Operates on 230V power: ideal for workshops, garages, and small facilities VFD soft start: protects the motor and reduces shocks Cast aluminum housing: lightweight, strong, and excellent heat dissipation Easy maintenance: direct access to critical components High-strength chain: EN818-7 compliant for repeated lifting tasks Ergonomic control: enhanced safety with emergency stop button Technical Specifications Lifting capacity: 250 kg, 500 kg, 1000 kg Lifting height: 3 m Motor: single-phase 230V (some models compatible with 1PH and 3PH) Duty cycle: 40%, up to 300 starts/hour Protection rating: IP55 Standards: EN14492-2:2010, EN818-7 Application Fields Crafts and Small Workshops: lifting tools or materials in tight spaces Auto Garages: lifting mechanical parts without three-phase power Temporary Construction Sites: portable solution with standard connections Building Maintenance: simple installation in buildings without industrial networks Municipal Technical Services: reliable and safe lifting in urban settings Agriculture: lifting tools and equipment on farms without three-phase power

Single-Phase Electric Chain Hoists 250 à 1000 kg

Single-Phase Electric Chain Hoists 250 à 1000 kg
