Mini electric hoist 125 to 1000 kg

This mini electric hoist can lift and transport loads up to 250 kg, 500 kg or 1 ton depending on the model and strand configuration.

more information

	Designation
	MB250 Mini electric hoist 250 kg (6 m / 2 strands) or 125 kg (12 m / 1 strand) Weight : 12,5 kg Bar code : 3700664813301 Catalogue P.236
	MB500 Mini electric hoist 500 kg (6 m / 2 strands) or 250 kg (12 m / 1 strand) Weight : 20 kg Bar code : 3700664813066 Catalogue P.236
	MB1000 Mini electric hoist 1000 kg (6 m / 2 strands) or 500 kg (12 m / 1 strand) Weight : 31 kg Bar code : 3700664813479 Catalogue P.236

DESCRIPTION

TECHNICAL CHARACTERISTICS

Mini electric hoist with a load capacity of 250kg, 500 kg or 1 metric tonne when set on 2 strands and depending on the model
Important: the product can be set on 1 or 2 strands. Depending on the configuration, the length of the strand changes: 12 m (1 strand) or 6 m (2 strands)
Load capacity also changes depending on the configuration (1 or 2 strands): 125 or 250 kg for MB250, 250 or 500 kg for MB500 and 500 kg or 1000 kg for MB1000
High-end motor and gearbox
Standard limit switch
Control unit
Compact
Haul system
Load cycles: 6 per hour
2 m remote control unit cable
Warning: 8 min. of rest period between cycles is mandatory

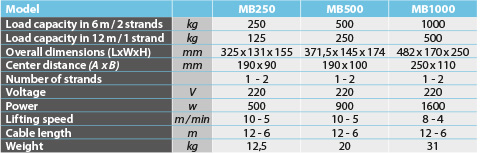

Download the product specifications for further technical information and to compare our 3 mini electric hoist models

Options

Possibility to install the mini hoist on a rotating support arm (warning: 600kg maximum capacity)

Data sheet
