PTE15N

Lithium electric pallet truck 1500 kg

PTE15N

Lithium electric pallet truck 1500 kg

Exclusively distributed by Stockman, the PTE15N EDGE leads the lithium-ion electric pallet truck market. Demo video available.

more information

	Designation
	PTE15N Lithium electric pallet truck 1500 kg 1150 mm / 540 mm 20Ah Battery Weight : 123 kg Bar code : 3700664835808 Catalogue P.140
	PTE15N/36AH Lithium electric pallet truck 1500 kg 1150 mm / 540 mm 36Ah Battery Weight : 123 kg Bar code : 3700664809151 Catalogue P.140
	PTE15NC Lithium electric pallet truck 1500 kg 1150 mm / 540 mm anti-slip belt wheel 20Ah Battery Weight : 124 kg Bar code : 3700664809144 Catalogue P.140
	PTE15NL Lithium electric pallet truck 1500 kg 1150 mm / 685 mm 20Ah Battery Weight : 126 kg Bar code : 3700664835754 Catalogue P.140
	PTE15N800 Lithium electric pallet truck 1500 kg 800 mm / 540 mm 20Ah Battery Weight : 120 kg Bar code : 3700664835761 Catalogue P.140
	PTE15NL800 Lithium electric pallet truck 1500 kg, forks 800 × 685 mm, 20 Ah Weight : 123 kg Bar code : 3700664816029
	PTE15N800X450 Lithium electric pallet truck 1500 kg forks 800 mm / 450 mm 20Ah Battery Weight : 112 kg Bar code : 3700664806723 Catalogue P.120
	PTE15NLOW61S Low-profile 61 mm lithium electric pallet truck 1500 kg 1150 mm / 540 mm 20Ah Battery Weight : 123 kg Bar code : 3700664810737 Catalogue P.140
	PTE15N1000 Lithium electric pallet truck 1500 kg, forks 1000 × 540 mm, 20 Ah Weight : 123 kg Bar code : 3700664815190
	PTE15N-1500 Lithium electric pallet truck 1500 kg 1500 mm / 540 mm 20Ah Battery Weight : 126 kg Bar code : 3700664810706 Catalogue P.140
	PTE15N/GS Lithium electric pallet truck 1500 kg single rollers 1150 mm / 540 mm 20Ah Battery Weight : 120 kg Bar code : 3700664835778 Catalogue P.140

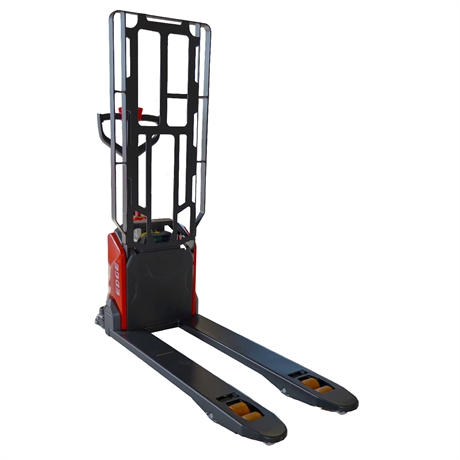

	PTE15NTOW Electric lithium pallet truck 1500 kg 20 Ah battery with standard charging backrest 1207 x 540 mm Weight : 149 kg Bar code : 3700664815008
	508098520026 Anti-slip belt wheel PTE15N Weight : 0.5 kg Bar code : 3700664804910 Catalogue P.140
	508037010032 Lithium battery 20 AH PTE15N BLACK COLOR Weight : 3.6 kg Catalogue P.140
	508037010017-T03 Lithium battery 36 AH PTE15N Weight : 4.6 kg Bar code : 3700664801940 Catalogue P.140
	508036510004 8Ah charger for 20Ah PTE15N Weight : 1 kg Catalogue P.140
	508036510016 12Ah charger for 30 and 36Ah PTE15N Weight : 1 kg Catalogue P.140
	508040501005 1520 mm load backrest for PTE15N AND PTE20N electric pallet truck Weight : 0 kg
	507740510001 1070 mm load backrest for PTE15NPRO AND PTE20NPRO electric pallet truck Weight : 0 kg
	507740510002 1220 mm load backrest for PTE15NPRO AND PTE20NPRO electric pallet truck Weight : 0 kg
	507740510003 1525 mm load backrest for PTE15NPRO AND PTE20NPRO electric pallet truck Weight : 0 kg

DESCRIPTION

TECHNICAL CHARACTERISTICS

The PTE15N EDGE electric pallet truck is the lithium-ion electric pallet truck market leader
With more than 1500 sales in 2019, PTE15N EDGE is our top selling electric pallet truck
Load capacity: 1.5 ton
Compact, robust, lightweight and innovant design
Features an ergonomic handle with LCD display and PIN-code start-up
Equipped with an air spring on the tiller bar
Slow speed mode (turtle mode) provides traveling speed control when turning for additional safety
Very functional electrical pallet truck
PTE15N total length is smaller than a standard manual pallet truck while keeping the same fork length (1150 mm)
Total weight of only 123 kg including the battery
Maintenance-free 24 V / 20 Ah lithium-ion battery comes standard
Easy access battery (simple installation and replacement)
The battery has been specially designed to withstand a 1.5 m drop and to recharge in 2.5 hours
This electrical pallet truck is particularly compact and available in 3 versions with different fork length and width
Comes standard with stabilizing rollers
Curtis controllers and throttle, CAN-BUS technology
Handle in vertical position to maneuver in tight spaces
Stabilizing rollers
Chassis color can be customized
PTE15N helps reduce work-related musculoskeletal disorders (MSD)
Download the product specifications for further technical information and our complete commercial brochure
Watch this product demo video on our YouTube channel
