HUB-EDGEPRO

Battery charging station with 5 slots for electric pallet truck PTE15NPRO and PTE20NPRO

HUB-EDGEPRO

Battery charging station with 5 slots for electric pallet truck PTE15NPRO and PTE20NPRO

Battery charging station for electric pallet truck. HUB-EDGE PRO centralizes the charging of 5 batteries for PTE15N PRO and PTE20N PRO, with charge level display and integrated safety features.

more information

	Designation
	HUB-EDGEPRO Charging station for 5 EDGE PRO batteries Weight : 94 kg Bar code : 3700664812281

DESCRIPTION

TECHNICAL CHARACTERISTICS

HUB-EDGE PRO, 5-slot battery charging station for PTE15N PRO and PTE20N PRO

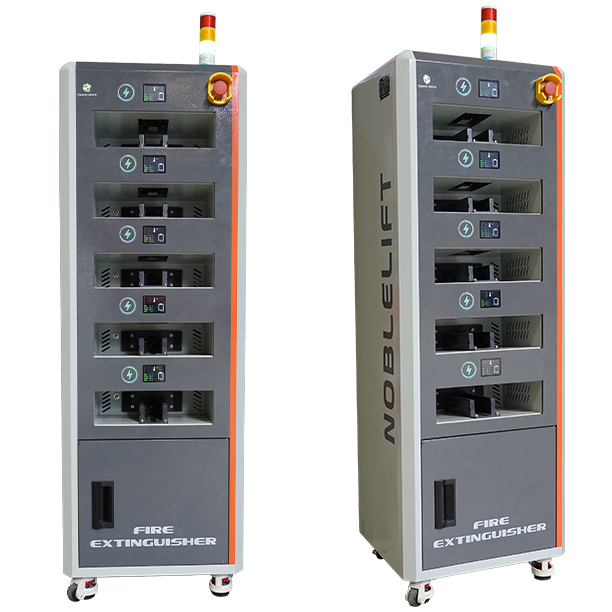

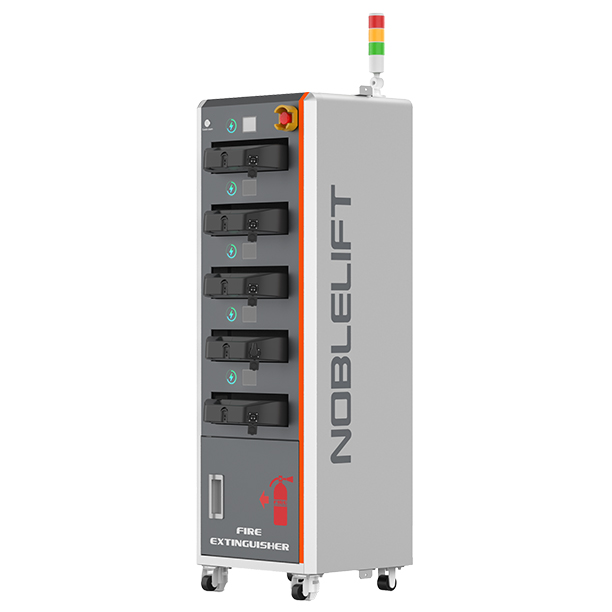

The HUB-EDGE PRO is a charging station designed to centralize battery charging for PTE15N PRO and PTE20N PRO electric pallet trucks. It can charge up to 5 batteries at the same time on a single hub, with real-time display of the charge level of each battery. Its emergency stop, reset switch, alarm system with integrated extinguisher and heat dissipation device make it suitable for an organized charging area monitored on a daily basis.

A simple solution to centralize battery charging

The HUB-EDGE PRO meets a practical need. It brings together the charging of several batteries at a single point. It therefore simplifies the organization of the charging area in a warehouse, stockroom, logistics base or industrial site.

This station is suitable for environments where several batteries need to be charged every day. It helps maintain a clear view of the charge status and avoids scattered battery management across several locations.

A 5-compartment station designed to manage charging in one place

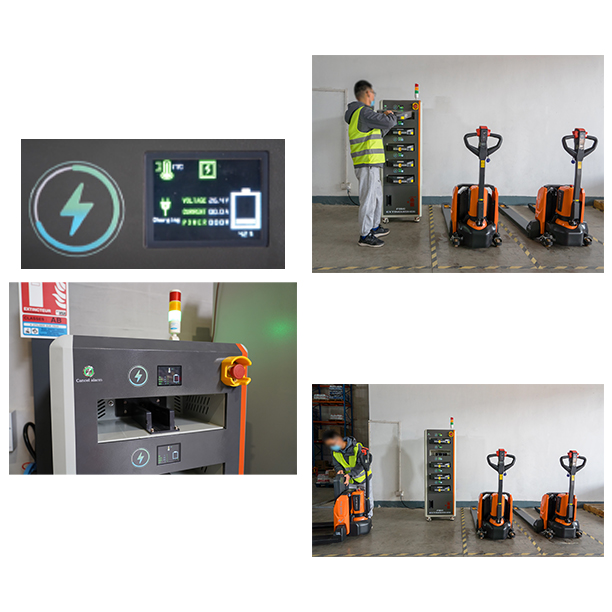

The HUB-EDGE PRO can charge up to 5 batteries at the same time. Each compartment is independent. The charge level of each battery is visible in real time. The 1.8-inch LED screen provides direct reading of the useful information.

This design makes daily monitoring easier. It helps distribute available batteries more effectively. It also makes it possible to adapt the charging area to heavier use, with the option to connect several hubs if the battery fleet requires it.

HUB-EDGE PRO technical specifications

The technical data below includes the validated information for the model.
Reference - Model: HUB-EDGE PRO
Compatibility: only for PTE15N PRO and PTE20N PRO

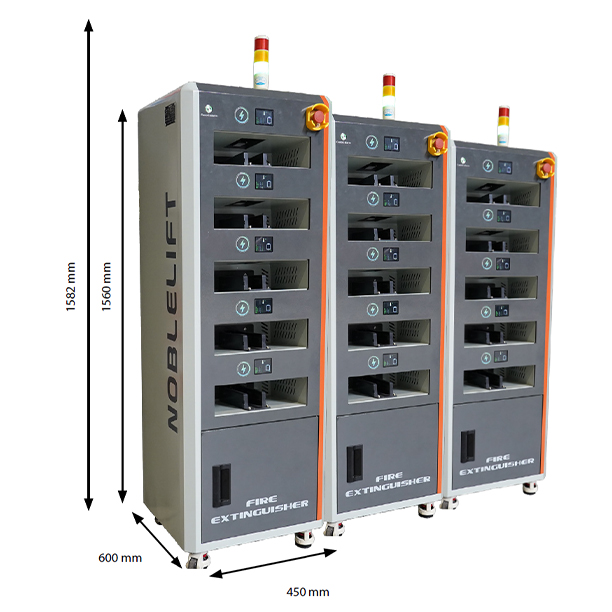

Dimensions (L x W x H): 600 x 450 x 1582 mm
Weight: 94 kg
Input voltage: AC 100-240 V 50 Hz-60 Hz
Output voltage: 24 V 29.2 V 48 V 54.6 V
Output current: 24 V 12 Ah 48 V 8 Ah
Screen: 1.8-inch LED
Charging capacity: up to 5 batteries simultaneously
Compartments: 5 independent compartments

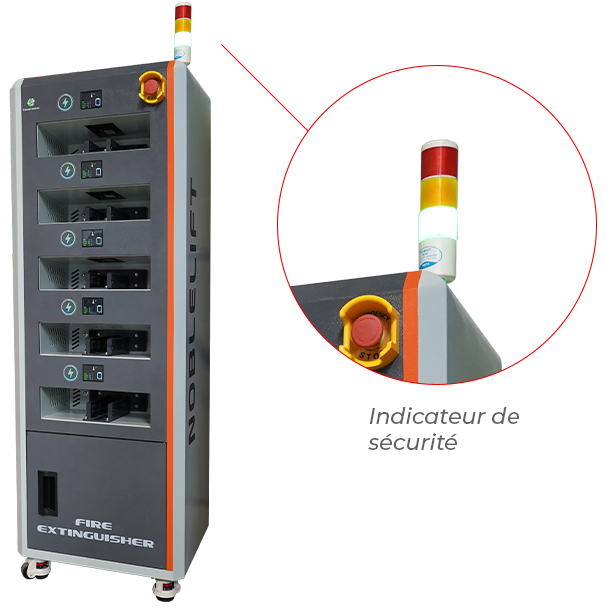

Safety equipment: alarm system with integrated extinguisher, reset switch, emergency stop
Other equipment: heat dissipation device

Smooth day-to-day use

The station is designed for simple use. Charging information remains visible. Essential controls are directly accessible. The emergency stop allows a quick response if needed. The reset switch makes restarting easier after an intervention.

On a daily basis, this helps teams manage charging without making their routine more complex. The station fits into a logistics organization where battery availability must remain clear and under control.

Operation to match the fleet and usage rate

The HUB-EDGE PRO can be used on its own in a dedicated charging area. It can also be integrated into a larger installation thanks to the option of connecting several hubs.

This setup is useful when the number of batteries to manage increases. It helps support fleet growth without spreading battery charging across several poorly coordinated areas.

Maintenance that remains accessible every day

Routine maintenance remains simple. It involves regular cleaning of the station, visual inspection of the compartments and checking the safety components and display.

It is also useful to keep the charging area clean and unobstructed. This supports smoother daily use. It also helps maintain quick access to the controls and batteries.

Request a quote for HUB-EDGE PRO

Are you looking for a charging station for PTE15N PRO or PTE20N PRO electric pallet truck batteries?

Request a quote for the HUB-EDGE PRO to size your charging area according to your fleet, your usage rate and your logistics organization.

Typical applications for HUB-EDGE PRO

This charging station is suitable for the following uses:
centralized charging of electric pallet truck batteries in a warehouse
battery management for PTE15N PRO in a logistics area
battery charging for PTE20N PRO in an order picking area
organization of a dedicated charging point in a stockroom
monitoring the charge level of several batteries at one workstation
installation of a battery area on an industrial site
expansion of a charging installation by connecting several hubs
day-to-day management of battery availability across a fleet of equipment

Who HUB-EDGE PRO is for

The HUB-EDGE PRO is intended for sites that use several electric pallet trucks and want to structure their charging area. It fits in warehouses, stockrooms, logistics platforms, logistics workshops or industrial sites equipped with compatible equipment.

It meets the needs of professionals who want to charge several batteries in one place, clearly track their charge level and use dedicated equipment for simpler day-to-day battery management.

It matches the needs of professionals looking for:
a charging station for electric pallet truck batteries
a charging station for PTE15N PRO
a charging station for PTE20N PRO
a centralized charging solution for warehouses
a station for charging 5 batteries simultaneously
a battery charging point for a logistics area
a charging station with battery level display
a solution to organize a battery area in a stockroom
a charging station with emergency stop
a scalable solution with the option to connect several hubs

FAQ

Is the HUB-EDGE PRO compatible with all electric pallet trucks?

No. This station is only intended for PTE15N PRO and PTE20N PRO.

How many batteries can the HUB-EDGE PRO charge at the same time?

The HUB-EDGE PRO can charge up to 5 batteries simultaneously.

Can the charge level of each battery be monitored?

Yes. The station displays the charge level of each battery in real time.

Can the charging capacity of the installation be increased?

Yes. Several hubs can be connected to increase the overall charging capacity.

Which features improve station safety?

The HUB-EDGE PRO includes an alarm system with extinguisher, a reset switch, an emergency stop and a heat dissipation device.

What are the dimensions of the HUB-EDGE PRO?

The station measures 600 mm long, 450 mm wide and 1582 mm high. Its weight is 94 kg.
