PZG-AISI

Manual stainless mechanical jib extension for SCP05M304 model

PZG-AISI

Manual stainless mechanical jib extension for SCP05M304 model

Manual mechanical jib extension for workshop crane. Accessory to increase useful reach according to compatibility and the load chart of the carrier equipment.

more information

	Designation
	PZG-AISI Manual stainless mechanical jib extension for SCP05M304 model Weight : 9 kg
	SCP05M304 Stainless steel 304 500 kg manual rotating mast cantilever workshop crane Weight : 600 kg Bar code : 3700664812175

DESCRIPTION

TECHNICAL CHARACTERISTICS

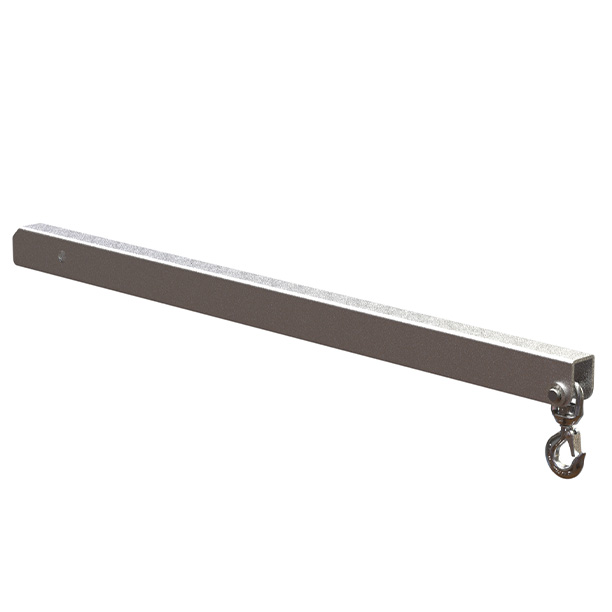

PZG-AISI, manual stainless steel mechanical extension for SCP05M304 models Stockman

The PZG-AISI manual stainless steel mechanical extension is an option designed for SCP05M304 cantilever workshop cranes. It increases the useful reach of the boom on a 304 stainless steel crane, while keeping a manual extension suitable for environments where hygiene, corrosion resistance and positioning accuracy are priorities. It is suitable for environments subject to hygiene requirements or regular cleaning, such as food processing areas, laboratories, wet areas or sites requiring equipment adapted to these operating conditions.

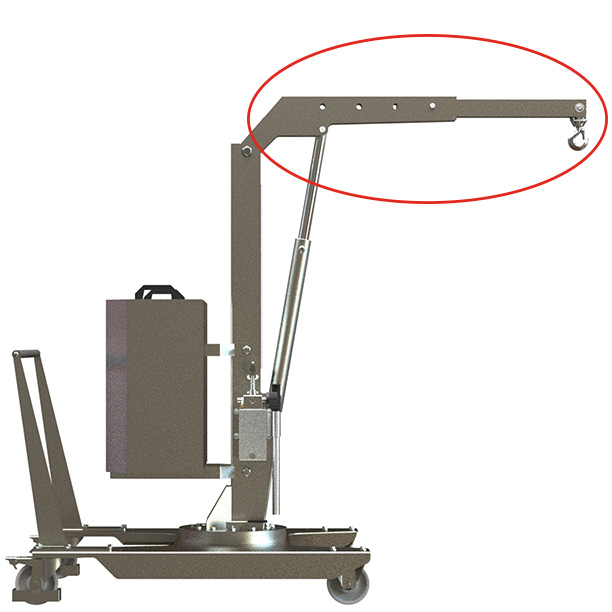

Extending the reach of an SCP05M304 stainless steel crane

On a cantilever crane, the distance between the mast and the lifting point determines access to the load. The PZG-AISI extension meets this need when the standard boom of the SCP05M304 is not sufficient to reach a machine, workstation, container or drop-off area.

It allows the operator to work over an obstacle, approach a load located behind a frame or place an item in an area where bulkier equipment cannot easily be used. Its main benefit is to keep a mobile, compact lifting solution suited to the constraints of a stainless steel working environment.

A stainless steel option for hygiene-sensitive working areas

The PZG-AISI is designed to match the configuration of an SCP05M304 crane made from 304 stainless steel. This setup is suitable for environments where splashes, washdowns, humidity or hygiene constraints make painted steel less appropriate.

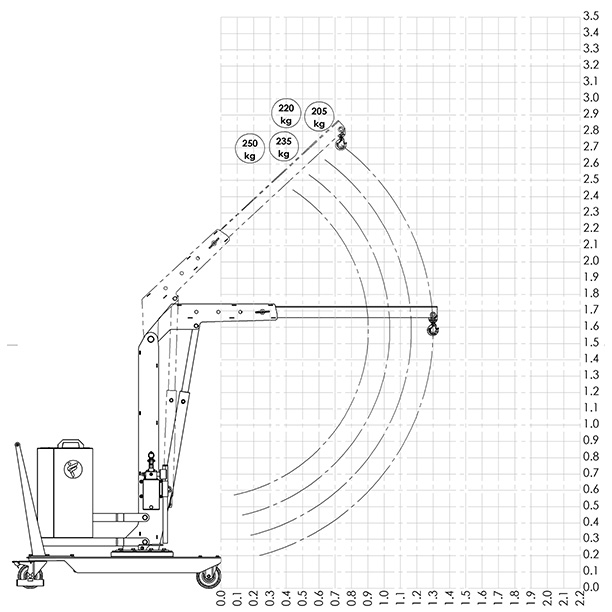

Operation remains manual. The operator adjusts the reach according to the lifting configuration, then checks the compatibility between the load, the hook position and the residual capacities of the crane. Like any boom extension, it increases the working distance and requires the authorised load to be checked according to the distance from the lifting point.

Typical uses in clean or wet environments

In daily operations, this extension can be used to:
reach a load positioned behind an edge, table or fixed piece of equipment ;
handle components in food production areas ;
work on equipment in a laboratory or clean environment ;
facilitate the lifting of parts in a wet or regularly cleaned area ;
place a load into a container without bringing the crane chassis too close ;
adapt an SCP05M304 crane to deeper workstations.

An extension to be checked before each operation

The PZG-AISI extension must be used as a reach option, in addition to the existing boom. Before use, it is important to check that the extension is correctly fitted, that the lifting point is in good condition, that the hook rotates properly and that the load to be lifted matches the required reach.

This check is essential for offset lifting operations. The further the load is from the mast, the more carefully the available capacity must be checked.

Key technical points
Reference: PZG-AISI
Description: manual stainless steel mechanical extension
Compatibility: SCP05M304 models
Material: stainless steel
Function: cantilever extension / boom extension
Operation: manual mechanical operation
Use: offset lifting with a stainless steel rotating mast crane
Suitable environments: food industry, laboratories, wet areas, maintenance in clean environments, sites subject to hygiene constraints

Frequently asked questions about the PZG-AISI extension

Is the PZG-AISI extension compatible with all SCP05 cranes?
No. This reference is designed for SCP05M304 models. For another SCP05 crane, the extension corresponding to the model concerned must be selected.

Why choose a stainless steel extension?
Stainless steel is suitable for environments where corrosion resistance, cleaning and hygiene are important criteria.

Does the extension increase the lifting capacity?
No. It increases the reach. The available capacity generally decreases as the lifting point moves further away from the mast. Residual capacities must be checked before use.

In which environments should the PZG-AISI be used?
It is suitable for clean, wet or hygiene-constrained environments, such as food processing areas, laboratories, washable areas or sites requiring stainless steel equipment.

Checking compatibility of the PZG-AISI

Your STOCKMAN local sales representative can check the suitability between the load, the required reach, the working environment and the operating constraints. Find their contact details on our contact page: https://www.stockman.fr/fr/contact.aspx

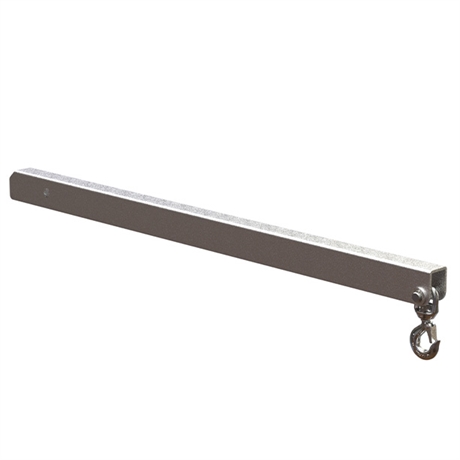

Manual stainless mechanical jib extension for SCP05M304 model
