PZG1-MBP

Manual mechanical jib extension 1300 mm

PZG1-MBP

Manual mechanical jib extension 1300 mm

1300 mm manual mechanical cantilever extension for compatible workshop crane. It increases the useful boom reach, subject to crane compatibility and compliance with the load chart.

more information

	Designation
	PZG1-MBP Manual mechanical jib extension 1300 mm Weight : 9 kg
	SCP02M Cantilever workshop crane with manual rotation, manual lifting and lowering 200 kg Weight : 440 kg Bar code : 3700664811413
	SCP05M Pivoting counterbalance shop crane 500 kg Weight : 608 kg Bar code : 3700664802497 Catalogue P.277
	SCP02E Cantilever workshop crane with manual rotation, 1-speed electric lifting and lowering 200 kg Weight : 440 kg Bar code : 3700664811406
	SCP05E Electric lifting pivoting counterbalance shop crane 500 kg Weight : 651 kg Bar code : 3700664802503 Catalogue P.278
	SCP02E-LP Cantilever workshop crane with manual rotation, 1-speed electric lifting and lowering, adjustable speed 200 kg Weight : 440 kg Bar code : 3700664811390
	SCP05E-LP Workshop cantilever crane, manual rotation, 1-speed electric lifting, adjustable electric lowering, manual extension 500 kg Weight : 640 kg Bar code : 3700664802510

DESCRIPTION

TECHNICAL CHARACTERISTICS

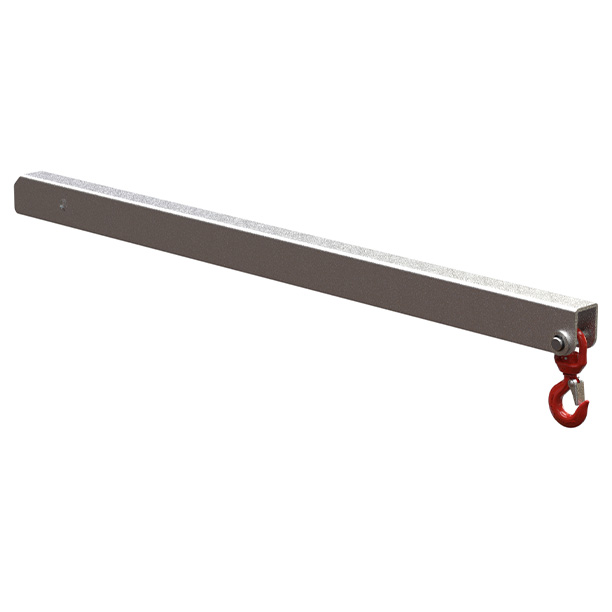

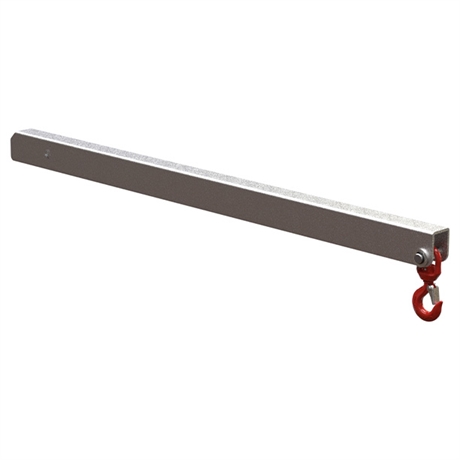

PZG1-MBP, 1300 mm manual mechanical cantilever extension Stockman

The PZG1-MBP manual mechanical extension is an optional extension designed for compatible cantilever workshop cranes. It provides a 1300 mm cantilever reach to increase the useful reach of the boom and make it easier to access a machine, assembly station or slightly offset drop-off area. It mounts on a compatible cantilever workshop crane to add extra outreach during lifting operations in workshops, maintenance areas or production environments.

Increasing crane reach on hard-to-access workstations

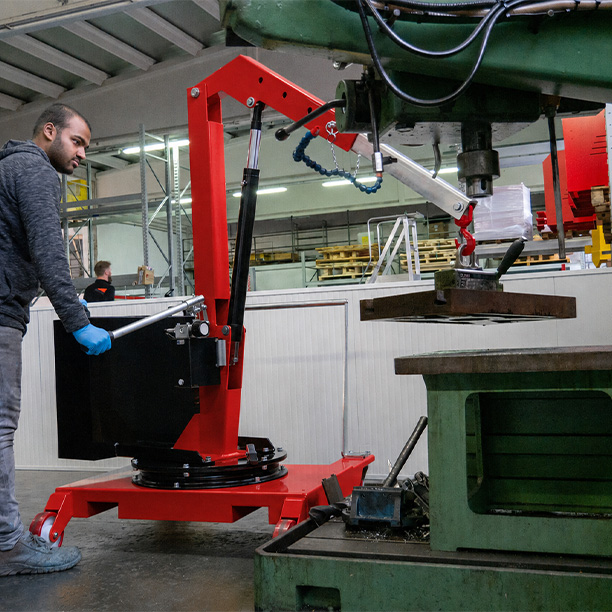

The PZG1-MBP is intended for situations where the standard boom does not comfortably reach the lifting point. In a workshop, this additional reach can be useful in front of a machine tool, fixed frame, guard, workbench or congested assembly area.

With its 1300 mm cantilever reach, this extension provides additional outreach for moderate offset requirements. It helps bring the hook closer to the load or drop-off area without requiring a longer extension when the workstation configuration does not call for it.

A mechanical extension for straightforward operation

The PZG1-MBP operates mechanically and manually. It keeps a direct operating principle: position adjustment, locking check, lifting point inspection, then lifting according to the capacities authorised for the crane.

Its manual design adds reach without a dedicated motorised function on the extension. This makes it easy to integrate into routine operations while providing more working range to reach the load. As with any boom extension, the available capacity depends on the distance between the lifting point and the mast. The load and hook position must therefore be checked before each operation.

Typical applications for the 1300 mm cantilever reach

In workshops, maintenance areas or production environments, this extension can be used to:
position a part on a machine tool ;
place a component beyond an edge or guard ;
bring a load closer to an assembly station ;
load or unload an item in a congested area ;
support a maintenance operation on fixed equipment ;
handle a load when frontal crane access is limited.

Adapting the crane to a moderate outreach requirement

The PZG1-MBP is suitable when the operation requires controlled additional reach. It avoids moving directly to a longer extension when the workstation only requires a limited offset.

This choice helps maintain a good balance between load access, crane manoeuvrability and residual capacity. Before selecting this option, it is recommended to identify the actual distance required between the mast and the lifting point, the weight of the loads to be handled and the obstacles present around the workstation.

Key technical points
Reference: PZG1-MBP
Description: manual mechanical cantilever extension
Cantilever reach: 1300 mm
Operation type: manual
Function: boom extension / reach increase
Use: option for compatible cantilever workshop crane
Suitable environments: workshop, maintenance, production, assembly, machine tools, congested work areas

Choosing the right PZG1-MBP extension

Is the PZG1-MBP a motorised extension?
No. It is a manual mechanical extension.

What is the purpose of the 1300 mm cantilever reach?
It increases the working distance between the crane mast and the lifting point, making it easier to reach a load or drop-off area.

Does the lifting capacity remain the same with the extension?
No. The extension increases reach, but the available capacity depends on how far the load is from the mast. Residual capacities must be checked before use.

When should the PZG1-MBP be chosen instead of a longer extension?
It is suitable when only moderate additional reach is required and the aim is to keep a compact, simple-to-use configuration.

Checking the PZG1-MBP against your crane configuration

To confirm compatibility of the PZG1-MBP with the relevant crane, your STOCKMAN local sales representative can check the model, the load to be lifted, the required cantilever reach and the workstation constraints. Find their contact details on our contact page: https://www.stockman.fr/fr/contact.aspx
