SCP05EE-1000

Workshop cantilever crane, manual rotation - electric lifting, lowering and extension at adjustable speed, 1000 mm arm 500 kg

SCP05EE-1000

Workshop cantilever crane, manual rotation - electric lifting, lowering and extension at adjustable speed, 1000 mm arm 500 kg

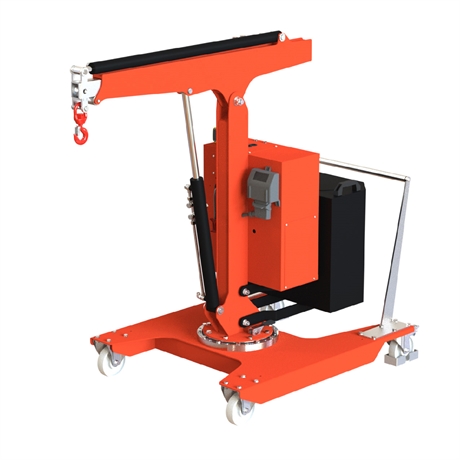

The SCP05EE-1000 workshop crane is a versatile, ergonomic lifting/handling solution. It features a manually-operated rotating mast and a maximum capacity of 500 kg. Overhangs range from 1400 mm (standard jib) to 1910 mm (optional jib extension). The controls are electric, with adjustable speeds for lifting, lowering, extending and retracting the boom. It can be moved manually via a tiller arm. This mobile crane is ideal for a variety of applications, including machining centers, delivery, assembly and load handling.

more information

	Designation
	SCP05EE-1000 Workshop cantilever crane, manual rotation - electric lifting, lowering and extension at adjustable speed, 1000 mm arm 500 kg Weight : 680 kg Bar code : 3700664811345

DESCRIPTION

TECHNICAL CHARACTERISTICS

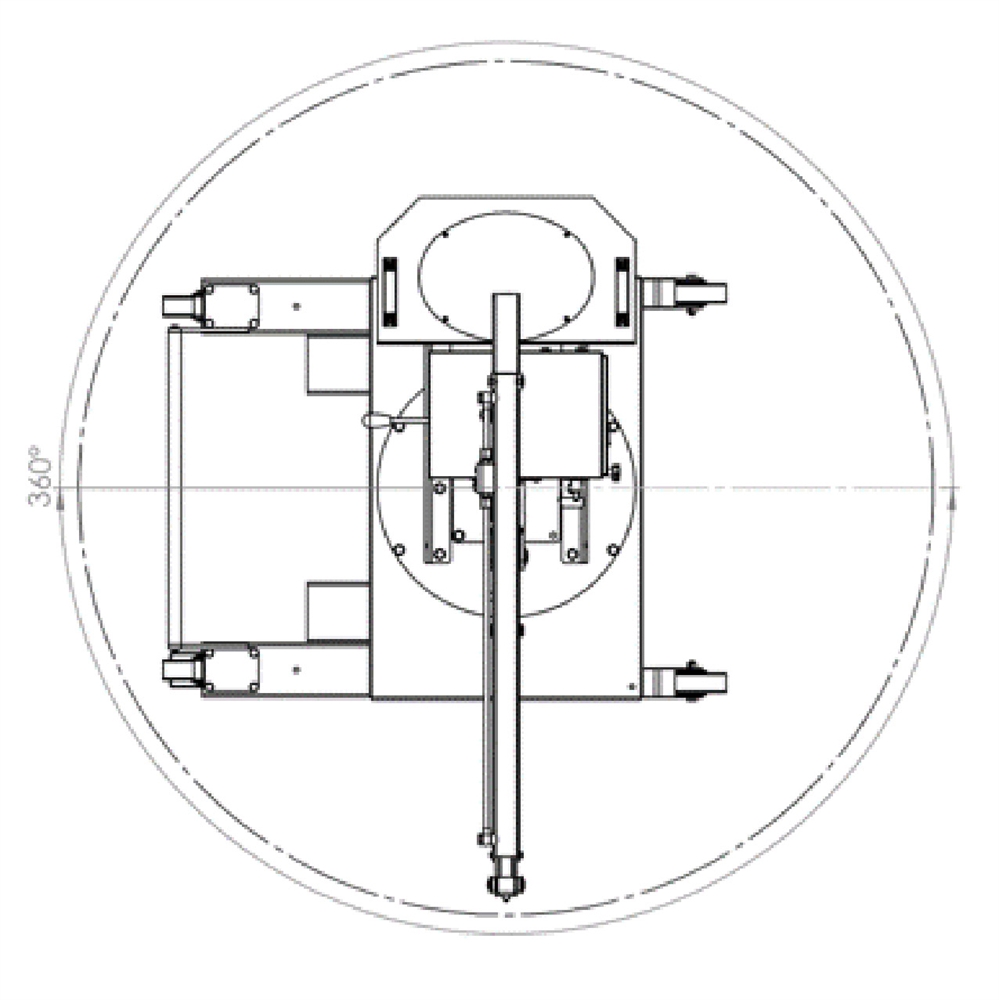

The SCP05EE-1000 cantilever workshop crane is part of a wide range of 360° counterweight slewing cranes with manual traction and a maximum capacity of up to 500 kg.
It differs from other cranes in the range in that all controls are electric, with adjustable speed: lift, lower, extend and retract the jib. The jib is also larger than other SCP05 cranes, giving it an overhang of 1400 mm (with standard jib) to 1910 mm (with optional jib extension).
The crane is operated by hydraulic lever or electric control.
This crane represents the most cost-effective and flexible solution for lifting and transporting loads in a variety of applications, such as: machining centers and machine tools, delivery to assembly lines, assembly operations, load handling.
Thanks to its compact dimensions, the SCP05EE-1000 electric mobile crane is easy to handle, even when fully loaded, and can be moved effortlessly in confined spaces. It's an ergonomic crane that helps combat musculoskeletal disorders.
All components are made in Italy to guarantee the highest quality construction and the absence of defects. No compromise on quality to ensure durability and performance.
This mobile crane is safe. The hydraulic system is equipped with an automatic load-limiting device and integrated safety valve to prevent accidental lowering in the event of tube rupture.
The SCP05EE-1000 is equipped with 2 heavy-duty castor wheels with bumper supports and parking brakes, and 2 fixed front wheels with bearings.
The chassis has an epoxy paint finish and is fitted with fork pockets for forklift movement.
The tiller handle can be removed.
Integrated counterweight with two handles for easy rotation.
The 360° swivel hook is supplied as standard.
The mast on rotating turret has 8 locking positions.
The SCP05EE
1000 electric mobile crane is equipped with an electric jib controlled by a lever valve. The lever valve activates the following functions at infinitely variable speed: arm lifting, arm lowering, arm extension and retraction.
The SCP05EE
1000 is the ideal lifting equipment for quick and easy handling of heavy loads in workshops and factories. Extremely useful for placing loads and equipment on CNC machines, on machines surrounded by perimeter guards and on areas with limited space. The most popular solution when it's not possible to access the work area with a forklift or other cumbersome lifting solutions.
This ergonomic mobile crane eliminates the need for manual handling of loads, and protects operators from injury. All companies need to comply with safety regulations, and that means providing the right equipment for lifting heavy loads. Cranes are often the best type of equipment for handling and lifting loads from one place to another, especially materials that need to be placed at height or with limited access.
Like other SCP05 cranes, the SCP05EE-1000 cantilever crane has compact dimensions for real flexibility of use. One of the main advantages of mobile cranes is their level of flexibility. This is particularly important in areas where space is limited, or where there are numerous obstacles in the way of travel or lifting. These compact cranes take up much less space. They are the ideal choice for congested areas.
Thanks to their compact dimensions, SCP05 mobile cranes are ideal for use indoors: they are the ideal solution for indoor work (renovation, construction, space planning, etc.).
Thanks to its intuitive design, the SCP05EE-1000 rotary crane is easy to use. No driving license or CACES is required to operate it. We do, however, recommend internet training to fully understand the residual capacities depending on the position of the hook on the crane arm. These vary. The further the load is from the mast, the lower the load capacity.
The SCP05EE-1000 mobile crane is easy to move thanks to its chassis design. With a forklift truck, it can be moved to several sites. It's a cost-effective, easy-to-use solution that immediately boosts efficiency and productivity. Technical features of the SCP05EE-1000 ergonomic mobile crane
Maximum capacity folded arm: 500 kg
Maximum capacity extended arm with standard jib: 200 kg
Maximum capacity extended arm with optional extension: 100 kg
Mast type: rotating
Maximum overhang with standard jib: 1400 mm/Maximum overhang with optional extension: 1910 mm
Displacement: manual
Elevation and lowering: electric with adjustable speed
Extension: electric
Standard jib: electric
Optional extension: manual
Jib control: Lever-operated distributor
Overall dimensions with jib folded to front position (L x W x H): 1720 x 990 x 1676 mm
Overall dimensions with jib folded and rotated 90° (L x W x H): 1720 x 1174 x 1676 mm
Extension available with mini/maxi standard jib: 410 / 1410 mm
Lifting motor: 0. 8 kW
Lead-acid battery: 12 V / 80 Ah
Charger: 220 V / 12 Ah
Weight: 680 kg Here are some examples of applications and sectors in which the SCP05EE-1000 crane is the ideal equipment to meet your customers' needs: Industry: Machining centers and machine tools Needs encountered by operators: Difficult handling of heavy parts in confined spaces. Solution provided by the SCP05EE-1000 crane: Easy to move and lift loads of up to 500 kg with precision, thanks to its electric arm and rotating mast. Business sector: Delivery to assembly lines Operator needs: Inefficient unloading and moving of heavy goods. Solution provided by the SCP05EE-1000 crane: Ability to move loads of up to 500 kg with ease, improving efficiency and reducing the risk of handling-related injuries. Business sector: Assembly operations Needs encountered by operators: Assembly of heavy parts with bulky equipment. SCP05EE-1000 solution: Maneuverability in confined spaces, enabling more efficient and safer assembly thanks to its rotating mast and electric jib. Sector of activity: Factory load handling Needs encountered by operators: Risk of musculoskeletal disorders due to repeated handling of heavy loads. SCP05EE-1000 crane solution: Advanced ergonomics to eliminate manual handling, ensure operator safety and comply with lifting standards. Sector of activity: Load handling in the construction industry Needs encountered by operators: Physical constraints associated with handling loads on construction sites. SCP05EE-1000 solution: Flexibility of use indoors and outdoors, facilitating handling in a variety of environments. Sector of activity: Renovation Needs encountered by operators: Difficulties in lifting materials in confined spaces. SCP05EE-1000 solution: Easy maneuverability and ability to lift heavy loads in confined spaces, ideal for renovation work. Sector of activity: Space management Needs encountered by operators: Moving loads when fitting out spaces with mobility constraints. SCP05EE-1000 crane solution: Compact and easy to move, offering a cost-effective solution for interior space planning. Sector of activity: Placements on CNC machines Needs encountered by operators: Delicate placement of loads on CNC machines with limited access. Solution provided by the SCP05EE-1000 crane: Precise placement thanks to 360° arm rotation, facilitating positioning on CNC machines. Sector of activity: Areas with limited space Needs encountered by operators: Difficult movement of loads in confined areas. Solution provided by the SCP05EE-1000 crane: Thanks to its compact dimensions, it can operate efficiently in restricted spaces, offering an ideal solution for congested areas. Sector of activity: Loading on machines with perimeter guarding Challenges faced by operators: Lifting loads in areas with perimeter protection. SCP05EE-1000 solution: Optimum maneuverability to lift loads where other equipment might have difficulty, ensuring maximum efficiency.
