PS16NLI

Ride-on electric stacker with power steering 1600 kg mast 3600 to 4600 mm

PS16NLI

Ride-on electric stacker with power steering 1600 kg mast 3600 to 4600 mm

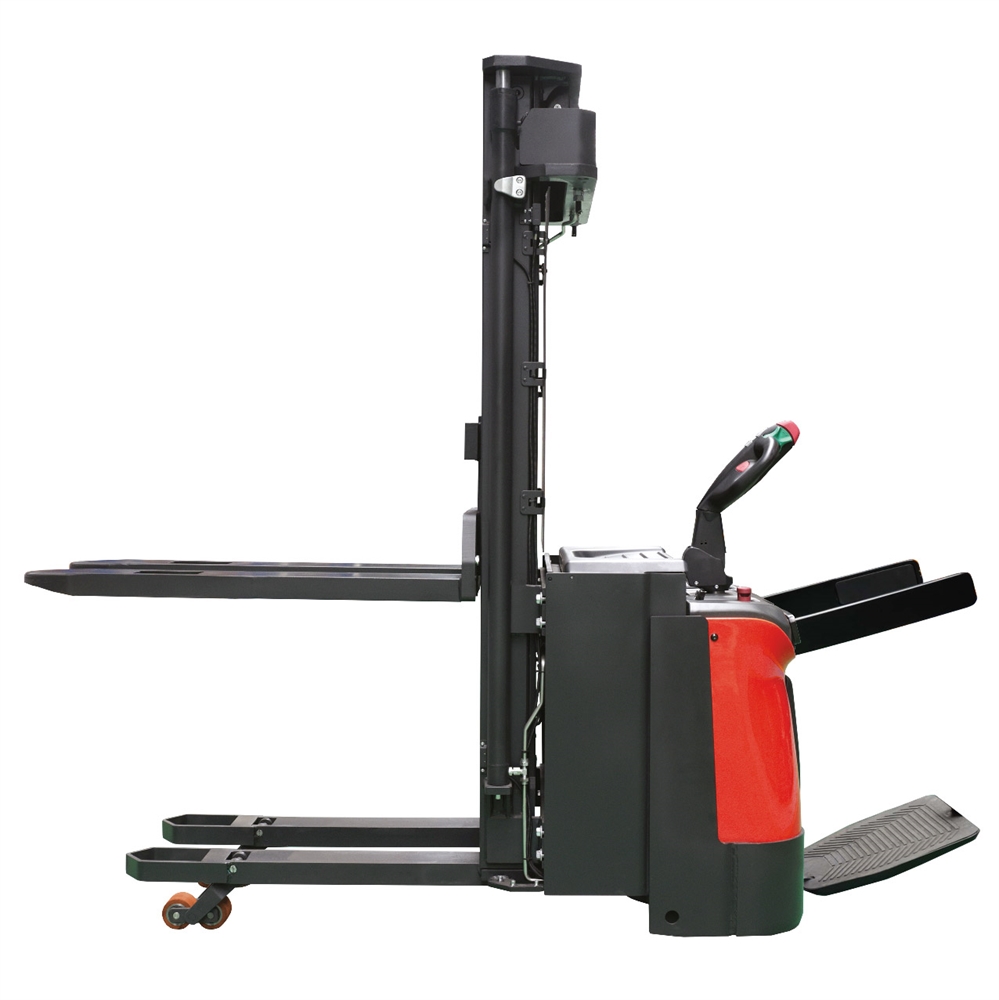

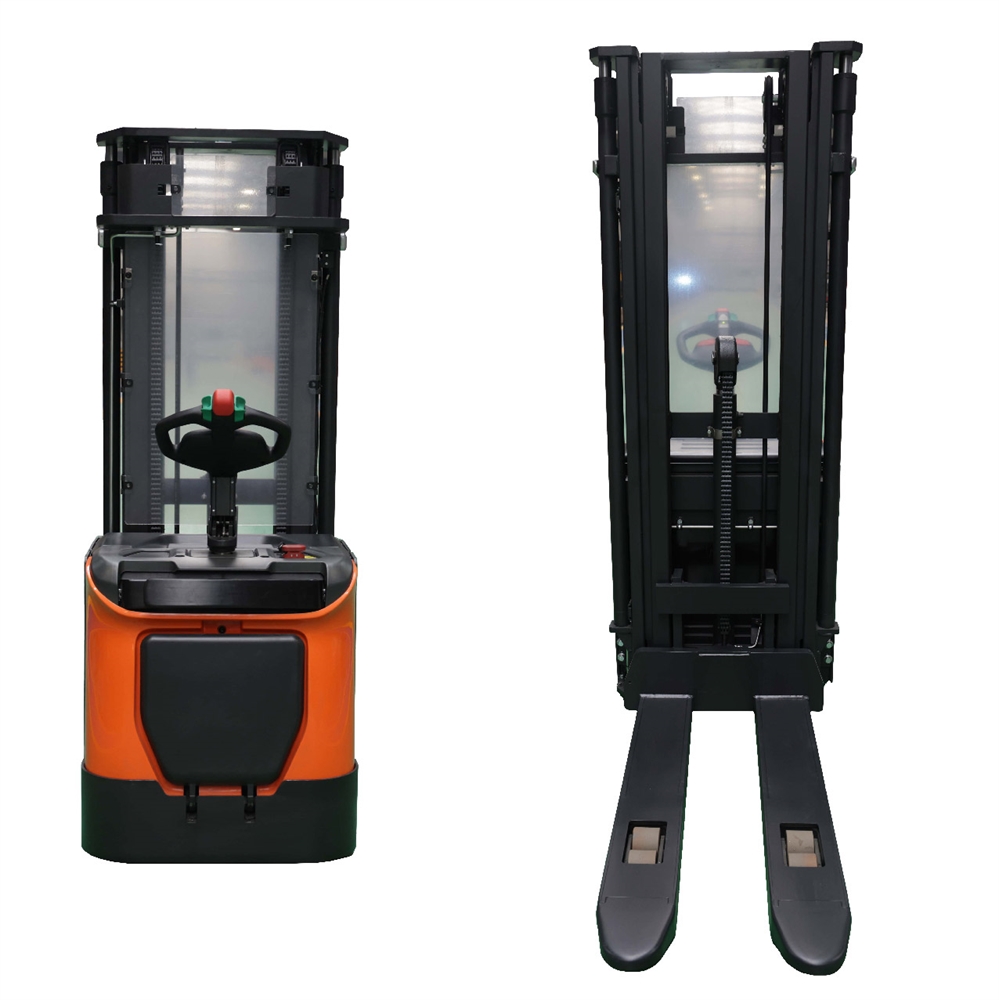

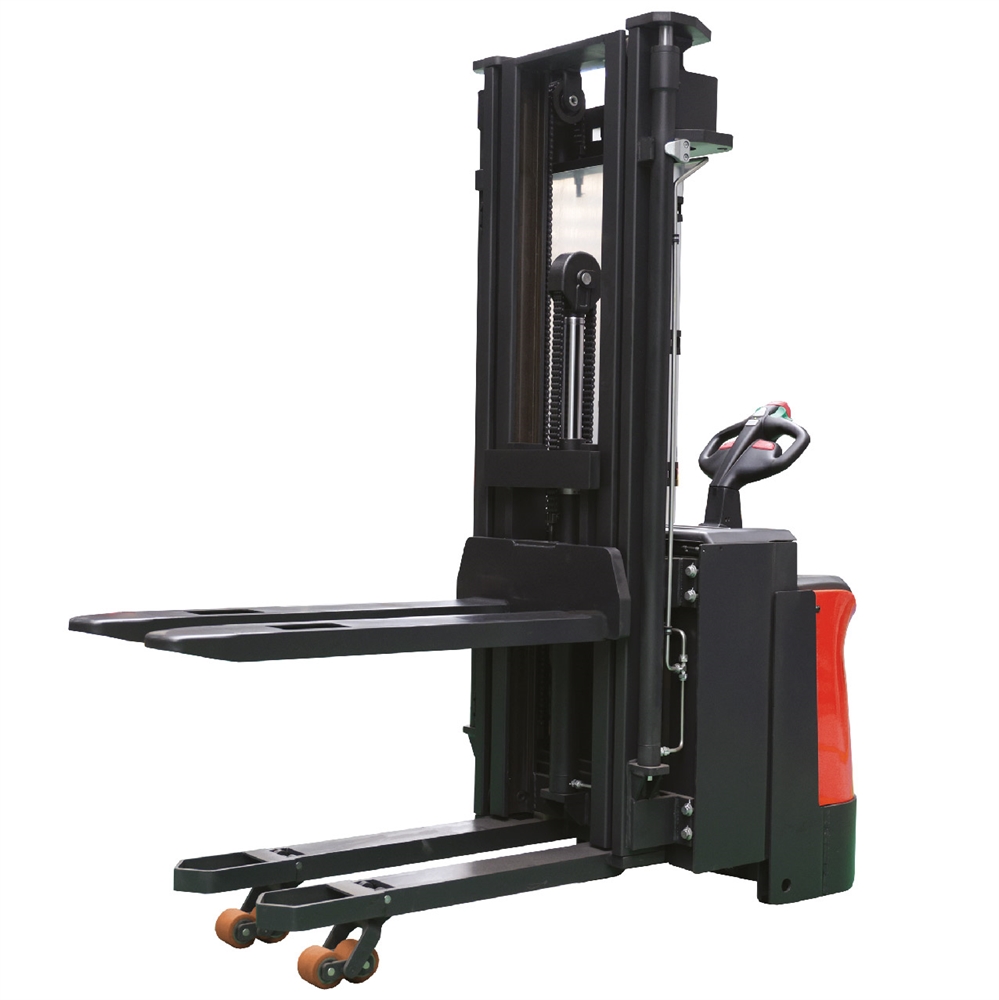

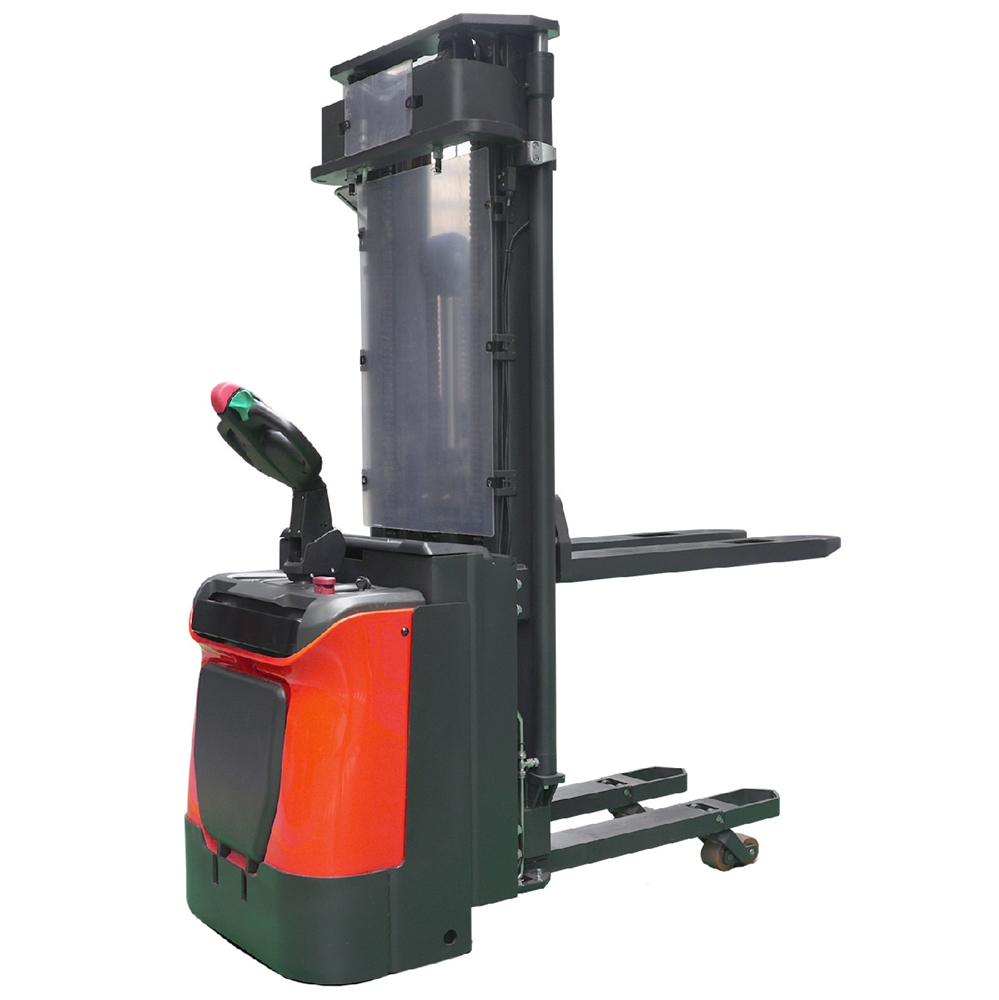

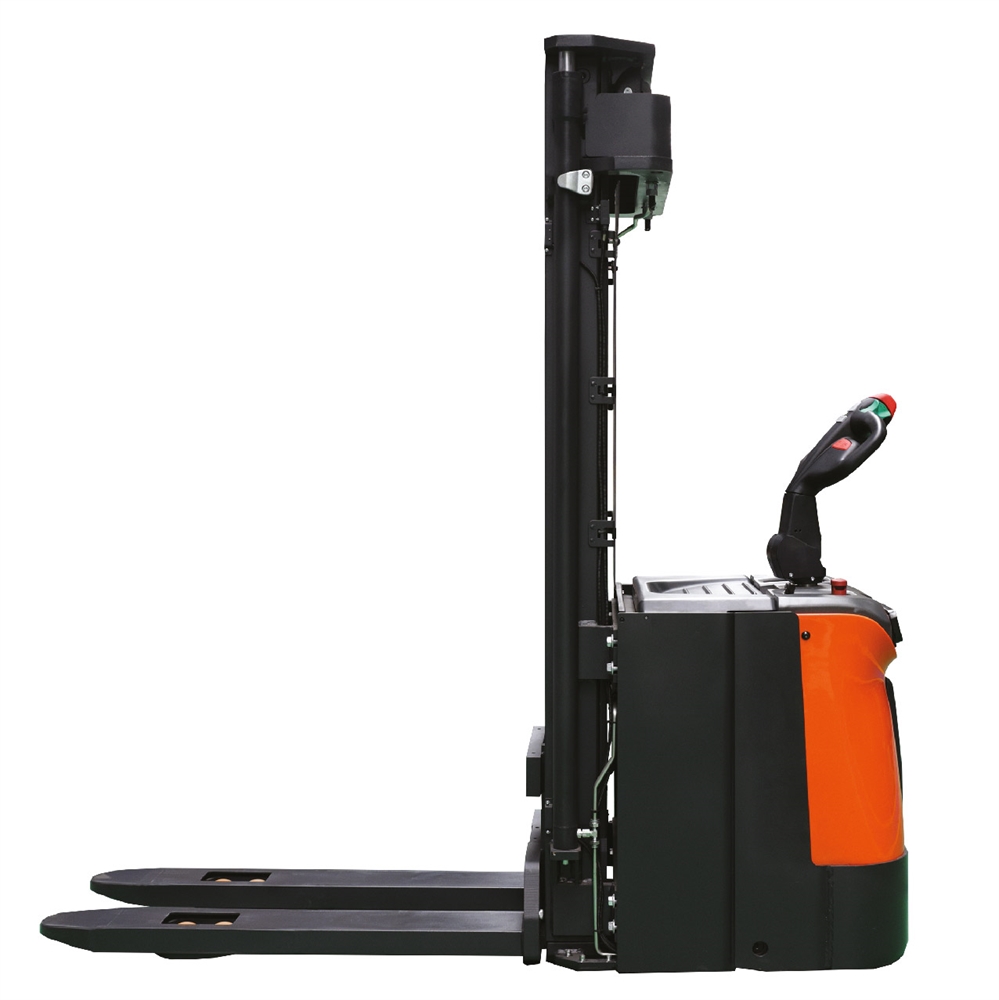

The PS16NLI is a 1600 kg ride-on electric stacker with power steering and a 3600 to 4600 mm mast. Designed for intensive warehousing, it improves operator comfort and handling precision in the warehouse.

more information

	Designation
	PS16N36LI Ride-on electric stacker with power steering 1600 kg duplex mast 3600 mm Weight : 1330 kg Bar code : 3700664809892
	PS16N40LI Ride-on electric stacker with power steering 1600 kg triplex mast 4000 mm Weight : 1330 kg Bar code : 3700664809922
	PS16N43LI Ride-on electric stacker with power steering 1600 kg triplex mast 4300 mm Weight : 1300 kg Bar code : 3700664809939
	PS16N46LI Ride-on electric stacker with power steering 1600 kg triplex mast 4600 mm Weight : 1330 kg Bar code : 3700664809960

DESCRIPTION

TECHNICAL CHARACTERISTICS

Ride-on electric stacker 1600 kg for high-level storage

The PS16NLI is a ride-on electric stacker designed for sites that need to move, lift and stack pallets on regular handling cycles. Its 1600 kg nominal capacity, electric power steering and foldable platform make it suitable for warehouses, storage areas, workshops and organised pallet handling zones. The range covers several lift heights, from 3600 to 4600 mm, so the stacker can be matched to rack levels and site constraints.

Supporting pallet stacking in active storage areas

The PS16NLI is designed for sites that handle repeated pallet flows between goods-in, storage, order preparation and dispatch. It allows operators to move loads, position them at height and supply work areas without using a larger truck.

Its ride-on configuration is suited to environments where travel distances are regular. Electric power steering makes manoeuvring easier in aisles, near racking or around loading areas. This 1600 kg electric stacker fits into logistics operations that require capacity, lift height and precise driving control.

Versions matched to different storage heights

The PS16NLI range includes several mast configurations to meet different stacking requirements. The PS16N36LI reference is equipped with a 3600 mm duplex mast. The PS16N40LI, PS16N43LI and PS16N46LI references are equipped with triplex masts of 4000, 4300 and 4600 mm.

This range allows the right version to be selected according to stacking height, available passage height and the storage layout. For sites that need to stack higher, the selected reference must take into account residual capacity, load centre and aisle operating conditions.

Assisted steering for frequent manoeuvres

The PS16NLI is equipped with electric power steering. This function helps the operator control the steering wheel accurately, especially during tight turns, rack approaches or movements in restricted areas.

The foldable platform and side guards support travel phases across the site. They allow the stacker to be used on internal routes while maintaining handling control for repeated pallet operations.

Controlled lifting for accurate pallet positioning

Proportional electric lifting and lowering make fork positioning more precise. This progressive control is useful for placing a pallet at height, adjusting a load on a rack level or handling goods that require careful positioning.

The HPI hydraulic power unit contributes to smooth lifting and lowering movements. This configuration is suited to sites looking for a ride-on electric stacker capable of working regularly across several storage levels.

Practical uses in warehouses, storage rooms and workshops

In daily operation, the PS16NLI can be used to:
stack pallets on warehouse racking;
move loads between goods-in, storage and dispatch;
supply an order preparation area;
feed a workshop or production line;
work in logistics aisles with repeated manoeuvres;
position pallets accurately at height;
organise internal pallet flows on an industrial site;
match mast height to available storage levels.

A design made for regular professional use

The PS16NLI is designed for sites that need robust equipment for daily pallet handling. Its chassis with 8 mm reinforced apron helps protect the stacker and its components from impacts in demanding work environments.

The Schabmüller AC traction motor is combined with a ZF gearbox and an Intorq electromagnetic brake. The Rema tiller head, Curtis controller and Wicke or Rader Vogel steering wheels contribute to the reliability of the unit. These components are suited to warehouse handling, storage and industrial material flow operations.

Battery, secure access and useful options

The PS16NLI is fitted with PIN code access as standard. RFID card access can be selected as an option for sites where several operators may use the equipment.

Side battery extraction can be chosen to make battery replacement easier when the activity runs across multiple shifts. The integrated charger can meet the needs of sites using the stacker less intensively. A lithium battery is also available as an option.

Routine checks to keep the stacker operational

To preserve the PS16NLI in use over time, regular checks should cover the forks, wheels, tiller, battery, side guards and visible components. These checks help anticipate wear and maintain good operating conditions.

The stacker design makes access to components easier during routine follow-up. This is important for sites that use handling equipment regularly and need to limit downtime linked to maintenance.

Professional applications for the PS16NLI

The PS16NLI can be selected for the following needs:
ride-on electric stacker for logistics warehouses;
1600 kg stacker for pallet racking storage;
power steering stacker for warehouse aisles;
electric stacker for retail storage areas;
material handling equipment for regular pallet flows;
stacker for industrial workshops with high-level storage;
electric stacker for goods-in and dispatch zones;
ride-on stacker for pallet preparation and reorganisation.

Sites and teams concerned

This stacker is designed for sites that need to combine pallet movement, high-level stacking and frequent manoeuvres. It can suit warehouses, logistics platforms, storage rooms, industrial workshops, production areas and organised storage spaces.

It meets the needs of logistics managers, warehouse teams, site operators, maintenance departments and workshops looking for a 1600 kg ride-on electric stacker with power steering and several mast heights available.

Technical data for the PS16NLI
Type: ride-on electric stacker with power steering
Nominal capacity: 1600 kg
Load centre: 600 mm
Initial lift: 120 mm
Electric power steering: standard
Foldable platform: yes
Side guards: yes
Overall length: 2044 mm
Overall width: 790 mm
Turning radius: 1700 mm
Fork dimensions: 60 / 180 / 1150 mm
External fork width: 570 / 685 mm
Minimum fork height: 90 mm
Wheels: polyurethane
Traction motor: 1.4 kW
Lift motor: 3.2 kW
Battery: 24 V / 270 Ah
Weight with battery: 1450 kg
Noise level at operator’s ear: below 70 dB(A)
Access control: PIN code as standard, RFID as an option
Lithium battery: optional
Integrated charger: optional

Available references:
PS16N36LI: reference equipped with a 3600 mm duplex mast, lowered mast height 2308 mm, free lift 1760 mm, extended mast height 4080 mm
PS16N40LI: reference equipped with a 4000 mm triplex mast, lowered mast height 1908 mm, free lift 1320 mm, extended mast height 4480 mm
PS16N43LI: reference equipped with a 4300 mm triplex mast, lowered mast height 2008 mm, free lift 1420 mm, extended mast height 4780 mm
PS16N46LI: reference equipped with a 4600 mm triplex mast, lowered mast height 2108 mm, free lift 1520 mm, extended mast height 5080 mm

Residual capacities must be checked according to lift height and load centre.

Frequently asked questions about the PS16NLI

Is the PS16NLI suitable for sites that stack pallets regularly?
Yes. It is designed for regular pallet movement, lifting and stacking operations in professional environments.

What is the nominal capacity of the PS16NLI?
Its nominal capacity is 1600 kg with a 600 mm load centre. Residual capacity varies according to lift height and load centre.

Which reference should be chosen between PS16N36LI, PS16N40LI, PS16N43LI and PS16N46LI?
The choice depends on the required storage height. The PS16N36LI reference is equipped with a 3600 mm duplex mast. The PS16N40LI, PS16N43LI and PS16N46LI references are equipped with triplex masts of 4000, 4300 and 4600 mm.

Is the PS16NLI equipped with power steering?
Yes. Electric power steering is standard. It makes manoeuvring easier and improves stacker control in work areas.

Does the LI suffix refer to a lithium battery?
No. On this range, LI refers to initial lift. The lithium battery is available as an option.

Can the PS16NLI be used across several shifts?
Yes, with the right configuration. Side battery extraction can make battery replacement easier for operations running across multiple shifts.

Contact Stockman to select the right PS16NLI reference

The choice of PS16NLI must be checked according to rack height, aisle width, floor quality, operating frequency, load centre and the options required on the customer site. The STOCKMAN sales representative for your area can help select the right reference and confirm the operating conditions. Find the contact details on our contact page: https://www.stockman.fr/fr/contact.aspx
