PS12N-ION

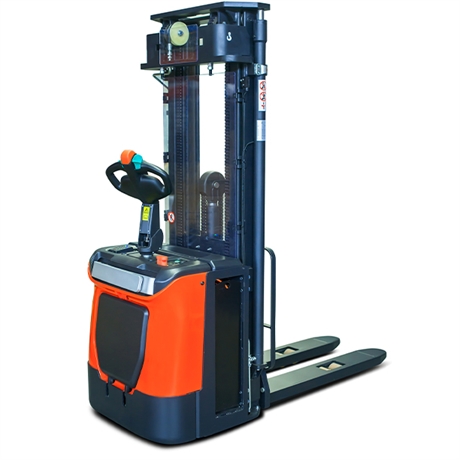

Lithium ride-on electric stacker with power steering 1200 kg

PS12N-ION

Lithium ride-on electric stacker with power steering 1200 kg

Lithium ride-on electric stacker 1200 kg with power steering. Compact solution for B2B warehouse stacking, with 100 or 150 Ah battery depending on variant.

more information

	Designation
	PS12N29-ION100 Lithium ride-on electric stacker with power steering 1200 kg 100 Ah battery Weight : 890 kg
	PS12N29-ION150 Lithium ride-on electric stacker with power steering 1200 kg 150 Ah battery Weight : 895 kg

DESCRIPTION

TECHNICAL CHARACTERISTICS

PS12N-ION, 1200 kg lithium electric ride-on stacker with power steering

The PS12N-ION is a lithium electric ride-on stacker designed to lift, move and store palletised loads up to 1200 kg. Its short tiller configuration, foldable platform and power steering make it suitable for logistics areas where manoeuvres need to remain fast, precise and controlled. It is suitable for warehouses, storage areas, workshops, picking areas and industrial environments requiring a compact lithium electric stacker for regular stacking operations.

Improving efficiency in pallet flows

The PS12N-ION meets the needs of teams required to carry out repeated moving, storage and racking operations without using a bulkier forklift truck. Its 1200 kg capacity covers common palletised loads in goods-in, dispatch, order picking or production line supply.

With a standard lift height of 2830 mm, it can position loads on intermediate storage levels. Its overall length of 1855 mm and turning radius of 1380 mm make it easier to integrate into working aisles, back-of-store storage areas or restricted circulation zones.

Ride-on operation designed for repeated cycles

The foldable platform allows the operator to travel with the stacker during internal movements. The side protections and platform suspension contribute to operating comfort during repeated travel cycles. When the working area requires greater compactness, the platform can be folded up to reduce the overall footprint.

The AC traction motor, combined with AC speed control transmission, provides progressive driving. Travel speed reaches 8 km/h unloaded and 7 km/h loaded. Electric power steering helps maintain precise driving during storage manoeuvres, aisle changes and rack approaches.

Lithium technology, selected components and easier maintenance

The PS12N-ION uses a 24 V lithium battery with a nominal capacity of 100 or 150 Ah depending on configuration. This technology is suited to organisations wishing to reduce battery maintenance constraints and plan charging times according to their working cycles.

The side battery extraction system is available as an option for organisations working across several shifts. It saves time when replacing the battery, provided that suitable equipment is available. The integrated charger is also available as an option for less intensive use, when charging needs to remain simple to organise on site.

The stacker integrates recognised components for traction, reduction, braking, hydraulics and control functions. The robust chassis, 8 mm reinforced carriage plate and steel battery cover protect sensitive components from impacts related to the working environment.

Precise lifting for sensitive palletised loads

Proportional lifting and lowering make it possible to control fork movement more accurately. This progressive movement is useful when placing pallets on racks, picking up fragile loads or approaching a storage support.

The electromagnetic brake, standard PIN code access and optional RFID access help strengthen usage control. These features are useful in organisations where several operators may be required to use the same equipment.

Professional applications of the PS12N-ION
Pallet stacking in warehouses or storage areas
Moving palletised loads between goods-in and storage
Supplying production lines in workshops
Order picking with pallets lifted to height
Handling fragile loads requiring progressive lifting
Working in logistics aisles where compactness is required
Use in organisations with several operators
Storing pallets on intermediate levels

Key technical data
Type: lithium electric ride-on stacker with short tiller
Nominal capacity: 1200 kg
Load centre: 600 mm
Standard lift height: 2830 mm
Free lift: 1410 mm
Lowered / extended mast height: 1958 / 3380 mm
Overall length: 1855 mm
Overall width: 790 mm
Turning radius: 1380 mm
Fork dimensions: 60 / 180 / 1150 mm
External fork width: 570 / 685 mm
Aisle width with 1000 x 1200 mm pallet, transverse: 2285 mm
Aisle width with 800 x 1200 mm pallet, lengthwise: 2250 mm
Travel speed unloaded / loaded: 8 / 7 km/h
Gradeability unloaded / loaded: 12 / 6%
Traction motor: 1.4 kW
Lift motor: 1.5 kW
Lithium battery: 24 V, 100 or 150 Ah depending on configuration
Service brake: electromagnetic
Wheels: polyurethane
Noise level at the operator’s ear: below 70 dB(A)

Frequently asked questions about the PS12N-ION

Is the PS12N-ION suitable for regular warehouse operations?
Yes. Its ride-on design, lithium battery, travel speed and power steering are suitable for repeated travel and stacking operations in professional environments.

Can this stacker be used in narrow aisles?
Yes, provided that the available aisle widths are checked. The turning radius is 1380 mm, and the required aisle widths are 2285 mm with a 1000 x 1200 mm pallet positioned transversely and 2250 mm with an 800 x 1200 mm pallet positioned lengthwise.

Can access to the stacker be limited to authorised operators?
Yes. PIN code access is included as standard. RFID card access is available as an option to make multi-user management easier.

What is the benefit of proportional lifting and lowering?
They provide better control of fork movement. This is useful for positioning pallets accurately and handling sensitive loads with greater progressiveness.

Can the battery be replaced quickly?
Yes, with the optional side battery extraction system. This configuration saves time when replacing the battery, particularly in organisations working across several shifts.

Is an integrated charger available?
Yes, the integrated charger is available as an option. It makes charging easier for less intensive use, when battery replacement is not required across several shifts.

Validate the PS12N-ION according to your operating constraints

The STOCKMAN sales representative in your area can advise you on the suitability of the PS12N-ION for your working constraints: aisle width, floor type, frequency of use, shift organisation, need for side battery extraction or RFID access. Find their contact details on our contact page: https://www.stockman.fr/fr/contact.aspx
