PS16LLI-ION

Lithium electric stacker with initial lift 1600 kg, lift 2900 to 5300 mm

PS16LLI-ION

Lithium electric stacker with initial lift 1600 kg, lift 2900 to 5300 mm

1600 kg lithium electric stacker with initial lift and full free lift mast. Lift 2900 to 5300 mm for professional handling.

more information

	Designation
	PS16L29LI-ION150 Lithium electric stacker 1.6t, duplex full free lift mast, initial lift, 2830 mm, 150 Ah Weight : 1097 kg
	PS16L29LI-ION200 Lithium electric stacker 1.6t, duplex full free lift mast, initial lift, 2830 mm, 200 Ah Weight : 1105 kg
	PS16L32LI-ION150 Lithium electric stacker 1.6t, duplex full free lift mast, initial lift, 3130 mm, 150 Ah Weight : 1112 kg
	PS16L32LI-ION200 Lithium electric stacker 1.6t, duplex full free lift mast, initial lift, 3130 mm, 200 Ah Weight : 1120 kg
	PS16L36LI-ION150 Lithium electric stacker 1.6t, duplex full free lift mast, initial lift, 3530 mm, 150 Ah Weight : 1117 kg
	PS16L36LI-ION200 Lithium electric stacker 1.6t, duplex full free lift mast, initial lift, 3530 mm, 200 Ah Weight : 1125 kg
	PS16L40LI-ION150 Lithium electric stacker 1.6t, triplex full free lift mast, initial lift, 3930 mm, 150 Ah Weight : 1177 kg Bar code : 3700664815466
	PS16L40LI-ION200 Lithium electric stacker 1.6t, triplex full free lift mast, initial lift, 3930 mm, 200 Ah Weight : 1185 kg
	PS16L43LI-ION150 Lithium electric stacker 1.6t, triplex full free lift mast, initial lift, 4230 mm, 150 Ah Weight : 1207 kg
	PS16L43LI-ION200 Lithium electric stacker 1.6t, triplex full free lift mast, initial lift, 4230 mm, 200 Ah Weight : 1215 kg
	PS16L46LI-ION150 Lithium electric stacker 1.6t, triplex full free lift mast, initial lift, 4530 mm, 150 Ah Weight : 1222 kg
	PS16L46LI-ION200 Lithium electric stacker 1.6t, triplex full free lift mast, initial lift, 4530 mm, 200 Ah Weight : 1230 kg
	PS16L53LI-ION150 Lithium electric stacker 1.6t, triplex full free lift mast, initial lift, 4730 mm, 150 Ah Weight : 1237 kg
	PS16L53LI-ION200 Lithium electric stacker 1.6t, triplex full free lift mast, initial lift, 4730 mm, 200 Ah Weight : 1245 kg

DESCRIPTION

TECHNICAL CHARACTERISTICS

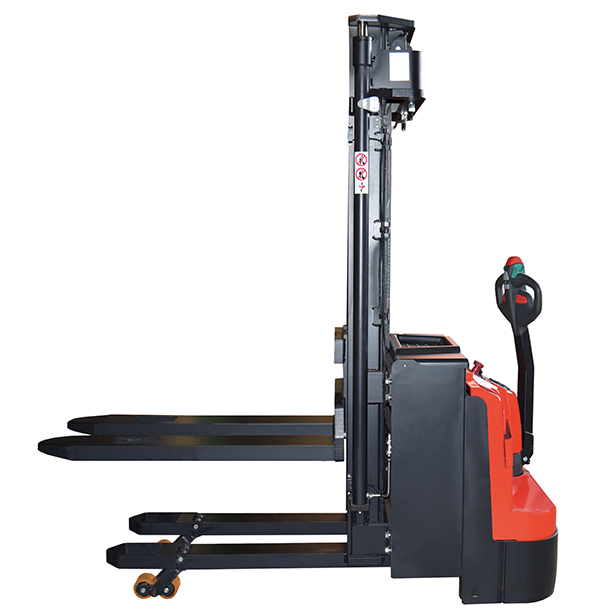

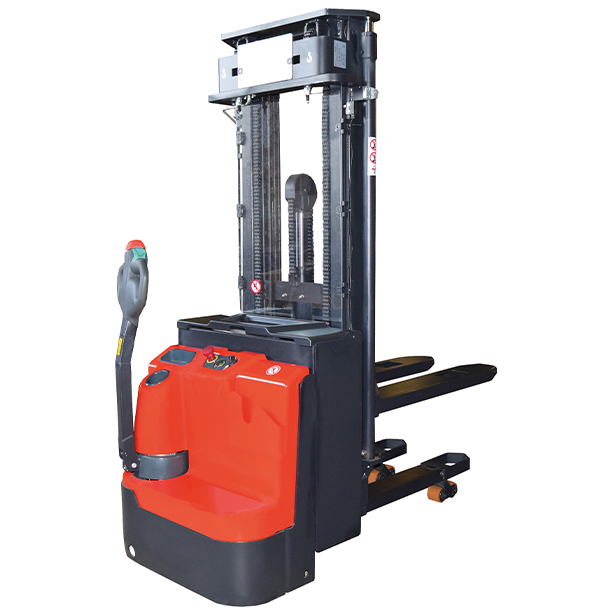

PS16LLI-ION, STOCKMAN 1600 kg lithium electric stacker with initial lift

The PS16LLI-ION is an industrial lithium electric pedestrian stacker equipped with initial lift as standard. Its rated capacity of 1600 kg allows pallets to be moved, lifted and stacked indoors, with a configuration suited to heavier loads and environments where travel may include ramps, walkways or slightly uneven floors.

This stacker combines a lithium battery, a long tiller, a four-point support structure, proportional lifting and a 120 mm initial lift. It is intended for logistics, warehouse handling, industrial, distribution and order preparation professionals.

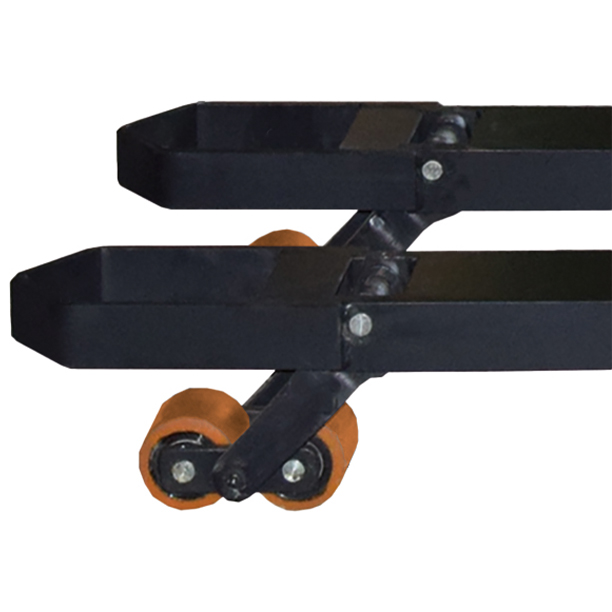

Moving heavy pallets with increased ground clearance

The PS16LLI-ION combines a 1600 kg capacity with initial lift of the straddle legs. This function raises the base of the stacker to make certain internal movements easier, especially when the equipment has to pass over a ramp, walkway or transition area between two work zones.

Initial lift provides additional ground clearance during travel phases. It is useful in buildings where pallets move between receiving, storage, preparation, workshop and shipping areas.

This configuration keeps the functions of an electric warehouse stacker while improving circulation in environments that are less regular than a perfectly flat storage aisle.

1600 kg capacity for sustained warehouse flows

With its 1600 kg rated capacity, the PS16LLI-ION is suitable for heavier palletised loads. It supports indoor handling, storage, supply and stacking operations with compact pedestrian equipment.

It fits into areas where teams need to move pallets over short to medium distances, then position them on racking or near a workstation. Its design supports regular pallet flows in warehouses, workshops, storerooms and organised logistics areas.

It can be used to:
move pallets up to 1600 kg.
cross certain ramps or walkways with the straddle legs raised.
stack loads on racking.
supply a production line or workstation.
replenish a picking area.
organise pallets in a storeroom or buffer storage area.
support flows between receiving, storage and shipping.

Duplex FFL or Triplex FFL masts according to storage height

The PS16LLI-ION is available with several mast configurations. The listed versions cover Duplex FFL and Triplex FFL masts, with standard lift heights from 2830 to 4730 mm depending on the model.

Duplex FFL versions are suitable for standard stacking operations. Triplex FFL versions allow work at higher levels while taking building and circulation constraints into account.

Mast choice depends on useful racking height, ceiling height, passages to be crossed, pallets handled and frequency of lifting operations.

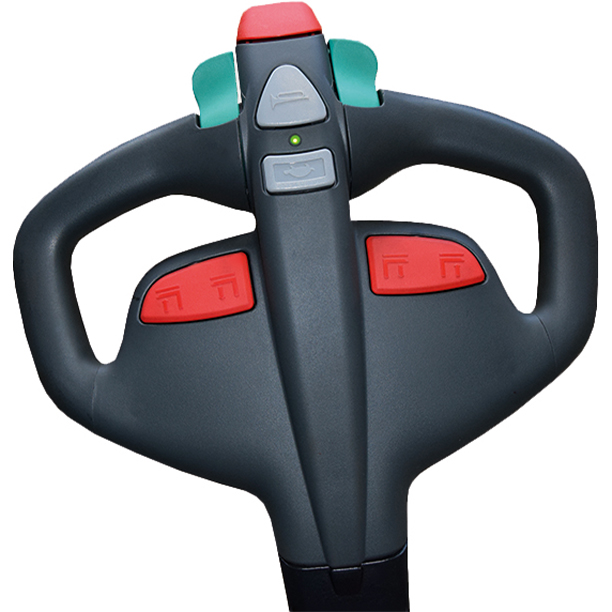

Controlling fork height with proportional lifting

The PS16LLI-ION has electric proportional lifting and lowering. This control progressively adjusts fork height when picking up, depositing or retrieving a pallet.

Movement precision makes manoeuvres in front of racking easier. It is useful when loads have to be positioned close to a storage level, conveyor, preparation station or waiting area.

This progressive control provides better control in repeated operations, especially when pallets are heavy or when the operator works in a limited circulation space.

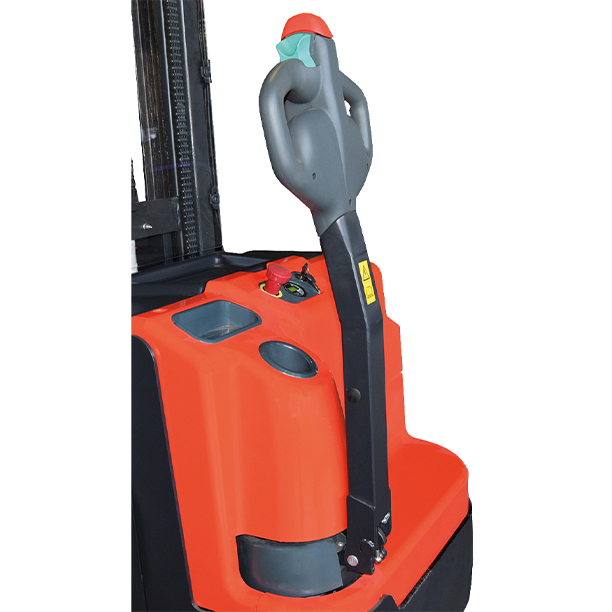

Long side tiller for visibility over the load

The long tiller on the PS16LLI-ION maintains a working distance between the operator and the stacker. This design improves handling during aisle travel, pallet approach and manoeuvres in front of racking.

The four-point support structure contributes to equipment stability during travel and stacking operations. The long side tiller also improves visibility over the work area, especially when inserting the forks into the pallet.

This pedestrian format remains suitable for environments where manoeuvrability, visibility and load control are essential.

150 Ah or 200 Ah lithium battery according to work cycles

The PS16LLI-ION is available with a 24 V lithium battery, 150 Ah or 200 Ah depending on the model. These two configurations allow the stacker to be adapted to the intensity of handling operations.

The 150 Ah version is suitable for regular indoor use. The 200 Ah version provides higher battery capacity for environments where travel, lifting and operating cycles are more frequent.

Battery choice should take into account the number of pallets handled, distances travelled, lift heights, frequency of use and charging organisation.

Industrial components and simplified maintenance access

The PS16LLI-ION integrates components from recognised material handling brands: Rema tiller, Schabmüller AC traction motor, Kordel gearbox, Intorq brake, Wicke steering wheels, Curtis controller, HPI hydraulic power unit and SPE or ATIB chargers.

The maintenance-free AC motor supports repeated use. CAN-BUS technology reduces wiring and makes analysis easier during maintenance operations. The controller has IP54 protection against dust and water splashes.

Access to the main components is designed to simplify routine operations. The cover can be removed with two screws, and the wheels and rollers can be replaced without tilting the stacker.

Technical information for the PS16LLI-ION
Type: industrial lithium electric stacker with initial lift.
Operation: pedestrian.
Rated capacity: 1600 kg.
Load centre: 600 mm.
Initial lift: 120 mm.
Lithium battery: 24 V, 150 Ah or 200 Ah depending on model.
Available masts: Duplex FFL and Triplex FFL depending on version.
Standard lift height depending on model: from 2830 to 4730 mm.
Free lift depending on model: from 1320 to 1760 mm.
Lowered mast height depending on model: from 1908 to 2308 mm.
Extended mast height depending on model: from 3380 to 5280 mm.
Weight depending on model: from 1097 to 1245 kg.
Wheelbase: 1293 mm.
Wheels: polyurethane.
Minimum fork height: 90 mm.
Overall length: 1964 mm.
Length without forks: 814 mm.
Overall width: 820 mm.
Fork dimensions: 60 x 180 x 1150 mm.
Outside fork width: 570 or 685 mm.
Ground clearance: 28 mm.
Turning radius: 1510 mm.
Travel speed: 6 km/h without load and 5.7 km/h with load.
Service brake: electromagnetic.
Traction motor: 1.3 kW.
Lifting motor: 2.2 kW.
Noise level at the operator’s ear: below 70 dB(A).

Professional environments suited to the PS16LLI-ION

The PS16LLI-ION is intended for logistics, storage, distribution, industrial and order preparation professionals. It fits into warehouses, workshops, storerooms, receiving areas, production areas and shipping zones.

Its initial lift is particularly useful in environments where pallets need to move between several areas with level differences or slightly uneven floors. Its 1600 kg capacity allows heavier loads to be handled than with a 1200 kg model, while keeping pedestrian operation.

This stacker can be selected for the following needs:
1600 kg lithium electric stacker with initial lift.
pedestrian stacker for heavy pallets.
stacker with initial lift for ramps and walkways.
lithium stacker for warehouse and workshop use.
1600 kg stacker with proportional lifting.
industrial stacker with Duplex FFL or Triplex FFL mast.
warehouse handling equipment for racking storage.
stacker for internal flows between receiving and shipping.

Common questions before choosing the PS16LLI-ION

What is the load capacity of the PS16LLI-ION?
The PS16LLI-ION has a rated capacity of 1600 kg, with a 600 mm load centre.

What is the initial lift used for on this stacker?
Initial lift raises the straddle legs by 120 mm. It makes certain movements over ramps, walkways or slightly uneven floors easier.

Which batteries are available on the PS16LLI-ION?
The PS16LLI-ION is available with a 24 V lithium battery, 150 Ah or 200 Ah depending on the model.

Which lift heights are available?
The available versions cover standard lift heights from 2830 to 4730 mm depending on the mast configuration selected.

What is the difference compared with the PS12LLI-ION?
The PS16LLI-ION uses the same initial lift principle as the PS12LLI-ION, with a rated capacity of 1600 kg instead of 1200 kg.

Is this stacker suitable for preparation areas?
Yes. Its pedestrian operation, initial lift and proportional lifting are suitable for storerooms, workshops, warehouses and order preparation areas.

Contacting the STOCKMAN sales representative for your area

The choice of the PS16LLI-ION depends on the actual load to be handled, lift height, frequency of use, aisle configuration, presence of ramps or uneven floors and desired battery capacity. The STOCKMAN sales representative for your area can help you select the version suited to your handling and storage constraints. Their details are available on our contact page.
