PS12L

Electric walker stacker 1200 kg

PS12L

Electric walker stacker 1200 kg

PSL series are tailored to suit most walkie stacker operations. They are equipped with DUPLEX or TRIPLEX masts.

more information
Designation
PS12L29FFLLP - Electric walker stacker 2900 mm free lift 1200 kg PS12L29FFLLP
Electric walker stacker 2900 mm free lift 1200 kg

Weight : 998 kg
Bar code : 3700664836294
Catalogue P.102
PS12L32FFLLP - Electric walker stacker 3200 mm free lift 1200 kg PS12L32FFLLP
Electric walker stacker 3200 mm free lift 1200 kg

Weight : 1003 kg
Bar code : 3700664836263
Catalogue P.102
PS12L36FFLLP - Electric walker stacker 3600 mm free lift 1200 kg PS12L36FFLLP
Electric walker stacker 3600 mm free lift 1200 kg

Weight : 1007 kg
Bar code : 3700664836232
Catalogue P.102
PS12L40FFLLP - Electric walker stacker 4000 mm free lift 1200 kg PS12L40FFLLP
Electric walker stacker 4000 mm free lift 1200 kg

Weight : 1110 kg
Bar code : 3700664803463
Catalogue P.102
PS12L43FFLLP - Electric walker stacker 4300 mm free lift 1200 kg PS12L43FFLLP
Electric walker stacker 4300 mm free lift 1200 kg

Weight : 1130 kg
Bar code : 3700664803470
Catalogue P.102
PS12L46FFLLP - Electric walker stacker 4600 mm free lift 1200 kg PS12L46FFLLP
Electric walker stacker 4600 mm free lift 1200 kg

Weight : 1150 kg
Bar code : 3700664803487
Catalogue P.102

  • PSL series are tailored to suit most walkie stacker operations.
  • Available in 3 models: PS12L, PS16L and PS20L (to compare all models, go to the product page of each model and/or download the technical documentation)
  • PS12L load capacity: 1.2 metric tons
  • This stacker is available with a DUPLEX or TRIPLEX mast depending on the required height.
  • The long steering handle guarantees the operator is at a safe distance from the stacker and improves ergonomics. Also, its design ensures less operational efforts compared to short handle stackers.
  • Stacker operations are more reliable and faster thanks to the proportional lift system.
  • This heavy-duty electric walker stacker is ergonomic, compact and extremely maneuverable.
  • Equipped with a powerful, maintenance-free AC Schabmüller motor and core components from top leading brands.
  • The structure has four points of contact for best stability
  • CAN-BUS technology eases diagnosis and settings on maintenance operations. It eliminates the need for excessive wiring so that reliability is guaranteed. Also, parts last longer with digital signals than analog signals.
  • Robust and reliable design
  • The robust chassis and its 8mm thick mainframe protect the stacker and its components against impact collisions.
  • The stainless steel battery cover provides enhanced protection and reduces maintenance costs and possible damages.
  • AC motor design can withstand dirty work area floors as components and brakes are protected from impacts.
  • The controller is protected against dust and splash (IP54).
  • Powerful and maintenance free German Schabmuller AC traction motor along with Kordel drive unit, lntorqe brake and Wicke steering wheels are the perfect combination to provide the best performance, safety and flexibility under any circumstances. Besides, they also reduce operating costs. AC motor is always ready for action whether it is a light or strong acceleration.
  • The stacker and its components have been specially designed to perform maintenance and servicing with ease. With only 2 screws, the main cover can be easily removed for easy access all components. Wheels and rollers can be easily replaced without a lifting device.
  • The electronically controlled proportional lift and lower system ensures accurate fork positioning and stacking operations.
  • Proportional lift works best when dealing with high stacks.
  • Each PS L series has a battery corresponding to a specific type of use: PS12L has a 2 VBS-180 Ah battery for short stackers used in narrow operating areas.
  • Electric propulsion and pedestrian drive
  • Rated capacity: 1.2 metric ton
  • Load centre distance: 600 mm
  • Load distance, centre of drive axle to fork (x): 647 mm
  • Wheelbase: 1248 mm
  • Polyurethane wheels (PU)
  • Steering wheels dimensions: 230 x 70 mm
  • Front rollers dimensions: 85 x 75 mm
  • Stabilizing rollers dimensions: 150 x 54 mm
  • Number of front / rear wheels (x= steering wheel): 1 x + 1 / 4
  • Straddle legs center distance: 522 mm
  • Rear rollers center distance: 390 / 505 mm
  • Tiller height in drive position min. / max.: 850 / 1385 mm
  • Fork height lowered: 90 mm
  • Overall length: 1919 mm
  • Length without forks: 769 mm
  • Overall width: 820 mm
  • Fork dimensions s/e/l: 60/180/1150 mm
  • Width across forks: 570 / 685 mm
  • Ground clearance: 28 mm
  • Aisle width for pallets 1000 x 1200 crossways: 2336 mm
  • Aisle width for pallets 800 x 1200 lengthways: 2322 mm
  • Turning radius: 1440 mm
  • Travel speed laden / unladen: 6 / 6 km/h
  • Lift speed, laden / unladen: 0,1 / 0,17 m/s
  • Lowering speed, laden / unladen: 0,11 / 0,11 m/s
  • Gradeability performance of 6% laden and 12% unladen
  • Electromagnetic service brake
  • Battery weight: 172 to 175 kgType of drive control: AC - speed control
  • Sound level at driver's ear acc. to EN 12053:<70 dB

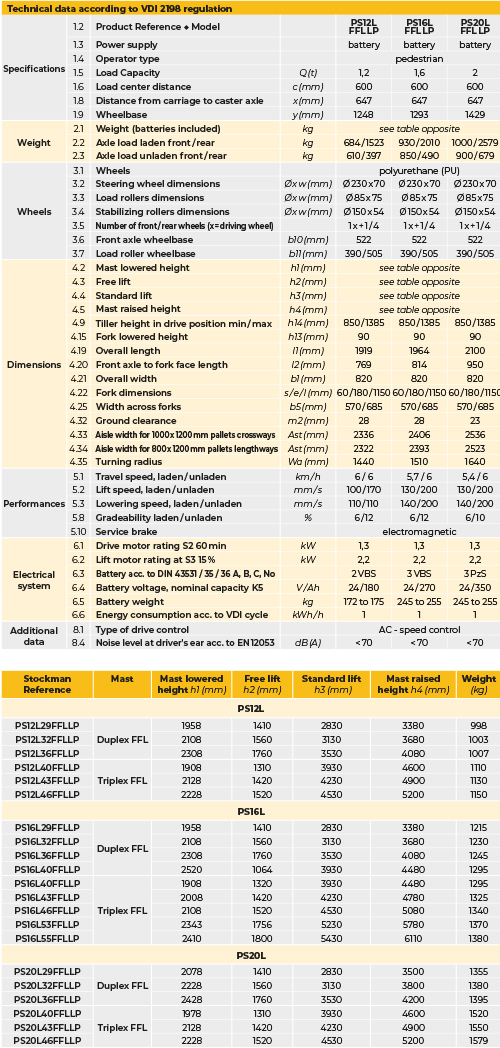

  • Download the product specifications for further technical information
