PS18CB

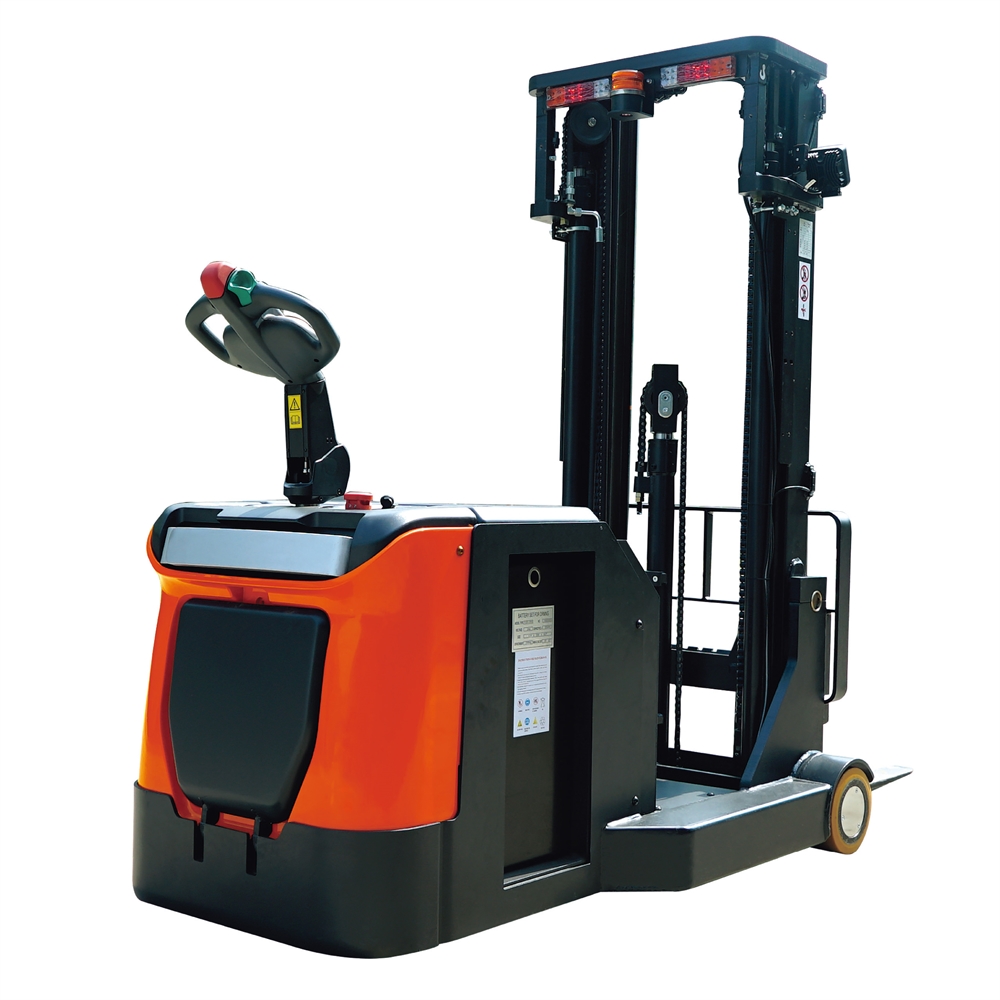

Counterbalanced stand-up rider electric stacker with 1800 kg load capacity

PS18CB

Counterbalanced stand-up rider electric stacker with 1800 kg load capacity

The PS CB electric counterbalanced stacker series is ideal for applications where stacked loads on low and medium-height racks are limited to a few hours per day. This version of 1800 kg load capacity has 6 standard lift heights ranging from 1600 to 4000 mm.

more information
Designation
PS18CB1600 - Counterbalanced stand-up rider electric stacker with 1600 mm standard lift 1800 kg load capacity PS18CB1600
Counterbalanced stand-up rider electric stacker with 1600 mm standard lift 1800 kg load capacity

Weight : 2150 kg
Bar code : 3700664807294
Catalogue P.136
PS18CB2500 - Counterbalanced stand-up rider electric stacker with 2500 mm standard lift 1800 kg load capacity PS18CB2500
Counterbalanced stand-up rider electric stacker with 2500 mm standard lift 1800 kg load capacity

Weight : 2280 kg
Bar code : 3700664807287
Catalogue P.136
PS18CB3000 - Counterbalanced stand-up rider electric stacker with 3000 mm standard lift 1800 kg load capacity PS18CB3000
Counterbalanced stand-up rider electric stacker with 3000 mm standard lift 1800 kg load capacity

Weight : 2320 kg
Bar code : 3700664807263
Catalogue P.136
PS18CB3200 - Counterbalanced stand-up rider electric stacker with 3200 mm standard lift 1800 kg load capacity PS18CB3200
Counterbalanced stand-up rider electric stacker with 3200 mm standard lift 1800 kg load capacity

Weight : 2330 kg
Bar code : 3700664807232
Catalogue P.136
PS18CB3600 - Counterbalanced stand-up rider electric stacker with 3600 mm standard lift 1800 kg load capacity PS18CB3600
Counterbalanced stand-up rider electric stacker with 3600 mm standard lift 1800 kg load capacity

Weight : 2355 kg
Bar code : 3700664807225
Catalogue P.136
PS18CB4000 - Counterbalanced stand-up rider electric stacker with 4000 mm standard lift 1800 kg load capacity PS18CB4000
Counterbalanced stand-up rider electric stacker with 4000 mm standard lift 1800 kg load capacity

Weight : 2375 kg
Bar code : 3700664807218
Catalogue P.136

  • Without straddle legs, this counterbalanced stand-up rider electric stacker can perform applications that conventional stackers cannot, such as lifting closed pallets or skids with a bottom
  • The load capacity of this version is 1800 kg. Two other load capacities are available: 1200 kg for PS12CB and 1600 kg for PS16CB (see models pages for technical information)
  • The lifting capacity ranges between 1600 mm to 4000 mm
  • Thanks to its compact structure (short wheelbase and small turning radius), this electric stacker is ideally suited for narrow-aisle applications
  • It features high efficiency and a high driving speed: 7 km/h loaded, 8 km/h without load
  • Its overall structure optimization increases stability and safety
  • Lateral battery extraction ensures easy replacement
  • Proportional lift control ensures maximum precision to position the loads
  • This counterbalanced stand-up rider electric stacker is equipped with high-quality components
  • The powerful AC motor is designed and manufactured by Schabmüller
  • The gearbox is designed by Kordel
  • The German Rader Vogel high-end steering wheels guarantee an extended service life of the motor unit
  • Rema's ergonomic handle features a reliable control system
  • The integrated flip-down platform, the folding lateral protection arms, and the new internal structure provide the smallest overall length and tightest turning radius
  • The suspension system of the platform offers excellent comfort
  • The Electric Power Steering (EPS) allows precise and fast control of the steering wheel and ensures high efficiency and optimal safety
  • French HPI hydraulic system guarantees precision when raising or lowering the forks, plus a smooth acceleration or deceleration when handling fragile loads
  • Zapi, Italian electronic controllers offer a reliable and flexible high-performance solution
  • The multi-functional control panel can display the equipment's operational status, operating time, battery status, driving speed, and steering angle
  • The USB charging port can be used to power other devices
  • The mainframe thickness (8mm) guarantees the robustness of the stacker's chassis. In addition, the stainless steel battery cover provides enhanced protection
  • Standard PIN-code or RFID card access control system, available in option, considerably simplifies the access control process if more than one user uses the equipment
  • The stackers' mast tilt is standard
  • Download the product specifications for further technical information and our complete commercial brochure

Options

  • Lithium-ion battery
