PT16L

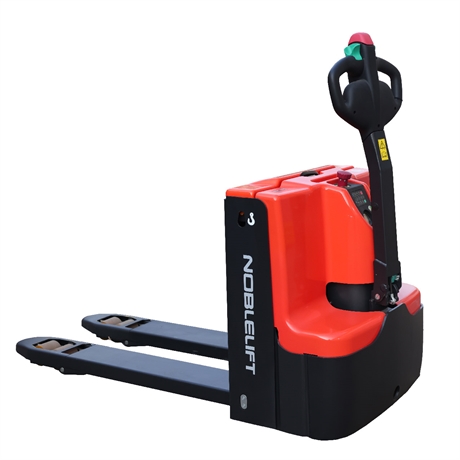

Pedestrian powered pallet truck 1600 kg

Pedestrian powered pallet truck 1600 kg
Pedestrian powered pallet truck 1600 kg -
Pedestrian powered pallet truck 1600 kg -
Pedestrian powered pallet truck 1600 kg -
Pedestrian powered pallet truck 1600 kg -
Pedestrian powered pallet truck 1600 kg -
Contact us +33(0) 5 59 50 67 63
PT16L

Pedestrian powered pallet truck 1600 kg

The PTL pallet trucks series is at the forefront of technology and positioned in the premium segment of the electric pallet truck market.

more information
Designation
PT16L - Pedestrian powered pallet truck 1600 kg load capacity PT16L
Pedestrian powered pallet truck 1600 kg load capacity

Weight : 445 kg
Bar code : 3700664835921
Catalogue P.42
PT16L-1800 - Pedestrian powered pallet truck 1400 kg load capacity - 1800 mm forks PT16L-1800
Pedestrian powered pallet truck 1400 kg load capacity - 1800 mm forks

Weight : 0 kg
Bar code : 3700664811017
Catalogue P.42
PT16L-2000 - Pedestrian powered pallet truck 1400 kg load capacity - 2000 mm forks PT16L-2000
Pedestrian powered pallet truck 1400 kg load capacity - 2000 mm forks

Weight : 0 kg
Bar code : 3700664811024
Catalogue P.42
DESCRIPTION
TECHNICAL CHARACTERISTICS

  • The PTL pedestrian powered pallet truck series are renowned for its ergonomic, compact and maneuverable characteristics.
  • They are competitive and robust.
  • The German AC traction motor is powerful and maintenance-free.
  • Core components come from top brands (Kordel, Intorq, Wicke for instance).
  • This equipment helps prevent MSDs (musculoskeletal disorders).
  • These electric pallet truck have a travel speed of 6 km/h
  • It has a gradeability performance of 8 % laden and 15% unladen
  • Equipped with electromagnetic brakes
  • Load capacities change depending on the model: 1.6 metric ton for PT16L
  • Wheels are made of polyurethane (PU) and measure 230 mm diameter
  • Standard lift height is 125 mm
  • Aisle width for 800 x 1200 pallets is 1935 mm for PT16L
  • Forks dimensions all the same for all 3 models: 60 mm (thickness) / 173 mm (width) / 1150 mm (length)
  • Width across forks: 540 mm / 680 mm
  • Ground clearance: 25 mm
  • Turning radius: 1440 mm for PT16L
  • A long steering handle guarantees the operator is at a safe distance from the pallet truck.
  • The steering handle design ensures less operational efforts compared to short handle pallet trucks.
  • The multiplexing system CAN-BUS increases the unit's performance and reduces maintenance downtime.
  • The pallet truck and its components have been specially designed to perform maintenance and servicing with ease.
  • With only 2 screws, the cowl can be easily removed for easy access to all components. Wheels and rollers can be easily replaced without a lifting device.
  • Each PT L series has a battery for a specific type of use: PT16L has a 160 Ah 2VBS battery (150 kg) suitable for short length pallet trucks used in narrow operating areas.
  • PT L pallet trucks series chassis is extremely robust and its mainframe is 8 mm thick.
  • The stainless steel battery reduces maintenance costs and possible damages significantly.
  • Traction motor and brakes are well protected.
  • Zapi motor controller (IP54) is dust and splash resistant. Moreover, the controller on PT20L can be fully customized to meet specific user requirements.
  • Sound level at driver's ear acc. to EN 12053: 67 dB for PT16L
  • Download the product specifications for further technical information
  • Compare the 3 models thanks to the information on each product page: PT16L, PT20L, PT25L

Options

  • Load backrest
  • Side battery extraction
  • Different fork dimensions available on demand (540 mm or 685 mm)
  • Automatic battery filling system
