OPH01E

Motorised stockpicker up to 5000 mm working height

OPH01E

Motorised stockpicker up to 5000 mm working height

The OPH01E stockpicker allows a working height of up to 5 metres. This motorised aerial work platform is ideal for order picking and racking in industrial and logistics warehouses.

more information
Designation
OPH01E - Stockpicker motorisé hauteur de travail de 4950 mm OPH01E
Stockpicker motorisé hauteur de travail de 4950 mm

Weight : 690 kg
Bar code : 3700664809830
Catalogue P.111
OPH01 - Motorized stockpicker boom working height up to 5000 mm battery 200 Ah battery 200 Ah OPH01
Motorized stockpicker boom working height up to 5000 mm battery 200 Ah battery 200 Ah

Weight : 700 kg
Bar code : 3700664809847

  • The OPH01E stockpicker is a motorised aerial work platform with vertical mast.
  • This aerial work platform is designed for order picking and shelving in industrial and logistics warehouses.
  • It is a piece of equipment that provides working comfort and protects operators from musculoskeletal disorders (MSD).
  • Efficient and effective, the OPH01E stockpicker allows a working height of up to 5 metres.
  • It is a safe piece of equipment with a lifting speed of up to 5 metres and a proportional hydraulic lift.
  • The lifting speed is 22 mm/s (without load) and 20 mm/s (with load).
  • The motorised aerial work platform has a load capacity of 135 kg, while the loading platform can support loads of up to 100 kg.
  • The height of the loading platform is electrically adjustable.
  • Designed for indoor use, the drive wheels of the aerial work platform are non-marking.
  • The turning radius of the OPH01E stockpicker is 1300 mm.
  • The motorised aerial work platform can be started by PIN code and RFID access card.

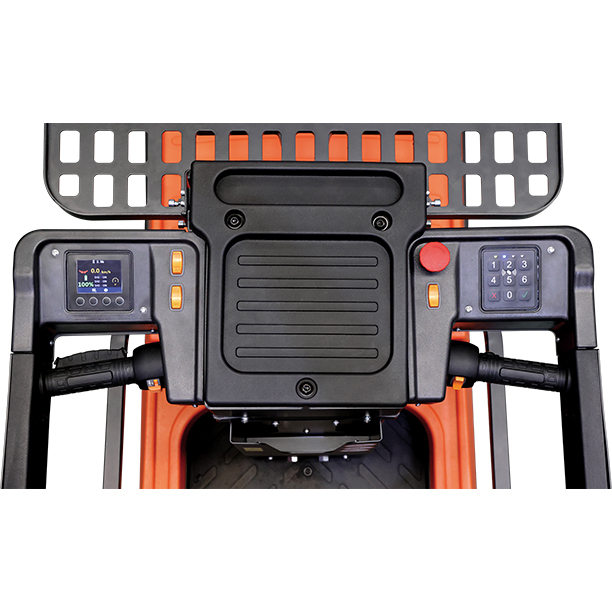

  • It is equipped with a backlit LED display, a Curtis dimmer, a 24V / 106 Ah battery and a 24V charger.
  • The dimensions of the charging basket are: 640 x 525 mm.
  • The basket has a maximum height of 3015 mm.
  • The speed of the motorised basket varies according to the height of the lift. It moves at 5.5 km/h for a height of 0 to 0.5 m from the ground, 3.2 km/h for a height of 0.5 to 1.5 m from the ground and 1.4 km/h for a height of 1.5 to 3 m.
  • The permissible slope with load is 5%, without load 8%.
  • The dimensions of the front castor wheels are 220 mm (diameter) x 70 mm (width).
  • The dimensions of the drive wheels are 256 mm (diameter) x 80 mm (width).
  • This height access equipment weighs 690 kg.
