EVR106

Extendable Vertical Storage Rack for Bars 1818 kg

EVR106

Extendable Vertical Storage Rack for Bars 1818 kg

The EVR106 bar storage rack becomes scalable with the EVR106A module. This extendable vertical rack for storing metal bars in workshops frees up floor space and organises long products with a total load capacity of up to 1818 kg.

more information

	Designation

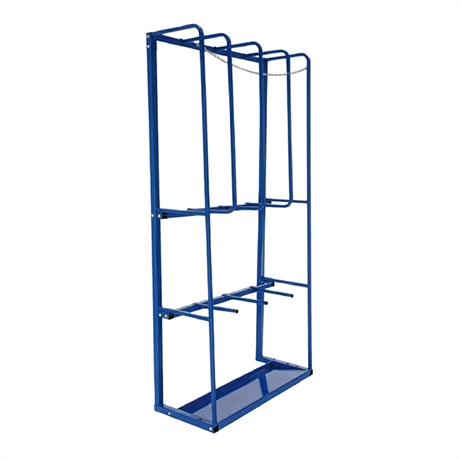

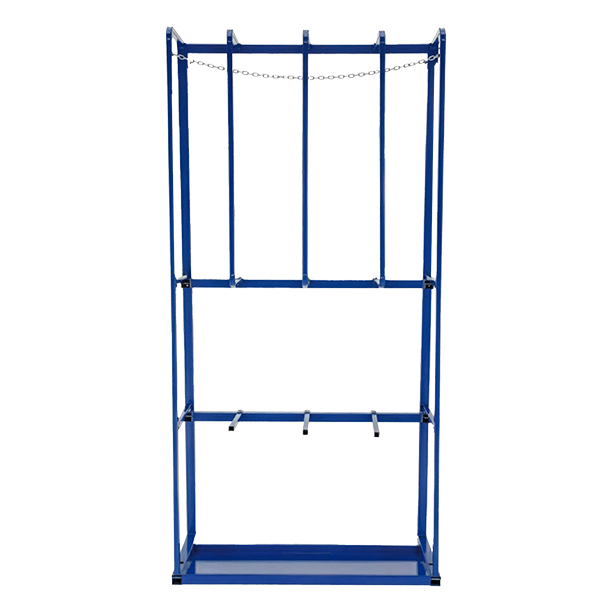

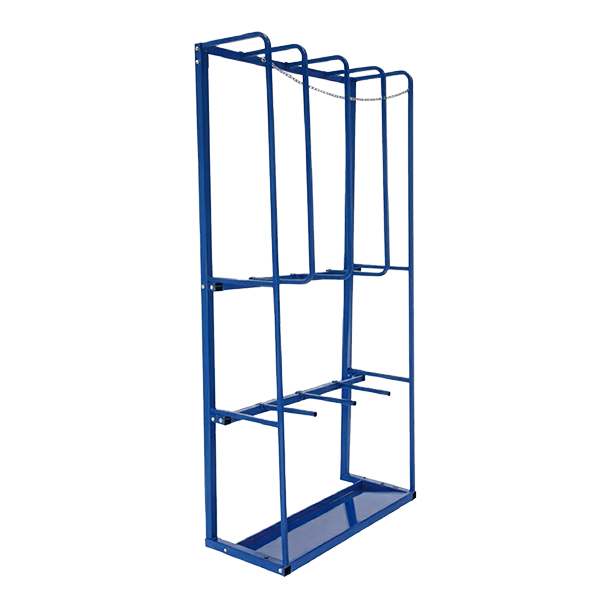

	EVR106 Storage rack for bars 1346 x 584 x 2692 mm load 1818 kg Weight : 80 kg Bar code : 3700664812267

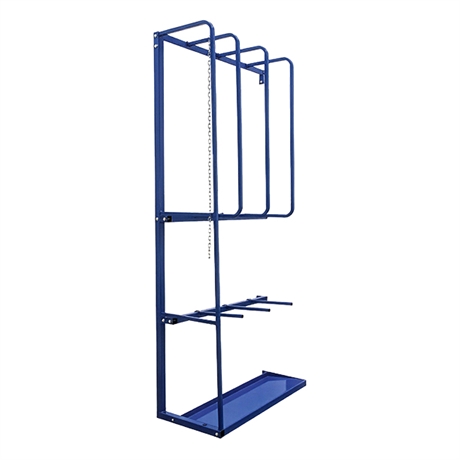

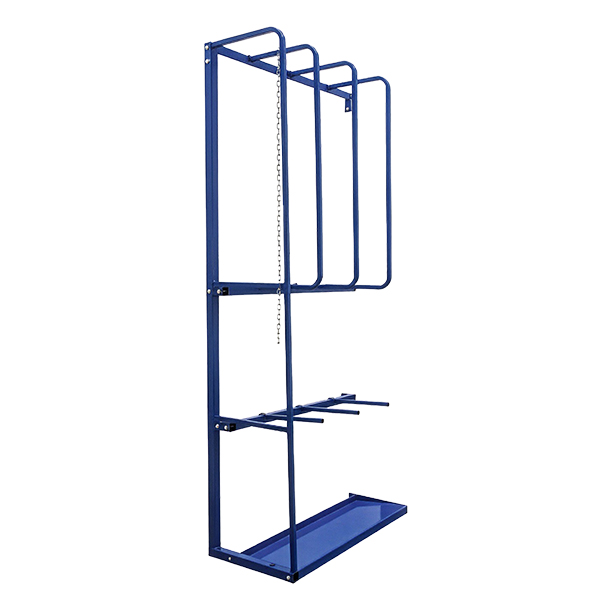

	EVR106A Additional module for bar storage rack 1346 x 584 x 2692 mm load 1818 kg Weight : 0 kg Bar code : 3700664813165

DESCRIPTION

TECHNICAL CHARACTERISTICS

The EVR106 and EVR106A combination provides an extendable vertical storage system dedicated to bars, tubes and profiles.

The principle is based on a starter rack, EVR106, complemented by an additional EVR106A module that slots into the structure to increase the storage width.

Each element keeps the same overall dimensions 1346 × 584 × 2692 mm and the same total load capacity of 1,818 kg under uniformly distributed load, ensuring consistent layout when the storage area evolves.

Within the STOCKMAN range, this system meets the needs of workshops and industrial stores looking to structure the storage of long products while maintaining a scalable solution.

Two key differentiating factors stand out:
Vertical storage, which limits floor footprint
Modularity by extension, supporting growth in the number of references without major reorganisation

This rack is designed to secure the storage of bars in demanding industrial environments, where safety and organisation are critical.

A solution adapted to industrial constraints

Storing long bars creates recurring constraints in professional environments: mixed references, difficult access, floor storage, impact risks and instability. The EVR106 + EVR106A system fits naturally into fabrication workshops, metalworking areas, maintenance stores, and logistics environments managing long products for picking or line supply.

In internal flow organisation, the long-length storage zone often plays a pivotal role between goods reception and cutting, machining or assembly stations.

A structured vertical storage system reduces unnecessary movements and clarifies traffic routes. The plug-in modularity of the EVR106A module absorbs stock variations, for example during range extensions, increased batch sizes or higher volumes on specific sections.

Benefits of the EVR106 bar storage rack

The EVR106 + EVR106A assembly delivers operational benefits in terms of organisation, safety and continuity of operations:
Scalable long-length zone: adding an EVR106A module increases storage width without changing the overall footprint
Reference organisation: compartment separation supports sorting by section, grade or order allocation
Space saving: vertical storage limits floor congestion and improves visibility of work areas
Controlled storage: a dedicated zone reduces temporary deposits and scattered storage situations
Consistent operation: an organised stock reduces search time and stabilises internal picking
Structured layout: alignment of multiple elements creates a coherent linear installation suited to workshops and stores

Technical characteristics of the EVR106 bar storage rack

The system is based on a vertical structure designed to store long products in a stable manner, with a capacity of 1,818 kg under uniformly distributed load. The dimensions 1346 × 584 × 2692 mm are compatible with workshop installation while maintaining controlled depth, favourable to circulation.
Structure / base / frame / load
The base ensures load transfer and contributes to stability during picking operations. Uniformly distributed load corresponds to batch storage spread across compartments, helping maintain consistent stability when references vary.
Flow and circulation
The rack indirectly improves flow by removing floor obstacles. A structured long-length zone avoids temporary deposits that slow down operators and handling equipment.
Accessibility and dimensions
Front access simplifies stock reading and compartment identification. Identical dimensions between EVR106 racks and EVR106A modules secure extension, with constant alignment and repeatable installation.
Wheels and mobility
This equipment is designed for fixed installation in storage areas. Zone stability and clear aisles take precedence over mobility.
Energy, power and autonomy
This equipment requires no energy supply. This simplicity reduces maintenance constraints and guarantees permanent availability.

Modularity is a key feature: the EVR106A module slots into the EVR106 rack to increase usable width. This approach allows long-length zones to be sized as close as possible to actual needs, then expanded gradually during operation.

Ergonomics, MSD prevention and safety

Handling long bars exposes operators to awkward postures and significant effort, particularly when storage relies on floor piles or unstructured supports. Vertical storage reduces physical strain by limiting clearance movements and multiple handling actions to extract the correct reference.

Compartment separation supports more controlled handling: fewer mixed references, fewer re-handling actions and fewer unnecessary movements. A dedicated, structured zone improves co-activity around cutting stations and preparation areas, reducing risk situations linked to long products crossing traffic routes.

Productivity and operational gains

Poorly organised long-length storage generates daily time losses: searching for sections, difficult visual checks, approximate re-storage and workstation interruptions.

The EVR106 + EVR106A system stabilises organisation by enforcing clear, repeatable locations. Modularity ensures continuity of operations: when stock grows, extension via EVR106A modules avoids full re-layout. Workshops keep their reference points, picking remains consistent, and internal flows gain stability throughout the day.

This stability reduces interruptions and supports better replenishment planning. The EVR106 + EVR106A racks form an extendable vertical storage system for long bars, with a capacity of 1818 kg and a constant footprint. The starter rack structures storage, while the additional module increases width through plug-in extension without organisational disruption.

The system improves space saving, stock readability and control of handling in professional environments.

Typical applications of the EVR106 bar storage rack
Common use cases include:

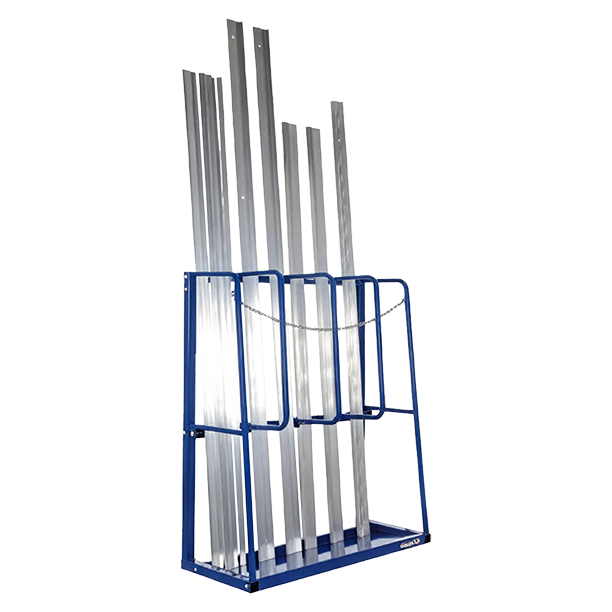

Storage of steel bars, flats, rounds, tubes and profiles in fabrication workshops
Organisation of long products near a band saw or cutting station
Long-length zones in industrial maintenance stores
Sorting references by section and grade in logistics areas
Creation of a scalable linear storage line through gradual addition of EVR106A modules

Who the EVR106 bar storage rack is for?

This system is designed for organisations looking for an “extendable vertical rack for long bars” and a “modular solution to organise bars and profiles by reference”. It is suited to metalworking workshops, maintenance departments, industrial stores, production sites and logistics platforms managing long products and seeking to stabilise internal organisation.

This storage equipment will match your customers’ needs if they are looking for:
extendable vertical rack for storing metal bars in workshops
bar storage rack with plug-in additional module
modular solution to organise bars and profiles by reference
bar rack to reduce floor congestion in cutting areas
vertical rack for tubes and bars in industrial stores
extendable rack to increase long-length storage width
vertical storage support for steel bars in industrial maintenance
long bar storage rack with adjustable compartments
structured long-length zone with aligned racks in logistics workshops
modular bar rack to secure storage and improve internal flow

To define the number of starter racks and additional modules required, discussions with your local STOCKMAN sales representative allow the layout to be adapted to stored sections, picking frequency and circulation constraints. Contact details are available on our contact page.
