PSE13BPRO

Electric stacker with AGM battery and 1300 kg load capacity

PSE13BPRO

Electric stacker with AGM battery and 1300 kg load capacity

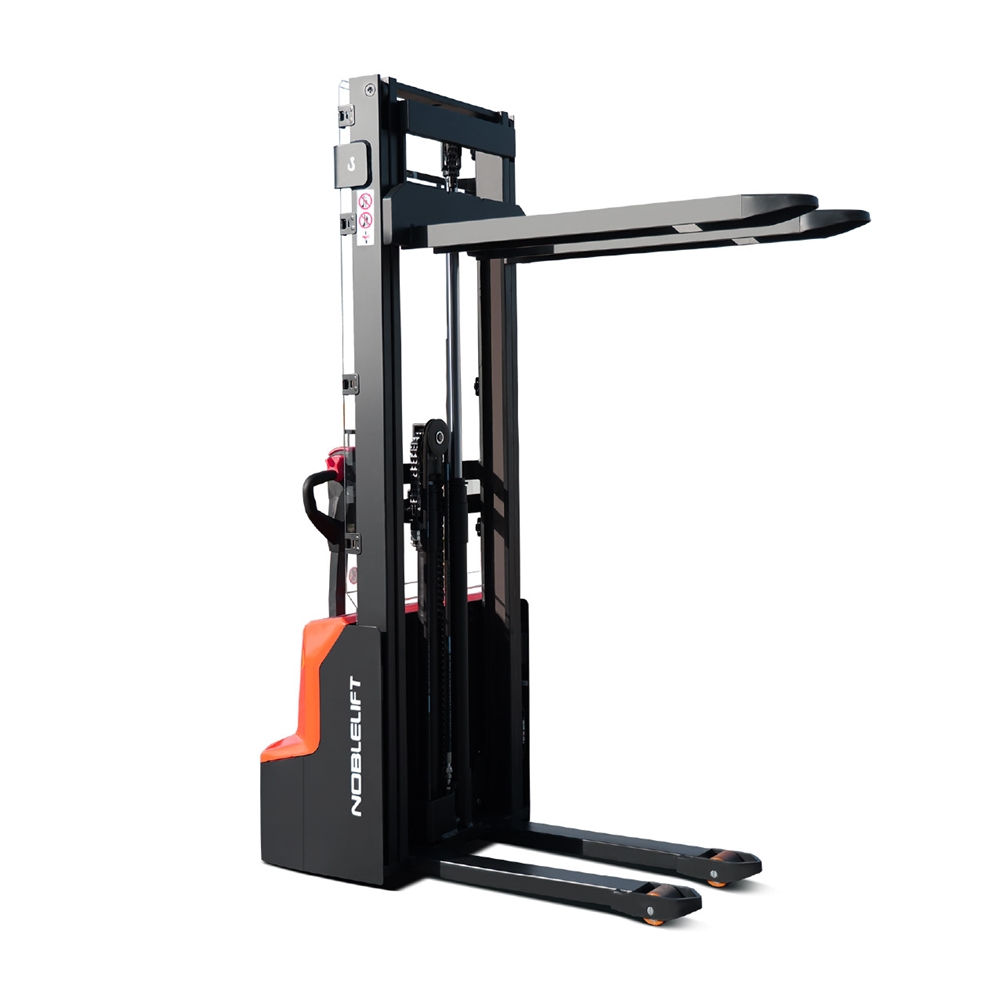

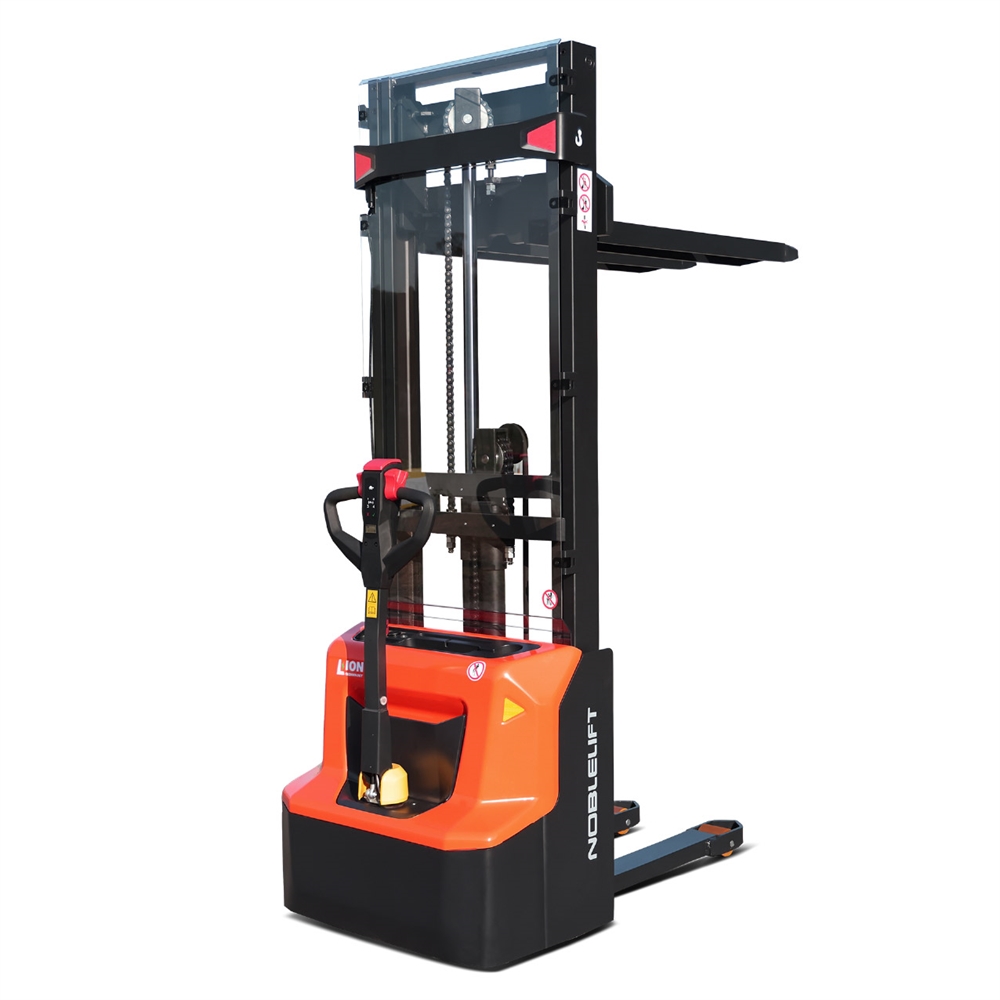

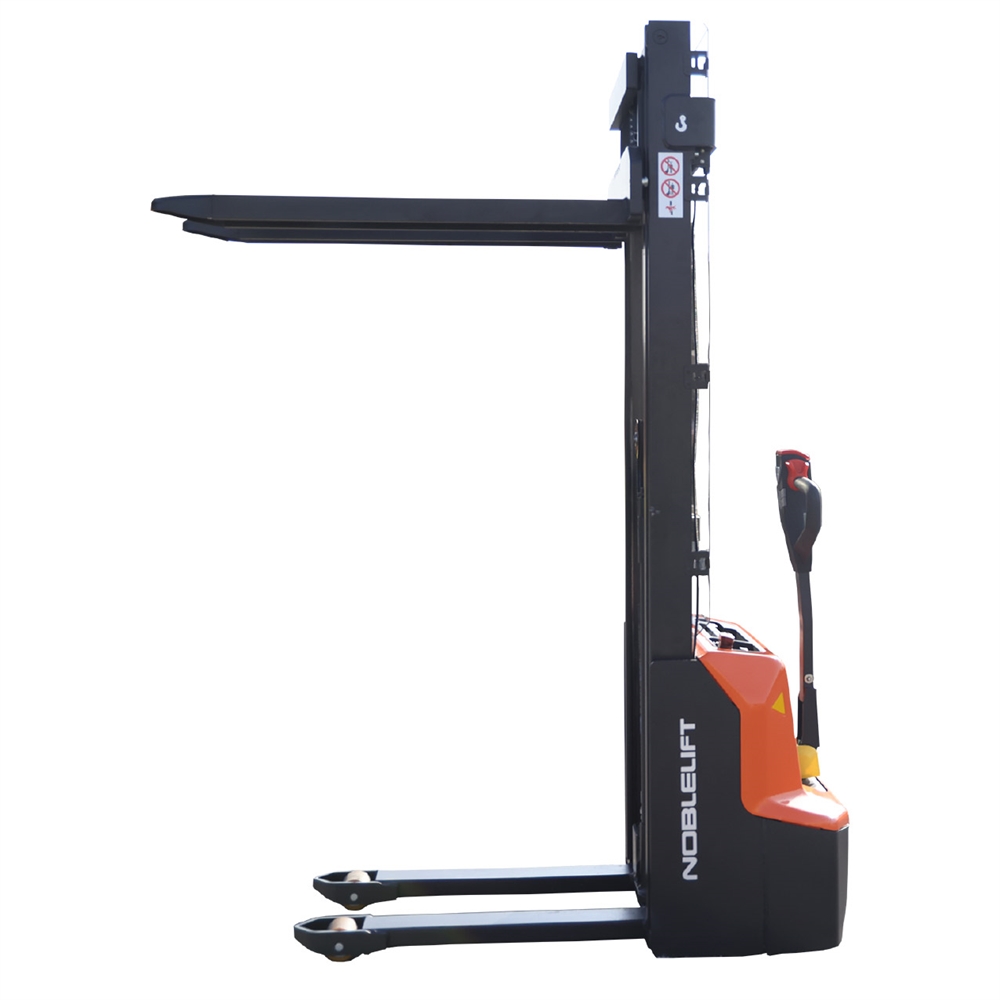

The PSE13BPRO electric stacker lifts 1,300 kg for warehouse storage operations. Its compact design, high free lift, and ergonomic tiller secure manoeuvres and reduce daily effort. Supplied with a standard AGM battery.

more information

	Designation

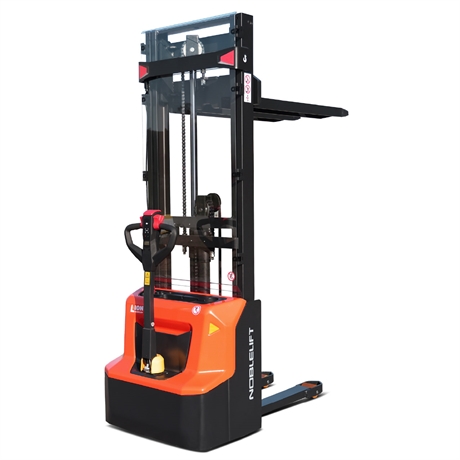

	PSE13BPRO2900 Electric stacker with 2900 mm lift, 1300 kg capacity and AGM battery Weight : 681 kg Bar code : 3700664817767

DESCRIPTION

TECHNICAL CHARACTERISTICS

The PSE13BPRO electric stacker is a STOCKMAN pedestrian stacker designed for indoor stacking, put-away, and pallet transfer.
The rated capacity reaches 1.3 tonnes with a 600 mm load centre, suited to standard pallets.
The machine stays compact and easy to manoeuvre in confined areas.
The high free lift is supplied as standard. It lifts a pallet without extending the mast significantly, useful under lintels, mezzanines, or doorways.
The SmartView mast improves visibility of the forks.
PIN code or RFID card access limits unauthorised use and makes shared fleet management easier.

An electric stacker ideal for logistics warehouses, stockrooms, workshops, and picking and shipping areas
The PSE13BPRO suits warehouses, stockrooms, workshops, and shipping areas where pallets move all day. The stacker handles racking put-away, lowering pallets to picking, feeding workstations, and transfers between receiving, storage, and shipping.
Working in narrow aisles requires precise manoeuvres. The 1300 mm turning radius and overall width of around 800 mm make U-turns and pallet approaches easier. Aisle widths (Ast) for 800×1200 and 1000×1200 pallets allow checks against a site layout.

Advantages of the PSE13BPRO electric stacker

This stacker focuses on driving safety, clear information at the operator position, and day-to-day uptime.
1,300 kg capacity: handling heavy pallets without overloading operators.
Standard high free lift: handling under height constraints with minimal mast extension.

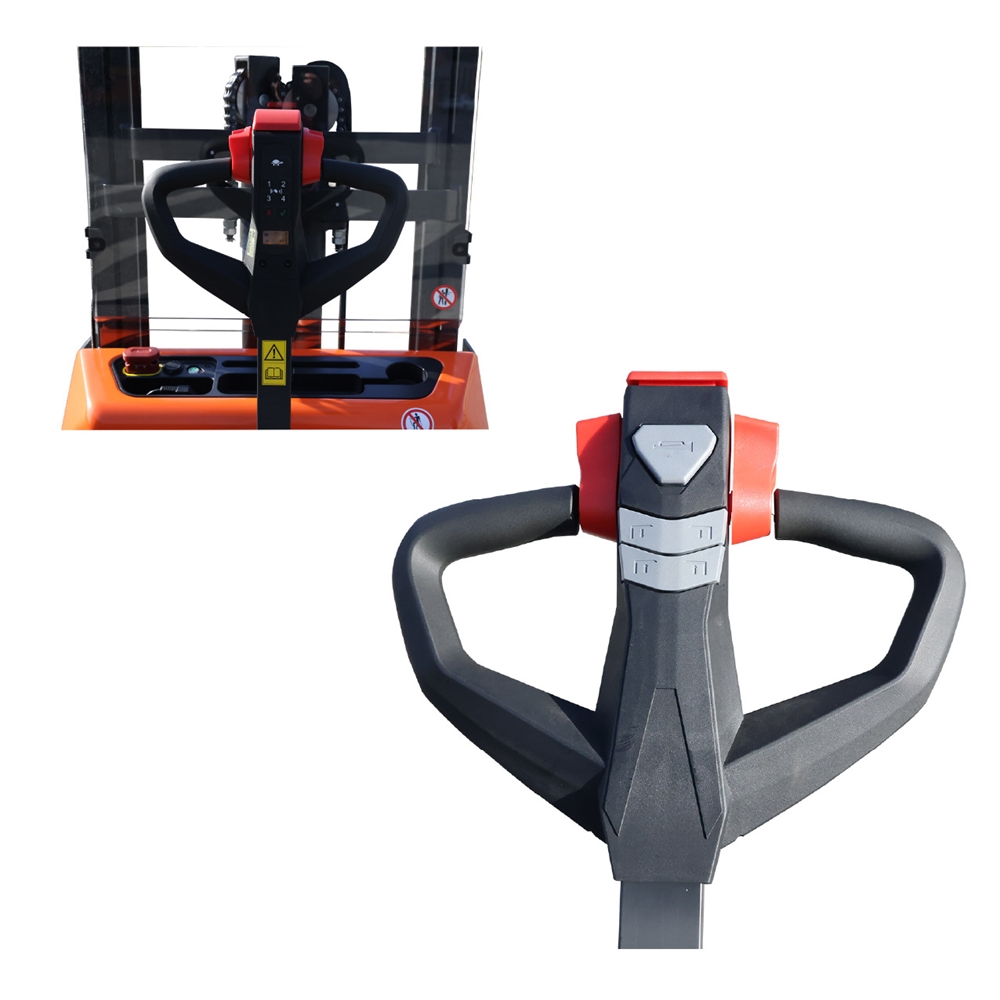

Ergonomic tiller: grouped controls, quick access to forward/reverse, lift, and lower.
Turtle mode: slow travel for precise approaches and stacking close to racking.
Anti-crush button: operator protection during manoeuvres in tight spaces.
Automatic speed reduction in turns: improved stability and better control when changing direction.
PIN / RFID access: simple usage control on multi-operator sites.
USB port: charging compatible accessories on site.

Technical specifications of the PSE13BPRO electric stacker
Structure / platform / chassis / load
The main cover is steel with a 1.5 mm thickness. It protects components from impacts and frequent contact in the warehouse. The tiller contains 70% fibreglass. It withstands traction loads, steering forces, and repeated use. The forks are designed for intensive use. Automated manufacturing and steel thickness strengthen mechanical durability during pallet pick-up, threshold crossings, and unintended contact.
Speed and travel
Travel speed reaches 4.5 km/h unloaded and 4.2 km/h loaded. This level suits internal transfers and short shuttles between areas. Gradeability reaches 10% unloaded and 4% loaded. The stacker works on moderate ramps and dock areas depending on site layout. The electromagnetic service brake provides controlled stopping during frequent stops.
Manoeuvrability and dimensions
The stacker stays short. Overall length reaches about 1710 mm (depending on mast version) and length without forks stays around 560 to 574 mm. This compact format helps in dense storage areas. The forks are 1150 mm long with a 60 × 180 mm section. Outside fork width offers 570 / 685 mm depending on adjustment.
Wheels and rolling
The wheels are polyurethane (PU). They resist abrasion on smooth floors. They roll consistently in warehouse aisles. The Ø210 × 75 drive wheel and Ø84 × 93 front load rollers stabilise the load during pallet pick-up and travel.
Power, drive, and autonomy
Power comes from AGM batteries 2×12 V / 106 Ah. Stated autonomy reaches 6 h depending on operating conditions. The traction motor delivers 0.65 kW (S2 60 min). The lift motor delivers 2.2 kW (S3 10%). Energy consumption reaches 0.6 kWh/h on the VDI cycle (depending on versions). The CAN-BUS protocol improves the reliability of the electric control system. The BMS monitors charge, discharge, temperature, and short-circuit protection.

Ergonomics, MSD prevention, and safety
Electric travel removes the pulling effort of a manual stacker. Electric lifting removes the pumping effort. Reduced physical strain comes from repeated travel and stacking cycles.
The tiller groups the controls and improves the driving posture. The vertical tiller function helps work in confined areas. The anti-crush button adds extra protection during manoeuvres. Automatic speed reduction in turns reduces jolts and improves trajectory control.
The SmartView mast keeps a large part of the forks in view. Pallet placement stays more accurate, especially during stacking.

Productivity and operational gains
Travel and lift speeds allow continuous pick-up, transfer, and racking cycles. Standard free lift reduces blockages under low ceilings and speeds up handling at intermediate heights.

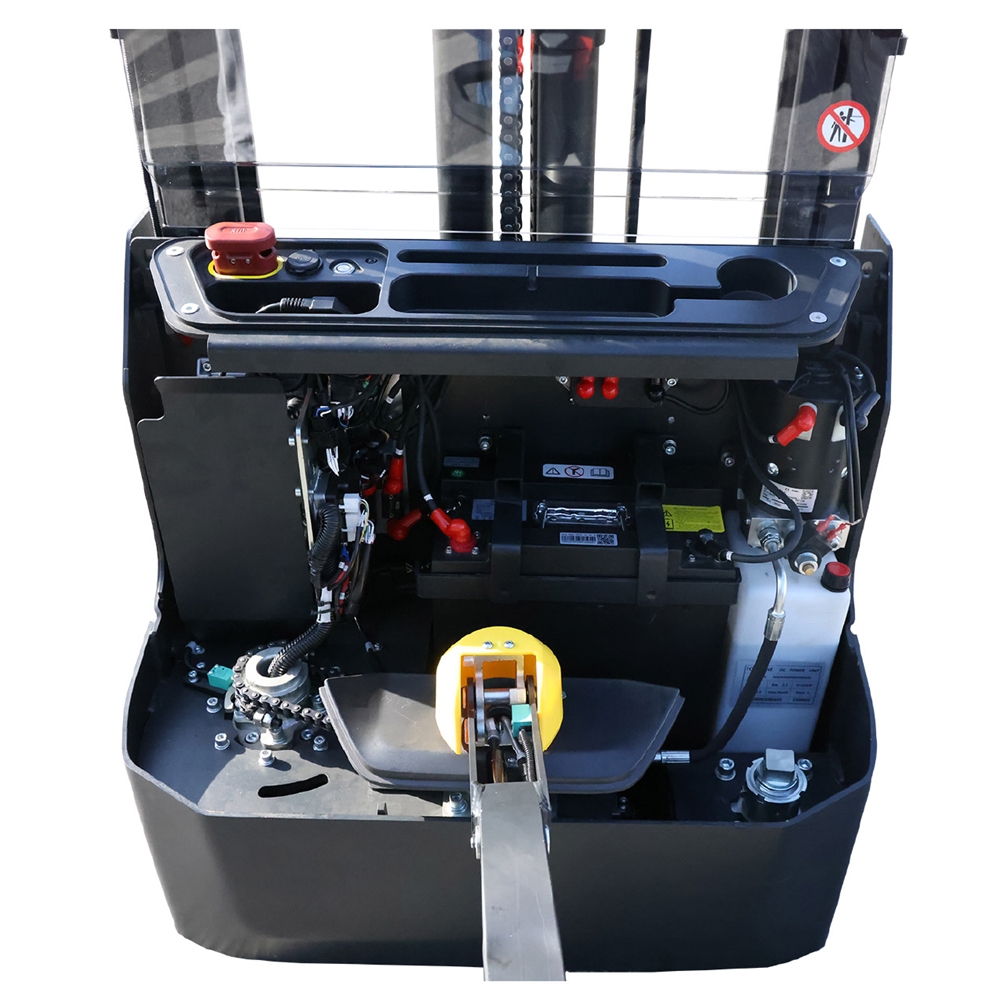

Maintenance stays quick. Access to components stays direct. The external diagnostic socket is accessible without tools. Machine downtime is shorter during checks and interventions.

The PSE13BPRO is a compact electric stacker with a 1,300 kg capacity for storage and internal transfers. Standard free lift, SmartView visibility, automatic speed reduction in turns, and the ergonomic tiller improve driving safety and comfort. PIN/RFID access and the external diagnostic socket simplify fleet operation.

Typical applications of the PSE13BPRO electric stacker

The following uses match the daily operation of a logistics site:
putting pallets away on racking
lowering pallets to preparation areas
feeding production workstations
transfers between receiving, stockroom, and shipping
regular stacking of Euro pallets and compatible formats

This stacker suits logistics platforms, retail stockrooms, workshops, industrial SMEs, service providers, and local authorities that handle pallets every day. It meets the need for stacking and internal transfer with reduced physical effort.

This professional equipment covers customer needs such as the following:
A compact 1,300 kg electric stacker for warehouse storage
A pedestrian stacker with standard high free lift for racking
A 1.3-tonne electric stacker for narrow aisles and manoeuvres
An electric stacker with PIN code start and RFID card access
A materials-handling stacker with SmartView mast for better visibility
An AGM electric stacker with 6-hour autonomy for internal flows
A 1,300 kg stacker with automatic speed reduction in turns
An electric stacker with vertical tiller function for confined areas
An electric stacker with easier maintenance and external diagnostics
An electric stacker for order picking and daily stacking

The PSE13BPRO meets indoor stacking and travel needs with a compact format and safety-focused equipment. The mast choice (duplex or triplex) and lift height should match storage height and clearance constraints on site. The local STOCKMAN sales representative remains available for support.

Electric stacker with AGM battery and 1300 kg load capacity

Electric stacker with AGM battery and 1300 kg load capacity

See also...

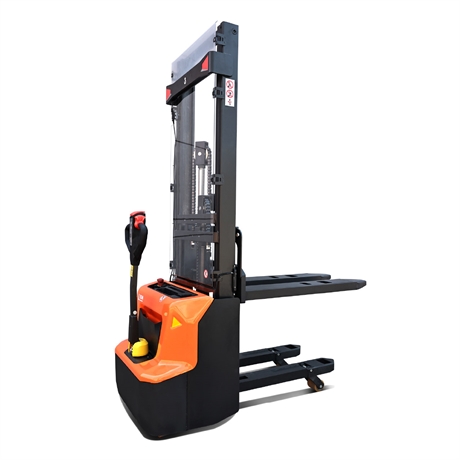

PSE13BPROLI
