PSE12BMLI

1,200 kg electric stacker with AGM battery, mono mast and initial lift

PSE12BMLI

1,200 kg electric stacker with AGM battery, mono mast and initial lift

1,200 kg AGM electric stacker with a mono mast and 120 mm initial lift. The open mast design improves visibility towards the load during stacking operations.

more information

	Designation
	PSE12BM800LI 1,200 kg electric stacker with AGM battery, mono mast, 800 mm lift, 120 mm initial lift Weight : 596 kg

DESCRIPTION

TECHNICAL CHARACTERISTICS

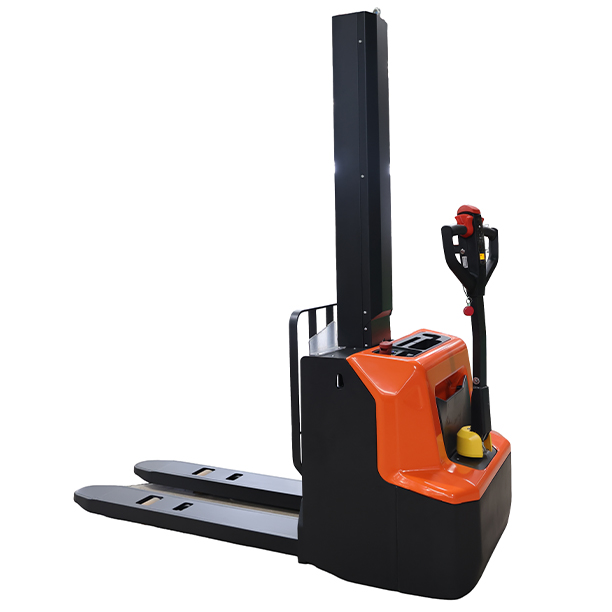

The PSE12BMLI electric stacker is designed to handle and lift pallets weighing up to 1 200 kg. It combines a single-column mast offering excellent visibility, 120 mm initial lift and power from an AGM battery. Compact and manoeuvrable, it is intended for light to moderate handling applications, particularly moving, positioning and raising palletised loads to the required height.

Two lifting movements for pallet handling

The PSE12BMLI features a main lift that raises the forks to a lift height of 714 mm on the PSE12BM800LI variant.

This is complemented by 120 mm initial lift, which raises the stacker's support arms. The operator therefore has two separate lifting movements to adjust the machine's position to the different stages of handling.

This configuration is particularly suitable for moving pallets and raising them to the required height in storage or preparation areas where only moderate lifting heights are needed.

Improved visibility through the mast design

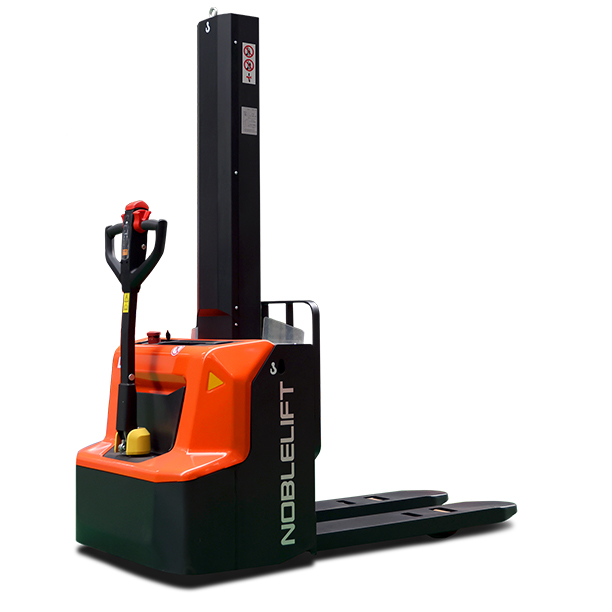

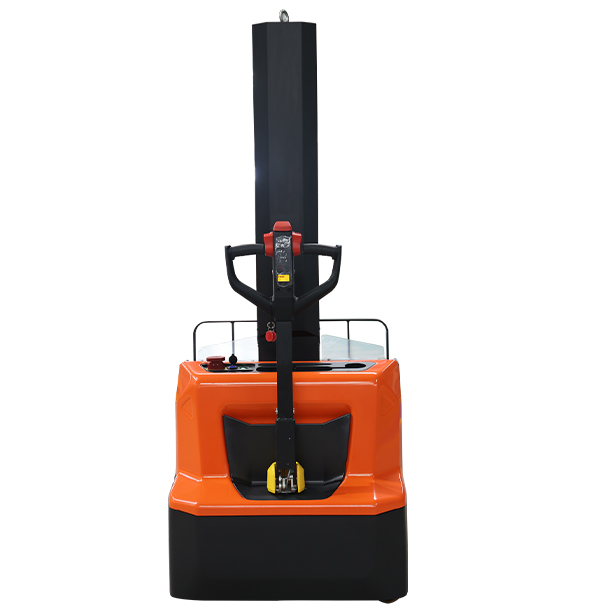

Unlike conventional twin-upright mast configurations, the PSE12BMLI's single-column mast has a central structure that opens up the operator's field of view.

This visibility makes it easier to monitor fork position when approaching a pallet and positioning the load. It is particularly useful for close-range manoeuvres where the forks must be accurately positioned under a load or in a designated location.

Compact dimensions for handling areas

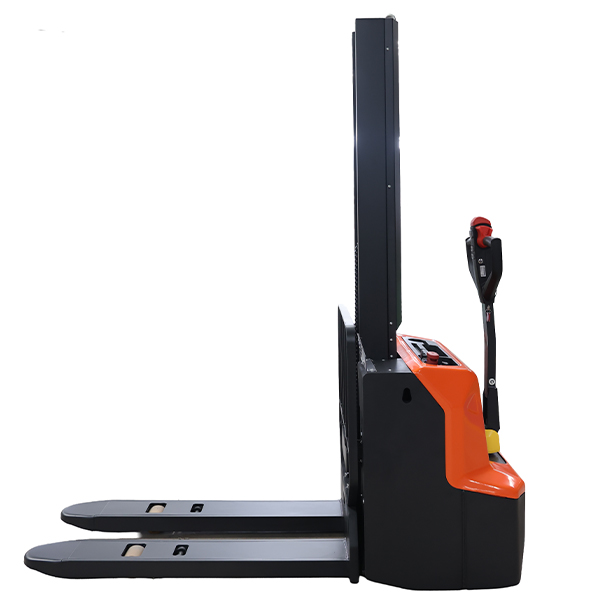

With an overall length of 1 710 mm and a width of 800 mm, the PSE12BM800LI offers dimensions suited to operations in stockrooms, shops and workshops.

Its turning radius of 1 350 mm is an important factor when assessing manoeuvring space. Choosing the right stacker also requires consideration of pallet dimensions, passage widths and floor conditions.

Powered handling and access control

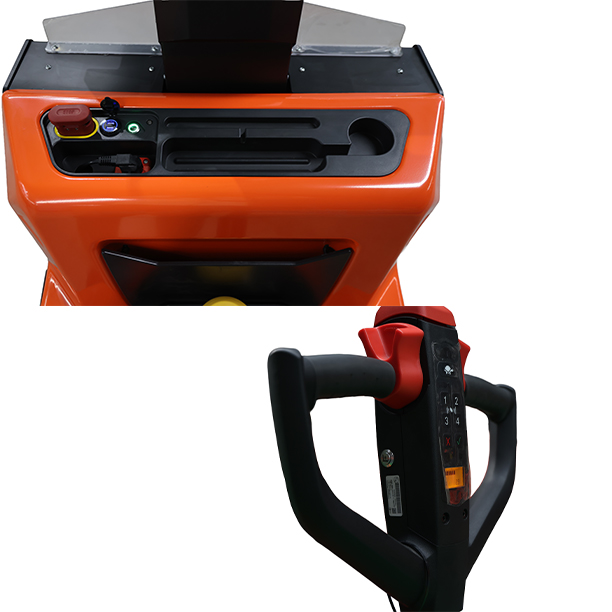

Travel and lifting are both powered. The tiller enables the operator to control travel and lifting movements without manually pumping to raise the load.

The stacker is powered by an AGM battery and has a built-in charger. An RFID card controls access to the machine when it is put into service.

Where can the PSE12BMLI electric stacker be used?
Moving pallets in a shop stockroom.
Raising palletised loads to working height at a workstation.
Supplying order preparation areas.
Positioning pallets in a low-height storage area.
Handling loads in workshops with limited circulation space.
Transferring pallets between work areas.

PSE12BM800LI dimensions and technical specifications
Rated capacity: 1 200 kg.
Load centre: 600 mm.
Lift height: 714 mm.
Initial lift: 120 mm.
Lowered mast height: 1 240 mm.
Overall length: 1 710 mm.
Overall width: 800 mm.
Fork length: 1 150 mm.
Overall fork width: 570 mm.
Turning radius: 1 350 mm.
Weight: 596 kg.
Travel speed, unladen / laden: 4.5 / 4.2 km/h.
Battery: AGM.
Built-in charger.
Service brake: electromagnetic.

Frequently asked questions about the PSE12BMLI

What is the difference between main lift and initial lift?
Main lift raises the forks to position a load at height. Initial lift raises the stacker's support arms through a travel of 120 mm.

What is the purpose of the single-column mast?
Its central design opens up the operator's field of view and makes visual checks easier when picking up and positioning pallets.

What height can the PSE12BM800LI reach?
The lift height specified in the technical documentation is 714 mm for this variant.

Does the PSE12BMLI have a built-in charger?
Yes. The stacker has an integrated charger for recharging its AGM battery.
