TE20LI

Electric tow / tug 2 tons

TE20LI

Electric tow / tug 2 tons

The TE20LI is a compact electric tow-and-push tractor designed to pull or push loads up to 2000 kg with no effort. Its removable 48V 20Ah lithium battery ensures high autonomy and quick replacement. This professional equipment increases the efficiency of internal operations, reduces MSD risks and adapts to demanding work environments thanks to its adjustable ergonomic tiller, automatic electromagnetic brake and numerous coupling options.

more information

	Designation
	TE20LI Electric tow / tug with 48V/20 Ah lithium battery 2 tons Weight : 0 kg Bar code : 3700664815459
	565438010010 Hitch hook for TE10LI and TE20LI electric tow tractors Weight : 2 kg Bar code : 3700664810973
	565438010014 LKE spindle hook for electric tow tractor TE10LI and TE20LI Weight : 2 kg Bar code : 3700664810966

DESCRIPTION

TECHNICAL CHARACTERISTICS

The TE20LI provides a modern traction solution for companies that require robust and maneuverable equipment capable of moving heavy loads safely. This electric tow and push tractor delivers a 2000 kg capacity and serves as an efficient alternative to strenuous manual handling. Its compact design allows smooth travel in narrow corridors, tight storage areas or workshops that require high maneuvering accuracy.
The TE20LI targets professionals who need to streamline internal movements of bins, trolleys, roll containers, various equipment or bulky materials. Its 48V 20Ah lithium battery ensures stable autonomy, short charging time and simplified maintenance. Battery exchange occurs quickly thanks to a hinged cover that provides excellent accessibility.
Its adjustable ergonomic tiller offers excellent user comfort. The machine unlocks via PIN code or RFID badge, which limits unauthorized use and improves overall safety. The automatic electromagnetic brake activates as soon as the operator releases the command, which provides optimal control on slopes, ramps or sensitive areas.
The steel hood structure protects internal components effectively and ensures long-lasting durability, even in demanding environments. The Curtis CAN-bus controller delivers precise motor management and offers simplified diagnostics through an easily accessible connector. The equipment accepts multiple towing systems depending on requirements: standard hook, pin-type coupling, ball coupling, electric coupling operated from the tiller, or adjustable drawbar. These numerous options allow the TE20LI to adapt to any internal fleet.
Its sound level below 70 dB allows easy use in sensitive environments such as nursing homes, hospitals, hotels, maintenance zones or educational facilities. In addition, the integrated LED lighting improves safety in dark aisles or low-visibility storage areas.
The TE20LI may fit within professional risk-prevention subsidy schemes from CARSAT, CNAM or MSA. Companies must verify their eligibility before submitting any request and consider the regular updates of the list of potentially subsidizable equipment.

The advantages of the TE20LI electric tow and push tractor
High towing capacity up to 2000 kg: the TE20LI delivers reliable traction for moving bins, heavy trolleys, roll containers or bulky equipment. This 2-tonne capacity boosts internal workflow efficiency and eliminates strenuous manual effort. The machine ensures smooth travel even in tight spaces thanks to its 770 mm turning radius.
Removable and accessible 48V 20Ah lithium battery: the lithium battery ensures stable autonomy, low weight and quick replacement. The hinged cover provides direct access and reduces downtime. Operators can manage several batteries to support intensive work across multiple shifts.
Adjustable ergonomic, lockable and intuitive tiller: the tiller adapts to the operator’s height thanks to a wide adjustment range. The integrated buttons provide full control: forward motion, reverse motion, low-speed mode, horn and emergency reverse. This ergonomic design reduces MSD risks and improves maneuvering precision.
Enhanced safety with electromagnetic brake and PIN/RFID locking: the automatic electromagnetic brake ensures immediate stopping as soon as the operator releases the command, even on slopes. The PIN keypad or RFID badge prevents unauthorized access. Integrated LED lighting increases visibility in aisles and reduces collision risks.

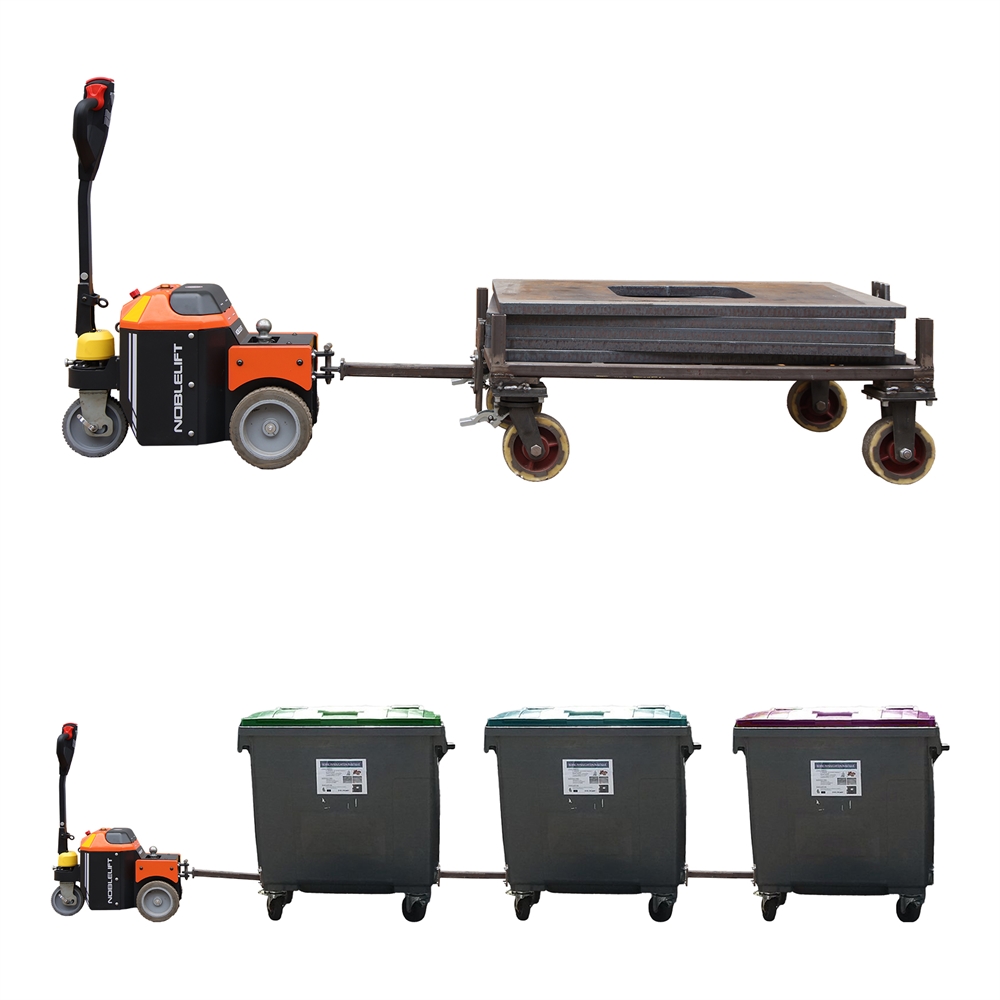

Wide range of couplings to fit any trolley/bin/container: the TE20LI supports multiple coupling systems such as standard manual coupling, pin-type coupling, LKE coupling, electric coupling or adjustable drawbar with 60x60 mm mounting plate. This versatility ensures compatibility with most standard or custom trolleys.
Simplified maintenance and durable steel structure: the robust steel hood protects internal components. The diagnostic connector facilitates controller adjustments and technical interventions. The non-marking wheels deliver optimal traction while preserving sensitive floors. The overall design offers long service life with reduced maintenance needs.

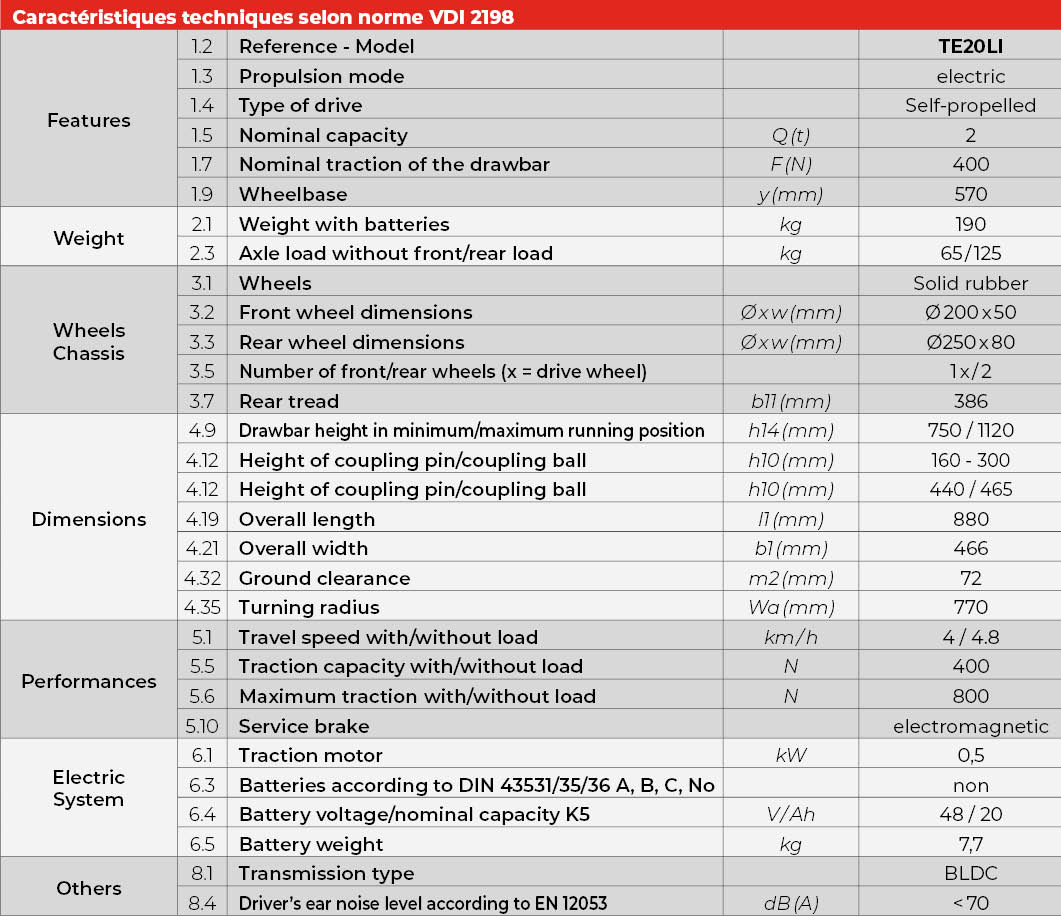

Technical specifications of the TE20LI electric tow and push tractor
Capacity: 2000 kg
Operator mode: Walk-behind
Dimensions: 466 × 880 × 1230 mm
Tiller height: 750 to 1120 mm
Pin coupling height: 160 to 300 mm
Ball coupling height: 440 / 465 mm
Turning radius: 770 mm
Speed: 4 km/h loaded / 4.8 km/h unloaded
Battery: Lithium 48V 20Ah
Total weight: 190 kg
Brake: Electromagnetic
Wheels: Non-marking, Ø200×50 (front) / Ø250×80 (rear)
Transmission: BLDC Sound level: < 70 dB

Relevant activity sectors
Local authorities & waste management
Problem: Difficult movement of loaded bins, MSD risks and long travel distances.
Solution: The TE20LI provides stable and smooth traction for roll bins, even on slopes, while reducing operator effort.
Hospitals, nursing homes and clinics
Problem: Difficult transport of laundry trolleys, meal carts or large containers.
Solution: The TE20LI offers quiet operation (<70 dB) and excellent maneuverability to move through narrow corridors.
Light industry and production workshops
Problem: Need to move heavy trolleys without disrupting production.
Solution: The BLDC electric motor delivers stable traction up to 2 tonnes, ideal for internal workflows.
Hospitality and collective catering
Problem: Daily handling of soiled laundry trolleys, sometimes over long distances.
Solution: The TE20LI speeds up transfers, boosts productivity and reduces physical strain for staff.
Logistics companies & warehouses
Problem: Repetitive movement of roll containers and various equipment.
Solution: Coupling options allow the tractor to adapt to the specific requirements of the internal fleet.
Specialized agriculture excluding field tractors (greenhouses, internal facilities)
Problem: Moving trolleys and small equipment in narrow areas.
Solution: The TE20LI ensures clean, quiet and maneuverable traction.
