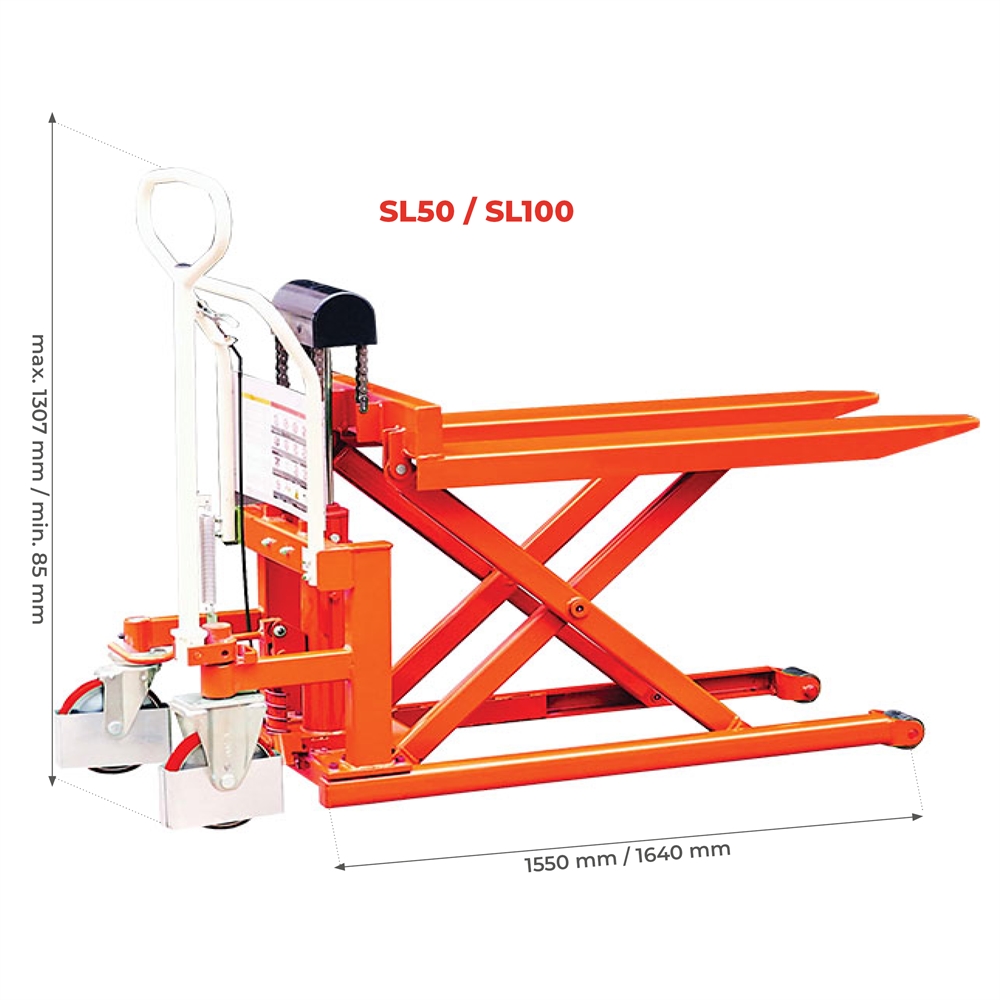

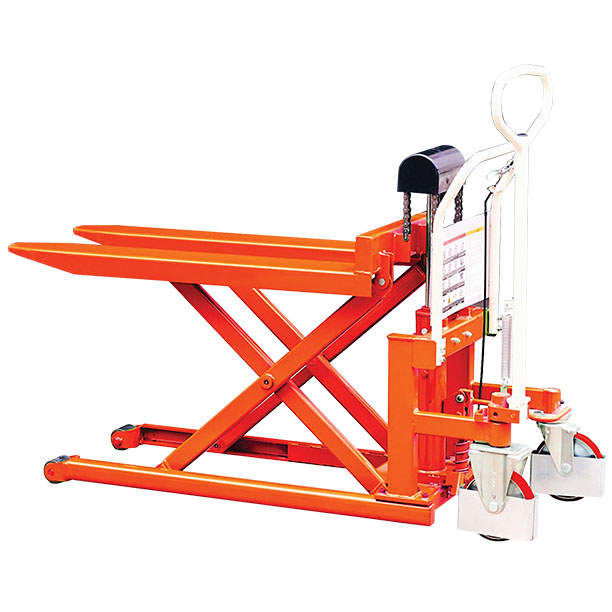

Manual skid lifter 500 and 1000 kg

This manual skid lifter offers an excellent mix: the advantages of a pallet truck and those of a lift table. Depending on the model, it can accommodate load of 500 kg or up to 1 ton and features a steering tear drop handle or push bar.

more information

	Designation
	SL50S Manual skid lifter 526 mm wide 500 kg WITHOUT HANDLE Weight : 107 kg Bar code : 3700664805320 Catalogue P.122
	SL50L Manual skid lifter 690 mm wide 500 kg WITHOUT HANDLE Weight : 116 kg Bar code : 3700664805344 Catalogue P.122
	SL100S Manual skid lifter 526 mm wide 1000 kg Weight : 135 kg Bar code : 3700664805511 Catalogue P.122
	SL100L Manual skid lifter 690 mm wide 1000 kg Weight : 138 kg Bar code : 3700664805535 Catalogue P.122

DESCRIPTION

TECHNICAL CHARACTERISTICS

This manual skid lifter combines the features of a pallet truck and a lift table
Load capacity: 500 kg or 1 ton depending on the model
Fork length: 1115 mm
Fork width: 526 to 690 mm depending on the model
Lift height: 830 mm
Increased stability
Steering tear drop handle or push bar for SL100S and SL100L models
Foot operated pedal
Lower control handle for high accuracy
Steering wheels brakes
Download the product specifications for further technical information

Options

Removable platform

Documentation

Data sheet
