CT250

CT250 Electric Stair Climber with Tracks 250 kg

CT250

CT250 Electric Stair Climber with Tracks 250 kg

The CT250 electric stair climbing trolley enables safe handling of loads up to 250 kg on stairs. Its removable lithium battery and anti-slip tracks reduce physical strain and improve operator safety during repeated operations.

more information

	Designation
	CT250 Electric tracked stair climber truck 250 kg Weight : 79 kg Bar code : 3700664816036

DESCRIPTION

TECHNICAL CHARACTERISTICS

The CT250 electric tracked stair climber is a professional handling solution designed for environments where steps and landings create significant constraints. With a 250 kg load capacity, it meets the requirements for transporting heavy and bulky loads on staircases, supported by a structure engineered for stability. This model replaces the CT200, whose load capacity was limited to 200 kg.

The STOCKMAN range of electric stair climbers supports operational continuity while reducing physical strain and helping to prevent musculoskeletal disorders (MSDs). The technical approach focuses on safety and controlled movement during handling operations.

The CT250 is equipped with a removable 48 V / 10 Ah lithium battery, a remote control, a foldable steel chassis and a load plate adjustable in width. These features define a handling solution suited to delivery, maintenance and level-to-level transfers, in situations where manual carrying exposes both operators and goods to risk.

Electric stair climber for deliveries, maintenance and buildings without lifts

The electric stair climbing trolley is used for urban deliveries, maintenance operations in buildings without lifts, internal logistics in public-access buildings, and transfers between floors in workshops. In these contexts, material flow depends on the ability to move loads without interruption, from loading bay to drop-off point, while maintaining a consistent level of safety.

The CT250 acts as a stair negotiation tool. It limits intermediate handling and reduces risky manual movements when climbing or descending steps. Its foldable design makes it easy to load into a van and store in technical rooms or storage areas.

Product benefits

The CT250 provides measurable operational benefits for repetitive stair climbing and descending tasks:
250 kg capacity: suitable for heavy loads, with stability adapted to stair negotiation.
Anti-slip tracks and wheels: grip on steps and controlled trajectory during ascent.
Removable 48 V lithium battery: simplified energy management and fast battery replacement for multi-route operations.
Rated autonomy of 1,504 steps: endurance suitable for a full working day, depending on load and usage conditions.

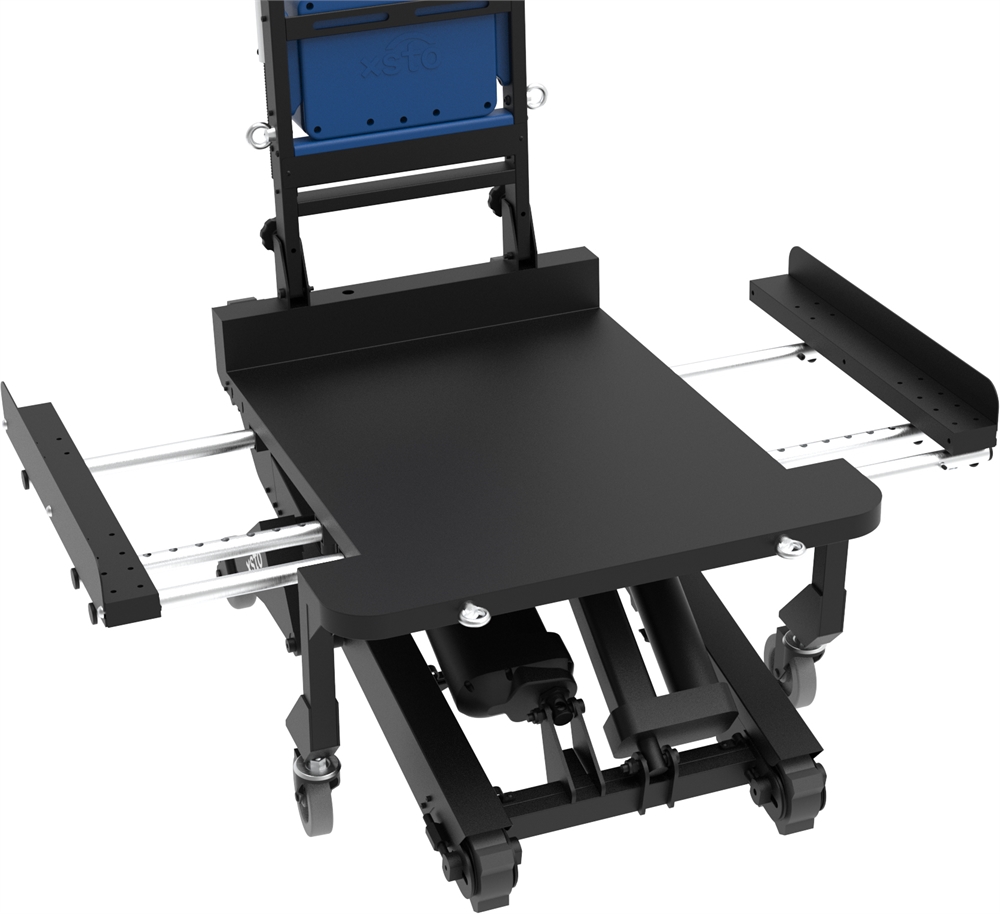

Adjustable load plate: adapts to wide packages, with a minimum width of 706 mm and a maximum between 1,044 and 1,110 mm depending on the data sheet.
Mode selection at the handle: simple switching between ascent, descent and flat travel.
Foldable design: easier transport and storage, with folded dimensions of 1,018 × 706 × 600 mm.

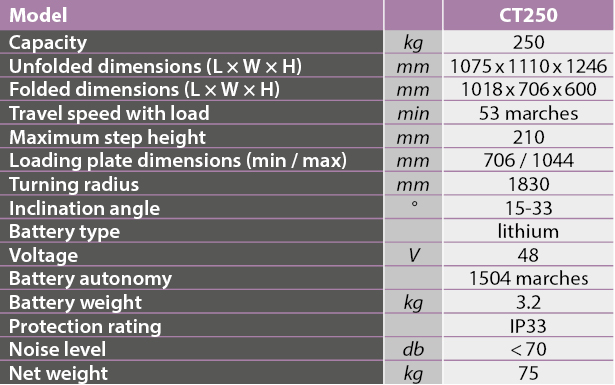

Technical characteristics
Structure, chassis and load handling
The CT250 is built around a chassis designed for safe load transport. The adjustable load plate increases the support area, improving stability for bulky loads and maintaining the centre of gravity when climbing stairs. The 250 kg capacity suits the transport of equipment, parcels and technical materials in multi-storey environments.
Speed and movement
The climbing speed is 53 steps/min. This rate helps maintain delivery and internal transfer flow while ensuring controlled movement on staircases. In practice, speed depends on load, step height and landing conditions, requiring adaptation to site constraints.
Manoeuvrability and dimensions
With a turning radius of 1,830 mm and unfolded dimensions of 1,075 × 1,110 × 1,246 mm, the CT250 can operate on landings, stairwells and technical corridors. The unit folds to reduce footprint during transport and storage.
Tracks and rolling performance
The anti-slip tracks have been improved compared to the previous CT200 model, offering increased durability and safer stair negotiation. They ensure consistent grip on steps and stable movement. The maximum step height of 210 mm defines use on standard staircases. The stated tilt angle of 15 to 33° positions the load according to stair configuration and movement phase.
Power, drive and autonomy
The removable 48 V – 10 Ah lithium battery is compact, with a battery weight of 3.2 kg. The rated autonomy of 1,504 steps supports full-day operations. The IP33 rating positions the unit primarily for indoor use, with a noise level below 70 dB, suitable for occupied environments.

Ergonomics, MSD prevention and safety

The CT250 supports musculoskeletal disorder prevention by reducing manual carrying effort and limiting high-risk handling phases on stairs. Motorised movement decreases strain on shoulders, back and upper limbs, particularly during repeated climbs in urban or healthcare environments. Safety relies on the stability provided by the anti-slip tracks, the secure transport ensured by the chassis design, and the safety strap supplied as standard. Mode selection at the handle reduces unnecessary movements and improves control during ascent, descent and flat travel.

Productivity and operational efficiency

Operational performance depends on maintaining a steady flow between levels. The CT250 reduces stops caused by fatigue and limits manual load repositioning. Autonomy expressed in number of steps supports continuous operation, while the removable battery simplifies energy management. The noise level below 70 dB allows use in shared environments. The foldable format supports deployment across multiple sites or routes, with minimal storage constraints.

Typical applications
Parcel and equipment delivery in buildings without lifts
Transfer of technical equipment between floors in office buildings
Handling operations in public-access buildings with stair circulation
Maintenance interventions involving heavy tools
Internal logistics in multi-level storage and auxiliary stock areas

Target users

The CT250 is designed for professionals seeking a stair handling solution that reduces manual carrying and improves load control. Typical users include urban delivery operators, multi-site maintenance teams, internal logistics services, technical departments and operations teams managing frequent level-to-level transfers. Related search intents include tracked stair climber, 250 kg electric stair climber and foldable lithium battery stair trolley.

This electric tracked stair climber is suitable if you are looking for:
an electric tracked stair climber for deliveries in apartment buildings
a 250 kg electric stair climber for safe step climbing
a stair climber with a removable lithium battery for multi-shift operation
a foldable stair climber for transport in a van
a stair climber for transferring loads between floors
a stair climber with an adjustable load plate for wide parcels and bulky loads
an electric stair climber to reduce manual carrying effort on stairs
a stair climber with anti-slip tracks for stability on steps
a professional stair climber for maintenance and interventions on multi-storey sites
a stair climber for internal flows in public-access buildings
