DMEG210MA

Electric stair climber with removable motor 210 kg

DMEG210MA

Electric stair climber with removable motor 210 kg

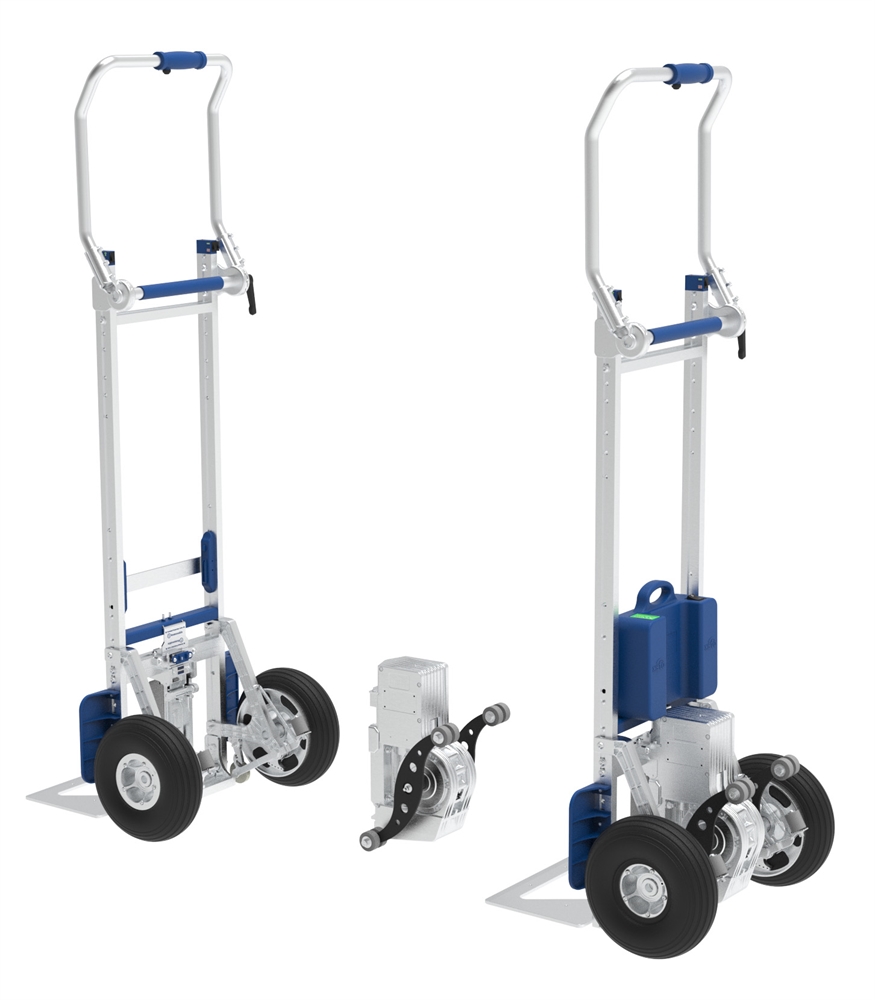

The DMEG210MA electric stair climber is equipped with a removable motor that allows it to quickly switch from manual to efficient electric operation. A versatile electric stair climber with a capacity of 210 kg, it is ideal for delivery personnel and appliance installers.

more information

	Designation
	DMEG210MA Electric stair climber with removable motor, 210 kg Weight : 28.5 kg Bar code : 3700664812182
	B-1-00166 Large bib 476x340 mm 200 kg Weight : 2.7 kg Bar code : 3700664809496
	A-3-00002 Stretcher stand 170 kg Weight : 5 kg Bar code : 3700664800912
	A-1-00026 Door manipulator measuring 712 x 407 x 1698 mm minimum and 1200 x 150 x 2300 mm maximum Weight : 17.2 kg Bar code : 3700664809670
	B-1-00068 Chair holder 170 kg Weight : 5 kg Bar code : 3700664809809
	XST01-0271 Tire mount 200 kg Weight : 0.61 kg Bar code : 3700664815701
	B-1-00013 Water bottle holder for up to 6 units with a diameter of 270 mm Weight : 5.62 kg Bar code : 3700664801001
	A-3-00021 Bottle rack 390x90x125 mm for bottles with a diameter of 50 to 500 mm Weight : 1 kg Bar code : 3700664809816
	B-1-00015 Bottle rack 560x90x125 mm for bottles with a diameter of 50 to 300 mm Weight : 1.8 kg Bar code : 3700664800974
	ZWPJ-7170-27 Lifting clamp 100 kg Weight : 38.5 kg Bar code : 3700664815718
	B-1-00085 Barrel mounts 120 kg Weight : 0.61 kg Bar code : 3700664809687
	B-1-00031 Tray hooks 53x88x400 mm Weight : 1.2 kg Bar code : 3700664809694
	B-1-00408 Support wheel 500x100x255 mm 170 kg Weight : 2.5 kg Bar code : 3700664809663
	B-00163 Auxiliary handle 354x205 mm Weight : 0.51 kg Bar code : 3700664809724
	B-1-00446 Side extensions 180x40x800 mm Weight : 2 kg Bar code : 3700664803715
	B-1-00004 Side extensions 120x42x400 m Weight : 1.2 kg Bar code : 3700664809717
	B-00208 Chassis extension 340x40x611,5 mm Weight : 1.9 kg Bar code : 3700664809700
	B-1-00003 Rolling chassis 400x554x79 mm Weight : 5.2 kg Bar code : 3700664800950
	B-1-00002 Rolling chassis 400x554x79 mm Weight : 2.2 kg Bar code : 3700664809502
	B-1-00423 Lithium battery 48V/10Ah Weight : 3.1 kg Bar code : 3700664800875
	C-2-00445 Charger 48V / 4Ah Weight : 1 kg Bar code : 3700664809427
	C-2-00286 Standard charger for DMEG Weight : 0 kg Bar code : 3700664800943
	B-1-00202 Safety strap for DMEG Weight : 0 kg Bar code : 3700664801018
	D705000004 Safety strap 25x5000 mm Weight : 0.55 kg Bar code : 3700664815879
	B-1-00033 Adjustable ladder height: minimum 285 mm and maximum 655 mm width 730 mm Weight : 13 kg Bar code : 3700664809793
	B-1-00327 Adjustable ladder height: minimum 370 mm and maximum 855 mm for a width of 730 mm. Weight : 17 kg Bar code : 3700664809762
	B-1-00331 Adjustable ladder height: minimum 490 mm and maximum 1100 mm, width 740 mm Weight : 24 kg Bar code : 3700664809748
	B-1-00188 Adjustable ladder height: minimum 550 mm and maximum 1340 mm for a width of 740 mm Weight : 28 kg Bar code : 3700664812571

DESCRIPTION

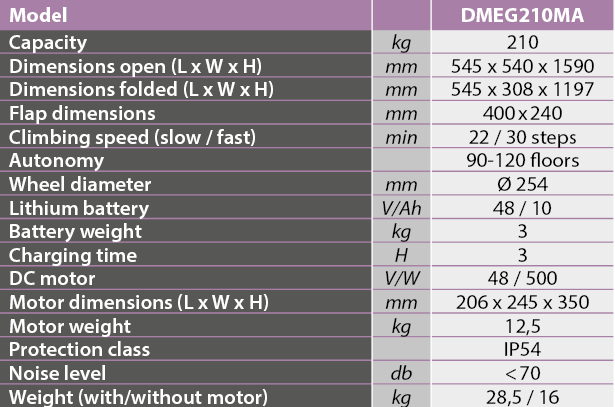

TECHNICAL CHARACTERISTICS

DMEG hand trucks have become indispensable equipment in the material handling sector. They offer effective solutions for a variety of professional applications across all industries. Electric hand trucks have also, and above all, enabled significant advances in the consideration of musculoskeletal disorders (MSDs) for operators. With a load capacity of 210 kg, the DMEG210MA hand truck redefines the way professionals in various sectors can tackle heavy load handling tasks on stairs. Designed to be a reliable partner in the fight against musculoskeletal disorders (MSDs), the DMEG210MA professional handling hand truck features an aluminium chassis with an IP54 motor unit. Its ergonomic, foldable design, with a height of 1197 mm, offers flexibility to adapt to the varied requirements of professional environments. Applications include last-mile transport, where handling and robustness are crucial, as well as professional removals, where high load capacity makes all the difference. Equipped with puncture-proof wheels, this electric stair climber can handle any challenge in demanding environments. Advantages of the DMEG210MA electric stair climber: • Load capacity of 210 kg: the DMEG210MA electric stair climber offers a load capacity of 210 kg. This allows it to efficiently move heavy loads in various challenging professional environments. • Removable motor: this stair climber is equipped with a removable 48 V / 10 Ah motor that can be removed in seconds, allowing the stair climber to switch from manual to efficient electric operation. • Fully foldable design (height 1197 mm): Thanks to its fully foldable design, this electric hand truck has a maximum height of 1197 mm, ensuring easy storage and transport when not in use. • Adjustable and tiltable handle: The handle of the DMEG210MA is designed to fit comfortably in the user's hand, with adjustment and tilt options, providing an ergonomic grip for optimal manoeuvrability. • Foldable aluminium toe plate: Equipped with a foldable aluminium toe plate, this electric stair climber simplifies loading by providing a stable and durable surface for transported items. • Reinforced aluminium chassis, IP54 motor unit: The reinforced aluminium chassis and IP54 motor unit guarantee exceptional durability and ensure the sturdiness of the stair climber even in demanding working conditions. • Quick battery connection system: Thanks to its quick battery connection system, the DMEG offers increased operational efficiency, allowing for quick battery replacement for continuous use. • Equipped with safety brakes: Safety brakes contribute to stability and safety when moving on stairs, offering peace of mind to users. • Polypropylene protective ears: Polypropylene protective ears add an extra layer of safety, protecting the hand truck and the objects being transported from potential impacts. • Supplied with puncture-proof wheels: The puncture-proof wheels supplied as standard guarantee constant mobility, eliminating the risk of punctures and ensuring reliable performance. • Includes charger, battery and safety strap: The hand truck comes with everything you need, including a charger, battery and safety strap, to provide a complete, ready-to-use solution for immediate use. • Accessories: numerous accessories are available for the DMEG210MA model. These allow specific uses for specific trades or sectors of activity. For example: stretcher stand, bottle holder (single or double), large mudguard, protective handle, water bottle holder, side extensions (standard or large), hooks for holding containers, support wheels, frame extensions, chair holder, drum holder, auxiliary handle, tyre holder, lifting attachment, safety rail, adjustable ladders (4 models), rolling frame (single or high), safety strap, lithium battery, charger. Technical specifications of the DMEG210MA electric stair climber: • Load capacity: 210 kg • Overall dimensions: 540x545x1590 mm • Folded dimensions: 308x545x1197 mm • Flap dimensions: 400x240 mm • Ascending speed: 22 steps/min (slow speed), 30 steps/min (fast speed) • Battery type: Lithium • Autonomy: 90-120 floors • Battery weight: 3 kg • Charging time: 3 hours • Safety brake: yes • Puncture-proof wheels: Ø 254 mm • Weight: 28.5 kg The DMEG210MA electric stair climber is an essential piece of equipment for delivery, removal and installation professionals. Its capacity and innovative design make it an indispensable tool for a wide range of sectors. Its ease of use, advanced safety features and exemplary portability make this stair climber a wise investment for businesses looking to optimise their operational efficiency while ensuring the safety of their teams. The DMEG range is much more than just electric stair climbers; it is a reliable partner that meets handling challenges with ease and excellence.

Options

Bottle holder: The aluminum and stainless steel bottle holder facilitates the transport of cylindrical loads by automatically adapting to their diameter. Its dimensions are: 390x90x125 mm (single equipment) and 560x90x125 mm (double equipment). It can accommodate bottles with a diameter of 50 to 500 mm (single equipment) and 50 to 300 mm (double equipment).
Large lip: Large lip designed to transport bulky items with complete stability. Its dimensions are: 476x340 mm (standard) and 580x480 mm (for SME170). Its capacity is: 200 kg.
Guardrail: The extended guardrail increases the usable surface area, stabilizes loads, and reduces the risk of falling. Lightweight, sturdy, and bolted in place in just a few steps, it can be adapted without interfering with handling. Its dimensions are: 800x215x126 mm. Saves 233 mm in width. Container retaining hooks: Designed to securely attach containers to the frame of the device. The container retaining hooks ensure stable and secure holding during transport. Its dimensions are: 53x88x400 mm.
Adjustable ladder: This ladder ensures the stability of loads on motorized stair climbers by adapting to different widths of goods. Retractable and easy to install, it guarantees safe and optimized transport. Its dimensions are: 730 mm wide; 4 different heights (285/265 mm / 370/855 mm / 490/1100 mm / 550/1340 mm). Its capacity is: 250 kg.
Rolling frame: The versatile rolling frame facilitates the transport of loads on flat ground after using a motorized hand truck. It improves stability and ergonomics thanks to height and center of gravity adjustment, ensuring smooth and safe movement. Its dimensions are: 400x554x79 mm (rolling frame) and 400x515x369 mm (rolling frame with wheels). Its capacity is: 170 kg.
Safety strap 3.7m
Lithium battery: 48V/10Ah
Charger:48V/4Ah

Electric stair climber with removable motor 210 kg

Electric stair climber with removable motor 210 kg
