HM-D

Manual all-terrain lift table on pneumatic wheels, single and double scissor, 200 to 300 kg

HM-D

Manual all-terrain lift table on pneumatic wheels, single and double scissor, 200 to 300 kg

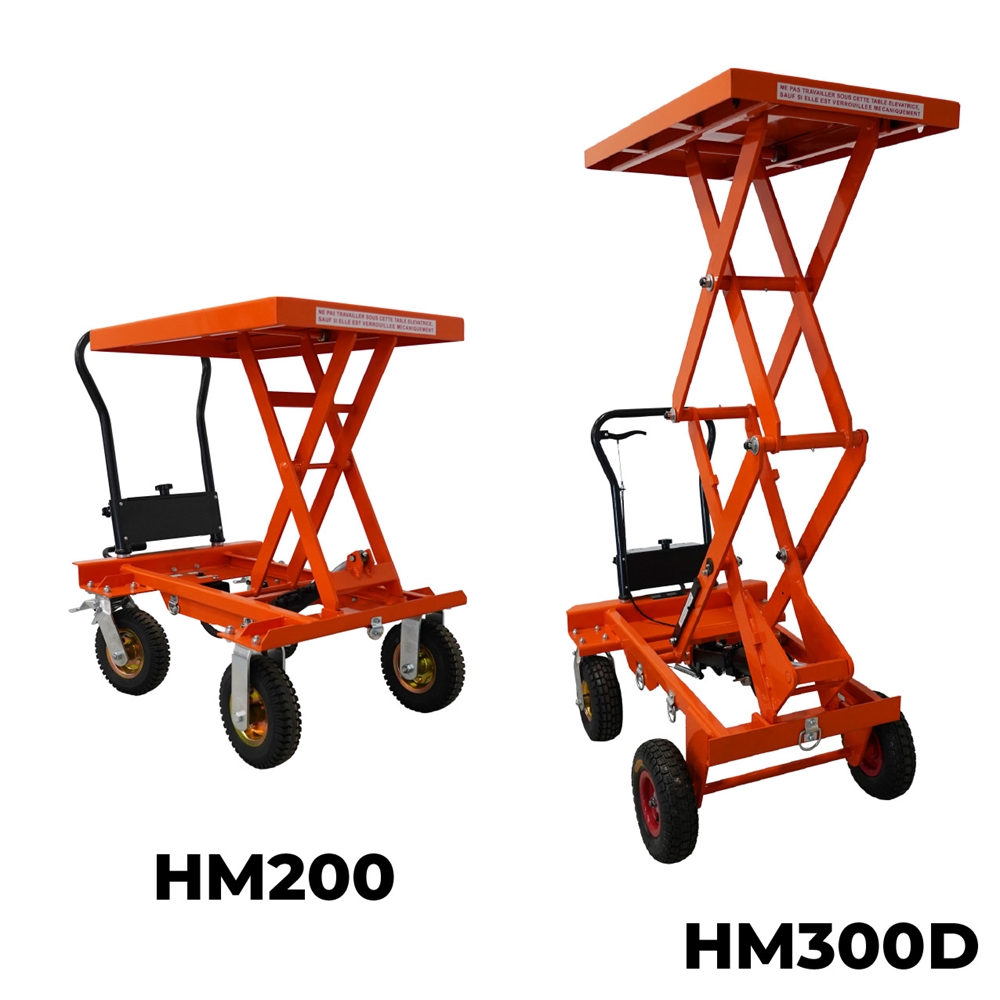

The HM200 and HM300D all-terrain lift tables raise loads up to 200 or 300 kg on uneven ground. Their pneumatic wheels make handling easier in nurseries and outdoor landscaping, with a lift height up to 1700 mm.

more information

	Designation
	HM200 All-terrain lift table 200 kg Weight : 60 kg Bar code : 3700664814650
	HM300D All-terrain double-scissor lift table 300 kg Weight : 145 kg Bar code : 3700664814643

DESCRIPTION

TECHNICAL CHARACTERISTICS

Manual all-terrain lift tables on pneumatic wheels HM200 and HM300D provide a load levelling solution for handling operations carried out outdoors as well as in covered areas, with stability suited to uneven ground.
This range meets two common needs in outdoor landscaping trades: a compact 200 kg version for everyday tasks and tight manoeuvres, and a 300 kg double-scissor version for heavier loads and a higher working height.
In the STOCKMAN range, these lift tables stand as mobile, terrain-oriented equipment, with a clear differentiating feature: pneumatic wheels that improve stability and rolling over uneven surfaces.
The operational objective consists in raising loads to reduce physical strain and secure transfers, from the yard to the preparation area, through to the outdoor worksite.

Lift tables designed for landscapers, nurseries and outdoor landscaping trades

Landscape and outdoor activities require travel over varied surfaces: gravel, compacted stone, bare earth, worn asphalt, slabs, thresholds, wet areas, depot access, and the surroundings of greenhouses or outdoor storage areas. A standard lift table with small wheels remains poorly suited to these constraints.
This professional equipment supports the organisation of flows: moving consumables and materials, levelling before decanting, preparing a worksite batch, or feeding a cutting, assembly or packing station. Mobility brings the load closer to the task, without imposing repeated handling at floor level.
The HM200 and HM300D suit landscapers, nursery operators, garden service companies, outdoor landscaping contractors, outdoor space designers, landscape architects, as well as related activities that handle loads outdoors: horticulturists, market gardeners, arboriculturists, winegrowers (preparation and maintenance areas), garden centres and plant retail outlets, local authorities (parks and green spaces teams), campsites and leisure sites (grounds maintenance), estate managers (parks, golf courses, hotels), civil works companies focused on light utilities and roadworks, fence and gate installers, timber and composite decking installers, pool contractors (surrounds and equipment), landscape masons, paving and slab installers, tree-care companies (internal logistics), landscape material suppliers (preparation and transfers), outdoor carpentry firms (pergolas, carports) and multi-technical maintenance companies working outdoors.

The advantages of HM200 and HM300D all-terrain lift tables

These all-terrain lift tables address the rolling and height-adjustment constraints encountered in outdoor landscaping.
All-terrain rolling thanks to large-diameter pneumatic wheels, with more consistent stability on uneven ground.
Load height adjustment to work at a more suitable level and limit repeated bending.
Two capacities for two uses: HM200 for compactness and versatility, HM300D for lift height and higher load capacity.
Platforms suited to landscaping loads: pots, bins, sacks, cartons, tools, installation accessories and jobsite hardware items.
Design suited to intensive use for repeated operations between depot, greenhouse, preparation area and outdoor zones.

The technical features of HM200 and HM300D all-terrain lift tables
Structure / platform / chassis / load

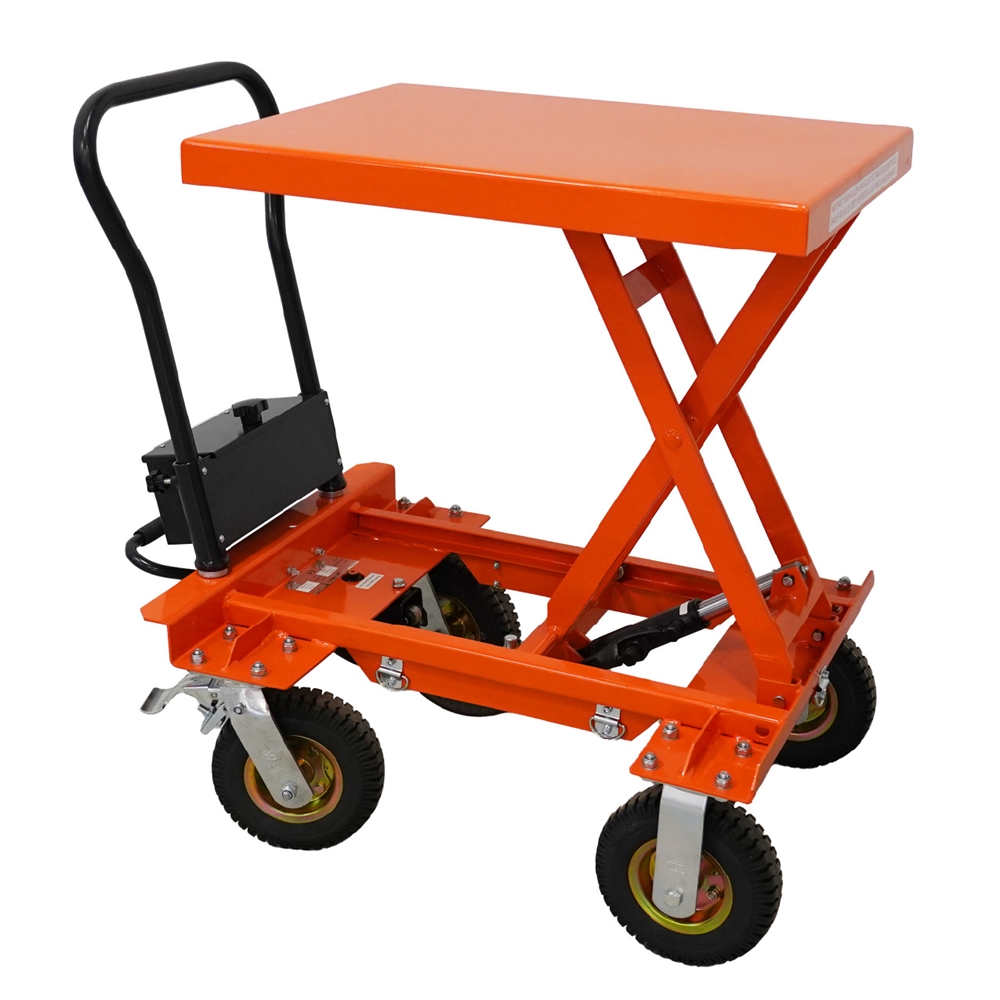

The HM200 supports 200 kg and provides a 700 × 520 mm platform. This format suits common preparation loads: planting batches, cartons, consumable bins, installation hardware and tools. Overall dimensions reach 962 × 590 × 910 mm, which eases passage through narrow areas, near a greenhouse, a workshop or an outdoor storeroom. Weight reaches 60 kg, a value consistent with frequent on-site mobility.

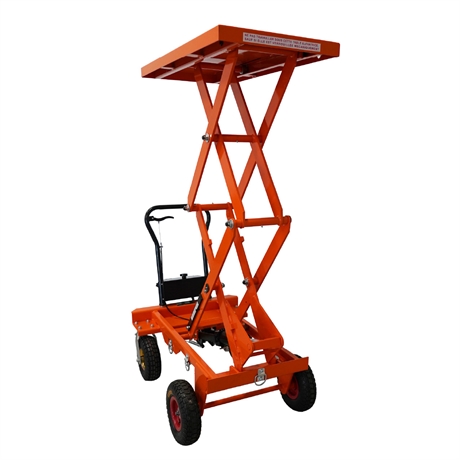

The HM300D reaches 300 kg with a 1010 × 520 mm platform, suited to bulkier or longer loads. The double scissor allows a greater lift, useful for preparation on a high workbench or for aligning a load with a higher drop-off area. Overall dimensions reach 1270 × 700 × 975 mm and weight reaches 145 kg, which contributes to load stability and steadiness at the workstation.
Speed and travel
The HM200 delivers a 490 mm lift in 16 s, which suits quick adjustments during preparation or sorting. The HM300D covers 1150 mm in 40 s, a value consistent for a high-lift table. In operation, these lift times support a steady work pace without keeping the station idle for long.
Manoeuvrability and dimensions
The compact footprint of the HM200 eases movement in constrained areas, with simpler manoeuvres between pallets, racking or plant storage zones. The HM300D follows a workstation-and-load logic, with reinforced stability in lift and during transfers.

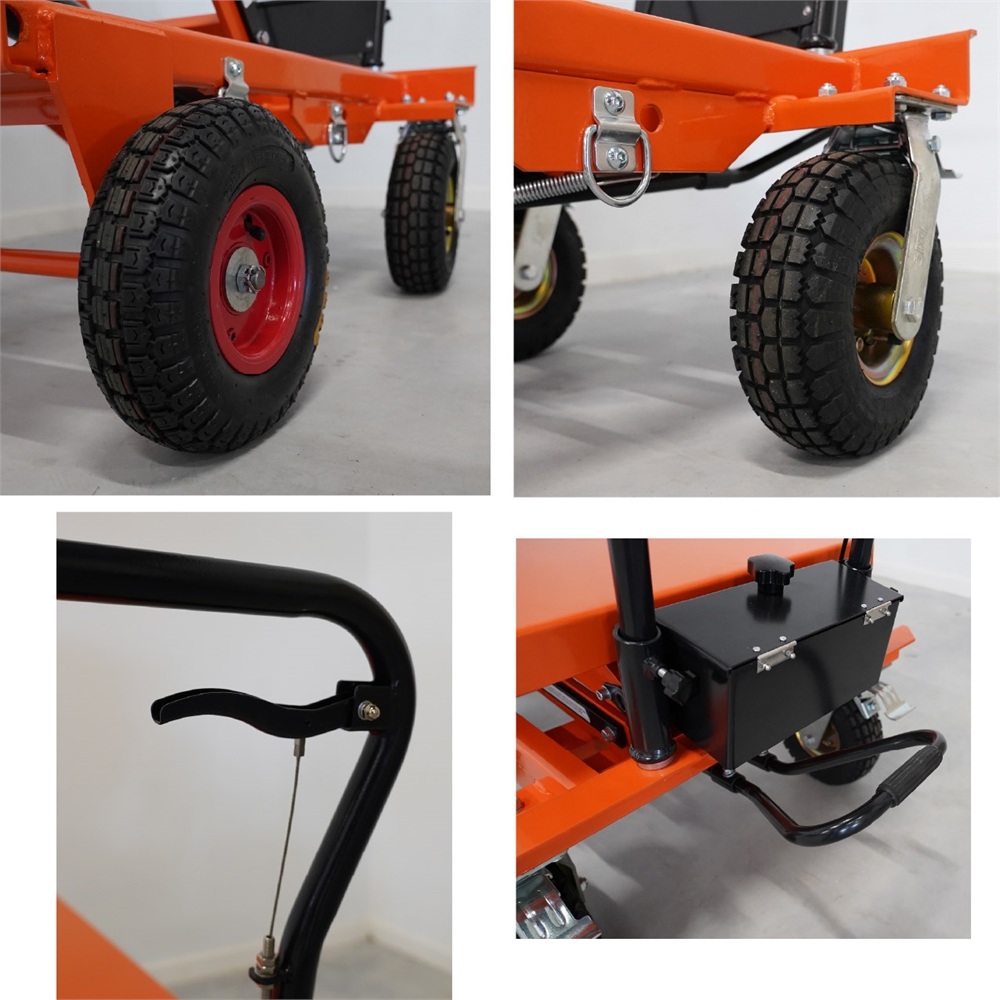

Wheels and rolling
All-terrain behaviour relies on pneumatic wheels. The HM200 uses Ø200 mm tyres at the front and rear to better absorb unevenness, limit jolts and maintain satisfactory stability on gravel or compacted surfaces.

The HM300D uses Ø300 mm tyres at the front and Ø250 mm tyres at the rear. This sizing improves obstacle negotiation and stability when the ground presents roughness, slab joints or transitions between areas. This choice limits shocks transmitted to the load and supports more controlled handling.
Power, drive and autonomy
Operation remains manual, which suits outdoor work: no battery to manage, no charging constraint, immediate availability in preparation areas and on worksites. This simplicity supports operating continuity when several teams share the equipment.

Ergonomics, MSD prevention and safety for HM200 and HM300D all-terrain lift tables
Raising loads offers a direct lever for musculoskeletal disorder prevention in landscape trades, where loads are often handled close to the ground: sacks, pots, edging elements, installation accessories, cartons and bins. The load moves to a more suitable height, which limits back bending and repeated handling.
Pneumatic wheels reinforce safety during travel: more consistent stability on uneven surfaces, reduced vibration, and more controlled rolling with a load on the platform. A better-positioned load eases transfers to a work surface, a preparation area or a utility vehicle, with more regular handling.

Productivity and operational gains of HM200 and HM300D all-terrain lift tables
In a landscaping depot, a nursery or a garden centre, productivity depends on smooth movement between areas: greenhouse, storage, preparation zone and loading. An all-terrain lift table limits floor-level handling and stabilises a working height, which speeds up sorting, preparation and packing operations.
The HM200 saves time on short, repetitive tasks, with a format that remains easy to move. The HM300D suits stations that require a higher working height, up to 1700 mm, useful for certain preparation or drop-off areas. Manual operation avoids interruptions linked to charging, which secures continuity throughout the day.

Typical applications for HM200 and HM300D all-terrain lift tables

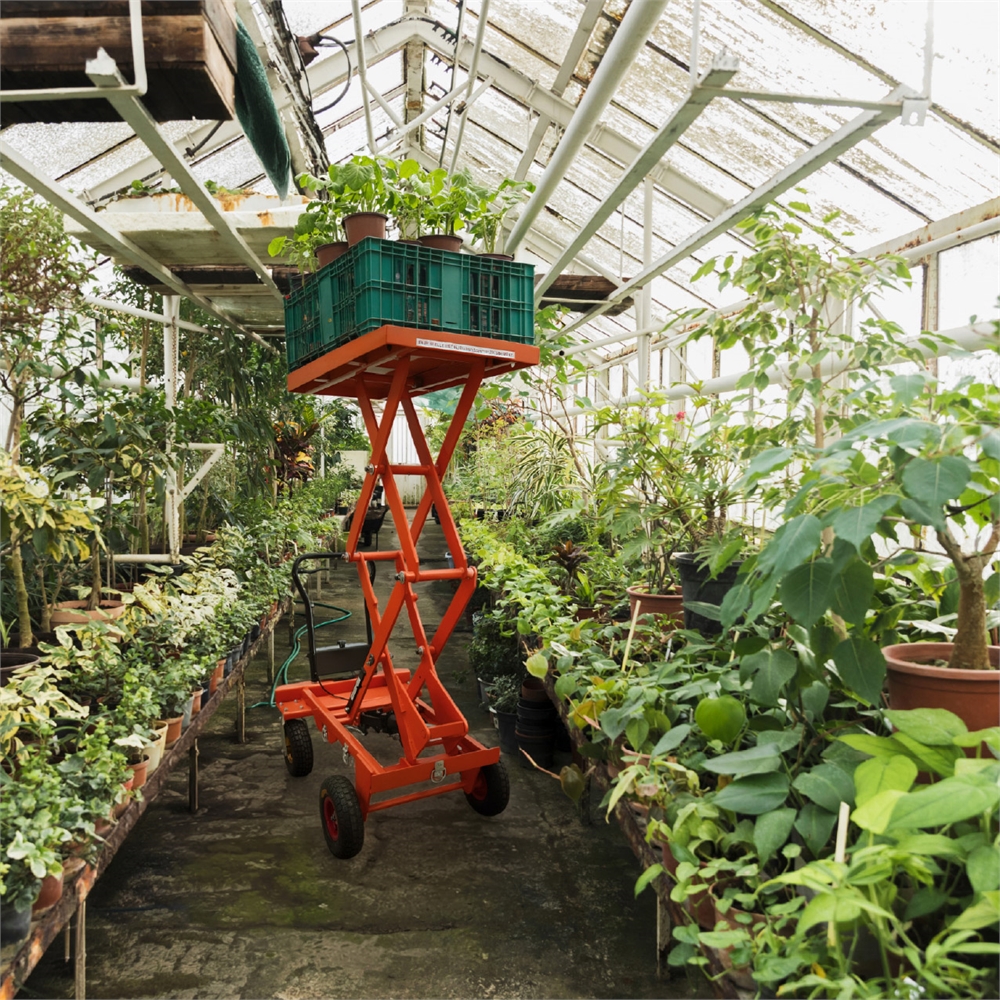

Preparing planting batches in nurseries and horticulture.
Raising sacks, pots and bins on a landscaping worksite preparation area.
Mobile support for packing and organising installation accessories (edging, fixings, hardware).
Transfers between greenhouse, depot and loading area.
Handling on gravel, compacted surfaces, degraded ground or indoor/outdoor transition zones.
Workstation assistance for cutting, assembly and preparation of outdoor landscaping elements (decking, fencing, pergola).

Who are the HM200 / HM300D all-terrain lift tables for?

The HM200 and HM300D are intended for organisations seeking an all-terrain lift table on pneumatic wheels for everyday outdoor handling on uneven ground. The target includes landscapers, nurseries, outdoor space designers, landscape architects, outdoor landscaping contractors, horticulturists, garden centres, market gardeners, arboriculturists, local authorities and parks teams, as well as trades linked to outdoor installation and maintenance: landscape masons, paving and slab installers, pool contractors, fence and gate installers, earthworks and light utilities contractors, outdoor carpentry firms and site maintenance teams.

The HM200 suits mobility and compactness needs up to 200 kg, with a platform height from 380 to 870 mm. The HM300D suits loads up to 300 kg and stations that require a high levelling height, with a platform height from 545 to 1700 mm.

This product matches the following needs:
An all-terrain lift table on pneumatic wheels for nurseries
A manual outdoor lift table for landscape development
A lift table on tyres for handling on soft ground and gravel
A compact 200 kg lift table for preparing plantations
A 300 kg double-scissor lift table for levelling up to 1700 mm
A mobile lift table for moving pots, sacks and materials outdoors
An all-terrain lift table for loading and unloading on landscaping worksites
A lift table on pneumatic wheels for outdoor storage areas
An outdoor workshop lift table to reduce effort and MSD risk
A rolling lift table for internal flows between greenhouse, depot and worksite

Reminder of this product’s advantages
All-terrain lift table with pneumatic wheels for stable rolling on gravel, compacted stone and uneven ground.
Effective load height adjustment to reduce floor-level handling during batch preparation, sorting and loading.
300 kg double-scissor version to reach a working height up to 1700 mm with stability suited to intensive use.
Platforms suited to landscaping loads: pots, bins, sacks, cartons, installation accessories and tools.
Manual operation available immediately without charging constraints, suited to outdoor areas and multi-team depots.
Reinforced stability in travel thanks to tyre diameters (Ø200 mm or Ø300/Ø250 mm) that limit jolts on uneven ground.
Simplified organisation of outdoor flows between greenhouse, preparation area, storage and loading zones.

For any additional questions, regional STOCKMAN representative details are available on our contact page.
