SEPT15

Electric pallet truck 1500 kg

SEPT15

Electric pallet truck 1500 kg

The SEPT15WLC / SEPT15W electric pallet truck handles loads up to 1500 kg in warehouses and delivery operations. This compact 1500 kg electric pallet truck is designed for manoeuvring in confined warehouse areas. It is equipped with maintenance-free AGM batteries and an integrated charger.

more information

	Designation
	SEPT15W Electric pallet truck with AMER drive 1500 kg 1150 mm / 540 mm Weight : 190 kg Bar code : 3700664834115 Catalogue P.142

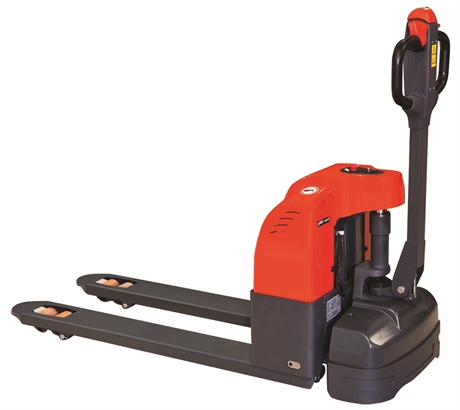

	SEPT15WLC Compact Electric pallet truck 1500 kg 1150 mm / 540 mm Weight : 190 kg Bar code : 3700664815442

DESCRIPTION

TECHNICAL CHARACTERISTICS

The SEPT15WLC / SEPT15W is a compact electric pallet truck designed for daily handling of palletised loads up to 1.5 tonnes. Its lightweight and short design meets the circulation constraints of dense logistics areas and delivery operations involving trucks.

The unit combines maintenance-free AGM batteries with an integrated charger, simplifying use and on-site recharging. The design also incorporates a reinforced chassis and sealed components, ensuring safe operation in professional environments.

A compact electric pallet truck ideal for light daily handling

This electric pallet truck integrates easily into internal warehouse flows, order picking areas, back-of-store zones, distribution platforms and delivery routes with tail-lift trucks.

The compact dimensions facilitate manoeuvring at pallet level, in storage aisles, around loading docks and inside vehicles. An overall width of 560 mm and an overall length of 1648 mm ensure suitability for confined areas.

The aisle width with a 800 × 1200 mm pallet, rated at 1960 mm, positions the truck for standard logistics circulation.

Advantages of the SEPT15 compact electric pallet truck

This pallet truck is designed for simple, regular and controlled electric handling.
1500 kg capacity suitable for Euro pallets and standard warehousing loads
Compact format enabling manoeuvres in confined areas and during truck loading
Maintenance-free AGM batteries with discharge indicator and automatic lift cut-off to protect battery life
Integrated charger enabling opportunity charging on site and broader application use
Stable travel thanks to stabiliser wheels and a pedestrian-operated architecture
Robust chassis with 5 mm reinforced fork structure to withstand daily handling stresses
Easier pallet entry via additional entry rollers, limiting impacts and pallet damage
Safety and compliance ensured by an electromagnetic service brake and conformity with European standards, including ISO 13849

Technical specifications of the SEPT15 compact electric pallet truck
Structure / chassis / load
Rated capacity is 1.5 t with a 600 mm load centre, suitable for standard pallets. The chassis features a 5 mm reinforced fork structure to limit deformation during repeated pick-and-drop cycles. Fork length is 1150 mm, with a section of 48 × 160 mm and a minimum height of 85 mm, allowing insertion under most pallets. Two fork outer widths are available (540 or 685 mm) to match pallet type and operating conditions.
Speed and travel
Travel speed reaches 4.2 km/h with load and 4.6 km/h without load, suitable for regular internal movements. Gradeability is up to 6% with load and 10% without load, useful for moderate ramps and dock access. The electromagnetic service brake contributes to controlled operation during travel.
Manoeuvrability and dimensions
Compactness is reflected in a turning radius of 1445 mm, facilitating turns in dense areas. The tiller offers a height range from 800 to 1170 mm, adapting grip to pedestrian operation. Ground clearance of 37 mm is suitable for standard industrial floors.
Wheels and running gear
The truck runs on polyurethane (PU) wheels, suitable for warehouse floors. The drive wheel measures Ø 220 × 70 mm on the SEPT15W and Ø 230 × 70 mm on the SEPT15WLC, while front load rollers measure Ø 80 × 70 mm. Stabiliser wheels Ø 80 × 30 mm enhance directional stability. This configuration supports stable travel during pallet handling and turning.
Power, drive system and autonomy
The electrical system is based on two 12 V 64 Ah AGM batteries (2 × 12/64), maintenance-free. The discharge indicator controls automatic lift cut-off to prevent deep discharge. Declared energy consumption of 0.39 kWh/h (VDI cycle) supports consistent use for light handling tasks.

Traction power reaches 0.45 kW on the SEPT15W (AMER motor) and 0.65 kW on the SEPT15WLC, guiding model selection according to travel intensity. The lift motor delivers 0.8 kW. The integrated charger simplifies charging close to the work area.

Ergonomics, MSD prevention and safety

Switching to electric handling reduces the pulling and pushing forces associated with manual pallet trucks, supporting the prevention of musculoskeletal disorders in repetitive flows. Pedestrian operation combined with a tiller height adjustable from 800 to 1170 mm promotes stable posture during manoeuvres. Safety relies on an emergency stop switch, a sealed discharge indicator and an electromagnetic service brake. Compliance with European standards, including ISO 13849, supports effective on-site risk control.

Productivity and operational gains

Over a full day of picking and internal movements, the SEPT15WLC / SEPT15W ensures operational continuity through easy recharging via the integrated charger and discharge management with lift protection.

Travel speeds adapted to warehouse use support consistent shuttle movements between storage, picking and dispatch areas. Entry rollers reduce pallet pick-up issues and limit time losses caused by impacts. Stability provided by stabiliser wheels contributes to smoother circulation in confined areas.

The SEPT15WLC / SEPT15W is a compact 1.5 t electric pallet truck designed for light to regular logistics handling tasks, with a focus on ease of use and robustness. Maintenance-free AGM batteries, an integrated charger, battery protection and a reinforced chassis form a coherent solution for pallet handling in warehouses and delivery operations.

The choice between W and WLC versions allows adjustment of traction power and running gear according to operational conditions.

Typical applications

The following uses correspond to common internal logistics flows:
Supply of production lines and picking areas in warehouses
Pallet transfers between receiving, storage and dispatch
Loading and unloading at docks and inside trucks
Handling in distribution platforms and back-of-store areas
Operation in cold environments via optional cold store equipment

Target users

This pallet truck is intended for organisations looking for a compact 1500 kg electric pallet truck for warehouse manoeuvres, as well as delivery operations requiring a short overall length and simplified recharging. It is suitable for logistics teams, retail distribution, multi-client platforms, workshops and public sector organisations where pallet flows require regular electric assistance and controlled safety.

This electric pallet truck is suitable for users seeking:
A compact 1500 kg electric pallet truck for warehouse manoeuvres
An electric pallet truck for truck and dock deliveries
A 1500 kg pedestrian pallet truck with integrated charger
An electric pallet truck with maintenance-free AGM batteries for daily use
A manoeuvrable electric pallet truck for narrow aisles with 800 × 1200 pallets
An electric pallet truck with electromagnetic brake for safe travel
An electric pallet truck with sealed components for demanding environments
An electric pallet truck with entry rollers for easier pallet pick-up
A 1500 kg electric pallet truck for regular internal logistics flows
An electric pallet truck with cold store option for cold rooms and platforms

The SEPT15WLC / SEPT15W complements a logistics layout with a compact 1.5 t electric solution structured around energy simplicity (AGM batteries + integrated charger), chassis robustness and a safety base compliant with European requirements.

To validate the choice between versions, fork width and environment options, an operational needs assessment helps align configuration with site constraints.

Options

Customizable colors
Backrest
800 mm fork length
Belt wheels for SEPT15C model
