Plastic skate wheel conveyor 70 kg per LM

FWC-A

Plastic skate wheel conveyor 70 kg per LM

This plastic skate wheel conveyor prevents operators from musculoskeletal disorders (MSD). Choose the desired length by adding 50 or 60 mm wide modules.

more information

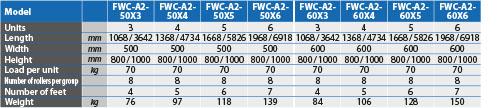

Designation
FWC-A2-50 - NUMBER OF MODULES AVAILABLE TO COMPOSE YOUR 500 MM WIDE PLASTIC ROLLER CONVEYOR FWC-A2-50
NUMBER OF MODULES AVAILABLE TO COMPOSE YOUR 500 MM WIDE PLASTIC ROLLER CONVEYOR

Weight : 25 kg
Catalogue P.54
FWC-A2-50X3 - Plastic skate wheel conveyor 70 kg per LM length 1068 / 3642 mm width 500 mm FWC-A2-50X3
Plastic skate wheel conveyor 70 kg per LM length 1068 / 3642 mm width 500 mm

Weight : 76 kg
Bar code : 3700664824673
Catalogue P.54
FWC-A2-50X4 - Plastic skate wheel conveyor 70 kg per LM length 1368 / 4734 mm width 500 mm FWC-A2-50X4
Plastic skate wheel conveyor 70 kg per LM length 1368 / 4734 mm width 500 mm

Weight : 97 kg
Bar code : 3700664824666
Catalogue P.54
FWC-A2-50X5 - Plastic skate wheel conveyor 70 kg per LM length 1668 / 5826 mm width 500 mm FWC-A2-50X5
Plastic skate wheel conveyor 70 kg per LM length 1668 / 5826 mm width 500 mm

Weight : 118 kg
Bar code : 3700664824659
Catalogue P.54
FWC-A2-50X6 - Plastic skate wheel conveyor 70 kg per LM length 1968 / 6918 mm width 500 mm FWC-A2-50X6
Plastic skate wheel conveyor 70 kg per LM length 1968 / 6918 mm width 500 mm

Weight : 139 kg
Bar code : 3700664824642
Catalogue P.54
FWC-A2-60 - NUMBER OF MODULES AVAILABLE TO COMPOSE YOUR 600 MM WIDE PLASTIC ROLLER CONVEYOR FWC-A2-60
NUMBER OF MODULES AVAILABLE TO COMPOSE YOUR 600 MM WIDE PLASTIC ROLLER CONVEYOR

Weight : 28 kg
Catalogue P.54
FWC-A2-60X3 - Plastic skate wheel conveyor 70 kg per LM length 1068 / 3642 mm width 600 mm FWC-A2-60X3
Plastic skate wheel conveyor 70 kg per LM length 1068 / 3642 mm width 600 mm

Weight : 84 kg
Bar code : 3700664824635
Catalogue P.54
FWC-A2-60X4 - Plastic skate wheel conveyor 70 kg per LM length 1368 / 4734 mm width 600 mm FWC-A2-60X4
Plastic skate wheel conveyor 70 kg per LM length 1368 / 4734 mm width 600 mm

Weight : 106 kg
Bar code : 3700664824628
Catalogue P.54
FWC-A2-60X5 - Plastic skate wheel conveyor 70 kg per LM length 1668 / 5826 mm width 600 mm FWC-A2-60X5
Plastic skate wheel conveyor 70 kg per LM length 1668 / 5826 mm width 600 mm

Weight : 128 kg
Bar code : 3700664824611
Catalogue P.54
FWC-A2-60X6 - Plastic skate wheel conveyor 70 kg per LM length 1968 / 6918 mm width 600 mm FWC-A2-60X6
Plastic skate wheel conveyor 70 kg per LM length 1968 / 6918 mm width 600 mm

Weight : 150 kg
Bar code : 3700664824604
Catalogue P.54

  • Plastic skate wheel conveyor with a load capacity of 70 kg per linear meter
  • Steel frame
  • Flexible conveyor suited for many applications
  • Includes end stop roller and connecting hooks
  • Adjustable height: from 800 to 1000 mm
  • Plastic rollers (48.5 mm Ø) with enclosed ball bearings
  • Width: 500 or 600 mm
  • Additional conveyors can be connected
  • Available in 3 to 6 modules for each width
  • Download the product specifications for further technical information
