PTE20N

Lithium powered pallet truck 2000 kg

PTE20N

Lithium powered pallet truck 2000 kg

PTE20N has the same characteristics as PTE15N but with a superior load capacity of up to 2 tons. This electric pallet truck is also exclusively distributed by STOCKMAN.

more information

	Designation
	PTE20N Lithium powered pallet truck 2000 kg 1150 mm / 540 mm Weight : 149 kg Bar code : 3700664835730 Catalogue P.141
	PTE20NL Lithium powered pallet truck 2000 kg 1150 mm / 685 mm Weight : 153 kg Bar code : 3700664803999 Catalogue P.141
	PTE20N-1800 Lithium powered pallet truck 1500 kg 1800 mm / 540 mm Weight : 177 kg Bar code : 3700664811031 Catalogue P.141
	PTE20N-2000 Lithium powered pallet truck 1200 kg 2000 mm / 540 mm Weight : 200 kg Bar code : 3700664811048 Catalogue P.141

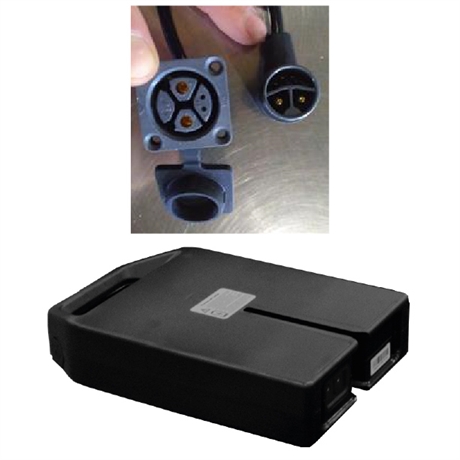

	508537010000 Lithium battery 48V/20 Ah PTE15N Weight : 4.6 kg Bar code : 3700664809434 Catalogue P.141

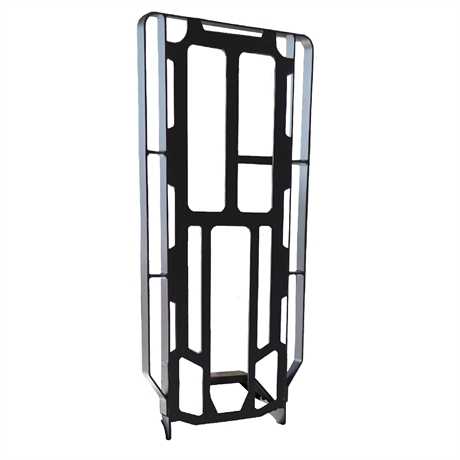

	PTE20N-DOS1070 1070 mm load backrest for PTE15N AND PTE20N electric pallet truck Weight : 0 kg
	PTE20N-DOS1220 1220 mm load backrest for PTE15N AND PTE20N electric pallet truck Weight : 0 kg
	508040501005 1520 mm load backrest for PTE15N AND PTE20N electric pallet truck Weight : 0 kg
	508098520026 Anti-slip belt wheel PTE15N Weight : 0.5 kg Bar code : 3700664804910 Catalogue P.140

DESCRIPTION

TECHNICAL CHARACTERISTICS

PTE20N “EDGE” is the 2 metric ton version of PTE15N
This electric pallet truck series is the lithium-ion electric pallet truck market leader
With more than 1500 sales in 2019, the 1.5 ton version is our top selling electric pallet truck
PTE20N is available with 2 forks width: 540 mm or 680 mm
Compact, robust, lightweight and innovant design
Electric walkie pallet truck
Features an ergonomic handle with LCD display and PIN-code start-up
Equipped with an air spring on the tiller bar to ensure a smooth control
Slow speed mode (turtle mode) offers a traveling speed control when turning guaranteeing additional safety
Very functional electrical pallet truck
Forks dimensions: 47 / 160 / 1150 mm
Ground clearance: 33 mm
Turning radius: 1336 mm
Total weight: 149 or 153 kg (including the battery) depending on the model
Maintenance-free 48 V / 20 Ah lithium-ion battery comes standard
Easy access battery (simple installation and replacement)
The battery has been specially designed to withstand a 1.5 m drop and to recharge in 2.5 hours
Comes standard with stabilizing rollers
Curtis controllers and throttle, CAN-BUS technology
Steering handle in vertical position
Travel speed with / without load: 4.8 / 5.2 Km/ h
Gradeability with / without load: 7 /16 %
The color of the chassis can be customized
PTE20N helps reduce work-related musculoskeletal disorders (MSD)
Download the product specifications for further technical information and our complete commercial brochure
Watch this product demo video on our YouTube channel

Options

Extra battery (48v / 20 Ah)
Belt wheels

Documentation

Data sheet
