MPZGF

Extension for MF450 and MG400 cranes

MPZGF

Extension for MF450 and MG400 cranes

MILOAD crane extension to increase reach on MF450 and MG400. Offset lifting solution for worksites, façades and congested areas.

more information

	Designation
	MPZGF Extension for MILOAD MF450 and MG400 cranes, 1300 or 1120 mm overhang Weight : 0 kg

DESCRIPTION

TECHNICAL CHARACTERISTICS

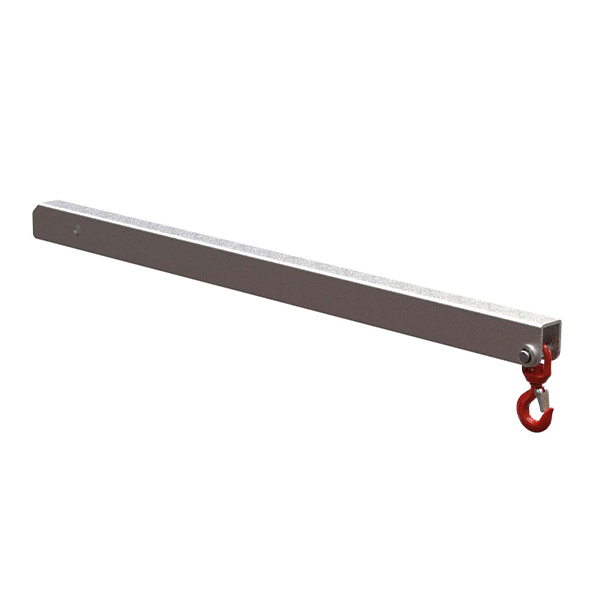

MPZGF, extension for Stockman MILOAD cranes

A simple solution to gain reach

The MPZGF meets a practical need: to pick up a load farther away without changing machine. It is useful when the operator works near a façade, above an obstacle or in an area where the crane cannot move any closer.

An extension designed to increase outreach

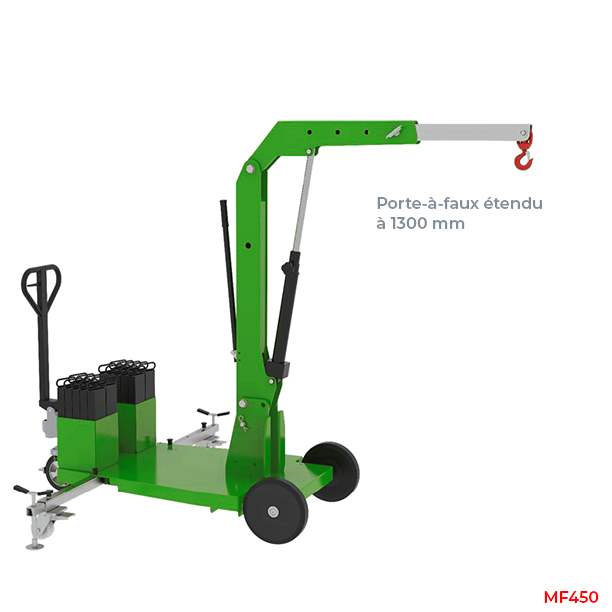

MF450: 1300 mm overhang

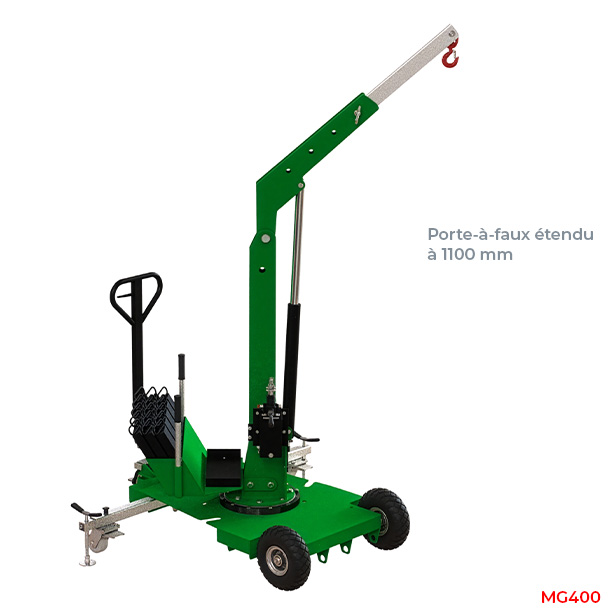

MG400: 1120 mm overhang

This extension is compatible with two models: MILOAD MF450 and MILOAD MG400. Its purpose is clear: to expand the working area while keeping a compact lifting solution. The cranes concerned are designed for construction, installation and handling in restricted spaces.

MPZGF technical characteristics

Key data to remember:
Compatibility: MILOAD MF450 and MILOAD MG400
Overhang on MF450: 1300 mm
Overhang on MG400: 1120 mm
Usage impact: change to the working reach
Attention point: use the load chart that matches the configuration with extension

On site, this helps to:
reach a load located farther away;
facilitate some glazing or window installation operations;

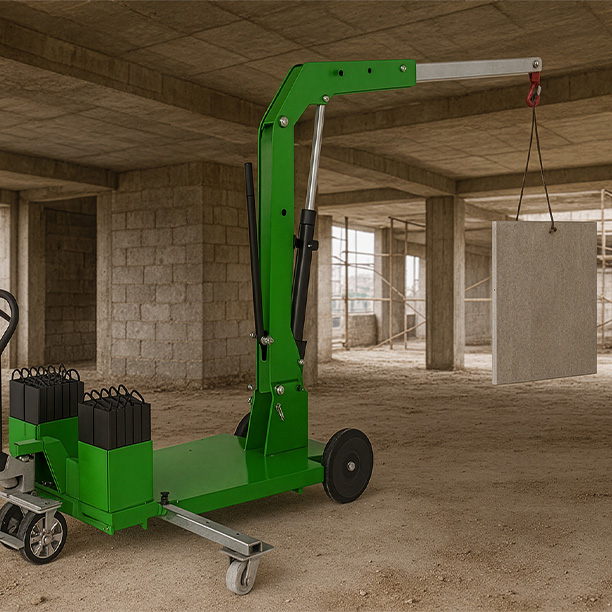

position panels or construction elements with more outreach;
work in a congested area without changing lifting equipment.

Use suited to offset lifting operations

The MPZGF extension takes over when the standard boom is not enough to reach the load. It suits installation, fitting and handling operations where the crane must work farther away, for example on a façade, above an obstacle or in a congested area.

Equipment to adapt according to the crane used

The MPZGF is a common extension for two compatible cranes, but its effect is not identical on each model. Depending on the crane, this accessory provides two different values. A 1300 mm overhang on MF450 and a 1120 mm overhang on MG400. More details are available in the load chart from the product technical sheet.

A simple check before use

Before assembly, a visual check of the extension helps to confirm its good condition, the cleanliness of the assembly, the hook and the connection points.

Check stock and prices in the reseller area

Go to your reseller access to check available stock and your Stockman distributor price.

Commercial support to guide the search

Your area sales representative is available for any question and advice. You can find contact details on the contact page of our website.

Typical applications for MPZGF

This extension suits the following uses:
glazing installation on site;
window and frame handling;
positioning of panels or prefabricated elements;
lifting operations with offset load;
work in congested areas;
work with limited access around the load.

Who MPZGF is for

The MPZGF is intended for building, installation, maintenance and site handling professionals who use an MF450 or MG400 and need extra reach for specific operations. It answers a simple need: to keep a compact crane while widening its operating radius on targeted jobs.

It matches the needs of professionals looking for:
an extension for a MILOAD MF450 crane;
an extension for a MILOAD MG400 crane;
a reach extension for a compact crane;
an accessory for offset lifting;
an extension for glazing installation;
an extension for panel handling;
an extension for limited-access worksites;
a lifting accessory for restricted spaces.

FAQ

Is the MPZGF compatible with all MILOAD cranes?

No. The MPZGF is only intended for the MF450 and MG400.

Does the same reference fit both cranes?

Yes. The reference is identical for both compatible models, but the overhang is not the same depending on the crane.

What is the MPZGF overhang?

It is 1300 mm on MF450 and 1120 mm on MG400.

Should a specific load chart be used?

Yes. The load chart that matches the optional extension configuration on the relevant crane must be used.

When is this extension useful?

It is useful when the load is farther away or when the environment limits how close the crane can get.

Is this extension suitable for installation operations?

Yes. The compatible cranes are presented for construction, installation, glazing, window and panel handling uses.
