Anti-slip aluminium loading ramp 340 kg 910 and 1130 mm

The DX-DXG reference refers to a 340 kg manual aluminium loading ramp designed to cross steps, thresholds and dock accesses, load light vehicles or move goods. Available in 910 and 1130 mm lengths with an anti-slip surface, it is also available in a foldable version with the DXG-1130 variant to make storage and mobile access easier.

more information

	Designation
	DX-1130 Anti-slip aluminium loading ramp 340 kg 1130 mm Weight : 7.2 kg
	DX-910 Anti-slip aluminium loading ramp 340 kg 910 mm Weight : 5.8 kg
	DXG-1130 Anti-slip aluminium loading ramp 340 kg 1130 mm folding Weight : 7.7 kg

DESCRIPTION

TECHNICAL CHARACTERISTICS

Crossing a loading step with a suitable pair of aluminium ramps

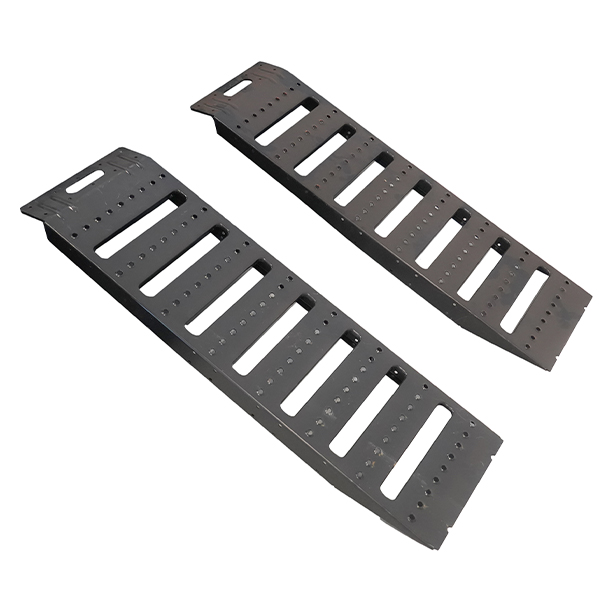

The DX-DXG non-slip aluminium loading ramp makes it easier to load and unload goods or light vehicles. Sold as a pair, it offers a load capacity of 340 kg and allows users to cross a step height suited to the selected model. It can be used in loading areas, storage rooms, workshops or warehouse spaces that require occasional access between two levels.

Its corrosion-resistant and weather-resistant design allows use in a wide range of professional environments. The non-slip surface helps reduce the risk of slipping during passage, especially during repeated light handling operations.

Three DX-DXG models according to the step height to be crossed

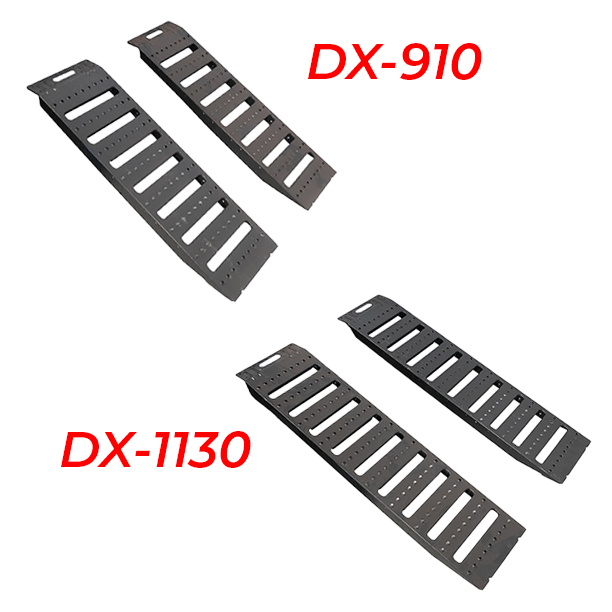

The DX-DXG range covers several crossing requirements. The DX-910 model is suitable for step heights from 260 to 320 mm. The DX-1130 and DXG-1130 models are suitable for heights from 340 to 400 mm. This difference makes it possible to choose the ramp according to the site layout, the threshold height and the area to be equipped.

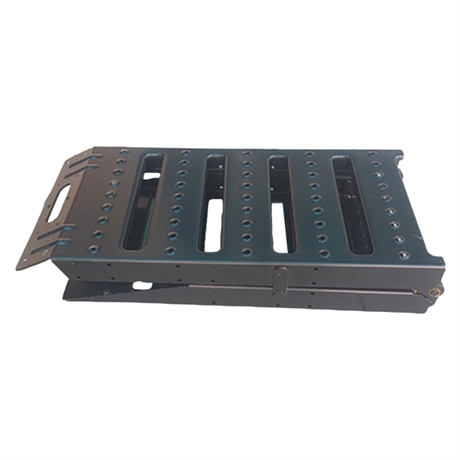

The DXG-1130 model is foldable. This configuration makes storage easier when the ramps are not in use. It is practical when space must remain clear around a dock, storage room or traffic area.

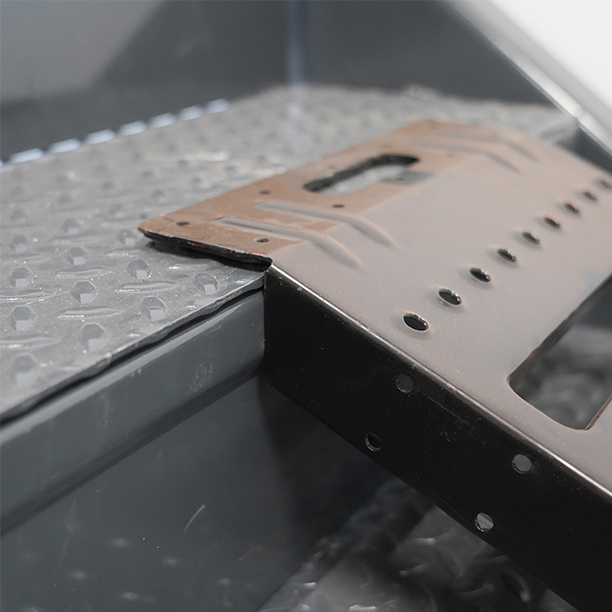

A non-slip surface for short and repeated passages

The non-slip surface is useful for loading operations where stable support is required. It provides better grip when moving rolling loads, goods or light vehicles, within the stated load capacity.

The DX-DXG ramp meets simple and frequent needs: creating temporary access, crossing a threshold, moving a load between two close levels or setting up a passage point in a logistics area.

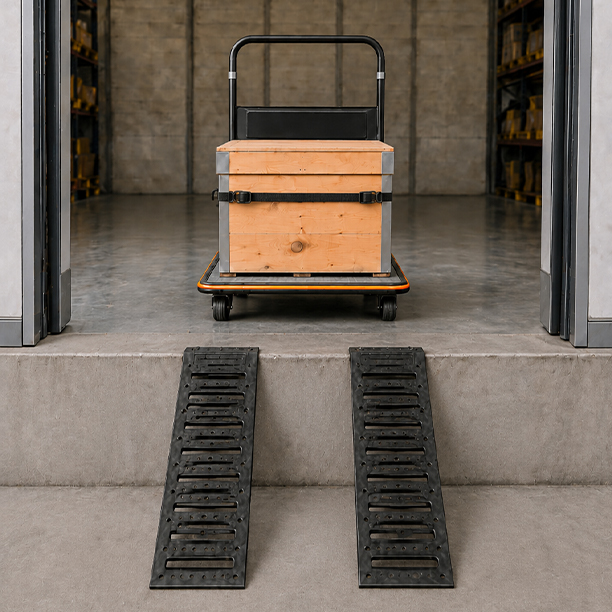

Practical applications for DX-DXG loading ramps

These ramps can be used to:
Load or unload light goods in a dock area.
Cross a step between a storage area and a traffic zone.
Facilitate the passage of light vehicles within the admissible load limit.
Create temporary access for handling operations in a workshop.
Equip a storage room, depot or logistics area with a transportable pair of ramps.
Optimise storage with the foldable DXG-1130 version.

Choosing the right ramp according to threshold height and storage space

The choice of model mainly depends on the step height to be crossed and the space available to store the ramps after use. The DX-910 is suitable for lower steps. The DX-1130 and DXG-1130 meet higher step requirements. The DXG-1130 version adds a practical advantage when compact storage is a priority.

Before use, it is recommended to check the threshold height, floor condition, support stability and suitability for the load to be moved. The maximum capacity of 340 kg must be respected.

Simple checks before each use

A regular visual inspection helps maintain proper operating conditions. The condition of the non-slip surface, the cleanliness of the passage surface and the correct positioning of the ramps should be checked before each operation. For the DXG-1130 model, the folding system and retaining hook must remain clean and functional.

After use, the ramps should be stored in a suitable location, away from traffic areas when they are not in service.

Dimensions, capacity and available models

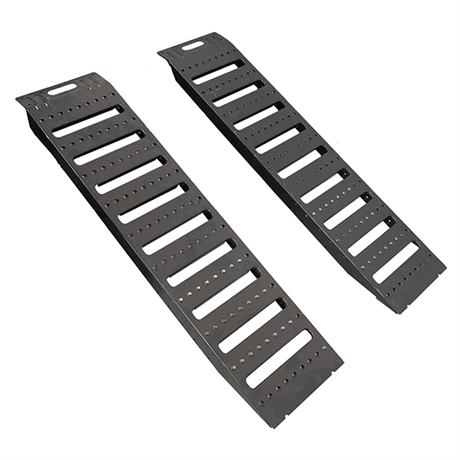

DX-910 model: capacity 340 kg, dimensions 978 x 300 x 50 mm, step height 260 to 320 mm, weight 5.8 kg.
DX-1130 model: capacity 340 kg, dimensions 1200 x 300 x 50 mm, step height 340 to 400 mm, weight 7.2 kg.
DXG-1130 model: capacity 340 kg, dimensions 1200 x 300 x 50 mm, folded dimensions 630 x 330 x 100 mm, step height 340 to 400 mm, weight 7.7 kg.
Product sold as a pair.
Non-slip surface.
Corrosion-resistant and weather-resistant structure.

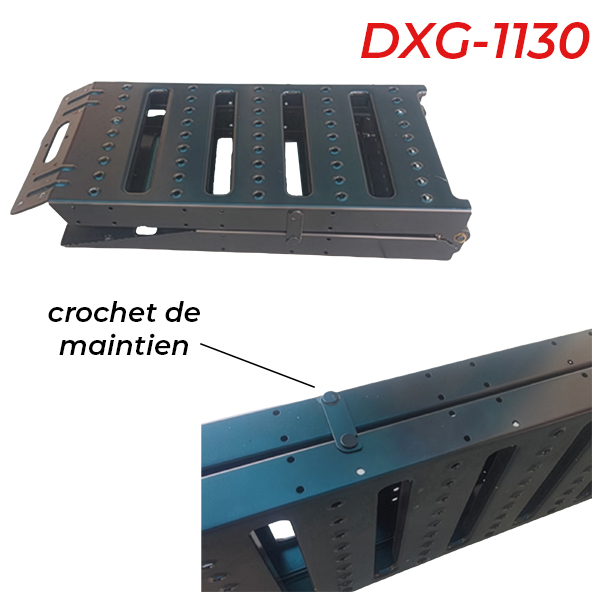

Foldable DXG-1130 version with retaining hook.

Common questions about DX-DXG ramps

What is the load capacity of DX-DXG ramps?
The load capacity is 340 kg for the DX-910, DX-1130 and DXG-1130 models.

Are DX-DXG ramps sold individually?
No. DX-DXG ramps are sold as a pair.

What step height can be crossed with the DX-910 model?
The DX-910 model is designed for a step height from 260 to 320 mm.

What is the difference between DX-1130 and DXG-1130?
Both models cover a step height from 340 to 400 mm. The DXG-1130 model is foldable for easier storage.

Does the ramp surface help reduce slipping risks?
Yes. The ramps feature a non-slip surface designed to improve grip during passage.

Can these ramps be used for light vehicles?
Yes, they are designed for loading and unloading goods or light vehicles, within the 340 kg limit.

Contact STOCKMAN to choose the right pair of ramps

The STOCKMAN sales representative for your area can help you check the most suitable model according to the step height, passage area, type of load and on-site conditions of use. Find their contact details on our contact page: https://www.stockman.fr/fr/contact.aspx
