E500

Semi-electric work positioner stacker with 500 kg capacity

E500

Semi-electric work positioner stacker with 500 kg capacity

The E500 semi-electric stacker positions loads up to 500 kg at working height. Designed for applications requiring a 500 kg semi-electric work positioner stacker, it reduces operator effort thanks to electric lifting and integrated low-position safety features.

more information

	Designation

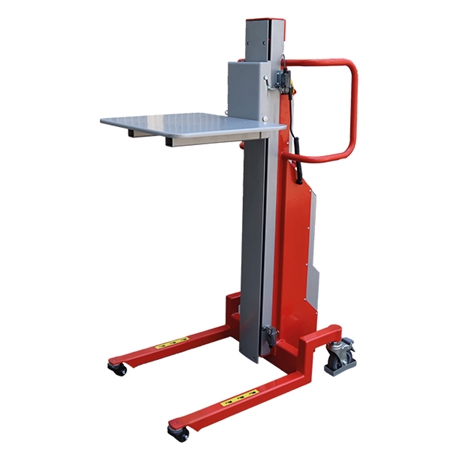

	E500-1100 Semi-electric work-positioner stacker, lift 1100 mm, capacity 500 kg Weight : 130 kg Bar code : 3700664814377
	E500-1600 Semi-electric work-positioner stacker, lift 1600 mm, capacity 500 kg Weight : 160 kg Bar code : 3700664814346

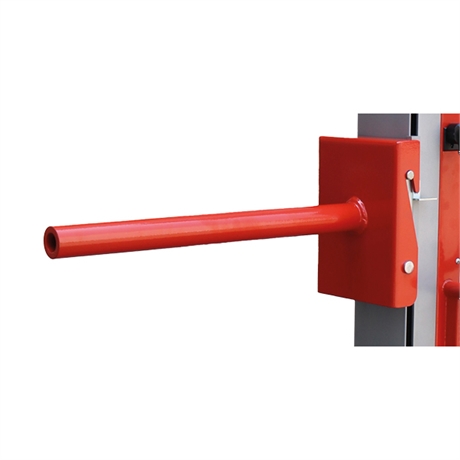

	E500-AXE Reel holder shaft for semi-electric work-positioner 500 kg Weight : 0 kg Bar code : 3700664814308
	E500-DOUBLEAXE Double reel holder shaft for semi-electric work-positioner 500 kg Weight : 0 kg Bar code : 3700664814292
	E500-PB Ball table for semi-electric work-positioner 500 kg Weight : 0 kg Bar code : 3700664814339
	E500-POTENCE Jib with hook for semi-electric work-positioner 500 kg Weight : 0 kg Bar code : 3700664814285
	E500-PR Roller table for semi-electric work-positioner 500 kg Weight : 0 kg Bar code : 3700664814322

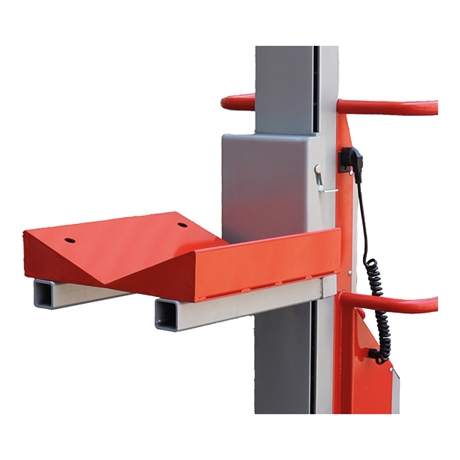

	E500-PV V-table for semi-electric work-positioner 500 kg Weight : 0 kg Bar code : 3700664814315

DESCRIPTION

TECHNICAL CHARACTERISTICS

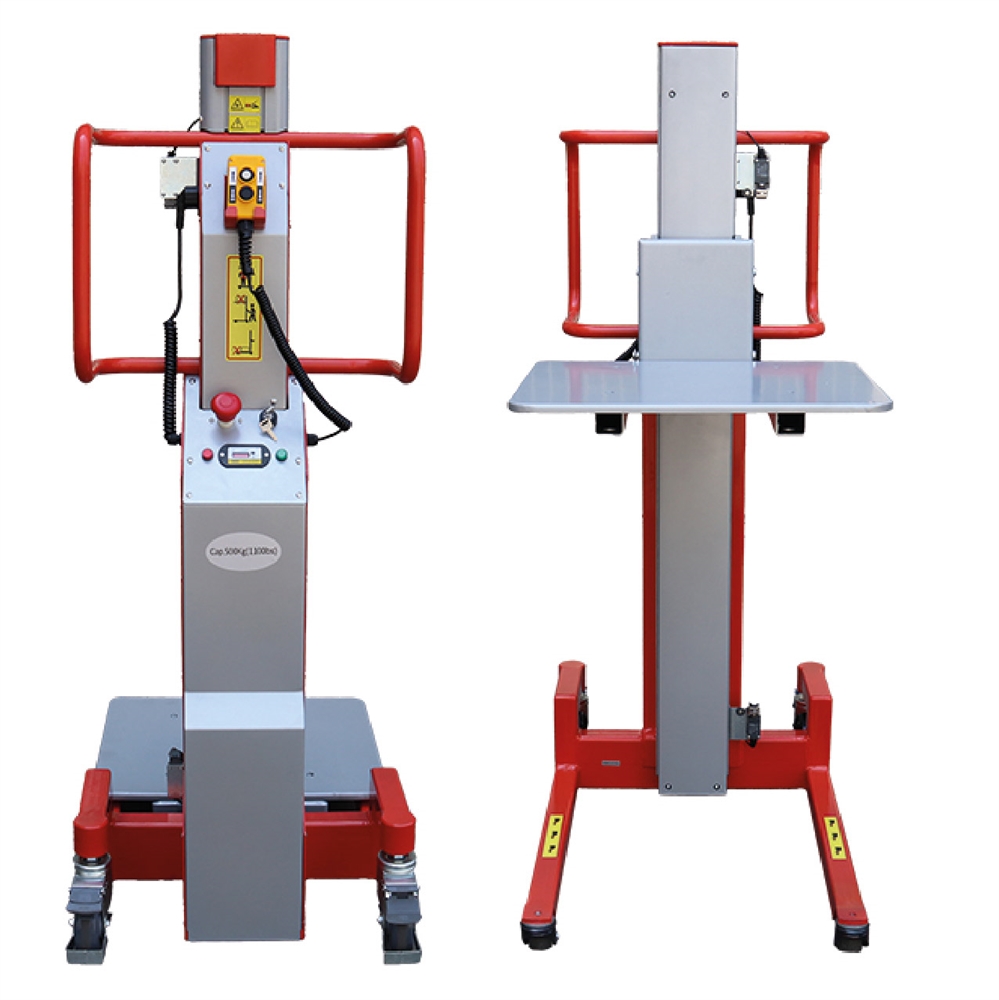

The E500 semi-electric work positioner stacker is part of the STOCKMAN range dedicated to lifting loads to working height in professional environments. It meets internal handling requirements where regular, controlled lifting is required, with a rated capacity of 500 kg.
The electric lift ensures stable vertical movement, allowing bins, crates, parts or tools to be positioned at a working height consistent with workshop or logistics area organisation.
Two versions are available depending on lifting height: E500-1100 and E500-1600.
The removable platform adds versatility of use, while electronic overload protection enhances safety and durability in daily operation.

A versatile semi-electric work positioner stacker for multiple sectors thanks to its accessories

The E500 is suited to production workshops, picking areas, maintenance stores, loading bays and stockrooms. It supports internal flows where loads need to be transferred from a low level (floor pallet, trolley, bin) to a working level (bench, table, conveyor, assembly station).

In organisations where tasks alternate between picking, assembly, inspection and packing, the work positioner limits unnecessary handling and stabilises the work pace.

Its compact design allows easy integration into technical aisles and close to workstations, improving equipment availability throughout the day.

Advantages of the E500 semi-electric work positioner stacker

The E500 semi-electric stacker delivers smoother, safer and more comfortable handling on a daily basis:

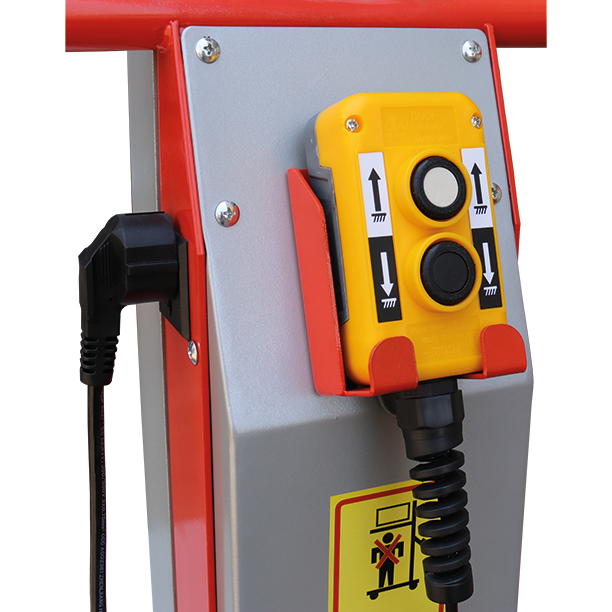

Controlled lifting: electric lift provides consistent vertical movement, with a no-load lifting speed rated at 110 mm/s, suitable for continuous operations without jolts.
Platform versatility: the removable platform allows adaptation to the type of load or selected accessory.
Enhanced safety: electronic overload protection limits risks related to overloading, while the low-position safety switch reduces hazards during operations close to the ground.
Autonomy and simplicity: the 48 V / 20 Ah battery with integrated charger simplifies recharging and daily operation.
Manoeuvrability: the compact architecture supports use in workshops and storage areas, with short, frequent movements.

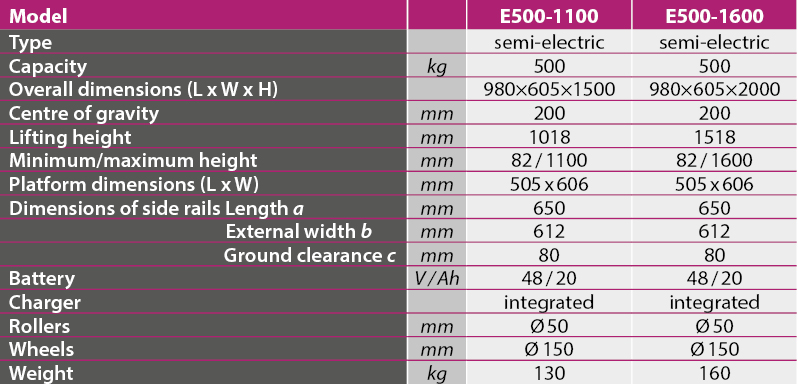

Technical specifications of the E500 semi-electric work positioner stacker
Structure / platform / chassis / load
The E500 handles loads up to 500 kg with a stated load centre of 200 mm, corresponding to loads positioned close to the mast and platform. The 505 × 606 mm platform provides a suitable surface for bins, crates or small unit loads.The design focuses on a compact, robust unit for intensive internal handling, with stable performance for lifting to working height.

Overall dimensions vary by version:
980 × 605 × 1500 mm (E500-1100)
980 × 605 × 2000 mm (E500-1600)
Lifting speed and movement
The no-load lifting speed of 110 mm/s supports repetitive operations where lifting time directly affects productivity. As a semi-electric unit, travel remains manual: the stacker is positioned close to the workstation, then the electric lift adjusts the working height. This approach reduces effort during the most demanding phase, which is typically vertical positioning of the load.
Manoeuvrability and dimensions
The compact footprint facilitates work in constrained areas. The E500-1100 version offers a minimum/maximum height of 82 / 1100 mm, while the E500-1600 version reaches 82 / 1600 mm. Usable lifting height is specified as 1018 mm or 1518 mm depending on the version. These values guide selection based on workstation height, assembly tables or transfer levels.
Wheels and rolling
Ø150 mm wheels and Ø50 mm rollers contribute to stability and smooth movement on industrial floors. Larger wheel diameters help overcome typical surface irregularities such as joints or small obstacles, improving rolling comfort and positioning accuracy.
Power, drive and autonomy
The 48 V / 20 Ah battery powers the electric lift. The integrated charger simplifies on-site recharging without additional equipment. This configuration is well suited to daily handling tasks with repeated lifting cycles, provided recharging is planned according to usage intensity.

Ergonomics, MSD prevention and safety

The E500 reduces physical effort associated with lifting to working height. Electric lifting limits pulling and pushing actions during vertical handling and helps reduce strain on the back and shoulders when positioning loads at workstation height. Electronic overload protection secures use against operational variations.

The low-position safety switch enhances protection during operations close to the ground, where pinching and stability risks increase. Overall, the E500 supports more controlled handling with equipment designed specifically for workstation use and repetitive movements.

Productivity and operational benefits

A work positioner reduces flow interruptions caused by manual repositioning and re-handling of loads. In workshops, supplying a workstation at the correct height stabilises cycle times and limits micro-stoppages linked to finding ad-hoc lifting solutions.

In internal logistics, height adjustment simplifies transfers between bins, trolleys and work surfaces, with fewer intermediate steps.

The compact design improves availability near key work areas, supporting operational continuity throughout the day.

The E500 semi-electric work positioner stacker offers a 500 kg capacity and electric lifting suited to working-height applications in professional environments. The 48 V / 20 Ah battery with integrated charger supports daily use, while electronic overload protection and the low-position safety switch enhance operational control.

Two lifting heights are available to match workstation configurations. The removable platform and accessory logic extend applications beyond a standard platform, addressing a wide range of internal handling needs.

Typical applications of the E500 semi-electric work positioner stacker

The E500 is used for practical internal handling tasks, including:
Lifting bins and crates for order picking and quality control
Supplying assembly or packing workstations
Transferring parts between trolley and workbench
Positioning components in industrial maintenance

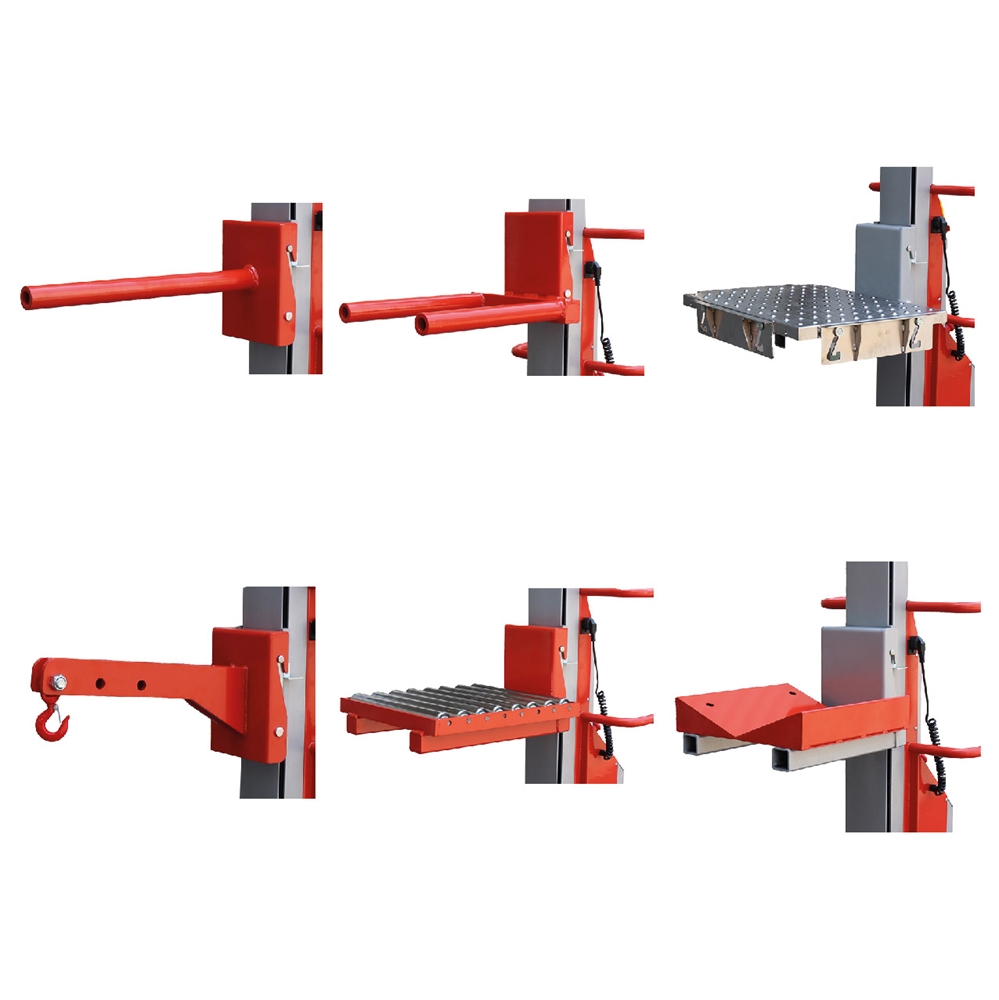

Handling specific loads via accessories (reels, hook, dedicated platforms)

Who is the E500 semi-electric work positioner stacker designed for?

This stacker is intended for environments seeking a 500 kg semi-electric work positioner stacker for workstations, with regular lifting and integrated safety. It is suitable for workshops, maintenance departments, manufacturing industries, logistics platforms, technical public services and industrial supply professionals implementing MSD prevention, workstation standardisation and reliable internal flow management.

The E500 is suitable for customers looking for:
A 500 kg semi-electric work positioner stacker for workstations
A semi-electric stacker with removable platform for workshops
A load positioner to reduce manual handling
A compact stacker for lifting bins and parts
A semi-electric lift table stacker for picking and assembly
A 500 kg stacker for production line supply
A work positioner with electronic overload protection
A handling stacker for loading onto workbenches
A semi-electric lift for improved workshop ergonomics
A stacker with reel holder and lifting hook accessories

The E500 is a semi-electric lifting solution focused on workstation applications, offering a 500 kg capacity, electric lift, integrated charger and practical daily safety features.

To confirm suitability (height, load, accessory type, frequency of use), an assessment of site constraints and handled loads will help select the most appropriate version and configuration.

Your local STOCKMAN sales representative can assist you; contact details are available on our website contact page.
