HB1556EN

Electric high lift pallet truck with stabilisers 1500 kg

HB1556EN

Electric high lift pallet truck with stabilisers 1500 kg

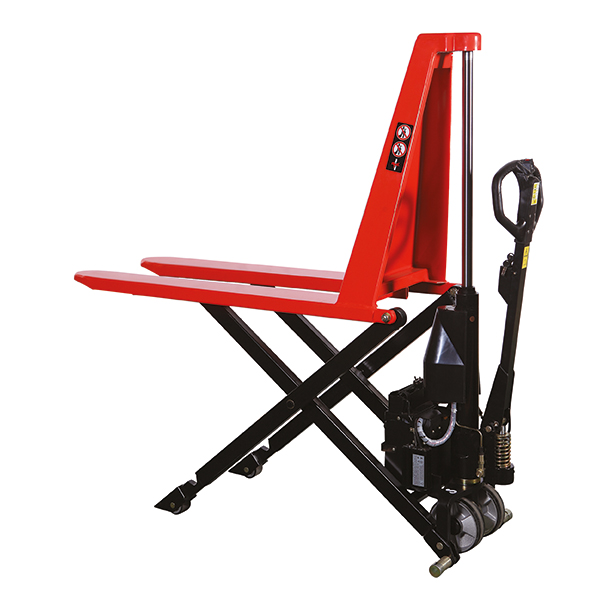

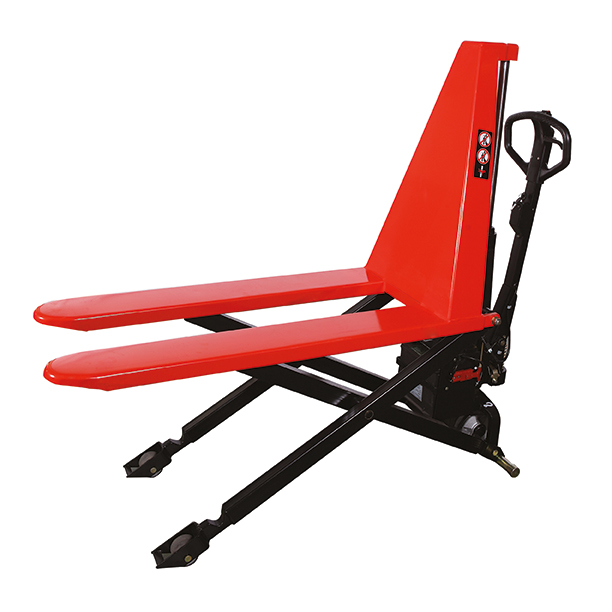

The HB1556EN electric high lift pallet truck lifts loads up to 1.5 t to a height of 725 mm for pallet levelling at the workstation. Electric lift reduces physical effort, while the reinforced chassis, stabilisers and anti-crush safety system support controlled daily use.

more information

	Designation
	HB1556EN Electric high-lift pallet truck with stabilisers 1500 kg Weight : 139 kg Bar code : 3700664814056

DESCRIPTION

TECHNICAL CHARACTERISTICS

The HB1556EN STOCKMAN electric high lift pallet truck is designed for internal handling operations that require regular height adjustment of palletised loads.
This version offers a 1.5-tonne capacity while maintaining a simple operating principle: electric lifting, followed by manual travel and lowering.
The truck belongs to the STOCKMAN range dedicated to everyday flows in warehouses, workshops, shipping areas, production and maintenance zones.
The lift height reaches 725 mm, a level suited to picking, sorting and packing operations.
The motor unit integrated into the chassis and the maintenance-free battery with built-in charger are key differentiators, as they simplify equipment availability at the workstation.

A high lift pallet truck designed for temporary work at height

The HB1556EN is well suited to environments where the pallet is used as a temporary work surface. Packing areas, inspection tables, order preparation zones and shelf replenishment stations often require quick pallet levelling to reduce bending and ground-level handling.

In workshops, the high lift pallet truck is also used to position a pallet close to a workstation and then adjust the height to facilitate handling of cartons, bins or components.

Within internal flow organisation, the truck operates between receiving, storage and order preparation. It helps stabilise work rates when operators alternate between short-distance pallet movements and workstation tasks. Manual travel is suitable for controlled internal circulation, with short distances and clearly defined working areas.

Advantages of the HB1556EN high lift pallet truck

The HB1556EN is designed to simplify daily handling operations, with a strong focus on ergonomics and safety.
Electric lift at the workstation: electric elevation limits effort during height adjustment, supporting the prevention of strain in repetitive tasks.
725 mm lift height: the pallet becomes a work surface at a height suitable for packing, sorting and preparation.
Stability at raised height: design and stabilisers reinforce ground contact, improving control during workstation operations.

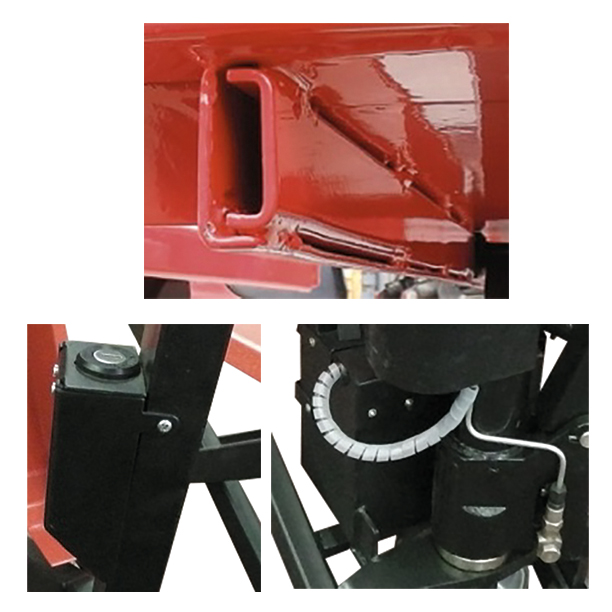

Compact integrated motor unit: protected components and easy use in workshop or warehouse environments.
Maintenance-free battery: 12 V / 52 Ah battery with discharge indicator and built-in charger reduces routine maintenance constraints.
Reinforced chassis and ergonomic tiller: structure supports intensive use, while the tiller ensures stable handling.
Enhanced safety: stabilisers and anti-crush system contribute to safer operation in high-activity areas.

Technical characteristics of the HB1556EN pallet truck
Structure / chassis / load
The HB1556EN handles a rated load of 1.5 t with a 610 mm load centre, consistent with standard pallet handling. Fork height when lowered is 85 mm, facilitating pallet entry in most internal environments. The 725 mm lift height is intended for workstation levelling rather than rack stacking. The reinforced chassis supports repeated stress, particularly during lifting phases and workstation approach.
Travel and circulation
Manual travel matches short-distance internal flows typical of packing, preparation and workshop areas. A 1564 mm turning radius allows operation in aisles and work zones where space is limited. The focus is on approach precision and control rather than long-distance transfer speed.
Manoeuvrability and dimensions
1170 mm forks match the most common pallet formats. An overall width of 540 mm fits Euro pallets and supports stable approach. These dimensions simplify fleet standardisation and reduce operator adjustments.
Wheels and rolling
The 180 × 50 mm steering wheels provide suitable rolling performance on industrial floors. 75 × 50 mm front rollers support pallet entry and exit, ensuring continuity of movement over short distances. Stability is essential for a high lift pallet truck, as the load is raised during operation.
Power, lifting system and autonomy
Lifting is powered by a 12 V / 52 Ah battery. The maintenance-free design limits routine checks, while the discharge indicator provides a clear view of remaining charge. The built-in charger allows on-site recharging close to the work area. Battery weight is 14 kg, and total truck weight is 152 kg, consistent with a reinforced chassis design.

Ergonomics, MSD prevention and safety

The HB1556EN aims to reduce physical strain during workstation tasks. Electric lifting limits effort during height adjustment, reducing stress on the back and shoulders during repetitive cycles. The 725 mm lift height allows higher load handling, reducing bending when picking cartons or bins from pallets. Safety relies on stabilisers that reinforce ground contact at raised height, combined with an anti-crush system.

The ergonomic tiller and reinforced structure contribute to stable handling during workstation approach and manoeuvring in dense areas. Productivity and operational efficiency Fast pallet levelling improves consistency at packing and order preparation stations.

Work cycles become more regular when the handling height remains within a comfortable range. The battery with built-in charger simplifies charging organisation and reduces downtime linked to complex power management. Over a working day, the truck supports operational continuity through a simple sequence: arrival at the workstation, electric lift, preparation tasks, then short manual movement to the next area.

The HB1556EN STOCKMAN electric high lift pallet truck combines a 1.5 t capacity with a 725 mm electric lift and straightforward operation. Electric lifting improves workstation ergonomics, while manual travel suits short internal flows. The reinforced chassis, stabilisers and anti-crush safety system support controlled professional use. The 12 V / 52 Ah maintenance-free battery, with indicator and built-in charger, simplifies equipment availability.

Typical applications

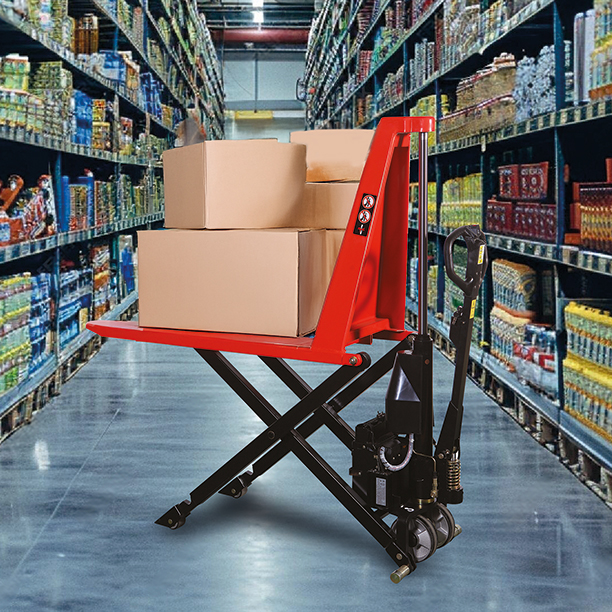

Order picking on pallets with height-adjusted work surface
Packing and strapping stations with easier access to parcels
Line feeding in workshops and production areas
Sorting, quality control and reconditioning on pallets
Kitting and light assembly with bins on pallets
Pallet positioning at workstations in shipping areas

Intended users

The HB1556EN is designed for organisations seeking a 1.5 t high lift pallet truck for pallet levelling. It meets the needs of warehouses, logistics platforms, maintenance workshops, production areas and shipping departments aiming to reduce effort linked to height adjustment.

It also addresses demand for a semi-electric pallet truck, combining electric lift with simple energy management thanks to the built-in charger.
