SECL1029SC

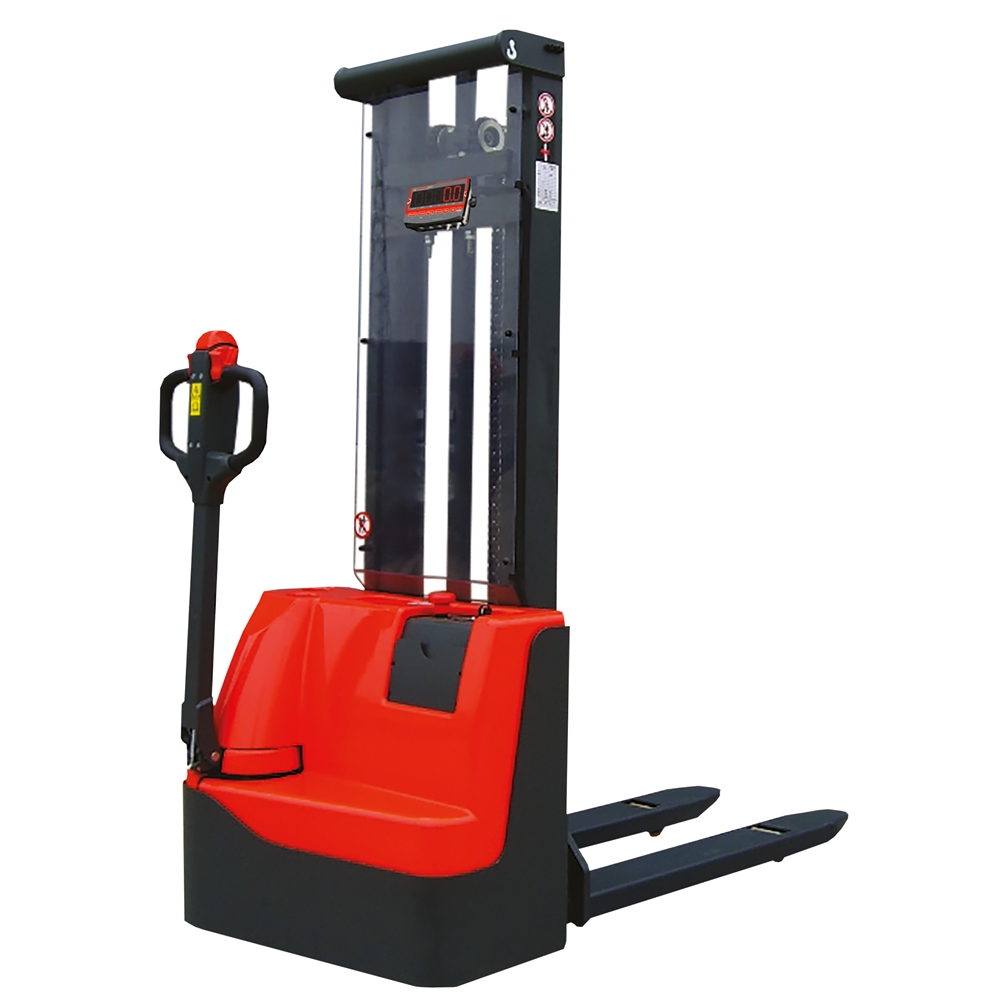

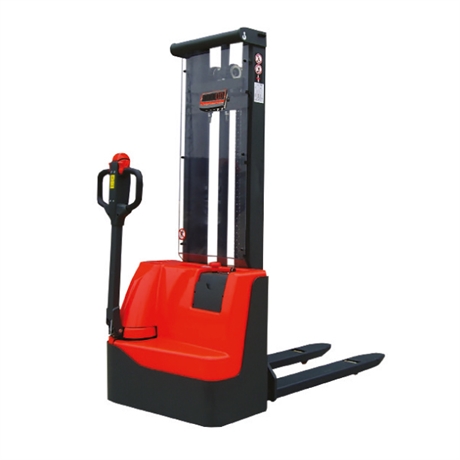

Electric stacker with ± 0,2 % weighing precision scale and 1000 kg load capacity

SECL1029SC

Electric stacker with ± 0,2 % weighing precision scale and 1000 kg load capacity

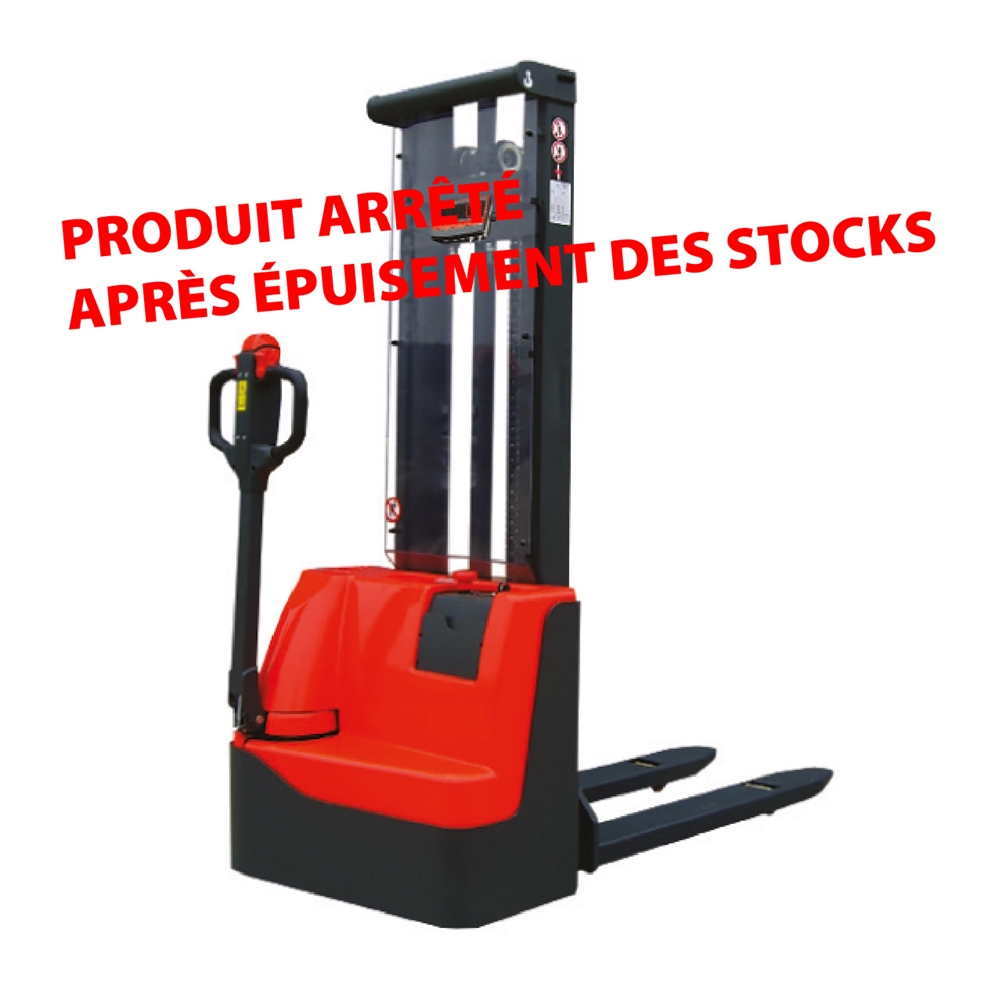

WARNING : discontinued product. This electric stacker is equipped with a high quality weighing precision scale featuring a tare function.

more information

	Designation
	SECL1029SC DISCONTINUED PRODUCT - Electric stacker with ± 0,2 % weighing precision scale and 1000 kg load capacity Weight : 570 kg Bar code : 3700664834252 Catalogue P.78

DESCRIPTION

TECHNICAL CHARACTERISTICS

WARNING : discontinued product. Electric walkie stacker with precise and performant weighing scale
Four ESR-ST Standard kits
Tolerance: ± 0,2 % of the stacker rated load capacity of 1000 kg (± 2 kg)
500 g calibration weight

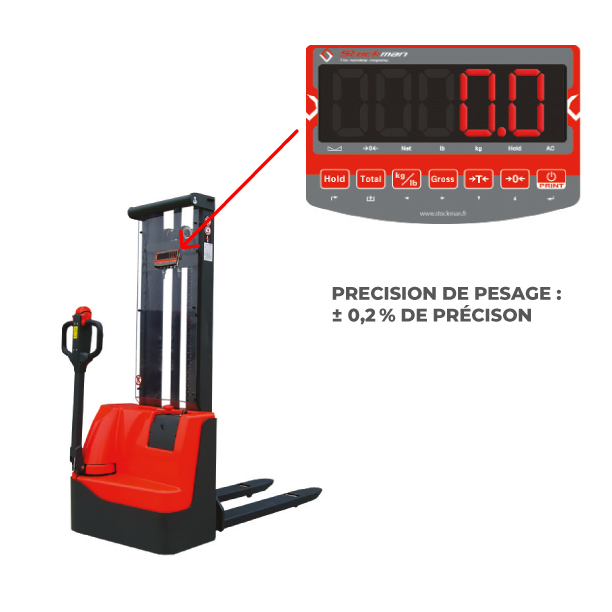

Scale functions: tare, gross / net weight, total weight
Power supply: 6 V 4,5 Ah
Low battery indicator + 3 minutes auto cut-off function
Tare function allows to add up multiple pallet weights and indicate total weight per shipment or order. When weight is added, the screen displays the new total weight and the number of pallets weighed allowing the operator to verify he did not forget to weigh any pallets or weighed the same pallet twice.
The internal battery (6V 4,5 Ah) allows about 40 hours of use and/or 4000 weighing operations.
The screen display allows the operator to easily read the screen from any angle while standing near the pallet measuring, weighting or adding products. The high-contrast display works well in ambient light conditions and does not need backlight.
The weighing scale system is water and dust resistant
IP65 means the electric stacker weighing scale can be used indoors or outdoors and can be cleaned with water.
WARNING: Avoid high pressure cleaning.
Sensors located under the forks are equipped with a superior protection level.

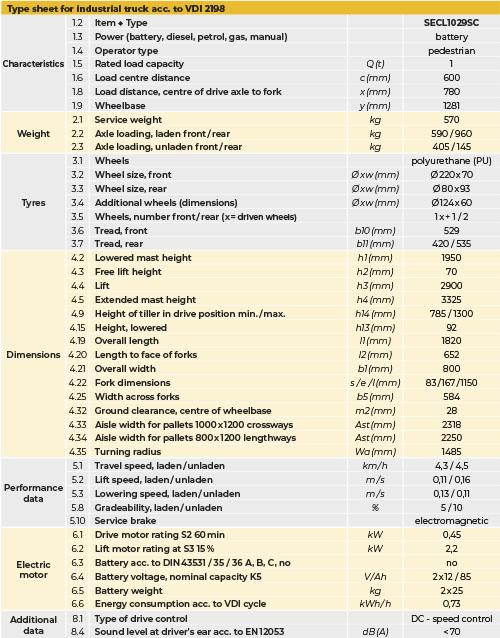

Service weight: 570 kg
Polyurethane wheels
Steering wheel diameter: 220 mm
Number of front / rear wheels (x= steering wheel): 1 x + 2/4
Mast height lowered:1950 mm

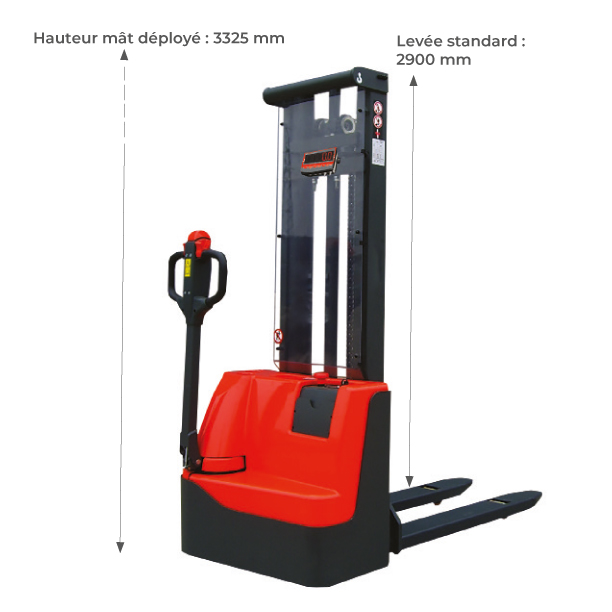

Standard lift: 2900 mm
Extended mast height:3325 mm
Tiller height in drive position min. / max.: 785 mm / 1300 mm
Fork height lowered: 92 mm

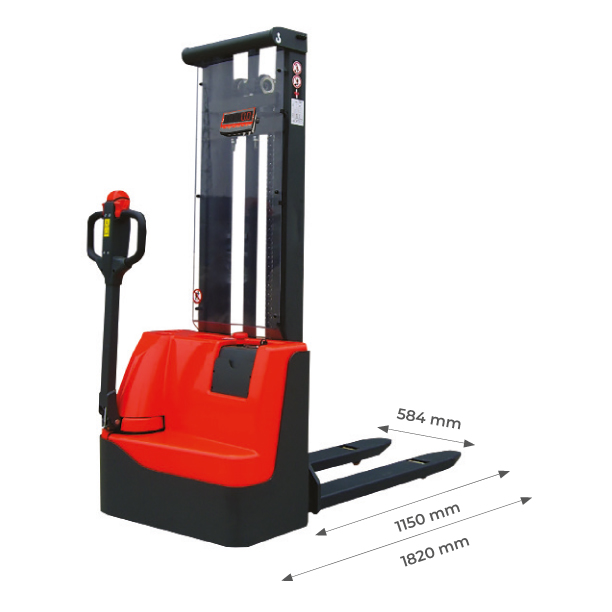

Overall width: 800 mm
Fork length:1150 mm
Width across forks: 584 mm
Ground clearance: 28 mm
Aisle width for pallets 1000 x 1200 crossways: 2318 mm
Aisle width for pallets 800 x 1200 lengthways: 2250 mm
Turning radius: 1485 mm
Travel speed laden / unladen: 4,3 / 4,5 km/h
Lift speed, laden / unladen: 0,11 / 0,16 m/s
Lowering speed, laden / unladen: 0,13 / 0,11 m/s
Gradeability performance of 5% laden and 10% unladen
Electromagnetic service brake
Type of drive control: DC - speed control
Sound level at driver's ear acc. to EN 12053:<70 dB
