OVS-010-HERO

Motorised vertical mast stockpicker with lateral travel and working height up to 6,600 mm

OVS-010-HERO

Motorised vertical mast stockpicker with lateral travel and working height up to 6,600 mm

The OVS-010-HERO vertical mast stockpicker optimises order picking with crab-style lateral travel and a 6.6 m working height. This lithium-powered stockpicker reduces manoeuvres and improves safety during elevated picking operations.

more information

	Designation

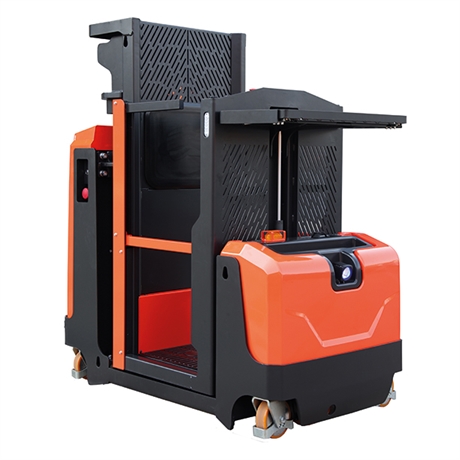

	OVS-010-HERO Motorised stockpicker platform, lateral drive, working height up to 6600 mm Weight : 1290 kg Bar code : 3700664816104

DESCRIPTION

TECHNICAL CHARACTERISTICS

Motorised vertical mast stockpicker for order picking The OVS-010-HERO is a vertical mast platform designed for order picking operations. This type of equipment is also referred to as a stockpicker or order picker, depending on internal terminology.

It structures picking, replenishment and elevated support tasks in logistics environments. Total capacity reaches 327 kg, with load distribution between the operator platform and two load decks. Platform height rises to 4,600 mm, providing a maximum working height of 6,600 mm.

Within the STOCKMAN range, this stockpicker is designed for sites looking for a compact, stable solution suited to daily operating cycles. Two key features define its use.

Lithium iron phosphate power supports operational continuity through opportunity charging. The steering system integrates crab-style lateral travel, a distinctive feature that allows parallel offset movement alongside racking to reduce manoeuvres in confined areas.

Vertical mast stockpicker with lateral travel for warehouses and distribution sites

The OVS-010-HERO is used in warehouses, distribution centres, retail back-of-store areas and certain workshops. Typical tasks include case picking, replenishment, order preparation, as well as maintenance and inspection at height.

Within internal logistics flows, the stockpicker reduces walking distances and secures access to storage levels. Its compact footprint allows operators to work close to pick locations.

A width of 800 mm and a turning radius of 800 mm make it suitable for narrow aisles and dense picking zones. Crab-style lateral travel is particularly valuable where alignment with racking directly affects picking speed. Parallel offset replaces repeated steering corrections.

Operators gain precision when approaching locations and limit repositioning, especially at aisle ends, on mezzanines or in shared traffic areas.

Advantages of the OVS-010-HERO lateral travel stockpicker

This vertical mast platform supports smoother material handling throughout the day, with safety features aligned to logistics team requirements.
Crab-style lateral travel: lateral steering mode enables parallel offset along racking, reducing manoeuvres and improving approach accuracy.
Manoeuvrability in confined areas: multiple steering modes simplify repositioning in aisles and picking zones.

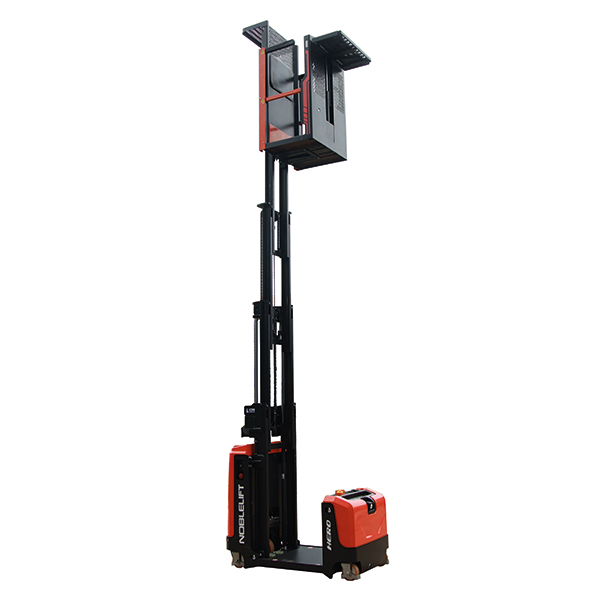

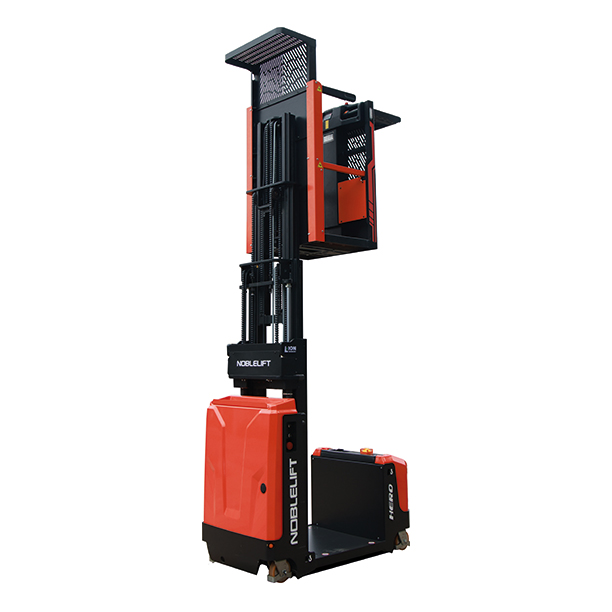

Structured access at height: platform height up to 4,600 mm, working height 6,600 mm, with automatic speed limitation according to lift height.
Distributed load capacity: front deck 100 kg, rear deck 100 kg, operator platform 127 kg, ensuring controlled load distribution.
Multi-shift operation: 24V 150Ah LiFePO4 battery with integrated charger and opportunity charging during breaks and shift changes.
Diagnostics and maintenance: CAN-bus system for condition monitoring and troubleshooting support, reducing routine maintenance interventions.
Visibility and signalling: LED side lighting, blue safety light and beacon for use in mixed pedestrian/vehicle areas.

Technical characteristics of the lateral travel stockpicker
Structure / platform / chassis / load

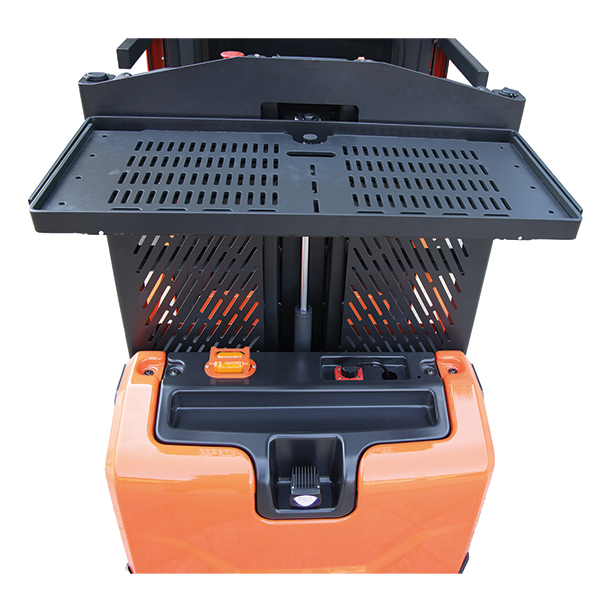

The 327 kg total capacity is designed for picking operations with light to medium loads and an operator on the platform. Two load decks structure picking organisation (cartons, bins, consumables). A telescopic deck adjusts depth from 345 to 525 mm, increasing usable volume without restricting access to pick locations. Ground clearance under the mast is 50 mm, suitable for clean industrial floors and controlled transition zones. Polyurethane wheels are designed for indoor use, offering quieter travel and good performance on smooth surfaces.
Speed and travel
Travel speed reaches up to 8 km/h. Automatic speed reduction and limits apply according to lift height and steering mode to maintain stability when elevated. Braking combines electromagnetic braking with regenerative braking for controlled stopping in indoor environments.
Manoeuvrability and dimensions

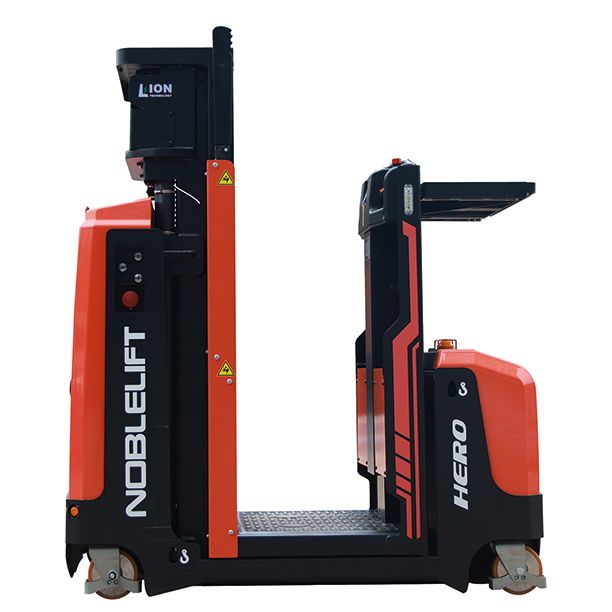

With a length of 1,460 mm and a width of 800 mm, the OVS-010-HERO is designed for narrow aisles. The minimum turning radius of 800 mm facilitates U-turns and repositioning near racking. Several steering modes are available, including zero-radius rotation and crab-style lateral travel. The latter enables parallel movement to align with a bay, correct trajectory or clear a passage without reversing, reducing steering shocks and improving picking accuracy.
Wheels and ride quality
The chassis integrates suspension on the traction units. This limits jolts over minor surface irregularities and improves control during direction changes. Stability remains central when travelling close to racking and during stopping phases in picking zones.
Energy, drive system and autonomy The 24V 150Ah LiFePO4 battery features a battery management system (BMS) and thermal supervision. Opportunity charging during breaks and shift changes eliminates the need for on-site battery swaps. The integrated charger delivers 30 A depending on input voltage, while an external charger can reach 60 A. Traction control is based on PMSM technology. Noise level at the operator position is 69 dB(A), suitable for intensive indoor use.

Ergonomics, MSD prevention and safety

The OVS-010-HERO is designed to reduce climbing effort while maintaining controlled stability during elevated operations. Lifting and lowering are electrically controlled via dedicated buttons. A side-mounted lift/lower control simplifies certain picking phases at ground level.

Safety relies on multiple systems: gate interlock, sensors under the platform that block lift, lowering and travel if an obstruction is detected, chassis tilt protection with usage restrictions, slack chain detection, automatic return to neutral steering angle, and a fall-arrest PPE anchorage point. Driving controls include bi-manual detection handles, an emergency stop and an LCD display for machine status and alerts. PIN code access with RFID support helps control machine activation.

Productivity and operational gains

Productivity gains result from reduced interruptions and more stable operating continuity. The lithium battery supports opportunity charging, enabling multi-shift use without heavy battery handling.

Crab-style lateral travel directly impacts cycle times. Parallel approach reduces trajectory corrections, allowing the platform to position faster at pick locations. Downtime between picks is reduced, as is the need for repositioning.

This is also beneficial in shared traffic zones, where lateral offset clears passages without reversing. Integrated storage for documents, consumables and small items supports organised picking and inspection tasks. CAN-bus diagnostics reduce fault identification time and improve equipment availability.

The OVS-010-HERO combines a compact footprint, load capacity suited to picking, and a 6.6 m working height. Lithium iron phosphate power supports regular use with opportunity charging. Safety systems control access at height and movement in shared areas. Crab-style lateral travel enhances approach precision and limits manoeuvres, delivering tangible operational gains in narrow aisles.

Typical applications for the OVS-010-HERO lateral travel stockpicker

This vertical mast platform is suitable for:
Order picking and racking retrieval with lateral offset for fast alignment
Replenishment of back-of-store areas and shelf restocking
Cycle counting and elevated stock checks
Internal transport of bins, cartons and consumables
Equipment inspection, visual checks and light maintenance tasks
Workshop support operations with occasional access at height Target users of the OVS-010-HERO lateral travel stockpicker

The OVS-010-HERO is designed for logistics platforms, retail sites with storage areas, e-commerce facilities, industrial sites and logistics service providers seeking a compact picking platform for narrow aisles and elevated operations.

It meets order picking requirements up to a 6.6 m working height, with a LiFePO4 battery and safety features adapted for indoor use. Crab-style lateral travel provides a practical solution for sites prioritising approach accuracy and reduced manoeuvres.

This equipment is suited for companies looking for:
A lithium vertical mast stockpicker for picking up to 6.6 m
A compact stockpicker for narrow aisles in logistics warehouses
An order picking platform for replenishment and elevated inventory tasks
An order picker with LiFePO4 battery and integrated charger
An electric picking platform with multiple steering modes for precise positioning
A stockpicker for logistics centres and retail back rooms with low turning radius
A vertical mast platform with CAN-bus diagnostics to limit downtime
A mobile work platform for maintenance and inspection at height
A compact picking truck compatible with lifts and low-clearance areas
An indoor order picking solution with controlled platform access safety

The OVS-010-HERO is a solution for order picking and elevated support tasks, focused on compactness, manoeuvrability and operational continuity through lithium power. Crab-style lateral travel enhances approach efficiency and handling in confined areas.

An application study validates site compatibility (aisle widths, floor quality, zone layout, useful options) and defines operating conditions. Your local STOCKMAN sales representative is available for support. Contact details are available on our contact page.
