PSE12NMLINC

Lithium Electric Straddle Stacker with Initial Lift and Automatic Leveling 1200 kg

PSE12NMLINC

Lithium Electric Straddle Stacker with Initial Lift and Automatic Leveling 1200 kg

The PSE12NMLINC lithium electric stacker handles loads up to 1200 kg and improves pallet handling in narrow aisles thanks to automatic leveling and a straddle mast design. A compact electric stacker offering improved visibility for internal warehouse operations.

more information

	Designation
	PSE12NM800LINC Lithium electric stacker, beam mast, initial lift, automatic levelling, lift 800 mm, capacity 1200 kg Weight : 551 kg Bar code : 3700664815206
	PSE12NM1195LINC Lithium electric stacker, beam mast, initial lift, automatic levelling, lift 1195 mm, capacity 1200 kg Weight : 580 kg Bar code : 3700664815213
	PSE12NM1600LINC Lithium electric stacker, beam mast, initial lift, automatic levelling, lift 1600 mm, capacity 1200 kg Weight : 591 kg Bar code : 3700664815664

DESCRIPTION

TECHNICAL CHARACTERISTICS

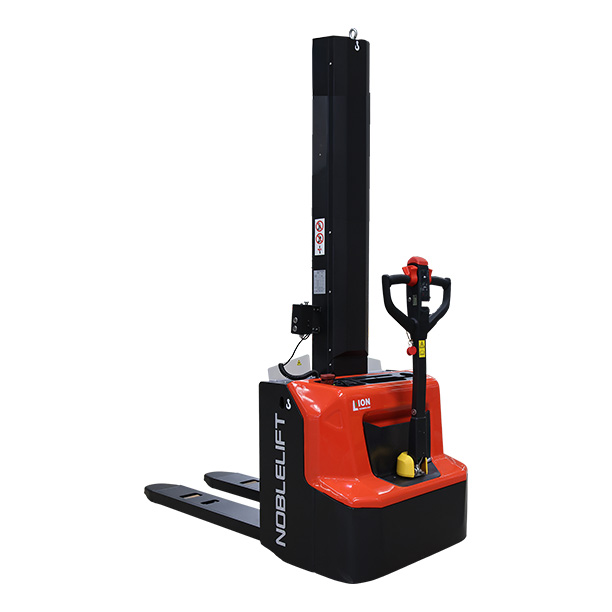

The PSE12NMLINC “EDGE” lithium electric stacker is a pedestrian-operated material handling solution designed for internal pallet movement. It offers a rated capacity of 1200 kg with a 600 mm load center, matching standard storage and replenishment applications.
The range is available with several lift heights (714 mm, 1104 mm and 1514 mm), allowing the equipment to be selected according to required deposit height and lowered mast height within the working environment.

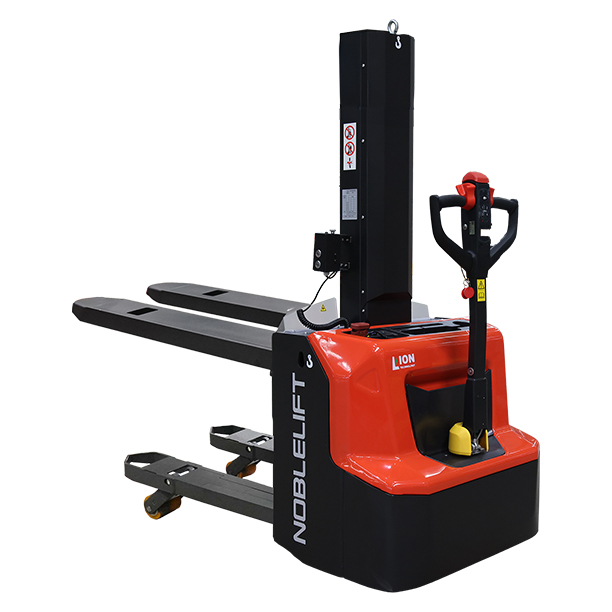

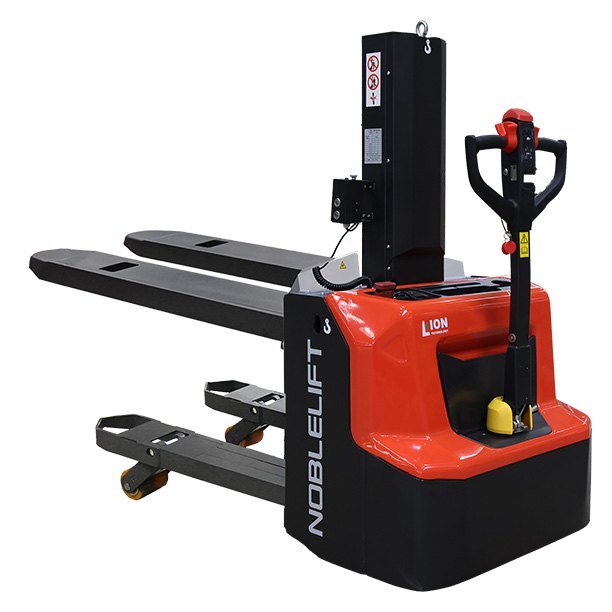

This professional material handling equipment comes standard with a 120 mm initial lift and an automatic leveling system, stabilizing the forks and improving comfort during internal travel.
Powered by a 24 V / 60 Ah lithium-ion battery, the stacker supports regular operation with fast charging and minimal battery maintenance.
An electric stacker with initial lift and automatic leveling, well suited for logistics warehouses, order picking, shelf replenishment and back-of-store operations.

Operating environments for the PSE12NMLINC electric stacker

The PSE12NMLINC is designed for use in warehouses, stockrooms, order picking zones, backrooms and production workshops. Its compact dimensions and pedestrian control make it suitable for circulation in storage aisles, shipping areas and door crossings.

The 120 mm initial lift is particularly useful when crossing thresholds, ramps and uneven floors, especially during transfers between docks, workshops and storage areas.

A 1350 mm turning radius and aisle width requirements (AST 2145 to 2197 mm, depending on pallet orientation) support integration into space-constrained facilities.

Within internal logistics flows, the PSE12NMLINC positions itself as a service electric stacker for regular pallet loading, transport and lifting, with a level of control compatible with day-to-day warehouse rhythms.

Key benefits of the PSE12NMLINC

The PSE12NMLINC “EDGE” integrates technical features focused on operational efficiency
Enhanced visibility with straddle mast design: the mast structure provides a clear view of the fork tips and load, simplifying pallet approach.
Standard automatic leveling system: stabilizes the working position, improving comfort and placement accuracy during pickup and set-down.
120 mm initial lift: facilitates crossing small obstacles and ramps, reducing interruptions caused by floor irregularities.
Compact format and high maneuverability: designed for operation in restricted areas, including dock-adjacent and order picking zones.
Lithium battery with fast charging: 24 V / 60 Ah Li-ion technology supports opportunity charging with no battery maintenance.
Secure access control: PIN code or RFID card start limits unauthorized use and supports multi-operator sites.

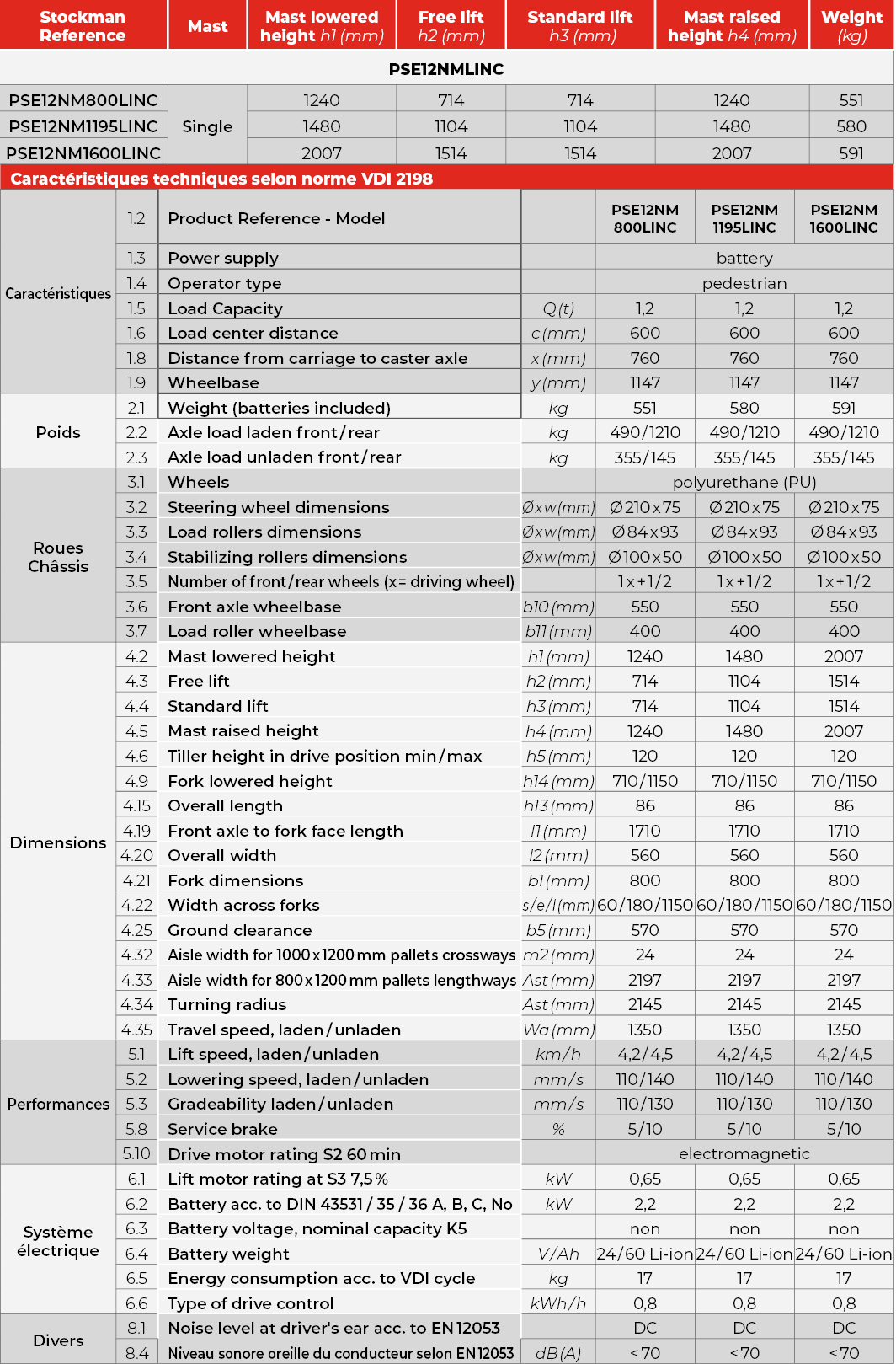

Technical specifications of the PSE12NMLINC
Frame, forks and load handling
The chassis is designed for robustness and stability within a compact layout. The main steel cover (approx. 1.5 mm thick) contributes to resistance against operational impacts. 1150 mm forks and an outside fork width of 570 mm are suitable for standard pallets, with a minimum fork height of 86 mm for easy pallet entry. The 120 mm initial lift provides additional clearance when transitioning between surfaces. Truck weight with battery ranges from 551 to 591 kg, depending on mast version, reflecting a stability-oriented design.
Travel and performance
Travel speed reaches 4.5 km/h unloaded and 4.2 km/h loaded, suitable for internal transport. Gradeability is 10% unloaded and 5% loaded, matching moderate ramps and indoor access points. An electromagnetic service brake supports controlled stopping and maneuvering.
Maneuverability and dimensions
An overall length of 1710 mm and overall width of 800 mm facilitate movement in narrow aisles. The 1350 mm turning radius allows efficient turning in confined spaces. Tiller operation in the vertical position supports precise maneuvering close to racking and in restricted areas.
Wheels and running gear
Polyurethane wheels are designed for clean indoor use. The Ø210 × 75 mm drive wheel and Ø84 × 93 mm front load rollers contribute to stable tracking, supported by dedicated stabilizer wheels. A 24 mm ground clearance confirms primary use on industrial floors.
Power, motors and energy
The 24 V / 60 Ah lithium-ion battery is paired with an integrated charger rated at 25 Ah (according to the data sheet). A 0.65 kW traction motor and 2.2 kW lift motor support lifting and travel cycles. Reported energy consumption of 0.8 kWh/h provides a reference for planning charging routines.

Ergonomics, safety and operator protection

The ergonomic tiller groups accessible controls and safety functions. An anti-crush button enhances protection during reverse travel. Creep speed mode supports precise low-speed movements, while automatic speed reduction in turns helps limit loss of control.

PIN code and RFID start structure access control in shared environments. An hour meter and diagnostic display facilitate usage monitoring.

Overall, the design aims to reduce pulling and pushing effort compared with manual stackers during repetitive cycles.

Productivity and operational gains

The compact footprint and maneuverability of the PSE12NMLINC support consistent internal material flows, particularly during replenishment and pallet transfer tasks. The 120 mm initial lift limits blockages at thresholds and level transitions. Lithium battery technology with fast charging enables short opportunity charges during downtime, supporting operational continuity. A noise level below 70 dB(A) allows smooth integration into indoor environments where acoustic comfort is important.

Typical applications for the electric stacker PSE12NMLINC

The PSE12NMLINC is commonly used for:
Replenishing picking locations and low-level storage areas
Placing pallets on intermediate rack levels, depending on mast height
Transferring pallets between receiving, storage and shipping zones
Handling goods in stockrooms, backrooms and workshops
Internal logistics service in narrow aisles and constrained circulation areas

Target users for the electric stacker PSE12NMLINC

This electric stacker is intended for warehouses, logistics platforms, light industry, public facilities and multi-operator sites seeking a 1200 kg lithium electric stacker for internal material flows. It meets handling requirements in aisles where visibility and maneuverability are critical and suits organizations looking for automatic leveling to improve load stability. It is also relevant for users requiring a compact stacker with initial lift to cross internal thresholds and ramps.
