LFC300

LFC300 Electric Tug / Pusher Tractor 300 kg lifting capacity

LFC300

LFC300 Electric Tug / Pusher Tractor 300 kg lifting capacity

The LFC300 electric tug and pusher tractor enables the traction of loads up to 1,500 kg. This professional handling equipment is designed for moving heavy loads in warehouses, reducing operator effort and improving safety thanks to its integrated light.

more information

	Designation

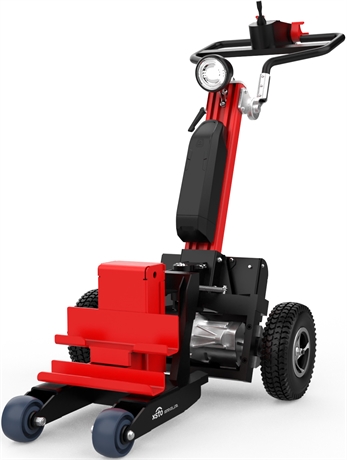

	LFC300 Electric tugger / pusher 300 kg Weight : 57 kg Bar code : 3700664813912

DESCRIPTION

TECHNICAL CHARACTERISTICS

The LFC300 is a motorized tug and pusher tractor designed for professional material handling and the controlled movement of heavy loads on site. It supports pulling, pushing and guiding operations, with a rated towing capacity of 1,500 kg and a lifting capacity of 300 kg.
This positioning meets the needs of environments where the movement of trolleys, rolling platforms or mobile equipment requires controlled effort and consistent safety.
Within the STOCKMAN range, the LFC300 is positioned as a compact, motorized solution focused on reducing physical strain and securing internal material flows. Two key elements structure its use: a 48V / 10Ah lithium-ion power supply suitable for daily operation, and enhanced visibility equipment with a reflective design and integrated light for low-light areas.

An electric tug and pusher tractor designed to reduce MSD risks
Electric tug and pusher equipment is particularly suited to logistics areas where repeated movements increase physical workload and the risk of incidents. Loading bays, warehouse aisles, retail stockrooms, maintenance workshops and order preparation areas are typical applications.
In these environments, the LFC300 provides traction and guidance to move heavy loads over short to medium distances, with a rated travel speed of 5 km/h. It also supports operational continuity when internal flows depend on the regular positioning of trolleys, roll containers or mobile equipment.
The rated maximum gradient of 10° allows use on ramps and controlled level changes, subject to appropriate traffic organization and suitable floor conditions.

Benefits of the LFC300 electric tug and pusher tractor

The LFC300 enables more consistent handling operations, with a significant reduction in human effort and improved control of movements.
Pulling and pushing up to 1,500 kg: limits traction and pushing effort when moving heavy loads.
300 kg lifting capacity: supports load start-up and positioning operations, depending on the coupling interface and accessories used.
48V / 10Ah lithium-ion battery: stable energy supply suitable for daily use, with a rated autonomy of up to 8 km on flat ground.

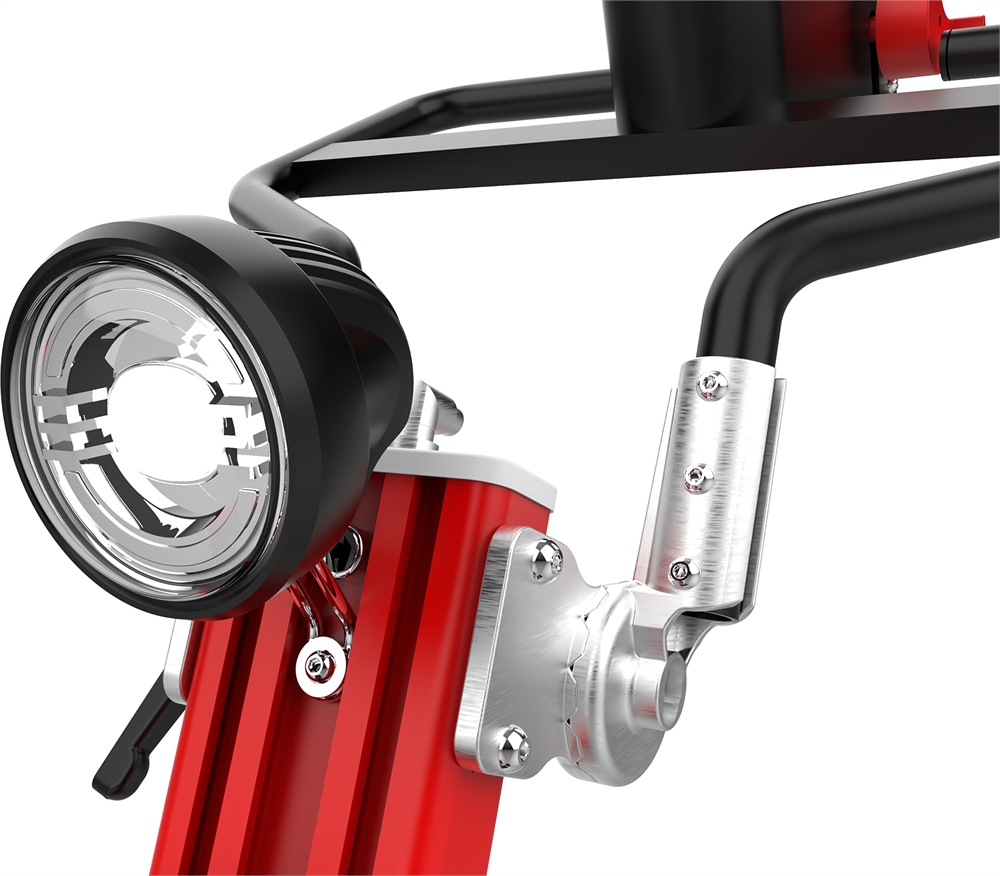

Visibility and safety: integrated light and reflective design improve equipment visibility in dark areas.
Driving comfort: durable rubber tires with an asymmetric tread pattern, suitable for industrial floors.
Compact footprint: overall dimensions of 1340 × 660 × 1120 mm, compatible with internal traffic constraints.

Technical characteristics for the LFC300 electric tug and pusher tractor
Structure / chassis / load
The LFC300 is based on a compact architecture that allows close positioning to the loads being moved. Its stated weight with battery of 56.8 kg contributes to stability during pulling and pushing phases, while remaining suitable for internal movement between workstations. The 1,500 kg towing capacity corresponds to heavy-load traction needs on appropriate rolling equipment, while limiting operator effort during start-up and maneuvering. The 300 kg lifting capacity is intended as assistance for load movement and positioning, depending on the coupling system and configuration.
Speed and circulation
The rated travel speed of 5 km/h is suited to workshop and warehouse traffic, with a noise level below 70 dB. This sound level integrates well into occupied environments where co-activity requires clear perception of movements. The 10° admissible gradient extends operating possibilities on ramps, provided that circulation is organized to maintain safety.
Maneuverability and dimensions
With an overall length of 1340 mm, width of 660 mm and height of 1120 mm, the LFC300 fits into work areas where space is limited. Its narrow width facilitates movement through aisles and storage zones, subject to site circulation widths. The tug/pusher function allows operation close to the load, improving trajectory control during maneuvers.
Wheels and rolling performance
The 10-inch durable rubber tyres provide grip suitable for industrial surfaces. The asymmetric tread pattern contributes to smoother rolling and improved traction on smooth or slightly uneven floors, enhancing stability during start-up and direction changes.
Power, motorisation and autonomy
The LFC300 is supplied with a 48V / 10Ah lithium-ion battery. This technology provides energy availability adapted to handling cycles. Rated autonomy reaches up to 8 km on flat ground and 3 km on inclines, covering typical internal movements over a working day depending on use intensity and site layout. The 110–240V charger facilitates integration across multi-site environments and standard charging areas.

Ergonomics, MSD prevention and safety
The motorised tug and pusher tractor is designed to reduce physical strain associated with pulling and pushing forces. The LFC300 limits physical stress during heavy-load movements, contributing to the prevention of musculoskeletal disorders (MSDs) in repetitive operations. Motorisation replaces a significant part of human effort, particularly during start-up, threshold crossing and repositioning manoeuvres.
Safety is also supported by visibility features. The reflective design and integrated light improve equipment detection in dark areas, stockrooms and corridors. The noise level below 70 dB supports more comfortable co-activity, while still requiring compliance with internal traffic and priority rules. Productivity and operational gains
The LFC300 is designed to support continuous daily operation through reliable motor assistance and autonomy adapted to internal circulation. Heavy-load movements become more consistent, with reduced effort and improved trajectory control. This regularity supports daily flow organisation, as positioning, approach and transfer operations require fewer interruptions and fewer fatigue-related breaks.
The rated autonomy of up to 8 km on flat ground enables repeated routes, with simple recharging via a 110–240V charger. The 10-inch tyres contribute to stable rolling performance, limiting time losses linked to repositioning and trajectory corrections.

Typical applications for the LFC300 electric tug and pusher tractor
Movement of heavy trolleys between receiving and storage areas
Transfers between order picking and dispatch zones
Positioning of rolling equipment in maintenance workshops
Towing of mobile equipment on industrial sites
Assistance with load movement on loading bays and docks
Traction applications for vehicle towing, depending on configuration and coupling interface

Who is this product for?

The LFC300 is intended for environments where material handling involves heavy loads and frequent movements. It meets the needs of logistics teams, workshops and industrial sites looking for an electric tug and pusher tractor to move heavy loads in warehouses, a 1,500 kg electric tug for securing internal movements, or a motorised traction solution to reduce physical strain and stabilise work rates.

It is also suitable for organisations seeking to structure internal flows with electric traction assistance, while maintaining a footprint compatible with operational traffic constraints.
